Ceramic vs Electrolytic Capacitor --- A Basic Introduction
In a compact audio amplifier circuit, a ceramic capacitor may be utilized to couple audio signals between stages, providing high stability and minimal losses, essential for maintaining sound quality. In the power supply section, an electrolytic capacitor is utilized to eliminate electronic noise and ensure a steady DC voltage, as its high capacitance is crucial for managing variations in the supply. This pairing enables the amplifier to operate efficiently, providing clear sound and ensuring reliable power, highlighting the benefits of both capacitor varieties in one application. So what is the enigma behind it? Let's explore this article and uncover all there is to know about Ceramic versus Electrolytic Capacitors.
Important Differences Between Types of Capacitors
These two capacitors are very common types of capacitors, and learning the differences can help to find the most suitable one for buyers.

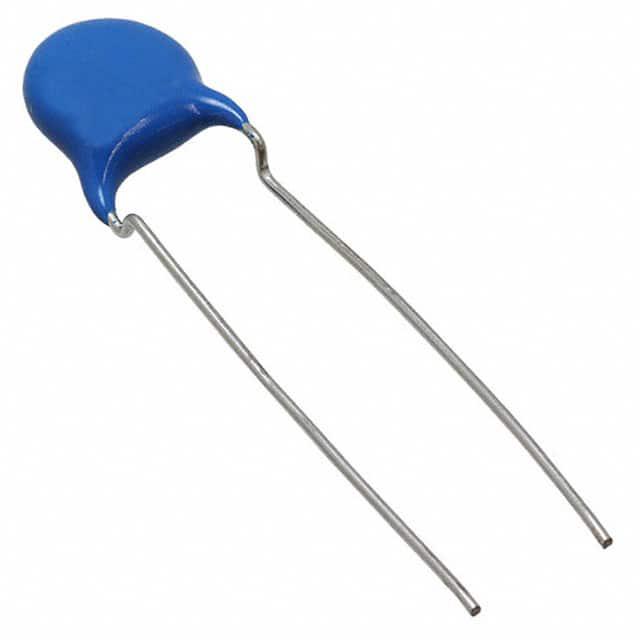

What is a Ceramic Capacitor?
A ceramic capacitor uses a ceramic material as its dielectric. Ceramics were one of the first materials used in capacitor production, as they were identified as an insulator. Various geometries have been employed in ceramic capacitors, with certain types, like ceramic tubular capacitors and barrier layer capacitors, now regarded as outdated due to their size, parasitic effects, or electrical characteristics. The ceramic capacitors commonly found in modern electronics are the multi-layer ceramic capacitor, referred to as the ceramic multi-layer chip capacitor (MLCC), and the ceramic disc capacitor. MLCCs are the most widely produced capacitors, totaling an annual output of approximately 1000 billion units. They are made using SMD (surface-mounted) technology and are frequently used due to their small size. Typically, ceramic capacitors possess low capacitance values, often from 1nF to 1µF, though they can achieve up to 100µF. Ceramic capacitors are relatively small in size and have a low maximum voltage capacity. They are non-polarized, meaning they can be securely connected to an AC power supply. Ceramic capacitors demonstrate outstanding frequency response due to low parasitic effects such as resistance and inductance.

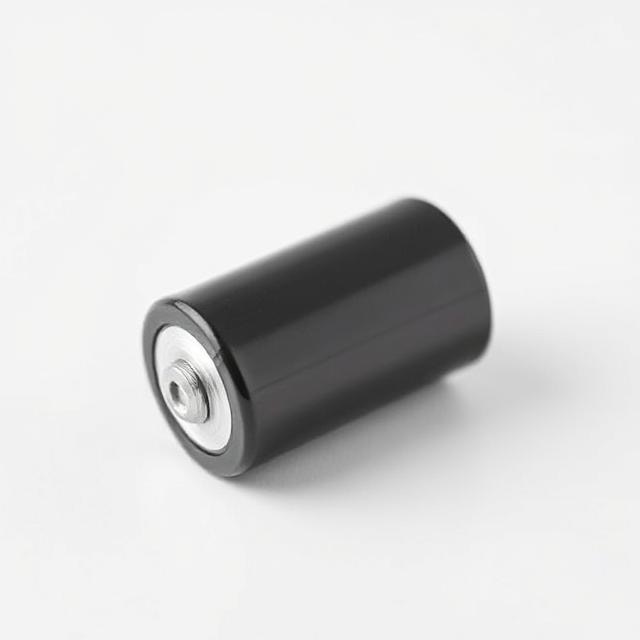

What is an Electrolytic Capacitor?
An electrolytic capacitor is a kind of capacitor that employs an electrolyte to attain a greater capacitance compared to other type of capacitor. An electrolyte is a gel or liquid that has a high concentration of ions. Nearly all electrolytic capacitors are polarized, indicating that the voltage at the positive terminal must consistently exceed that of the negative terminal. The advantage of high capacitance in electrolytic capacitors is accompanied by various disadvantages as well. These disadvantages include significant leakage currents, tolerance values, equivalent series resistance, and a restricted lifespan. Electrolytic capacitors may be classified as either wet-electrolyte or solid polymer. They are typically composed of tantalum or aluminum, although different materials might be utilized. Supercapacitors are a distinct category of electrolytic capacitors, known as double-layer electrolytic capacitors, that possess capacitances ranging from hundreds to thousands of farads. This article will focus on aluminum electrolytic capacitors. These possess a usual capacitance ranging from 1µF to 47mF and can operate at voltages up to several hundred volts DC. Aluminum electrolytic capacitors are utilized in various applications including power sources, computer motherboards, and numerous household devices. Due to their polarization, they can only be u in DC circuits.
an Electrolytic Capacitor
Capacitance Range
Typical Capacitance Values for Ceramic Capacitors
Ceramic capacitors are widely recognized for their versatility and are available in a variety of capacitance values. They generally fall into two main categories: Class 1 and Class 2 ceramic capacitors.
Class 1 Capacitors:
These capacitors generally provide stability and minimal capacitance values. Typical capacitance values for Class 1 ceramic capacitors vary from 1 picofarad (pF) to 100 nanofarads (nF). They are perfect for uses that need accuracy and steadiness, like timing circuits and RF applications.
Class 2 Capacitors:
Conversely, Class 2 ceramic capacitors offer greater capacitance values. They typically vary from 10 nanofarads (nF) to 10 microfarads (µF). These capacitors are ideal for situations where size is limited and variations in capacitance with voltage are permissible, like in power supply filtering and bypassing.
High-Voltage Options:
When examining high-voltage ceramic capacitors, it’s typical to encounter values between 10nF and 1µF. While they provide adequate capacitance, they frequently display a phenomenon referred to as voltage derating, potentially resulting in a notable reduction in capacitance at elevated voltage levels. This is especially critical for designers to consider when choosing a capacitor for applications that could function under different voltage conditions.
Summary of Ceramic Capacitor Capacitance Ranges
In summary, ceramic capacitors come in a wide variety of capacitance values based on their classification:
Class 1 Capacitors: 1 pF to 100 nF – Ideal for precise applications.
Class 2 Capacitors: 10 nF to 10 µF – Perfect for general use and filtering applications.
High-Voltage Ceramic Capacitors: Usually 10 nF to 1 µF – Suitable for applications that need reliable voltage capacity.
For designers, choosing the right ceramic capacitor requires knowledge of the particular application, operating environment, and expected performance traits.
Typical Capacitance Values for Electrolytic Capacitors
Electrolytic capacitors, known for their ability to store greater energy relative to their size, are available in a broader range of capacitance values compared to ceramic capacitors. They are primarily used in power applications due to their high capacitance, but are not as suitable for high-frequency applications.
Low to Medium Capacitance Range:
Electrolytic capacitors generally show capacitance values from 1 microfarad (µF) to multiple thousands of microfarads (mF). In most consumer electronics applications, these capacitors typically vary from 1 µF to 1000 µF. They are commonly utilized in power supplies, audio equipment, and signal coupling uses. Their capacity to reduce voltage variations is crucial for filtering purposes.
High Capacitance Range:
For applications that need greater capacitance, large electrolytic capacitor types can surpass 10,000 µF, with specific models that can achieve 100,000 µF or greater. These high-capacitance models are essential in uses such as power storage, energy reserves in renewable energy setups, and as decoupling capacitors in significant power supply circuits. They offer significant energy storage potential, ensuring a steadier and more reliable output in energy-demanding uses. This renders them perfect for application in electric vehicles, industrial equipment, and UPS (Uninterruptible Power Supply) systems, where abrupt surges in power requirements may happen.
Characteristics of High Capacitance Electrolytic Capacitors
High-capacity electrolytic capacitors usually possess distinct features that set them apart from both lower-capacitance types and ceramic capacitors:
Voltage Levels: High-capacitance electrolytic capacitors come in various voltage levels, allowing designers to select the appropriate choices for their specific application. However, it's crucial to operate them at a voltage below their specified capacity to ensure consistent performance and longevity.
Ripple Current Control: In high-load situations, the ripple current—produced by the switching of power supply circuits—can significantly affect capacitor performance. High-capacity electrolytic capacitors are designed to handle higher ripple currents, minimizing heat generation and decreasing the likelihood of failure.
Size and Form: Generally, as capacitance increases, the physical size of electrolytic capacitors also grows. High-capacitance capacitors can be considerably wider in diameter and taller, which may be an important factor.
Size and Form: Generally, as the capacitance grows, the physical size of electrolytic capacitors tends to expand as well. High-capacitance capacitors can be considerably larger in diameter and height, which can be a crucial aspect in circuit design when space constraints are a concern. This increased size stems from the construction method, which often uses metal enclosures that hold the electrolyte and electrode layers. While this ensures reliable performance, designers often need to consider the space and weight constraints in the applications that use these capacitors.
Polarity: In contrast to ceramic capacitors that are non-polarized and can be wired in any orientation, electrolytic capacitors are polarized. This indicates that they possess a positive and a negative terminal, and improper connection may result in disastrous failure, such as venting, leakage, or even an explosion. It is crucial for circuit designers and engineers to focus closely on the orientation during PCB design and assembly.
Temperature Sensitivity: Electrolytic capacitors generally exhibit a greater sensitivity to fluctuations in temperature. Increased operating temperatures can significantly shorten their lifespan and efficiency. Choosing capacitors with suitable temperature ratings according to their intended application environment is essential.
Tolerance
Voltage Ratings of Ceramic Capacitors
Capacitors of the ceramic type exhibit a greater tolerance for voltage fluctuations than their electrolytic equivalents. This trait makes them perfect for uses that need high-voltage stability. Ceramic capacitors are categorized with different voltage ratings that specify the highest voltage that can be applied safely without the risk of breakdown. This is especially crucial in circuits that could encounter temporary voltage surges or variations.
The voltage ratings of ceramic capacitors can vary significantly, spanning from a few volts to multiple kilovolts, based on the dielectric material used in their design. The typical dielectrics present in ceramic capacitors, like X7R and C0G (NP0), not only establish the capacitance range but also significantly influence voltage stability.
Types of Dielectric Materials
The dielectric substance utilized in ceramic capacitors greatly affects the capacitance value as well as the voltage rating. For example, C0G (NP0) dielectrics are recognized for their remarkable stability and minimal temperature coefficient, rendering them appropriate for high-precision applications. They are capable of managing increased voltage levels while ensuring steady performance over wide temperature range. Conversely, X7R dielectrics provide a greater capacitance value in a compact size, although they might experience a larger capacitance variation with changes in temperature and voltage stress.
Breakdown Voltage
A crucial factor to examine when assessing the voltage ratings of ceramic capacitors is their breakdown voltage, which denotes the highest voltage a capacitor can endure before facing failure or breakdown. Surpassing this voltage may cause the dielectric to turn conductive, resulting in short circuits and possibly harming the nearby circuit components. Engineers should choose a ceramic capacitor with a breakdown voltage much greater than the circuit's operating voltage to guarantee reliability and durability.
Derating Recommendations
To enhance the longevity and dependability of ceramic capacitors, producers advise a method called derating. This idea proposes using the capacitor at a voltage much lower than its specified maximum. Generally, it is recommended that capacitors function at approximately 50% to 70% of their specified voltage. This additional safety buffer assists in guaranteeing that elements such as temperature fluctuations, voltage surges, and aging do not result in early failure. Derating improves the reliability of the capacitor and reduces the likelihood of dielectric breakdown, thus maintaining the integrity of the complete circuit.
Voltage Ratings of Electrolytic Capacitors
Electrolytic capacitors, in contrast to ceramic ones, exhibit unique traits regarding their voltage ratings. The highest voltage a capacitor can withstand without failing is referred to as the rated voltage, which greatly differs among various capacitor types. For electrolytic capacitors, this specified voltage is essential, as surpassing it can result in serious issues, such as leakage, venting, or potentially catastrophic failure.
Characteristics of Electrolytic Capacitors
Electrolytic capacitors generally have a polarized configuration, indicating they possess a positive and negative terminal. The voltage ratings are linked to this polarization, and switching the polarity may result in immediate failure. Consequently, knowing the voltage helps prevent users from mistakenly connecting the capacitor improperly, which could affect circuit performance.
Typically, electrolytic capacitors are preferred for applications that need substantial capacitance in a fairly small size. They are widely utilized in power supply circuits, filtering applications, and energy storage systems because of their high energy density. Nonetheless, they are also responsive to voltage levels and need careful treatment to avoid harm.
Recommended Voltage Derating for Electrolytic Capacitors
Like ceramic capacitors, it is also recommended to derate electrolytic capacitors in order to improve their operational reliability. It is generally advised that electrolytic capacitors function at approximately 70% to 80% of their rated voltage, though this value may vary depending on particular application circumstances. By following these recommendations, designers can assist in minimizing risks related to voltage surges, temperature fluctuations, and production inconsistencies that may result in a shorter lifespan.
Temperature significantly influences the effectiveness of electrolytic capacitors and their rated voltages. When the surrounding temperature rises, the effective voltage rating of an electrolytic capacitor can lessen. This occurs because elevated temperatures can result in greater internal pressure and possible leakage of the electrolyte, especially in aluminum electrolytic capacitors. As a result, it is essential to take into account both the operating temperature and electrical conditions when designing circuits that use electrolytic capacitors, which might require additional voltage derating.
Polarization
Ceramic Capacitors and Polarization
Ceramic capacitors are naturally non-polar. This feature allows them to be linked in either way in a circuit without the possibility of harm. This flexibility makes circuit design easier, especially in scenarios where connections could be inverted.
The non-polar characteristic of ceramic capacitors enables their use in AC (Alternating Current) applications and in circuits where the direction of voltage may vary. Their broad frequency range makes them appealing in numerous contexts, from eliminating high-frequency noise to serving as a bypass in power supply systems. The lack of polarization not only improves their versatility but also prolongs their longevity in specific applications, since they are not exposed to possible harm from reverse polarity.
Advantages of Non-Polarization
Design Flexibility: The capacity to link ceramic capacitors in both directions provides designers with enhanced flexibility in arranging circuit boards, which can save space and lower complexity.
Resilience to Over-voltage: Ceramic capacitors exhibit reduced sensitivity to voltage spikes and can manage over-voltage conditions, an essential aspect in various electronic designs where unforeseen surges may happen.
Design Flexibility: The option to connect ceramic capacitors in both directions allows designers more freedom in circuit board layouts, which can lead to space savings and decreased complexity.
Resilience to Over-voltage: Ceramic capacitors are more tolerant of voltage spikes and can manage over-voltage conditions, an essential aspect in numerous electronic designs where unforeseen surges may happen.
Inherent Stability: Due to their non-polarized characteristics, ceramic capacitors exhibit enhanced stability over a wide range of temperatures and voltages. This trait is particularly beneficial in settings with changing conditions, minimizing the chances of performance decline over time.
Reduced ESR and ESL: Ceramic capacitors generally exhibit lower Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL) when compared to electrolytic capacitors. This results in enhanced efficiency and performance in high-frequency applications, rendering them perfect for RF circuits and decoupling purposes.
Electrolytic Capacitors and Polarization
Capacitors of the electrolytic type are components with polarity. This indicates they possess a unique positive and negative terminal, and improper installation may result in disastrous outcomes, like leaking or exploding. This polarization limits their use mainly to direct current (DC) circuits, in which the voltage direction is consistent and established.
In many circuit designs, electrolytic capacitors are employed in coupling and decoupling applications. While ceramic capacitors often take the lead in high-frequency applications due to their stability and low Equivalent Series Resistance (ESR), electrolytic capacitors are leveraged when larger capacitance values are needed at lower frequencies. These capacitors help in blocking DC while allowing AC signals to pass, thus playing a significant role in audio equipment and communication circuits.
Temperature Stability
Performance Under Temperature Fluctuations for Ceramics
Ceramic capacitors demonstrate remarkable performance stability across a wide range of temperatures. Their composition consists of inorganic substances, making them more resilient to changes in the environment. Typically, most ceramic capacitors operate well within a temperature range of -55°C to +125°C, although some high-end varieties can tolerate even higher temperatures.
One significant advantage of ceramic capacitors is their minimal capacitance variation when there are temperature changes. This ensures that circuits remain reliable and stable, even under changing conditions. Unlike electrolytic capacitors, which can experience substantial performance drops in extreme temperatures, ceramic capacitors maintain stable characteristics, rendering them ideal for precision applications such as oscillators and filters.
Dielectric Properties
The dielectric material present in ceramic capacitors, usually composed of barium titanate or various ferroelectric ceramics, improves their ability to withstand temperature variations and electrical stress. The dielectric constant can vary depending on the specific type of ceramic; however, high-K dielectrics generally provide enhanced capacitance in a smaller volume, leading to more compact circuit designs.
The dielectric properties of ceramic capacitors are crucial in assessing their electrical performance. Key characteristics such as dielectric constant, dissipation factor, and insulation resistance affect the functionality of these components in various applications.
The dielectric constant, often referred to as relative permittivity, demonstrates the ability of a dielectric substance to accumulate energy in relation to a vacuum. Ceramic capacitors typically exhibit higher dielectric constants, particularly those constructed with high-K ceramics that feature barium titanate. This feature allows for higher capacitance per unit of volume, making ceramic capacitors perfect for situations with space constraints. The choice of dielectric substance significantly affects the overall dimensions and efficiency of the capacitor in holding electrical energy, enabling more compact device designs without compromising effectiveness.
Dissipation Factor
The dissipation factor (DF) indicates how effectively a capacitor stores energy; lower DF values signify decreased energy loss while in operation. Ceramic capacitors generally demonstrate a low dissipation factor, which improves their efficiency, especially in high-frequency applications. This slight energy loss is essential for decreasing heat generation, subsequently enhancing the longevity and reliability of the capacitor.
On the other hand, electrolytic capacitors exhibit a higher dissipation factor due to their electrolytic construction and the interaction that occurs between the electrolyte and the anode. This could lead to increased energy loss during operation, particularly at higher frequencies. As a result, electrolytic capacitors may not function as efficiently as their ceramic counterparts in situations that require rapid charge-discharge cycles or where minimizing thermal effects is crucial.
Additionally, the heightened dissipation factor in electrolytic capacitors might likewise influence their overall reliability. Excessive energy losses can lead to heat buildup, which may harm the insulation layer over time and lead to failures. Consequently, while electrolytic capacitors are favored for applications requiring high capacitance values, such as power supply filtering and energy storage, their high DF limits their effectiveness in high-performance, high-frequency circuits.
Frequency Response
When evaluating capacitors regarding frequency response, ceramic capacitors excel due to their minimal equivalent series resistance (ESR) and inductance (ESL). This trait allows them to maintain consistent capacitance across a wide range of frequencies. In RF and microwave circuits for high-frequency applications, ceramic capacitors are preferred because they operate effectively with minimal signal distortion or phase shift.
Their ability to handle rapid transients and quick switching makes ceramic capacitors ideal for digital circuits, where quick response times are essential.
In contrast, electrolytic capacitors generally exhibit poor performance at high frequencies. Their increased ESR and ESL might lead to unwanted phase shifts and signal distortions as the frequency increases. This behavior raises significant issues in RF applications where maintaining signal integrity is crucial. The inherent capacitance levels of electrolytic capacitors—while higher compared to other types—come with limitations in frequency response, often rendering them unsuitable for circuits requiring rapid signal changes.
Moreover, ceramic capacitors offer a broader range of capacitance choices in small sizes, enabling them to be suitable for various applications without significant performance compromises. Their small size and light weight provide engineers with increased design flexibility, especially when trying to minimize a device's physical footprint.
Temperature Stability
Another important factor to take into account when evaluating ceramic and electrolytic capacitors is their temperature stability. Ceramic capacitors typically exhibit a better temperature coefficient, allowing them to retain their capacitance values over a wider temperature spectrum. This stability is especially beneficial in settings with varying temperatures, providing reliable performance without significant changes.
In contrast, electrolytic capacitors are more vulnerable to temperature fluctuations, which can result in alterations in capacitance and a decline in performance. As temperatures increase, electrolytic capacitors may show a notable reduction in their effective capacitance, along with higher leakage currents. This temperature sensitivity may lead to failure types like swelling or even bursting, particularly if they aren’t properly derated for their operational conditions.
Moreover, the functionality of electrolytic capacitors is additionally influenced by their electrolyte makeup, which may deteriorate over time because of environmental factors. Elevated temperatures can hasten this deterioration, leading to a shorter lifespan and lower reliability, especially in power electronics or environments with elevated ambient temperatures. Conversely, ceramic capacitors exhibit increased reliability in varying environmental conditions. They are capable of enduring various temperatures while maintaining their performance traits, which makes them ideal for uses in automotive electronics, aerospace systems, and outdoor equipment subjected to different weather conditions.
Performance Under Temperature Fluctuations for Electrolytics
Electrolytic capacitors encounter distinct difficulties in preserving their performance during temperature variations. As previously stated, these capacitors depend greatly on electrolytic solutions, which enhance their capacitance. Nonetheless, as temperatures rise, the viscosity of the electrolyte may alter, resulting in a higher equivalent series resistance (ESR) and reducing the overall efficiency of the capacitor.
This fluctuation in ESR may result in various performance problems. For instance, when ESR increases, the capacitor's ability to smooth voltage ripples diminishes, which is vital for power supply applications. In applications involving high frequency, a rise in ESR can compromise signal integrity, resulting in distortion and reduced performance. Additionally, electrolytic capacitors functioning continuously in elevated temperature settings may experience accelerated aging, leading to a decline in capacitance as time progresses.
Additionally, the physical designs of electrolytic capacitors—usually cylindrical or polarized—render them more susceptible to thermal stress. Under high temperatures, the dielectric oxide layer responsible for charge storage may fail, leading to severe issues such as venting, leakage, or even explosions. Under high-stress circumstances, like in power amplifiers or high-current scenarios, these hazards are intensified. The risk of failure necessitates meticulous thermal management and frequently limits the operating voltage of electrolytic capacitors to minimize the chances of breakdown.
The lifespan of electrolytic capacitors is fundamentally connected to their operating environment. Generally rated for a certain number of hours at a specified temperature (commonly 105°C), their true lifespan can diminish considerably if they are regularly exposed to elevated thermal conditions or excessive ripple currents. Nonetheless, electrolytic capacitors are preferred in situations requiring high capacitance values, and their affordability makes them appealing for numerous consumer electronic items.
Under situations of extreme heat or voltage stress, electrolytic capacitors can demonstrate what is referred to as "catastrophic failure mode," in which the internal pressure of the capacitor rises significantly, frequently resulting in venting and rapid gas release. As these components are polarized, improper installation can increase risks and result in quick failure.
Current Capability
Current Handling in Ceramic Capacitors
Ceramic capacitors demonstrate strong capabilities in managing current. A primary benefit of ceramic capacitors is their minimal equivalent series resistance (ESR), enabling them to manage high-frequency applications effortlessly. This low ESR results in reduced power loss, which is especially advantageous in circuits where efficiency is crucial, like in power supplies and switching converters.
The physical design of ceramic capacitors, usually made up of a ceramic dielectric material positioned between conductive plates, enables them to withstand significant ripple currents. Their capacity to dissipate heat rapidly avoids the accumulation of thermal stress, rendering them appropriate for uses involving fluctuating voltages or currents. This trait also lengthens their lifespan in comparison to electrolytic alternatives, especially in challenging settings.
Another aspect to take into account is the voltage rating. Ceramic capacitors are more capable of managing high voltage surges because of their non-polar characteristics. They are not subjected to the same risks linked to polarization that impact electrolytic capacitors. Consequently, users can set them up in any position without the threat of damage, making circuit design easier and improving operational dependability.
Yet, it is essential to choose the right kind of ceramic capacitor for particular applications. Different dielectric materials show distinct temperature and voltage coefficients, which can greatly influence their performance in changing environmental conditions. For example, Class 1 ceramic capacitors, constructed with materials such as NP0 (C0G), offer stable capacitance across extensive temperature ranges, yet their capacitance values are lower than those of Class 2 capacitors, which consist of X7R and Y5V types. Class 2 ceramics can provide greater capacitance in smaller dimensions, but they might undergo considerable capacitance reduction under extreme temperatures or elevated DC bias voltages.
Additionally, it is crucial to understand how the capacitance of the capacitor varies with DC bias. When voltage is applied to a ceramic capacitor, the capacitance may reduce because of dielectric saturation. This occurrence must be considered in precision applications, and designers should consult the capacitor's specifications to evaluate capacitance variations under various operating conditions.
In general, although ceramic capacitors possess remarkable current handling abilities, careful evaluation of their physical and electrical characteristics is crucial for successful usage. They perform exceptionally well in high-frequency and high-efficiency situations; nonetheless, their dielectric characteristics require careful consideration to guarantee optimal performance and dependability.
Current Handling in Electrolytic Capacitors
Electrolytic capacitors are mainly intended for high-capacitance uses and are commonly employed in power supply circuits, audio devices, and signal coupling scenarios. They are defined by their comparatively high capacitance values that range from microfarads (µF) to farads (F), which makes them suitable for energy storage, smoothing, and filtering uses.
Electrolytic capacitors are made of two conductive plates divided by an electrolyte that serves as the dielectric. This distinctive design enables a high capacitance within a small size. Nonetheless, this arrangement also enforces specific constraints. Electrolytic capacitors are primarily polarized, which indicates that they contain a positive and a negative terminal that need to be hooked up accurately in the circuit. Changing the polarity can result in capacitor failure, which may cause leakage or even disastrous breakdown.
Furthermore, electrolytic capacitors have a greater Equivalent Series Resistance (ESR) than ceramic capacitors. This trait can result in greater heat production in high-frequency uses, influencing overall efficiency. Consequently, designers need to take into account the operating frequency and ripple current capacity to prevent thermal problems.
Equivalent Series Resistance (ESR)
ESR in Ceramic Capacitors
Ceramic capacitors usually show significantly lower Equivalent Series Resistance (ESR) than their electrolytic equivalents. The reduced ESR mainly results from the materials and manufacturing techniques employed in ceramic capacitors, enabling enhanced efficiency in high-frequency uses. As a result, ceramic capacitors are preferred in circuits that need rapid responses and can handle high ripple currents.
The advantages of low ESR can be considerable, especially in power supply applications where energy efficiency is crucial. A reduced ESR lowers power loss and decreases heat production, thereby improving the lifespan and dependability of the capacitor. Furthermore, the decreased heat generation allows ceramic capacitors to function more efficiently in high-frequency switching applications, where their high-frequency properties are utilized.
Nonetheless, it's essential to recognize that not every ceramic capacitor is identical. The ESR can differ significantly based on the particular type and category of ceramic capacitor used. For instance, Class 1 ceramic capacitors typically exhibit significantly lower ESR compared to Class 2 types, which can demonstrate fluctuations in capacitance when exposed to high-voltage scenarios. Thus, when choosing a ceramic capacitor for high-performance uses, engineers need to thoroughly examine the specifications to guarantee compatibility with the anticipated frequency and load conditions.
ESR in Electrolytic Capacitors
Equivalent Series Resistance (ESR) is an essential factor in the functionality of electrolytic capacitors. In contrast to ceramic capacitors, known for their low ESR, electrolytic capacitors possess a higher resistance that changes considerably based on various factors, such as the design of the capacitor and its intended use. Typically, the ESR for aluminum electrolytic capacitors can vary from about 0.5 to 30 Ohms.
A key feature of electrolytic capacitors is their design, which generally consists of a lengthy plate coiled into a spiral. This design leads to a greater ESR and also causes a rise in Equivalent Series Inductance (ESL). The elevated ESL in electrolytic capacitors makes them almost useless for uses beyond 100 kHz to 150 kHz. Above these frequencies, they act more like resistors instead of capacitors, insufficiently filtering voltage ripple and high-frequency noise. Rather than delivering the anticipated capacitance, the voltage fluctuation across the capacitor equals the ripple current times the capacitor's ESR, potentially intensifying ripple problems in the circuit.
This elevated ESR greatly affects the performance of electrolytic capacitors across multiple applications. In power circuits, the ESR plays a role in heat dissipation, potentially influencing the capacitor's overall temperature. In RF applications, a high ESR diminishes the circuit's quality factor (Q), resulting in poorer energy storage and signal coupling. In decoupling scenarios, the series resistance can impede the capacitor's capability to divert undesired spikes and ripple to ground, reducing its effectiveness in sustaining a stable voltage level.
To overcome the challenges caused by high ESR, there are specialized low ESR electrolytic capacitors. These capacitors are engineered to reduce internal resistance, thus improving efficiency in scenarios where ESR is crucial. Nevertheless, even with low ESR choices, it is essential to be cautious in choosing the appropriate capacitor for high-frequency uses because of the inherent ESL properties.
In conclusion, the ESR of electrolytic capacitors is vital in defining their efficiency in filtering, decoupling, and energy storage uses. Grasping and taking into account ESR, along with various other factors, is crucial for enhancing circuit design and guaranteeing dependability in electronic systems.
Reliability and Lifetime
Lifespan of Ceramic Capacitors
Ceramic capacitors are renowned for their reliability and longevity in electronic applications. Their lifespan can be influenced by several factors including material properties, application conditions, and environmental factors. Here’s an overview of what affects the lifespan of ceramic capacitors:
Material and Construction
Ceramic capacitors are made from inorganic and non-metal substances like ceramic or porcelain, which enhance their longevity. The insulating materials found in ceramic capacitors, particularly those categorized as Class 1 (e.g., NP0/C0G) and Class 2 (e.g., X7R, Y5V), can greatly influence their durability. Class 1 ceramics generally show more consistent electrical properties over time and are less prone to aging compared to Class 2 ceramics, which might undergo changes in capacitance because of fluctuations in temperature and voltage.
Operating Conditions
Ceramic capacitors are ideally suited for a broad temperature operating range, generally from -55°C to 125°C, and can also operate in more extreme conditions. Nonetheless, factors like voltage and temperature can affect their longevity. Although ceramic capacitors typically endure high temperatures effectively, elevated voltage may result in breakdown or diminished capacitance as time passes. It’s essential to derate ceramic capacitors (i.e., utilize them under their maximum rated voltage) to improve their lifespan, especially in high-stress conditions.
Aging Effects
In contrast to tantalum capacitors that exhibit a specific wear-out mechanism, ceramic capacitors do undergo aging, especially those belonging to Class 2 types. The capacitance of Class 2 ceramic capacitors may diminish over time because of influences like electrical stress and environmental factors. Nonetheless, the aging process is generally gradual, and when correctly rated and utilized within their specifications, ceramic capacitors can offer consistent performance for many years.
Humidity and Environmental Factors
Ceramic capacitors are generally resistant to moisture, making them suitable for use in humid environments. However, exposure to extreme temperatures, contaminants, or mechanical stress can potentially affect their performance and lifespan. Proper encapsulation in circuit designs can help mitigate these risks.
Expected Lifespan
In practical terms, the lifespan of ceramic capacitors can often exceed 10-20 years when operated within their specified limits. Their long-term reliability makes them ideal for applications in critical electronic circuits where stability and longevity are paramount.
Conclusion
In general, ceramic capacitors are a reliable option in electronic design, providing an extended lifespan when utilized correctly. Elements like material selection, operating circumstances, and environmental factors are essential in influencing their durability. By choosing the appropriate ceramic capacitor and following best practices in circuit design, designers can guarantee dependable performance over long durations, rendering them a preferred component in numerous applications.
Lifespan of Electrolytic Capacitors
Electrolytic capacitors are widely used in electronic circuits due to their high capacitance density and ability to handle significant voltage levels. However, one of the most critical factors that engineers and designers must consider when selecting electrolytic capacitors is their lifespan. Understanding the lifespan of these components is essential for ensuring the reliability and longevity of electronic devices.
Factors Affecting Lifespan
- Electrolyte Evaporation: The main cause of the short lifespan of electrolytic capacitors is the slow evaporation of the electrolyte. With time, the conductive fluid within the capacitor may reduce, resulting in lower capacitance and higher equivalent series resistance (ESR). This process speeds up at elevated ambient temperatures.
- Temperature: The lifespan of electrolytic capacitors is greatly affected by operating temperature. Increased temperatures can accelerate the electrolyte's evaporation, resulting in a reduced lifespan. Producers frequently indicate a highest operating temperature, beyond which the capacitor's lifespan may be affected.
- Voltage Rating: Capacitors are engineered to function within a particular voltage range. Surpassing this voltage may cause the dielectric layer to break down, potentially leading to severe failure. Consistent functioning at or beyond the rated voltage may also expedite aging.
- Ripple Current: The ripple current—an AC that passes through the capacitor along with the DC—creates extra heat owing to the capacitor's ESR. When the ripple current surpasses the capacitor's limits, it may cause overheating and shorten its lifespan.
- Storage Conditions: Electrolytic capacitors are affected by their storage environment. When kept unused for long durations, particularly in environments with high temperatures or humidity, the electrolytic layer may deteriorate, resulting in higher leakage current and diminished performance when put to use.
- Polarity: Electrolytic capacitors are polarized components, meaning they must be connected in the correct orientation. Incorrect polarity can destroy the capacitor, leading to rapid failure. Ensuring the correct connection is crucial for extending lifespan.
Typical Lifespan
The life expectancy of electrolytic capacitors is typically measured in operational hours at a defined temperature and voltage. For typical aluminum electrolytic capacitors, the lifespan may vary between 1,000 and 10,000 hours when functioning at the specified voltage and temperature (usually about 85°C). Capacitors created for applications requiring increased reliability or with particular low-ESR features can possess longer lifetimes, typically rated between 2,000 to 10,000 hours at elevated temperatures of 105°C or higher.
Refreshing Lifespan
For aged electrolytic capacitors or those stored for a while, a process called "reforming" may help regain some functionality. This entails using a low current and progressively raising the voltage to restore the oxide layer on the capacitor's anode. This procedure can assist in reducing leakage and enhancing performance, but it must be undertaken carefully to prevent harm.
Conclusion
In conclusion, although electrolytic capacitors are beneficial for various applications needing high capacitance, their lifespan is affected by several factors, such as temperature, voltage, ripple current, and storage conditions. When choosing electrolytic capacitors, designers need to take these factors into account to guarantee dependable and enduring performance in their circuits. Consistent oversight and upkeep of these parts, particularly in crucial applications, can prevent early breakdowns and improve the overall dependability of electronic devices.
Application
Application of Ceramic Capacitors
General Purpose Applications
Ceramic capacitors are often present in typical electronic gadgets, such as smartphones, computers, televisions, and audio devices. Their compact dimensions and minimal height render them ideal for surface mount technology (SMT) applications, facilitating space-efficient device designs. Moreover, their natural stability and minimal loss features are beneficial for high-frequency uses, like RF circuits, where performance is essential.
Decoupling and Bypass Capacitors
A common application for ceramic capacitors is serving as decoupling or bypass capacitors in power supply circuits. They efficiently eliminate high-frequency noise, maintaining stable voltage levels for delicate components. Engineers can enhance the reliability and performance of circuits by positioning ceramic capacitors near microcontrollers and other integrated circuits, as this offers a charge reservoir during transient occurrences.
Timing and Oscillator Circuits
Ceramic capacitors are essential components in oscillator and timing circuits. Their consistent behavior and low equivalent series resistance (ESR) render them ideal for oscillators that demand stability and accuracy. Capacitors paired with resistors will set the oscillation frequency, rendering ceramic capacitors crucial for functions such as clock generation in digital devices.
Energy Storage Applications
In energy storage applications, like power supply filtering or energy harvesting systems, ceramic capacitors offer a rapid response time because of their minimal ESR and ESL (equivalent series inductance). They can rapidly charge and discharge, which makes them efficient in stabilizing voltage variations, guaranteeing that devices obtain a steady power supply.
Automotive and Industrial Applications
Ceramic capacitors are widely employed in automotive and industrial applications because of their durability and capacity to operate in extreme conditions. They are frequently utilized in ignition systems, signal processing, and control mechanisms where dependability is crucial. Their capacity to endure temperature variations and mechanical pressure enhances their attractiveness in these challenging applications.
Application of Electrolytic Capacitors
Electrolytic capacitors are essential components in various electronic devices and applications due to their ability to provide high capacitance values in relatively small sizes. Their unique characteristics make them particularly suited for specific functions within electronic circuits. Here are some prominent applications of electrolytic capacitors:
Power Supply Filtering
Ceramic capacitors are widely utilized in automotive and industrial applications because of their durability and capability to operate in demanding conditions. They are frequently utilized in ignition systems, signal conditioning, and control systems where dependability is crucial. Their capacity to endure temperature changes and mechanical strain enhances their attractiveness in these challenging applications.
Decoupling and Bypass Capacitors
In digital circuits, electrolytic capacitors act as decoupling capacitors to eliminate noise from the power supply lines. Positioning these capacitors near the power pins of integrated circuits aids in sustaining a stable voltage level and averting fluctuations that might lead to errors or instability.
Audio Applications
Electrolytic capacitors are commonly utilized in amplifiers for audio frequencies. They are used in coupling applications, where they prevent DC voltages from passing while enabling AC audio signals to go through. This is essential for preserving the accuracy of audio signals in different audio devices, such as amplifiers and mixers.
Timing Circuits
In situations where time constants are essential, electrolytic capacitors are frequently utilized in timing circuits. When combined with resistors, they form RC time constants that regulate the timing of signals in oscillators, timers, and pulse generation circuits.
Energy Storage
Electrolytic capacitors can store substantial energy, making them ideal for applications that need sudden power bursts. This trait is especially beneficial in power amplifier circuits and in situations where energy must be discharged rapidly, such as in camera flashes.
Voltage Regulation
In voltage regulation circuits, electrolytic capacitors help maintain a stable output voltage by smoothing out variations. They are often found in linear voltage regulators that require decoupling capacitors to ensure stable operation and minimize output voltage fluctuations.
Resonant Circuits
While ceramic capacitors are preferred for high-frequency resonant applications, electrolytic capacitors can still play a role in lower frequency resonant circuits, particularly in applications like RF amplifiers where specific capacitance values are needed.
Induction Heating and Power circuit breakers
In industrial applications, electrolytic capacitors are utilized in induction heating systems and power circuit breakers. They help manage power levels and reduce voltage spikes, ensuring efficient operation while protecting sensitive components.
Conclusion
Ceramic and electrolytic capacitors possess distinct features that render them appropriate for various uses in electronic circuits. Ceramic capacitors are recognized for their dependability, small footprint, and outstanding frequency response, which makes them perfect for high-frequency uses and settings that demand durability. Conversely, electrolytic capacitors provide greater capacitance values and are often more economical for applications involving power supply filtering and energy storage. In the end, the selection between the two relies on particular needs like capacitance, voltage specifications, physical size, and environmental factors. By recognizing the benefits and drawbacks of each kind, engineers can choose the appropriate capacitor to guarantee maximum performance and durability in their electronic designs. Grasping these subtleties in performance will enable designers to make educated choices that improve the effectiveness and dependability of their electronic components.
