What is an Oscillator? The Silent Workhorse Powering Your Everyday Tech

From the moment you check your smartphone to streaming music on a Wi-Fi router, oscillators are quietly shaping the electronic world around you. But what exactly is an oscillator? Think of it as the metronome of electronics—a device that generates rhythmic signals to keep everything in sync. Whether it’s the steady tick of a clock or the invisible radio waves connecting your devices, oscillators make it all possible. Let’s dive into how these unsung heroes work, their surprising variety, and why they’re everywhere in modern life.

Oscillators: The Heartbeat of Electronics

At its simplest, an oscillator is an electronic circuit that creates repetitive signals—like a never-ending wave—without needing an external push. Imagine blowing into a whistle: once you start, the sound sustains itself. Oscillators work similarly, using a clever mix of active components (like transistors or operational amplifiers) and passive components (resistors, capacitors) to keep the rhythm going.

The magic lies in positive feedback. Here’s how it works:

1.Amplification: The amplifier boosts a tiny electrical signal.

2.Feedback Loop: A portion of the output signal is routed back to the input.

3.Loop Gain: If the total amplification (loop gain) is just right, the signal grows until it stabilizes into steady oscillation.

For example, your wristwatch uses a quartz crystal oscillator, where the crystal’s mechanical resonance locks the frequency to an ultra-precise value. Without this, your watch would drift like a sundae left in the sun. But how did we get here? Let’s rewind.

A Brief History of Oscillators

The concept of oscillation dates back to ancient pendulums and mechanical clocks. However, the birth of electronic oscillators began in the early 20th century with vacuum tube circuits. The invention of the Armstrong oscillator in 1912 revolutionized radio communication. Later, the discovery of piezoelectricity in quartz crystals in the 1920s paved the way for today’s ultra-stable quartz crystal oscillators. Fast-forward to the 21st century, and we’re now miniaturizing oscillators into silicon chips and MEMS devices—a leap from bulky vacuum tubes to components smaller than a grain of sand.

Types of Oscillators

Not all oscillators sound the same—or look the same! Their design depends on the job they’re meant to do. Here’s a tour of the most common type of oscillator:

1. The Classics: Harmonic Oscillators

These produce smooth, sinusoidal waves (think: calming ocean waves). They’re all about precision:

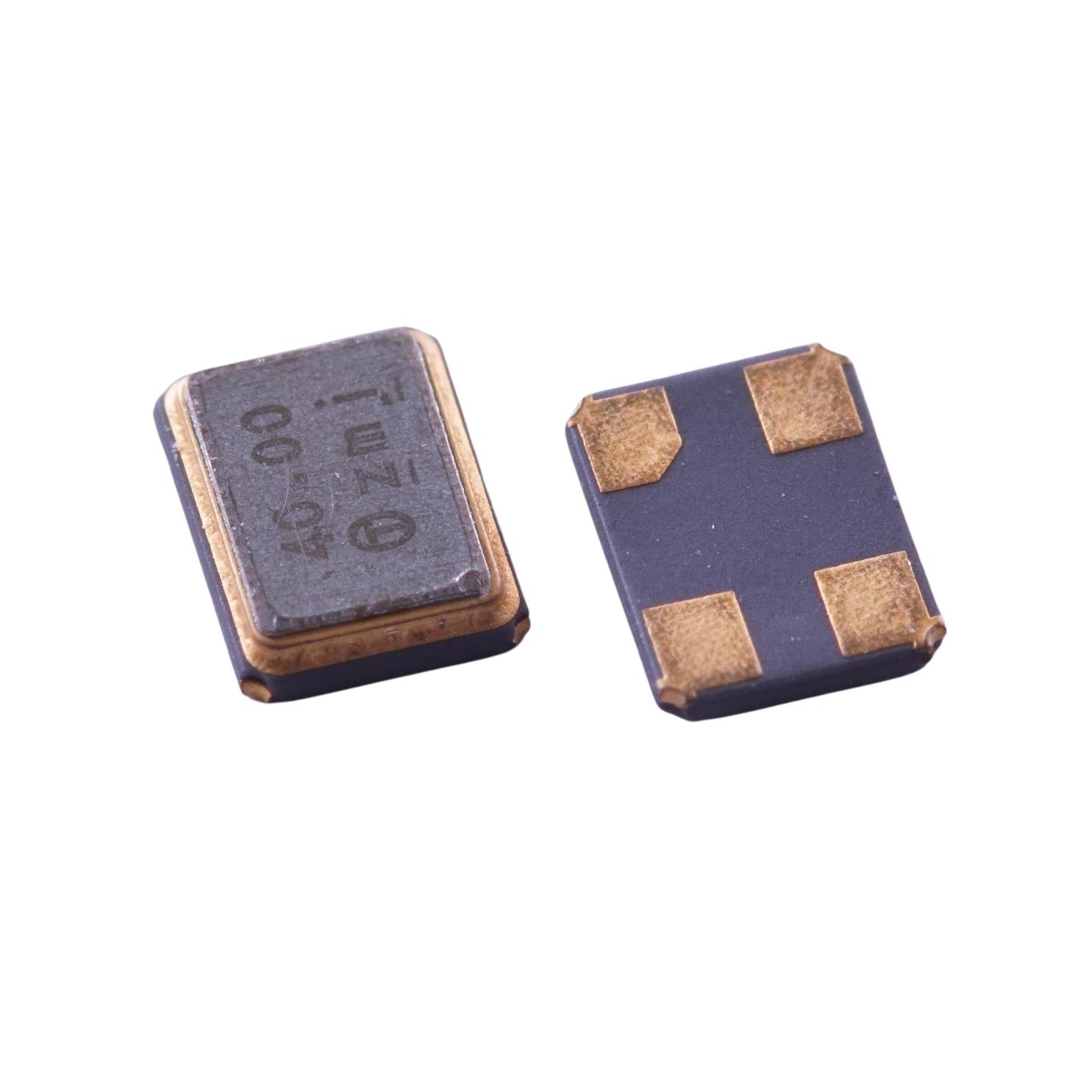

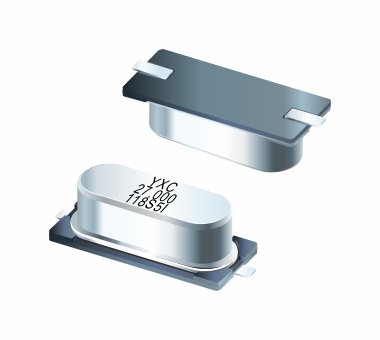

● Crystal Oscillators: The gold standard for stability, using quartz crystals to nail frequencies down to the last hertz. Perfect for clock signals in computers.

● Colpitts and Hartley Oscillators: Use LC tanks (inductors + capacitors) for radio frequencies. Your FM radio? Thank these.

● Wien Bridge Oscillators: Combine RC networks and op-amps to hit audio frequencies—great for testing speakers.

How They Work:Harmonic oscillators depend on the Barkhausen criterion, a mathematical principle that asserts that for continuous oscillation, the loop gain has to be 1, and the phase shift around the loop must sum to 360° (or 0°, based on the design method used). This guarantees that the feedback amplifies the electronic signal instead of eliminating it.



2. The Edgy Siblings: Relaxation Oscillators

These rebels create jagged waves like squares or triangles by charging and discharging capacitors. You’ll find them in:

● RC Oscillators: Simple timers for blinker lights or toy keyboards.

● Voltage-Controlled Oscillators (VCOs): Change pitch with voltage—key for synth music and phase-locked loops in Wi-Fi routers.

Behind the Waveform: Relaxation oscillators use nonlinear components (like transistors) to abruptly switch states. For example, in an RC oscillator, a capacitor charges until it hits a threshold voltage, then discharges rapidly—creating a sawtooth or square wave.

3. The New Kids on the Block

Tech never sleeps, and neither do oscillators:

● MEMS Oscillators: Tiny, rugged, and energy-efficient—ideal for smartwatches and IoT gadgets. Unlike quartz, MEMS oscillators are built using micro-machined silicon structures, making them resistant to shock and vibration.

● Atomic Oscillators: Use cesium or rubidium atoms to keep time so precise, GPS satellites rely on them. These devices measure the energy transitions of atoms, which are unaffected by environmental factors like temperature.

Why Are Oscillators Everywhere?

Let’s get practical. Here’s where you’ll bump into oscillators daily—and in places you might not expect:

1. Communication Systems

● Radio Frequency Oscillators: Generate carrier waves for AM/FM radios and cellular networks. Without them, your phone call would be silent static.

● Phase-Locked Loops (PLLs): Synchronize frequencies in Wi-Fi routers and Bluetooth devices. A PLL uses a VCO to “lock” onto a reference signal, ensuring data isn’t lost in transmission.

2. Timing and Clocking

● Clock Signals: The heartbeat of microprocessors. A 2.4 GHz CPU, for instance, relies on a crystal oscillator to execute billions of instructions per second.

● Precise Timing Signals: Atomic oscillators in GPS satellites ensure location accuracy within meters. A drift of just 1 microsecond could throw GPS coordinates off by 300 meters!

3. Medical and Industrial Tech

● MRI Machines: Use parametric oscillators to generate radio waves that align hydrogen atoms in the body.

● Ultrasonic Oscillators: Create high-frequency sound waves for imaging fetuses or cleaning industrial parts.

● Metal Detectors: Oscillators produce electromagnetic fields that buzz when disrupted by metal—saving archaeologists from digging up soda cans.

4. Nature’s Oscillators

Even biology gets in on the action:

● Fireflies: Their synchronized flashes are governed by biochemical oscillators.

● Circadian Rhythms: Your body’s internal clock is a network of protein-based oscillators regulating sleep and metabolism.

Behind the Scenes: Challenges and Fixes

Oscillators aren’t perfect. They face hiccups like phase noise (jitter in signals) or drift from thermal noise. But engineers have slick solutions:

1. Noise and Stability Issues

● Phase Noise: Caused by random fluctuations in timing, phase noise can blur signals in high-speed communication. Fixes include using high-Q resonant circuits (like quartz) or DSP oscillators to digitally filter electronic noise.

● Thermal Drift: Temperature changes alter component values, shifting frequency. Oven-Controlled Crystal Oscillators (OCXOs) solve this by heating the crystal to a stable temperature—like a cozy incubator for precision.

2. Power Consumption

Battery-powered devices demand efficiency. Silicon Oscillators consume up to 90% less power than traditional designs, making them ideal for wearables.

3. Miniaturization

Shrinking oscillators for IoT devices? MEMS technology allows oscillators to fit into spaces smaller than a pinhead.

Fun Fact: The universal oscillator equation ( f = \frac{1}{2\pi\sqrt{LC}} ) helps designers predict frequency without building physical prototypes. Math to the rescue!

The Future: Smaller, Smarter, Everywhere

As tech evolves, so do oscillators. Here’s what’s on the horizon:

1. 5G and Beyond

5G networks demand millimeter-wave oscillators operating at 30–300 GHz. These high-frequency oscillators enable faster data rates but require ultra-low phase noise to prevent signal degradation.

2. Quantum Computing

Quantum bits (qubits) need accurate timing. Atomic oscillators cooled near absolute zero could stabilize qubit operations, unlocking breakthroughs in cryptography and AI.

3. Bio-Integrated Oscillators

Researchers are developing oscillators that interface with biological systems. Imagine a pacemaker using biochemical feedback loops to adapt to your heart’s needs in real time.

4. Sustainable Tech

Solar inverters and wind turbines rely on oscillators to convert DC to AC power efficiently. Future designs could leverage wide-range oscillators to handle fluctuating renewable input voltage.

Build Your Own Oscillator

Want to see oscillation in action? Try this simple RC Phase Shift Oscillator:

Components Needed:

● 1 operational amplifier (e.g., LM741)

● 3 resistors (10 kΩ)

● 3 capacitors (0.01 µF)

● A 9V battery

Steps:

1.Connect the op-amp in an inverting configuration.

2.Add three RC networks in series to the feedback path.

3.Power the electrical circuit and observe a sine wave on an oscilloscope!

This project demonstrates how phase shift and loop gain create oscillation—no PhD required.

Conclusion: Why You Should Care

Oscillators are like oxygen for electronics—invisible but essential. They’re in your coffee maker’s timer, your car’s GPS, and the Mars rover’s communication equipment. By mastering feedback networks, resonant frequency, and smart component choices, engineers keep pushing what’s possible. Next time your playlist streams flawlessly or your smartwatch tracks a heartbeat, remember: there’s a tiny oscillator working overtime to make it happen.

FAQs

● Q: How do I choose between a crystal and MEMS oscillator?    A: Crystals offer better stability; MEMS excel in harsh environments and low power.

● Q: Why does my oscillator circuit not start?    A: Check the loop gain—it might need a slight boost to overcome initial conditions losses.

So, whether you’re a tech newbie or a seasoned engineer, oscillators are a reminder that sometimes, the quietest parts of a system are the ones doing the heaviest lifting. And as tech evolves, these unassuming electronic devices will keep ticking, humming, and buzzing us into the future—one precise frequency at a time.
