What is an lr41 Battery？

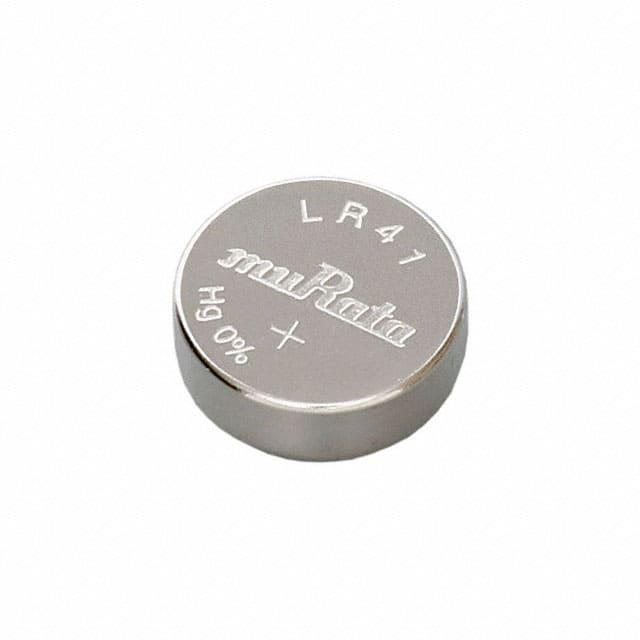

Introduction to the LR41 Battery
The LR41 battery is a much-favored button battery. Thanks to its compact size and reliable performance, it is widely used in various electronic devices. As a type of alkaline button battery, it belongs to the common battery models and can provide power support for a variety of devices such as digital thermometers and timekeeping devices. The nominal voltage of the LR41 battery is 1.5 volts, and it can output a stable voltage, making it an ideal choice for low-power application scenarios.This small yet powerful power source is renowned for its stable performance and relatively high energy density. This enables it to continuously supply power even with a thin and sleek shape.
How the LR41 Battery Works
Electrode Materials
● Positive Electrode: Manganese dioxide (MnO₂) serves as the active material, exhibiting strong oxidizing properties. During discharge, it accepts electrons and undergoes a reduction reaction.
● Negative Electrode: Zinc (Zn), typically in the form of fine powder, acts as the reactive material. Zinc oxidizes during discharge, releasing electrons.
● Electrolyte: An alkaline potassium hydroxide (KOH) solution facilitates ion conduction and participates in the electrochemical reactions.
Discharge Process
When connected to an external circuit:
1.Zinc at the negative electrode oxidizes, releasing electrons and forming Zn²⁺ ions.
2.Electrons flow through the external circuit to the positive electrode, where MnO₂ reduces to manganese oxyhydroxide (MnOOH).
3.Hydroxide ions (OH⁻) migrate through the electrolyte, combining with Zn²⁺ to form zinc hydroxide (Zn(OH)₂).
The overall discharge reaction is:Zn + 2MnO₂ + H₂O → Zn(OH)₂ + 2MnOOH
LR41 Battery Specifications and Technical Details
Voltage Characteristics and Performance
The LR41 battery delivers:
● Nominal voltage: 1.5V
● Cutoff voltage: Approximately 1.4-1.45V
● Stable voltage output throughout most of its discharge cycle
● Voltage stability that's crucial for sensitive devices
Compared to silver oxide batteries (which offer 1.55V) or zinc-air batteries, the LR41's voltage characteristics make it particularly suitable for devices requiring consistent voltage output without significant voltage drops over time.
Physical Dimensions and Design Features
The compact size of LR41 batteries features:
● Diameter: 7.9mm
● Height: 3.6mm
● Slim design that fits in limited space
● Anti-leak design for reliable operation
● Compact dimensions ideal for portable devices
These product dimensions make LR41 batteries direct replacements for many devices originally designed for SR41 silver-oxide batteries, though with slightly different voltage characteristics.
Comparing LR41 to Alternative Battery Types
LR41 vs. Silver-Oxide SR41 Batteries
While both share similar physical size:
● Silver oxide chemistry provides higher energy density
● SR41 batteries maintain more stable voltage output
● Alkaline LR41 offers more affordable price point
● Silver-oxide versions better for high-drain conditions
LR41 vs. Zinc-Air Batteries
Key differences include:
● Zinc-air batteries require oxygen to activate
● LR41 has longer shelf life (2-5 years vs. months for zinc-air)
● Zinc-air voltage characteristics differ
● Brown tab zinc-air batteries serve different applications
LR41 vs. Lithium Batteries
Comparison points:
● Lithium batteries offer superior capacity
● Different chemical composition
● Higher energy density in lithium
● Alkaline LR41 more suitable for low-drain devices
Applications and Device Compatibility
Common Uses for LR41 Batteries
These versatile power sources serve in:
● Digital thermometers (popular battery models for thermometer battery replacements)
● Medical devices (diabetes meters, hearing aids)
● Timekeeping devices (watches, clocks)
● Electronic calculators
● Personal emergency devices
● Garage door openers
● Many other low-drain devices
Device Performance Considerations
When using LR41 batteries:
● Ensure proper orientation in battery compartment
● Check for tabs for battery retention
● Verify stable battery performance
● Monitor for signs of battery failure
● Consider environmental conditions affecting performance
Purchasing and Quality Considerations
Identifying Quality LR41 Batteries
Look for:
● Reputable brands with dedication to quality
● Zero-mercury batteries for environmental safety
● Actual product packaging matching description
● Accurate labeling of alkaline composition
● Proper installation instructions
Avoiding Common Issues
Be aware of:
● Counterfeit batteries in online marketplaces
● Nonstandard battery specifications
● Heavy metal-containing batteries
● Private label battery manufacturers with questionable quality
Performance Optimization and Maintenance
Maximizing Battery Life
To ensure optimal performance:
● Store in proper environmental conditions
● Note expected shelf life (typically 2-5 years)
● Understand power requirements of your device
● Consider performance requirements before choosing alternatives
● Monitor voltage drop over time in high-precision devices
When to Replace LR41 Batteries
Signs you need replacement:
● Device performance degradation
● Voltage below cutoff voltage (1.4V)
● Frequent replacements needed
● Physical damage or leakage
● Expired shelf life
Technical Comparisons and Equivalents
LR41 Battery Equivalents and Cross-References
Direct replacements include:
● AG3
● G3
● 192
● 384
● SR41 (with voltage consideration)
● 392
Note that while these may share physical dimensions, their chemical makeup and internal chemistry may differ, affecting performance in specific applications.
Capacity and Drain Considerations
Different versions offer:
● Alkaline LR41: 25-32mAh capacity
● Silver-oxide SR41: 38-45mAh capacity
● Varied performance in low-drain vs high-drain conditions
● Different energy requirements for various devices
Conclusion
LR41 alkaline button cell batteries continue to be a reliable power source for a wide range of applications due to their:
● Compact designs fitting in limited space
● Consistent performance in low-power applications
● Wide availability from reputable brands
● Cost-effective alkaline composition
● Suitable voltage characteristics for sensitive devices
Whether you need batteries for medical devices, digital thermometers, or other small electronics, understanding LR41 specifications and alternatives ensures you make the ideal choice for your power demands. Always purchase from world-renowned manufacturers to guarantee peak performance and reliable power delivery in your electronic applications.
