Digital Signal Processors (DSPs) Explained: Transforming Data into Real-Time Solutions

Introduction: What is a Digital Signal Processor (DSP)?

In the world of modern electronics, the need to process and manipulate digital signals quickly and efficiently is crucial. Whether it's audio, video, or sensor data, digital signal processors (DSPs) have emerged as the backbone for performing these complex tasks in real-time. But what exactly is a DSP?

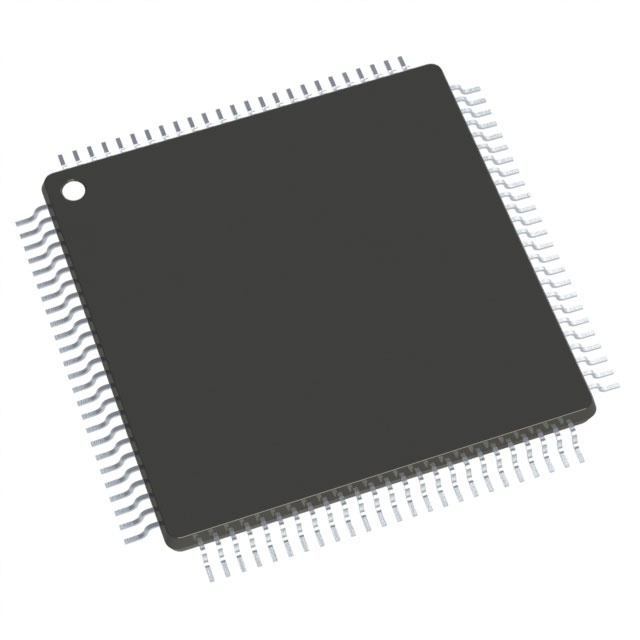

Figure 1: Digital Signal Processor

A Digital Signal Processor (DSP) is a specialized microprocessor designed specifically to handle real-time data processing tasks. Unlike general-purpose processors (GPUs or CPUs), DSPs are optimized for mathematical operations such as addition, subtraction, multiplication, and division—functions commonly used in signal processing. These chips are found in everything from your smartphone and television to medical devices and automotive systems.

The need for DSPs arises from their ability to quickly process large volumes of data with high precision, making them an ideal choice for applications that require real-time data manipulation. In this blog post, we’ll explore how DSPs work, their key benefits, common applications, and how to select the right DSP for your project.

How DSPs Work

Understanding how a Digital Signal Processor (DSP) works requires familiarity with the basic principles of signal processing. Signal processing involves a series of operations applied to a signal, such as filtering, enhancing, compressing, and converting the signal from one form to another. The types of signals processed by DSPs can vary widely, including audio, video, sensor data, or any other form of digital or analog data.

Signal Processing Basics

At the core of any DSP system is the ability to process digital signals. Digital signal processing involves breaking down a continuous signal (usually analog) into discrete values and then performing mathematical operations on that data.

Sampling

The first step in processing any analog signal, such as sound or light, is sampling. Sampling refers to the process of measuring an analog signal’s amplitude at discrete time intervals and converting it into a digital format.Imagine a sound wave, which is a continuous analog signal. To process this sound in a DSP, we must take snapshots of this wave at regular intervals. Each snapshot (or sample) represents the amplitude of the signal at a particular point in time. This process is similar to taking pictures of the wave at specific moments.

Sampling Rate: The frequency at which the samples are taken is called the sampling rate. It determines how accurately the signal is captured. Higher sampling rates allow for more detailed representations of the signal.Nyquist Theorem: To capture all the information of a signal without distortion, the sampling rate must be at least twice the highest frequency in the signal (according to the Nyquist-Shannon sampling theorem). For example, to capture a signal that includes frequencies up to 20 kHz, the sampling rate should be at least 40 kHz.

Quantization

Once the signal has been sampled, the next step is quantization. Quantization involves assigning a specific numerical value to each sampled point. Since computers operate with digital values, each sampled value (amplitude) must be converted to a finite set of discrete values. This is done by rounding the continuous amplitude values to the nearest value in a predefined set.

Bit Depth: The number of possible values each sample can take is determined by the bit depth. A higher bit depth increases the precision of the signal representation. For example, an 8-bit quantization allows for 256 possible values, while a 16-bit quantization allows for 65,536 values. Higher bit depths result in more accurate signals, reducing distortion.

Now that the signal is sampled and quantized into discrete values, it is ready for processing by the DSP.

DSP Operations

Once the signal is in a digital format, the DSP can apply various mathematical operations to modify or analyze the signal. These operations include:

Filtering

Filtering is one of the most common DSP operations. Filters are used to remove unwanted noise, enhance certain features of the signal, or modify the signal in a way that’s useful for a particular application.

Low-pass Filters: These filters allow low-frequency signals to pass while blocking high-frequency noise. For example, in audio processing, a low-pass filter might be used to remove high-frequency static or background noise.High-pass Filters: These allow high-frequency components to pass while blocking lower frequencies, useful for isolating certain signal components.

Band-pass Filters: These allow a specific range of frequencies to pass, blocking both lower and higher frequencies. Band-pass filters are used when only certain signal bands are relevant, such as in radio communications.Filters can be implemented as finite impulse response (FIR) filters or infinite impulse response (IIR) filters, each having different characteristics based on the desired application.

Fourier Transforms

One of the most powerful tools in DSP is the Fourier Transform. The Fourier Transform is used to convert a signal between the time domain and the frequency domain.

Time Domain: In the time domain, signals are represented as a function of time (e.g., audio signals represented as waveforms).

Frequency Domain: In the frequency domain, signals are represented as a sum of sine and cosine waves, each with a specific frequency, amplitude, and phase.

This transformation is essential for applications like audio equalization, where specific frequencies in a sound wave need to be amplified or attenuated, or in image processing where frequency-based methods are used for filtering or compression.

Fast Fourier Transform (FFT): A computationally efficient algorithm for calculating the Fourier Transform. The FFT is widely used in real-time applications like audio processing or telecommunications.

Compression

Another key operation that DSPs perform is compression. Data compression is used to reduce the amount of data needed to represent a signal, making it more efficient for storage or transmission.

Lossy Compression: In some cases, like audio or video, compression may remove some less critical data to reduce size. For example, MP3 audio compression reduces the size of a music file by removing sound frequencies that are less perceptible to human hearing.

Lossless Compression: In other cases, such as text or image compression, it is important to retain the original signal perfectly. Algorithms like ZIP (for files) or PNG (for images) provide lossless compression.By using DSPs to compress signals, data storage requirements are reduced without sacrificing too much quality, which is especially valuable in systems with limited storage capacity or bandwidth.

DSP Architecture

Now that we understand the fundamental operations performed by DSPs, let's dive into the architecture of a typical DSP chip. The architecture of a DSP is optimized for speed, ensuring that it can perform the necessary operations in real-time.

Key Components of DSP Architecture

Arithmetic Logic Unit (ALU)

The ALU is responsible for carrying out the basic arithmetic and logical operations on the digital data. These include addition, subtraction, and more complex mathematical operations like multiplication and division. Since DSPs are designed to process signals efficiently, the ALU is highly optimized for these types of operations.

Multiplier-Accumulator (MAC)

The Multiplier-Accumulator (MAC) is one of the most critical components of DSPs. The MAC can perform multiplication and accumulation in a single clock cycle. For signal processing tasks like convolution or filtering, where multiplication and addition are performed repeatedly, the MAC unit dramatically increases the efficiency of these operations.

Example: In a filter operation, each sample of the signal is multiplied by a corresponding coefficient, and the results are accumulated to produce the final output. This operation is performed extremely quickly thanks to the MAC unit.

Specialized Memory

Unlike general-purpose processors, DSPs are equipped with specialized memory systems that are designed to handle the high-speed data streams common in real-time applications. This memory typically includes:Data Memory: Where intermediate data or results of operations are stored.

Program Memory: Stores the instructions that tell the DSP what operations to perform.

Memory-Mapped I/O: For fast access to input/output signals such as sensors or audio input.

This architecture allows the DSP to process incoming data streams efficiently and store intermediate results for further computation.

Input/Output (I/O) Ports

DSPs come with various I/O interfaces to interact with the outside world. These interfaces enable the DSP to receive input signals (like audio, video, or sensor data) and send output signals (processed data or results). These could include serial, parallel, or custom high-speed communication interfaces.

Clock and Timing

DSPs are designed to operate at high clock speeds to ensure that real-time operations can be performed efficiently. The clock frequency and the timing architecture play a crucial role in determining the speed and performance of the DSP chip.

The Digital Signal Processor (DSP) is a powerful, specialized tool for processing signals in real-time. Through sampling, quantization, and advanced operations like filtering, Fourier Transforms, and compression, DSPs enable a vast range of applications, from audio and video processing to telecommunications and industrial automation.

The unique architecture of DSPs, including components like the ALU, MAC, and specialized memory systems, allows for the rapid and efficient processing of large volumes of data, making them indispensable in modern electronics. Whether you’re working with audio data, video streams, or sensor data, a DSP can optimize your system’s performance, reduce power consumption, and handle complex tasks in real time.

Key Benefits of Digital Signal Processors

Digital Signal Processors (DSPs) offer distinct advantages when it comes to signal processing tasks. While general-purpose processors (CPUs) are versatile and capable of handling a wide range of computing tasks, DSPs are specifically designed to tackle complex signal processing tasks with enhanced speed, efficiency, and accuracy. Here are some of the primary benefits of choosing a DSP over a general-purpose processor:

1. High-Speed Computation

The most significant advantage of DSPs is their high-speed computation capabilities. DSPs are purpose-built for handling complex mathematical operations at very high speeds, which makes them ideal for real-time applications. They excel at performing repetitive calculations like filtering, Fourier transforms, correlation, convolution, and matrix operations.

Why it matters: Real-time signal processing is crucial in applications where delays are unacceptable, such as audio and video streaming, radar and sonar systems, telecommunications, and medical equipment. For instance, in real-time audio processing, the DSP needs to process signals quickly to avoid lag, ensuring that the audio output remains synchronized with the source.

How DSPs achieve this: DSPs use specialized hardware components such as Multiplier-Accumulator (MAC) units and optimized memory architectures to perform multiple calculations in parallel and process data in just one clock cycle. This allows them to handle tasks much faster than general-purpose CPUs, which were not specifically optimized for this type of operation.

2. Energy Efficiency

Another key benefit of DSPs is their energy efficiency, particularly in applications where power consumption is a critical factor. Whether you're designing portable consumer electronics, mobile devices, or Internet of Things (IoT) systems, energy consumption is always a consideration, as it directly impacts battery life.

Why it matters: DSPs are designed with low power consumption in mind. For example, mobile devices like smartphones or wearables depend on long battery life. A general-purpose CPU, which is not optimized for real-time signal processing, would consume more power while executing signal processing tasks. On the other hand, DSPs handle high-speed processing with much lower power consumption due to their specialized design. This makes them a much more power-efficient choice for tasks that require continuous or long-term processing.

How DSPs achieve this: The specialized architecture of DSPs allows them to process data in parallel and with minimal clock cycles. This efficiency means less energy is used, particularly in applications like audio encoding/decoding, video compression, sensor data processing, and speech recognition. By reducing the need for excessive computational resources, DSPs help extend the battery life of portable devices.

3. Specialized Operations

One of the primary reasons to choose a DSP over a general-purpose CPU is their ability to handle specialized operations that are fundamental to signal processing tasks. Operations like audio filtering, image enhancement, noise reduction, and signal compression are routine tasks for DSPs but would be inefficient or slow on a general processor.

Why it matters: Signal processing tasks often require operations that would be inefficient or cumbersome to perform on a traditional CPU. For example, filtering noise from an audio signal, performing image processing for enhancing visual quality, or compressing signals for storage or transmission are all operations that DSPs are specifically designed to optimize.

How DSPs achieve this: DSPs have specialized instruction sets that enable efficient processing of these operations. For example:Audio filtering: DSPs can quickly filter out unwanted noise from audio signals in real time, which is essential for applications like music production, hearing aids, and noise-cancelling headphones.

Image enhancement: In applications like medical imaging or computer vision, DSPs can efficiently process large volumes of pixel data to enhance image quality.

Noise reduction: DSPs are particularly effective in noise reduction applications, such as in wireless communications or hearing aids, where filtering unwanted signals is crucial.

Signal compression: DSPs are adept at compressing signals without compromising quality. For example, they are used in video compression codecs like H.264 or audio compression formats like MP3, where reducing file sizes is essential for storage or transmission.

By handling these tasks with specialized operations, DSPs can complete them much more quickly and accurately than a general-purpose processor would.

4. Real-Time Processing

Real-time processing is a defining feature of DSPs. Unlike general-purpose CPUs, which often operate in non-deterministic time (meaning tasks can take different amounts of time depending on the workload), DSPs are optimized for predictable, deterministic performance.

Why it matters: In real-time applications, such as telecommunications, robotics, automotive systems, or industrial automation, delays or latency in processing can cause significant issues. A DSP ensures that the data is processed in a fixed, predictable amount of time, which is crucial for systems that require immediate responses.

How DSPs achieve this: DSPs are designed to process data as it is received in real time, with dedicated hardware components that are optimized for fast, continuous operation. For instance, DSPs used in real-time audio processing will immediately process incoming audio data, perform filtering or enhancement operations, and output the results without delay.

5. Improved Signal Accuracy and Quality

DSPs provide higher accuracy in signal processing than general-purpose processors. The mathematical operations performed by DSPs are more precise and often involve more advanced algorithms, leading to improved quality in output signals.

Why it matters: Applications that rely on highly accurate signals—such as medical devices, scientific instruments, and communication systems—require precise processing to maintain data integrity. For example, in medical imaging or biosignal processing, any distortion or inaccuracy in the signal could compromise the results.

How DSPs achieve this: DSPs use specialized arithmetic units (like the MAC and ALU) that are optimized for precision in floating-point and integer calculations. This allows DSPs to perform complex operations, such as Fourier transforms or filters, without introducing errors or inaccuracies that could affect the final signal quality.

6. Scalability and Flexibility

While DSPs are specialized processors, many modern DSP systems offer scalability and flexibility, allowing them to be adapted to a wide variety of applications and workloads.

Why it matters: The versatility of DSPs means that they can be used across industries—from consumer electronics to automotive and telecommunications—while maintaining high performance and efficiency.

How DSPs achieve this: Many DSP chips are designed with flexible processing architectures that allow them to be easily integrated into different systems. For example, DSPs can be combined with other specialized processors or integrated into system-on-chip (SoC) designs to create highly efficient, custom processing units that meet the specific needs of an application.

The key benefits of DSPs—high-speed computation, energy efficiency, specialized operations, real-time processing, improved signal accuracy, and scalability—make them an ideal choice for many signal processing tasks. Whether it's audio, video, sensor data, or telecommunications, DSPs can perform these operations faster, more efficiently, and with higher precision than general-purpose processors.

For applications that demand real-time processing and high-quality signal output, such as in mobile devices, IoT systems, medical equipment, or audio/video technologies, DSPs offer significant advantages. By choosing a DSP, you can ensure that your system processes signals with greater speed, lower power consumption, and enhanced performance, enabling a wide range of applications that require precision and efficiency.

Common Applications of DSPs

DSPs are used in a wide variety of industries, thanks to their ability to process data quickly and efficiently. Some common applications include:Audio and Speech ProcessingOne of the most widespread uses of DSPs is in audio signal processing. In devices like hearing aids, smartphones, and home audio systems, DSPs handle tasks such as:Noise cancellation: Filtering out background noise for clearer audio.

Speech recognition: Converting spoken words into text or commands.

Audio encoding/decoding (codec): Compressing audio files for storage or transmission, and decompressing them for playback.

In speech recognition systems, DSPs ensure that voice commands are processed with minimal delay, improving the user experience in smart assistants like Amazon Alexa or Google Assistant.

Image and Video ProcessingAnother critical area for DSPs is in image and video processing. In applications such as camera systems, medical imaging, surveillance, and augmented reality (AR), DSPs handle tasks like:Compression: Reducing the size of image or video files for efficient storage or transmission.

Image enhancement: Improving the quality of images by removing noise or adjusting brightness and contrast.

Recognition: Identifying patterns or objects within images (e.g., facial recognition).

For example, DSPs are used in medical imaging devices like MRI and ultrasound machines to process data from sensors and generate high-quality images in real time.

TelecommunicationsIn the world of telecommunications, DSPs are crucial for ensuring reliable communication. They are used in:Data encoding and decoding: Converting data into a format suitable for transmission and back into usable information at the receiver end.

Error correction: Detecting and correcting errors that may occur during data transmission over networks.

Signal modulation and demodulation: Transforming analog signals into digital data and vice versa.

Whether it’s a mobile phone，or Wi-Fi router, DSPs enable the reliable transfer of data over vast distances, even in challenging conditions.

Automotive and Industrial SystemsIn the automotive industry, DSPs are used in systems such as:Active noise cancellation: Reducing unwanted engine or road noise inside the cabin.

ADAS (Advanced Driver Assistance Systems): Processing data from cameras, radar, and sensors to detect objects, assist with parking, or enable autonomous driving.

In industrial automation, DSPs are used in systems like machine vision for quality control, predictive maintenance, and real-time monitoring of machinery.

How to Choose the Right DSP for Your Application

When selecting a DSP for your project, it’s important to consider factors like:

Processing PowerConsider the processing requirements of your application. More complex algorithms or larger datasets will require a DSP with higher clock speeds or more processing cores.

Memory RequirementsDSPs often come with different memory configurations. Choose a model that can handle the volume of data required for your application. Larger datasets require more memory, while some applications may benefit from faster memory access.

CompatibilityEnsure that the DSP is compatible with your existing hardware and software. Consider the development tools and software libraries available for the DSP, as these can greatly impact your design and development time.Cost-Effectiveness

The price of a DSP can vary significantly depending on performance, features, and the manufacturer. While high-performance DSPs might be ideal for applications that demand the best processing power, low-cost models can be sufficient for simpler tasks.

Leading DSP Manufacturers and Brands

Several companies are recognized for their innovation and expertise in the field of Digital Signal Processors (DSPs), providing high-quality solutions for a variety of industries, from telecommunications to automotive, healthcare, and consumer electronics. Below are some of the leading DSP manufacturers and the sectors where their products are most commonly used:

1. TEXAS INSTRUMENTS (TI)Texas Instruments is a global leader in the design and manufacture of DSPs, offering a wide range of products tailored for industries such as industrial automation, automotive, and telecommunications. Their DSP solutions are renowned for high-performance processing and energy efficiency, making them suitable for everything from signal filtering and audio processing to image enhancement and motor control.

Key Applications: Industrial control systems, automotive safety features (such as adaptive cruise control and collision avoidance), telecommunications infrastructure, and audio processing for high-fidelity devices.Popular Products: TI's TMS320 series of DSPs is widely used in embedded systems and real-time processing applications.

2. ANALOG DEVICESAnalog Devices is another major player in the DSP market, known for their high-performance processors that are widely used in medical, defense, and communications industries. Their DSPs are designed to handle complex calculations in sensor data processing, signal conditioning, and audio/visual signal processing.

Key Applications: Medical imaging and diagnostics, defense electronics (such as radar and sonar systems), audio processing in professional-grade sound systems, and communications systems (e.g., RF signal processing).Popular Products: Analog Devices’ Blackfin and SHARC processors are highly regarded for their precision and reliability in high-demand environments.

3. QualcommQualcomm is widely recognized for its mobile DSP solutions, particularly in the smartphone and wireless device sectors. Their DSPs are integral to mobile communications, audio processing, and video streaming, powering features such as voice recognition, noise cancellation, and high-definition video compression.

Key Applications: Mobile devices (smartphones, tablets, wearables), wireless communication systems (including 5G networks), voice and audio processing, and image processing.Popular Products: Qualcomm’s Hexagon DSP is designed to provide fast, energy-efficient processing for mobile and wireless applications, enabling advanced features like real-time voice assistants and high-definition video recording.

4. NXP SemiconductorsNXP is known for their DSP solutions used in a variety of applications, particularly in the automotive, security, and IoT (Internet of Things) sectors. Their processors provide high-speed signal processing capabilities in automotive ADAS (Advanced Driver Assistance Systems), vehicle-to-everything (V2X) communication, and security systems that require real-time processing.

Key Applications: Automotive systems (advanced driver-assistance systems), IoT (smart home devices, wearables), security applications (surveillance, access control systems), and industrial automation.

Popular Products: NXP's i.MX series of processors and LPC DSPs are widely used in embedded systems, automotive applications, and real-time control systems.

These leading DSP manufacturers—Texas Instruments, Analog Devices, Qualcomm, and NXP Semiconductors—are at the forefront of digital signal processing innovation. Their products power a wide variety of applications, from mobile devices and automotive systems to medical technologies and industrial automation. By choosing DSPs from these trusted brands, industries can benefit from high-speed signal processing, low-power consumption, and high-precision performance, essential for modern, real-time applications.

Why DSPs are Essential for Future Technologies

Looking ahead, DSPs are becoming increasingly important as the demand for real-time data processing grows. They are a critical component in:AI and Machine Learning: DSPs are already being integrated into AI systems for tasks like speech and image recognition.

IoT (Internet of Things): With the growth of IoT devices, DSPs are essential for processing sensor data in real time and enabling smart decision-making.

Conclusion

Digital Signal Processors (DSPs) are essential for processing real-time data across a wide range of applications. From audio and video processing to telecommunications and industrial systems, DSPs enable the efficient handling of large amounts of data, ensuring smooth performance and minimal delay. By understanding how DSPs work and choosing the right one for your needs, you can optimize your electronics projects for maximum performance and reliability.

FAQ Section

1. What is the difference between a DSP and a microcontroller?A microcontroller is a general-purpose processor used for a wide variety of tasks, while a DSP is specialized for high-speed mathematical operations, especially in real-time signal processing applications.

2. Can DSPs be used in real-time systems?Yes, DSPs are specifically designed for real-time systems. Their architecture allows them to process data with minimal delay, making them ideal for time-sensitive applications like audio processing, telecommunications, and industrial automation.

3. What are the advantages of using a DSP in audio applications?DSPs excel at tasks like noise reduction, sound enhancement, and audio compression. They can handle audio data more efficiently than general-purpose processors, delivering higher-quality sound and better performance.

4. How do DSPs handle large datasets for image processing?DSPs are designed to handle large datasets quickly. With specialized memory architectures and high-speed processing cores, they can process image data in real time, performing operations like filtering, enhancement, and recognition without significant delays.

5. Are there low-cost DSP options available for small-scale applications?Yes, there are many affordable DSP options designed for low-power and small-scale applications, such as simple audio processing in consumer electronics or basic image recognition in security systems.
