What is Gain of an Antenna?
What is Gain of an Antenna? Before diving into the concept of antenna gain, let's consider signal transmission phenomena in our daily lives. For instance, when we're in a basement, mobile phone signals may weaken, leading to interrupted calls and sluggish internet speeds. Conversely, when outdoors in open spaces, the radio signal dramatically improves, facilitating seamless browsing and calling. Similarly, if a WiFi router is placed in a corner of the house, rooms further away may experience poor signal strength and slow video loading. These variations in signal strength are intricately linked to antenna gain.
Simply put, antenna gain quantifies an real antenna's ability to concentrate radiated power input, or from a communication perspective, its capacity to generate signals in a specific direction and frequency range. To grasp this concept more intuitively, imagine an isotropic antenna as a "spotlight" for signals. A regular bulb (akin to an antenna with no directive gain) emits light evenly in all directions, dispersing it so that the brightness diminishes with separation distance. In contrast, a spotlight (an antenna with directive gain) focuses light in a particular function of direction, making it stronger and capable of reaching farther. the gain of antenna is the metric used to evaluate this "spotlighting" ability: the higher the directive gain, the stronger and farther the isotropic antenna can emit or receive signals in a specific direction.
Delving Deeper: The Definition of Antenna Gain

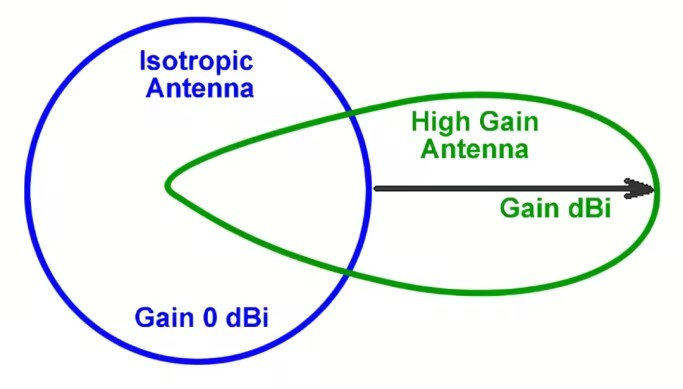

From a technical standpoint, antenna gain is defined under the condition of equal power input as the noise ratio of the squared field strengths produced by a real antenna and an ideal isotropic radiator at the same point in space. Simply put, it's the electrical power ratio illustrated in the diagram below. Antenna gain is closely related to the antenna radiation pattern, which acts like a "map" displaying how the directive antenna radiates signals in various directions. A narrower main lobe in the radiation pattern signifies higher concentration of signals in a particular direction; smaller side and rear lobes indicate less energy wasted in unnecessary directions, thus enhancing the antenna gain calculator.
To illustrate the physical meaning of gain as an amplification factor of input power, consider this example: Suppose an ideal point source antenna, akin to a lightbulb radiating evenly in all directions, needs 100 watts of radiated power input to create a certain signal intensity at a point 100 meters away. Now, using a directional antenna with a gain of 13dB (approximately 20 times), the same signal intensity can be achieved at that point with only 5 watts of input power. This scenario is akin to requiring a high-power bulb to illuminate a distant spot, whereas a specially designed "spotlight" (high-gain antenna) achieves the same illumination with significantly less radiated power level. This exemplifies the allure of antenna gain: effectively amplifying input power in the direction of maximum radiation intensity, allowing the signal to propagate further and stronger.
Metrics of Gain of the Antenna: dBd and dBi

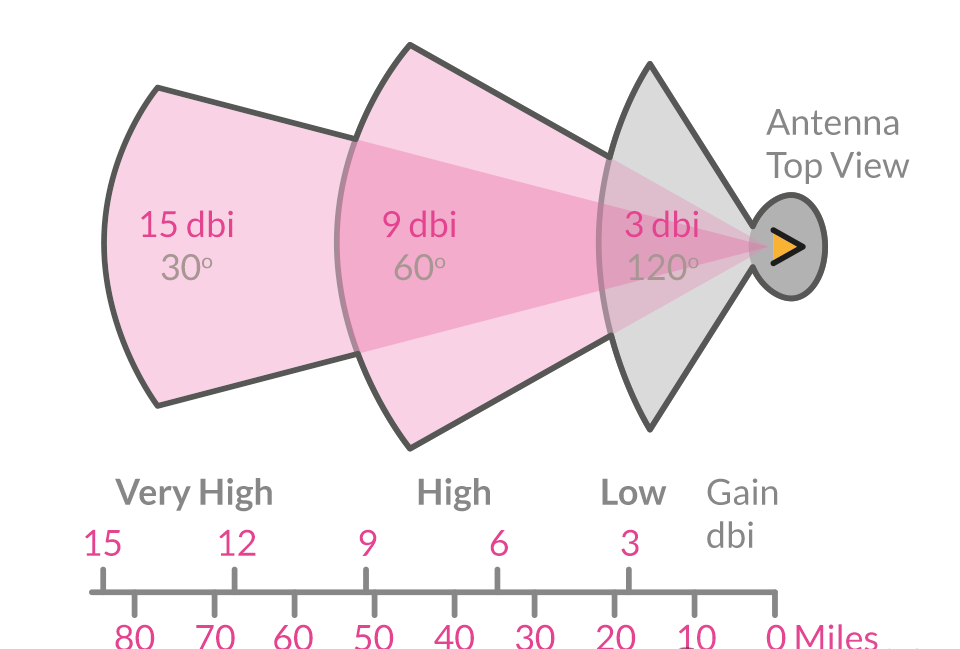

When describing antenna gain, you'll often encounter parameters such as dBd and dBi—essentially two "rulers" for measuring antenna gain. dBi represents the reference level of an antenna's maximum directional field strength compared to an isotropic radiator (an ideal point isotropic source antenna radiating electrical energy uniformly in all directions, shaped like a perfect sphere). For instance, an antenna performance with a partial gain of 5dBi means its direction of radiation intensity in the maximum direction is 5dB greater than that of an isotropic radiator.
On the other hand, dBd refers to the comparison against a half-wave dipole—a common basic type of antenna form consisting of two quarter-wavelength wires resembling a "dumbbell." A half-wave dipole inherently has directionality, unlike an isotropic radiator. There's a fixed conversion relationship between these: 0dBd equals 2.15dBi because a half-wave dipole's maximum field strength relative to an isotropic radiator is 2.15. For example, if an antenna's maximum gain is marked as 8dBd, converting it to dBi yields 10.15dBi (8 + 2.15). In practice, selecting the appropriate unit based on different scenarios and requirements helps in comprehending and comparing antenna gain. For instance, in mobile communication base stations, dBi is typically used to express antenna gain calculation, providing a clearer evaluation of a theoretical antenna's radiation enhancement capabilities relative to an ideal isotropic source, aiding in stronger signal coverage planning.
Practical Significance: Impact and Applications
In practical communication applications, antenna gain holds significant importance, playing a pivotal role in the operational quality of mobile communication systems as it directly influences the electrical signal levels at the edges of cells. In mobile communication systems, you can picture the base station as a "center of signal emission," where antenna gain determines how far and strong the signal can "travel." Enhancing additional antenna gain is akin to giving the signal "wings," expanding network coverage in a specified direction, enabling signal reach into more remote areas. For instance, in isolated mountainous regions, low gain antenna might cover only up to the foothills, while higher gain allows signals to reach across mountains, providing stable communication services to mountain residents.
Antenna gain plays an indispensable role across different communication scenarios. In base station communications, directional base station patch antennas commonly have partial gains of about 18dBi, while omnidirectional antenna have around 11dBi. Directional antennas utilize higher absolute gain to focus signals towards specific regions, effectively covering key urban areas such as commercial districts and residential zones. Imagine bustling city streets where base stations act as "signal lighthouses," with directional antennas accurately projecting signals to skyscrapers on either side, ensuring that people inside enjoy seamless communication services—whether calling, browsing the internet, or streaming videos. Omnidirectional antennas, however, leverage their relatively lower but evenly distributed gain to provide signal coverage in expansive rural areas.
Satellite communications heavily rely on high-gain antennas due to the vast separation distances between satellites and Earth, resulting in substantial signal attenuation during transmission. High-gain antennas are essential to concentrate signal energy, minimizing path dissipative loss, ensuring stable transmission between ground stations and satellites. Parabolic antennas, for instance, are commonly used in satellite communications for their high gain, acting like massive "signal collection dishes" that focus weak satellite signals for reception and consolidate signals sent from ground stations for transmission, enabling larger distance communication. Satellite TV receivers, or "satellite dishes," are a simplest type of parabolic antenna that pick up satellite signals with peak gain, allowing us to enjoy global television programs from our homes.
In wireless local area networks (WLANs), high-gain antennas also find crucial applications. In large office campuses or shopping centers, standard gain antennas might leave signal "dead spots," impairing user experience. Using high-gain antennas significantly expands coverage, effortlessly penetrating walls and obstacles, reducing signal attenuation, and enhancing network reliability and stability. In a multi-story shopping mall, for instance, high-gain antennas can extend signal coverage to every corner of each floor, allowing customers and merchants to access fast wireless network services anywhere within the mall, facilitating shopping, work, and entertainment.
Enhancing Gain: Detailed Methods
In practice, calculating antenna gain is frequently necessary to select perfect antenna for various communication needs. Here are some common and effective methods:

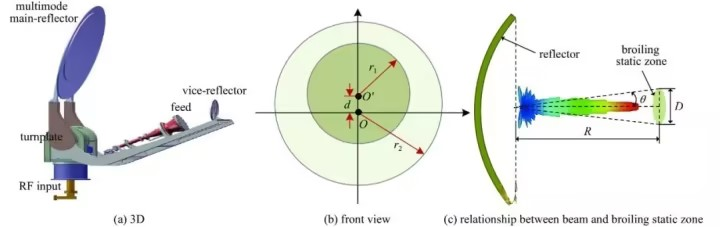

1.Increasing Actual Antenna Size: Larger antennas capture more electromagnetic waves—similar to catching more fish with a bigger net. As noted in the formula G(dBi) = 10Lg{4.5×(D/λ0)^2}, increasing the diameter (D) of a parabolic reflector amplifier gain. This principle is practically applied in satellite ground receiving stations, where enormous parabolic antennas efficiently receive weak satellite signals.
2.Adding More Antennas (Antenna Array): Multiple antenna directivity can combine their signals, forming an antenna array. Visualize several small pipes simultaneously pouring water into a large pool—the resulting volume is far greater than from a single pipe alone. In 5G communication base stations, high-gain directional antenna array technology is often used, combining multiple antenna elements to achieve collaborative transmission and reception, thereby boosting gain. By adjusting the phase and amplitude of the transmitted and received signals, these antenna elements enable coherent addition of signals in a chosen direction, enhancing signal strength and improving communication reception quality.
3.Using Reflective Surfaces: Reflective surfaces redirect received power into radio waves towards the antenna system, increasing gain. For instance, metal reflectors installed behind TV receiving antennas direct electromagnetic waves towards the receiving antenna parameter, effectively boosting signal energy and gain—a process akin to focusing light onto a target using mirrors.
4.Designing Specific Shapes: Some antenna designs, such as the Yagi antenna type, aim for higher gain. Composed of an active element (usually a half-wave dipole), a reflector, and several directors, the Yagi antenna redistributes electromagnetic waves radiated in various directions by the active element, strengthening signals in a specific direction to enhance gain. Often utilized in remote television reception, Yagi antennas offer high gain and excellent directionality, effectively capturing signals broadcasted from distant TV stations.
As a critical measure of an linear antenna's radiative characteristics, effective antenna gain plays a crucial role across diverse communication scenarios in everyday life. From steady mobile phone signal reception to captivating satellite TV broadcasts and widespread wireless network coverage, antenna gain serves as the unsung hero ensuring efficient signal transmission.
