What is a DIN Plug？

Are you in search of a circular connector that can accommodate plug connection block, or perhaps one suited for transferring computer data and video? The DIN plug is an electronic interface widely used with personal computers to connect routers or switches. DIN plug find applications across a broad spectrum.

What is a DIN plug？DIN are often perceived as understated digital interfaces, typically found in keyboards, mice, MIDI devices, or S-Video piece of equipment. DIN plug is also called DIN connector,Despite their low profile, they boast a wide variety of alternative connector styles. This article delves into the intricacies of the DIN plug.

Origin of DIN Connectors

The Deutsches Institut für Normung (DIN), Germany's national standards organization, is dedicated to ensuring the quality, safety, and interoperability of electronic components globally. The term DIN connector refers to connectors that adhere to the standards established by DIN. These standard for connectors cover design, size, materials, and performance requirements for electronic board connectors.

DIN connectors come in various sizes, pin configurations, and types to meet diverse market needs, including professional audio, s-video connector, data transmission, power supply, and signals into outputs. Common types include DIN 41612, circular DIN, and Mini DIN, further differentiated by pin counts such as 5-pin Din connector,7-pin connector, 8-pin din connector, 13-pin, among others.

Founded during World War I in 1917, DIN aimed to enhance product efficiency and interoperability through standardized manufacturing processes and materials. It represents Germany in international organizations like CEN and ISO. Although originating in Germany, DIN standards have gained international traction, with many adopted worldwide. Adhering to these standards enhances a company's market competitiveness and access.

What's the DIN Plug Types?

Here is the type of connector, each designed for specific applications and configurations. Here's an overview of some common types:

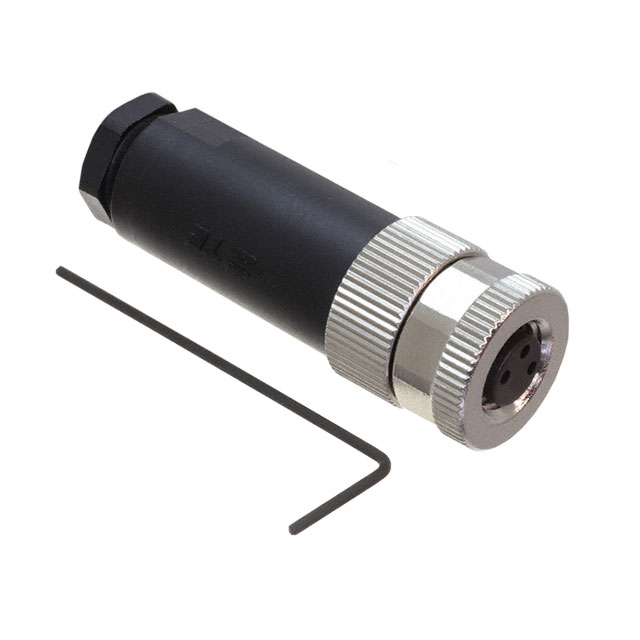

1.circular connectors:

Circular connectors are comprised of a series of male plugs with standardized features, including a 13.2mm diameter metal shield with a notch to ensure correct orientation when connecting the plug and socket. In some high-range devices using seven pin connection, the outer two pins may carry digital system data. If a device is incompatible, these outer pins should not be used, allowing basic connection to standard five-pin 180-degree sockets.

2.Speaker Connectors:

Speaker connectors are electrical connectors that join speakers to audio power amplifiers. The terminals in speaker connectors are paired so that the two bits of wire of a external speaker cable connect to one socket terminal. Because speaker cables have polarity, they are often color-coded, with circular pins connecting positive (red) and negative (black) lines.

3.DIN vs. Mini-DIN Connectors:

Mini-DIN connectors are smaller in size but share similarities with their larger DIN counterparts. They are versatile multi-pin electrical connectors widely used in various applications. Both DIN and Mini-DIN are standards defined by the German standards organization, DIN (Deutsches Institut für Normung). Mini-DIN connectors are available in seven styles, ranging from 3 to 9 pins, with a diameter of 9.5mm (3/8 inch). Each style features a single key to prevent mismatches between different plug body and socket types. Every pin connection is unique, with varying pin arrangements, square key sizes, positions, and round metal shield grooves, making all seven types official standards due to their individuality.

These female connectors are integral to numerous technological applications, offering reliable connectivity for devices ranging from audio equipment to computer peripherals. Their design ensures secure alternative connections while accommodating millivolt of signal and power requirements.

Common DIN Connector Products

● DIN 41612: Widely recognized and used in computing and telecommunications, these connectors feature a rectangular interface with pins arranged in rows and columns, ideal for high-density connections on PCBs. However, they have largely been replaced by international standards IEC 60603-2 and EN 60603-2.

● Circular DIN (DIN 41524): Once prevalent before wireless technology, these were primary connections for computer peripherals like keyboards and mice. Today, the 13.1mm diameter connector is mainly used for audio connector and low-voltage power supplies.

● Mini DIN: A derivative of the circular DIN, this smaller 9mm diameter version, known as the PS/2 connector, is used in applications such as S-video connections and PS/2 keyboards and mice, considered a precursor to USB connectors.

● DIN 43650: Utilized for connecting pneumatic and hydraulic solenoid valve operators and various electronic process controls. Its broad application includes pressure sensors, proximity switches, level sensors, limit switches, and low-wattage motors. These connectors, designed with innovative external nut designs for field connectivity, offer superior mechanical performance and IP67 sealing compared to traditional internal nut DIN valve connectors. Standard internal thread DIN valve connectors are rated at IP65 and available in various thread styles, gaskets, and circuit options for different applications.

Non-standard line-level DIN connectors, particularly non-standard Mini-DIN connectors, offer unique features that distinguish them from their standard counterparts:

Characteristics of Non-Standard DIN Connector Type

Overlapping Features:

● Non-standard Mini-DIN connectors often have overlapping characteristics with each other, whereas standard Mini-DIN connectors adhere strictly to specific configurations without direct overlap.

● This flexibility allows for creativity in design and functionality beyond the limitations of additional configurations.

Design Compatibility:

● Many non-standard Mini-DIN connectors are designed to be compatible with standard Mini-DIN plugs, facilitating integration into existing systems while offering enhanced capabilities.

● This compatibility ensures that they can be used in conjunction with standard connectors where applicable.

Advantages:

● A key benefit of non-standard Mini-DIN connectors is the inclusion of additional conductors. This feature allows these connectors to combine functionalities typically requiring multiple standard connector contact into a single unit, effectively saving space and reducing complexity.

● By consolidating two standard connectors' functions into one, they provide an efficient solution for devices where space is at a premium.

Limitations:

● Despite their versatility, non-standard series connectors are often only compatible with their designated matching incompatible connectors, which limits interchangeability with other types.

● This specificity requires careful consideration during system design to ensure all components are compatible.

Mini-DIN Identity:

● What categorizes them as Mini-DIN connectors is their common 9.5mm body diameter, providing a standard physical dimension even as their internal backplane configurations differ to meet varied application needs.

Overall, non-standard Mini-DIN connectors offer valuable solutions for specialized applications by maximizing functionality within compact spaces, despite trade-offs in universal compatibility.

Design Aspects of Full-sized DIN Connectors

1.Standardization:International standards like DIN provide a common technical language, supporting efficiency and quality assurance across industries, technology, science, and public sectors. DIN standards for electronic connectors encompass design, size, material, quality, and performance requirements. New DIN standards emerge regularly, and existing ones may be updated or expanded over time.

2.Customization:While providing a standardized framework, DIN standards also allow customization to meet specific industry needs or technological advancements. This flexibility enables rapid adaptation to emerging trends and technological changes. For instance, DIN standards define dimensions, materials, and mounting hole spacing for DIN rails, ensuring compatibility and interchangeability across manufacturers' components. This standardization has led to widespread use of DIN rails in industrial, commercial, and residential electrical installations worldwide.

3.Market:DIN standards have a broad application scope covering engineering, technology, manufacturing, healthcare, and more. By establishing common benchmarks and specifications, DIN standards promote international trade, technological innovation, and global cooperation. Additionally, DIN standards extend beyond electronic components; numerous other products have evolved under its standardization process. For example, DIN EN ISO 216 defines A-series paper sizes, including widely used A4 and A5 formats. This standard, recognized globally, dates back to 1922 when it was first issued as German standard DIN 476, marking a milestone in paper size standardization.
