What is a zener diode

In an electronics project, you must provide a microcontroller with a consistent 5V power source. Nonetheless, your power supply ranges from 7V to 12V. To guarantee the microcontroller functions consistently, you choose to implement a Zener diode with a Zener voltage of 5.1V. Connecting the zener diode in reverse bias parallel to the power input of the microcontroller regulates the voltage, limiting it to 5.1V. This configuration guarantees that regardless of input voltage variations, the microcontroller gets a steady voltage, safeguarding against damage and ensuring reliable performance in your project.

In the whole process, the Zener Diode played an important role. So, in this article, we will find out what is a Zener Diode and many things you need to know when using it.

History of a Zener Diode

The Early History

The drive to create a device such as the Zener Diode expanded further and more extensively only when the demand for semiconductor materials grew. Numerous initial inventions occurred by 1905, but concentrated efforts ON Semiconductor devices began only during World War II. Clarence Melvin Zener was the first to explain the beneficial characteristics of this diode.

Clarence Zener served as a professor in the Physics department at Carnegie Mellon University. His interests were centered on solid-state physics. He completed his graduation from Stanford University in 1926 and obtained his doctorate from the same institution by 1929. He created the Zener Diode in 1950 and utilized it in contemporary computer circuits. In 1934, Clarence Zener released a paper that explained the breakdown of electrical insulators.

He gained global recognition for pioneering a scientific domain related to internal friction, which was the primary focus of most of his research.

Fundamental concept driving the creation of the Diode

The fundamental principle that led to invention is the one-way direction of current flow. The inaugural Diode created by Sir Thomas Alva Edison was a light bulb featuring specific alterations. Edison observed that adding another electrode and connecting it to the positive side helped the current flow from the filament into the empty space. However, despite his observations, Edison was unsure about the underlying physics of this phenomenon. Joseph J. Thompson later clarified the explanation for this, earning the Nobel Prize in 1897. This resulted in the creation of vacuum tube DIODES. You can explore the fascinating tale of the invention of Vacuum Tubes to learn more about the individuals involved.

Pre-Zener Diodes

Numerous other researchers were keen on exploring different applications of this principle. John Ambrose Fleming attempted to utilize this valve for transforming radio waves into quantifiable signals by using a galvanometer. The Fleming valve is acknowledged as the earliest genuine electronic device to date.

In 1906, Greenleaf W. Pickard created yet another new Diode. In his prior research, Pickard admitted that electrons can move exclusively in one direction, utilizing specific minerals such as silicon. By inserting a silicon component between a metallic base and a metal wire, he created a valve that can be used for detecting radio waves.

This was called a cat’s whisker diode because it used thin wires. H. C. Dunwoody patented an enhanced version of this Diode that incorporated carborundum.

The Definition of a Zener Diode

A diode is a circuit element that permits current to flow solely in one direction. Diodes are available in various sizes, commonly featuring a black cylindrical casing with two leads extending from the sides (Anode and Cathode) and a marking at the Cathode end. Diodes function similarly to one-way streets. The current is permitted to flow solely from the Cathode end to the Anode end via the diode. This happens because the diode blocks current from moving in the reverse direction from the Anode side. A diode is reverse biased when it functions as an insulator and forward biased when it allows current to pass. A diode has two terminals: the anode and the cathode. Diodes are utilized in circuits to restrict voltage and change AC into DC. Materials such as silicon and germanium are used to optimize diode performance. Although they both convey power in the same direction, their methods of doing so are distinct. Diodes exist in different shapes and sizes, each with specific uses, including Zener diodes. Examples of diode applications include switches, signal modulators, signal mixers, rectifiers, signal limiters, and voltage regulators.

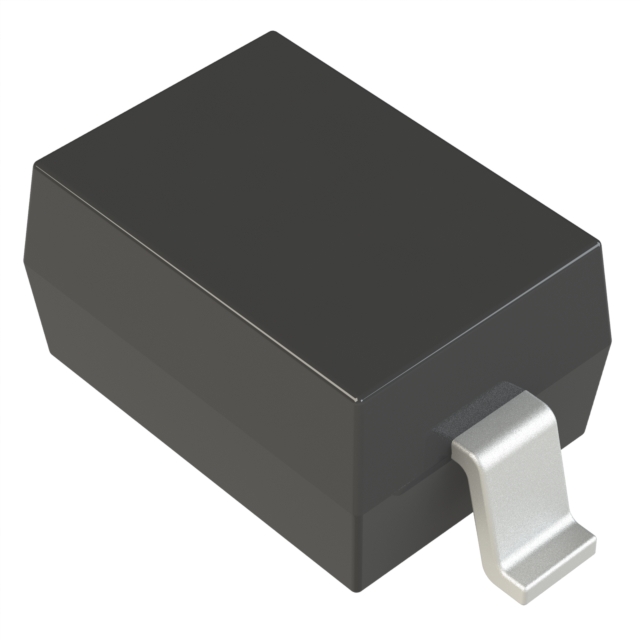

zener diode

How Zener Diodes Operate

Zener diodes function as regular diodes when they are forward-biased. Nevertheless, they are engineered to permit current to flow backward once the reverse voltage reaches its specified Zener Voltage. In contrast to regular rectifier diodes, which are not meant to function at or close to breakdown, a Zener diode is specifically made to work within the breakdown region. A diode breaks down when a reverse bias voltage is applied to it.

A Zener diode functioning in breakdown serves as a voltage regulator since it sustains a nearly stable voltage, equivalent to the Zener voltage, across its terminals within a defined range of load current levels. The steady voltage drop across the Zener diode caused by reverse breakdown is denoted by a DC voltage symbol.

Voltage-Current Characteristics

Forward Traits of Zener Diode

The forward characteristics of a Zener Diode resemble those of any typical diode. The above diagram in the first quadrant clearly shows that the VI forward characteristics resemble those of other P-N junction diodes.

Reverse Traits of Zener Diode

Under reverse voltage conditions, a minor amount of current passes through the Zener diode. This current arises from the electrons that are thermally produced in the Zener diode. When we continue to raise the reverse voltage, at a specific level of reverse voltage, the reverse current sharply rises at the breakdown point. This voltage is referred to as Zener Voltage and denoted as Vz.

Types of Zener Diodes

Zener diodes are available in different varieties designed for particular applications. Here is a comprehensive type of diodes:

Standard Zener Diode

Traits

Breakdown Voltage: Varies between 2V and 200V.

Power Dissipation: Usually accommodates up to 1W.

Temperature Coefficient: Moderate, exhibiting expected fluctuations.

Uses

Voltage control in fundamental electronic circuits.

Signal clipping in audio and video systems.

Ensuring stable transistor biasing in amplifiers.

Zener Diode with Low Voltage

Traits

Voltage Range: Less than 5V.

Effectiveness: Fine-tuned for low-voltage systems.

Uses

Supplying energy to portable devices like smartphones and tablets.

Assisting precision tools such as laboratory-quality measuring equipment.

Protecting integrated circuits (ICs) in consumer electronic devices.

Zener Diode for High Voltage

Traits

Created for High-Pressure Settings

Voltage Capacity: Able to manage more than 100V.

Improved Power Dissipation: Accommodates elevated current and thermal stresses.

Uses

Voltage regulation in high-voltage power supply units (PSUs).

Safeguarding industrial control systems from voltage spikes.

Maintaining signal quality in telecommunications devices.

Surface-Mount Zener Diode (SMD)

Traits

Compact Dimensions: Perfect for densely packed PCB designs.

Automation Compatibility: Ideal for contemporary, automated production methods.

Uses

Devices for consumers, such as laptops and wearable technology.

Vehicle electronics, which encompass ADAS (Advanced Driver-Assistance Systems).

Medical devices with precision where size and efficiency are vital.

Power Zener Diode

Traits

Power Ratings: Often exceeds 5W in numerous instances.

Thermal Stability: Designed for prolonged high-power performance.

Uses

Controlling voltage in switching power sources.

Controlling energy distribution in renewable systems such as solar inverters.

Safeguarding capacitors and batteries against over-voltage.

Temperature-Stabilized Zener Diode

Traits

Enhanced Temperature Consistency

Low Temperature Coefficient: Reduces drift resulting from temperature variations.

Improved Voltage Accuracy: Functions consistently across broad temperature ranges.

Uses

Precision instruments and control systems.

Essential communication devices functioning in changing settings.

Aerospace and military-grade electronics that demand reliable performance.

Bidirectional Zener Diode (TVS)

Traits

Two-Way Surge Protection

Rapid Reaction: Engages in picoseconds to restrict spikes.

Bidirectional Feature: Manages voltage surges in both directions.

Uses

Safeguarding USB, HDMI, and Ethernet data connections against ESD and lightning.

Protecting automotive circuits against load dumps and transient surges.

Practical Applications of Zener Diodes

Voltage Modification

One of the primary uses of a Zener Diode is for voltage shifting. It is used for changing a signal from one voltage level to another. It has the ability to sustain a constant output voltage even within the breakdown region. Zener Diode provides a range of adaptable voltage shifting functionalities.

Excess Voltage Safeguarding

Overvoltages are regarded as situations in which the voltage exceeds a certain threshold value. It is utilized in electronic circuits to safeguard sensitive devices or components from damage due to overvoltage. When the voltage in a specific circuit exceeds a certain threshold, the Zener Diode activates and regulates the voltage to the Zener voltage level. It redirects the surplus current away from the safeguarded devices.

Voltage Reference

Zener Diodes are commonly used when a voltage reference is required. In Analog circuits, we utilize Zener Diodes to obtain voltage references. We connect the Zener Diode in series with the resistor. This results in the creation of a steady reference voltage that can serve as a reference for other components in the circuit.

Voltage Regulation

In electronic circuits, Zener Diodes are mainly used for voltage regulation. It is linked in the circuit parallel to the load, resulting in reverse bias. It aims to keep a steady voltage across the circuit's terminals, regardless of any changes in the current flowing through the circuit. This distinctive feature of the Zener Diode renders it appropriate for situations where stabilizing the power supply is essential. It is beneficial in situations where we must safeguard our delicate components from voltage variations.

Noise Minimization

Zener Diodes play a significant role in noise reduction applications. It is used in noise reduction circuits to diminish higher-frequency noise. These Zener diodes are arranged in parallel with the load, which subsequently redirects the high-frequency noise to the ground. This action leads to a decrease in the noise voltage over the load.

Clipping Circuits

Zener Diode is a crucial and essential component of clipping circuits. These circuits are employed to stop the output signal from exceeding a specified value. It is utilized in these circuits for signal conditioning and waveform shaping in electronic circuits. It operates by restricting the amplitude of input signals by conducting when the signal voltage exceeds the Zener voltage.

Temperature Detection

Zener Diodes are primarily utilized for their main purpose, which is voltage regulation. In addition to this, it can also be used for measuring temperature. Temperature sensing is achieved by utilizing the voltage changes that occur with temperature. The temperature coefficient of a Zener Diode causes its breakdown voltage to vary with changes in temperature. It also encounters several issues such as restricted sensitivity, precision, non-linearity, and more.

Limiting Current

Zener Diodes are also used for current limiting purposes in different applications. To implement a current limiting feature, it is necessary to connect a Zener Diode in series with the load. When the load attempts to draw excess current, it lowers the voltage across the diode, which limits the current flow in the circuit. This use of Zener Diode serves to protect electrical components, devices, and more.

Advantages and Disadvantages of Diodes

Advantages of Diode

Basic Function

The diode's operation is straightforward and can be easily applied in circuits, establishing it as a key element in electronics.

Broad Usage

Employed in functions such as rectifiers (converting AC to DC), clipping circuits, signal demodulation, and current protection.

Affordable

Diodes are low-cost and readily accessible, which makes them perfect for large-scale market uses.

Durable

Diodes are strong and can manage substantial currents in forward bias successfully, as long as they are not subjected to excessive reverse voltage.

Disadvantages of Diode

Restricted Reverse Bias Capacity

Diodes struggle with reverse bias beyond a specific limit. If the reverse voltage goes beyond the maximum reverse voltage limit, the diode may become irreparably damaged.

No Voltage Regulation

An ordinary diode does not control the voltage nor offer any voltage stabilization.

Forward Voltage Drop

Even with forward bias, a minor voltage drop occurs (generally 0.7V for silicon diodes), which may be unwelcome in low-voltage uses.

Advantages and Disadvantages of Zener Diodes

Advantages of Zener Diodes

Voltage Regulation: Zener diodes maintain consistent voltage levels in circuits, making them crucial for power supply systems.

Reverse Breakdown Stability: Endures reverse breakdown at an exact Zener voltage without sustaining harm.

Minimal Power Loss: Effective in voltage control, particularly for low-energy circuits.

Budget-Friendly: A dependable and inexpensive option for voltage control.

Disadvantages of Zener Diodes

Limited Current Capacity: Inappropriate for high-power uses because of restricted current-handling ability.

Temperature Sensitivity: The Zener voltage may change with temperature, affecting performance.

Restricted High-Power Uses: Primarily applied in low-power systems.

Differences Between Zener Diodes and Regular Diodes

A diode and a zener diode are both semiconductor components that permit current to move in a single direction, yet they vary greatly in their design, operational principles, and uses. A standard diode is primarily employed for rectification (controlling current flow in one direction), whereas a zener diode is intentionally designed to function in reverse bias for voltage regulation and safeguarding.

Diode	Zener diode
A diode is a two-terminal electronic device that conducts electricity in one direction.	Zener diode can provide a stable reference voltage. These diodes are mostly used in power supplies to provide a reference voltage.
It has high resistance on one end and low resistance on the other end.	These diodes can be operated in reverse bias and break down at a certain voltage.
The diodes transmit current in one direction, and the way in which they transmit current may differ.	In the forward bias condition, it allows current, and in reverse bias it blocks current.
Diode gets damaged in reverse biased condition.	Zener diode doesn’t get damaged.
Does not regulate voltage	Provides voltage regulation in reverse bias
Cheaper and readily available	Slightly more expensive due to specialized design for reverse bias.
The diode conducts in one direction only (uni-directional only in forward biased conditions).	Zener diode is bi-directional (it conducts both in forward biased and reverse biased conditions).
The diode has low doping intensity.	Zener diode has high doping intensity to achieve breakdown.
Typically 0.7V (for silicon diodes)	Similar to regular diodes, but optimized for reverse bias operation
The diode has a low breakdown voltage.	Zener diode has a high breakdown voltage
Diodes are used as rectifiers, Clippers, and Clampers.	Zener Diode can be used as a Voltage Regulator.

Zener Breakdown

The PN junction is created by merging p-type and n-type semiconductor materials. The merging of the P-type and N-type areas forms the depletion region.

The extent of the depletion region is influenced by the doping levels of the P-type and N-type semiconductor materials. When the material is highly doped, the depletion region's width becomes quite narrow.

The Zener breakdown phenomenon takes place in the extremely narrow depletion region. The narrow depletion zone contains a greater quantity of free electrons. The reverse bias across the PN junction creates the electric field strength within the depletion region. The intensity of the electric field strength increases significantly.

The electric field strength enhances the kinetic energy of the free charge carriers. Consequently, the carriers begin leaping from one area to another. These dynamic charge carriers interact with the atoms of the p-type and n-type materials, generating the electron-hole pairs.

The junction experiences a flowing reverse current, causing the depletion region to completely disappear. This method is referred to as the Zener breakdown.

In Zener breakdown, the junction remains largely intact. The depletion region returns to its initial position once the reverse voltage is eliminated.

Avalanche Failure in Zener Diode

Avalanche breakdown happens in both standard diodes and Zener diodes when exposed to elevated reverse voltage. When a considerable reverse voltage is applied to the PN junction, the free electrons acquire sufficient energy to move at high speeds. These fast-moving electrons strike other atoms, resulting in the expulsion of more electrons. This ongoing collision process creates many free electrons, leading to a swift rise in electric current through the diode. In the instance of a standard diode, this abrupt increase in current might cause irreversible harm. Nonetheless, a Zener diode is specifically engineered to endure avalanche breakdown and can manage the abrupt surge in current. Avalanche breakdown usually happens in Zener diodes that have a Zener voltage (Vz) exceeding 6V.

Zener Breakdown in Zener Diodes

As the reverse bias voltage on a Zener diode nears its Zener voltage, the electric field in the depletion zone intensifies, allowing it to pull and free electrons from their valence band. These valence electrons, stimulated by the strong electric field, become detached from their parent atoms. This occurrence happens in the Zener breakdown area, where a minor rise in voltage results in a swift spike in electric current.

Avalanche Failure vs. Zener Failure

The Zener effect is dominant at voltages up to 5.6 volts, whereas the avalanche effect gains prominence past that limit. While both phenomena are alike, the key difference is that the Zener effect is a quantum occurrence, whereas the avalanche effect entails the movement of electrons within the valence band, akin to an electric current. The avalanche effect enables a greater current to flow through the diode than what a Zener breakdown would allow.

Conclusion

In summary, Zener diodes are specialized semiconductor components that provide unique advantages over standard diodes, particularly in voltage regulation applications. Unlike conventional diodes, which primarily function in one direction and can be damaged under reverse bias conditions, Zener diodes are engineered to operate safely in reverse bias to maintain a stable output voltage. Their ability to reliably control voltage levels makes them invaluable in power supply circuits and various electronic applications. While they may be slightly more expensive than regular diodes due to their design, their functionality justifies the cost in many situations. Understanding the differences between standard diodes and Zener diodes is essential for electronics enthusiasts and engineers alike, as it allows for more efficient circuit design and optimal component selection. Whether you're working on simple projects or complex electronic systems, Zener diodes can play a crucial role in achieving desired performance and reliability.
