A Comprehensive Guide on RC Timing Circuits
An RC circuit is composed of a resistor R and a capacitor C. With just one resistor R and one capacitor C, by connecting these two components in different series and parallel combinations and selecting different parameters, several different functions can be achieved. RC circuits have been widely applied in both analog and digital circuits.
Fundamental concepts of RC circuits
An RC circuit consists of a resistor and a capacitor configured in either series or parallel. Upon the application of input voltage, the capacitor charges or discharges through the resistor, leading to a circuit response. The key element in an RC circuit is the RC time constant (τ), which determines how quickly the circuit responds to changes in battery voltage.
The duration is determined as:
τ=R×C
R is the resistance measured in ohms (Ω)
C represents the capacitance measured in farads (F).
The RC time constant indicates the time period required for the capacitor to charge to roughly 63.2% of the supplied initial voltage or to discharge to 36.8% of capacitor voltage.
Charging and discharging activity
The actions of charging and discharging in an RC circuit can be compared to the filling and draining of a water tank.
As a capacitor in an RC circuit charges, current flows into it, resulting in a rise in the initial voltage across the capacitor as it stores charge. This is akin to water filling a bucket, leading to a rise in the water level as it accumulates within the bucket.
In contrast, when an RC circuit discharges, current flows out of the capacitor, causing the voltage across the capacitor to decrease as the stored charge decreases
Charging Process

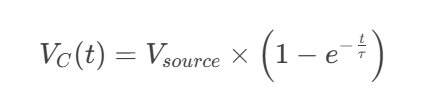

When a DC voltage is applied to an RC circuit, the capacitor starts to accumulate charge. The level of capacitor voltage grows over time derivative as described by the equation:
Vsource is the voltage that is applied.
It is the duration that has passed.
e is the foundation of the natural logarithm
The charging curve is exponential, indicating that the capacitor charges quickly initially and then gradually slows as it nears the applied voltage.
Discharge Procedure
When the voltage source is disconnected, the capacitor releases its charge through the resistor. The level of capacitor voltage while discharging is represented as:
Where Vinitial is the starting voltage across the capacitor. The discharge curve is likewise exponential, initially showing a rapid decline in voltage before stabilizing as it nears zero
Factors Contributing to Slow Charging and Discharging Rates
First, we need to understand the characteristics of a capacitor. A capacitor can store electrical charge, and this capacity is affected by two elements: first, the inherent properties of the capacitor, such as its design and material;
second, the magnitude of its capacitance. The greater the capacitance value, the more charge the capacitor is capable of storing. When capacitance is elevated, the charge necessary for charging or discharging becomes greater, resulting in a rise in the time derivative needed for both charging and discharging as well.
Secondly, the charging and discharging process is also affected by resistance. The presence of resistance hinders the flow of current, leading to a slower rate of charging or discharging. The resistance level is inversely connected to the charging rate of capacitors, indicating that increased resistance leads to a prolonged time period required for charging or discharging. This is a result of the limitation imposed by resistance on current movement, which affects the speed of charges in the capacitor, resulting in a more gradual charging or discharging process.
Moreover, the power supply's voltage influences the rate of charging and discharging. As the power supply voltage rises, the charging speed accelerates; conversely, a drop in voltage results in a slower charging speed, with the voltage difference being essential. This happens because the duration required for a capacitor to charge or discharge is directly associated with the voltage of the power supply.
In conclusion, the gradual charging and discharging rate of an RC circuit is mainly due to elements like a greater capacitor size, increased resistance, and reduced supply voltage
Uses of RC Timing Circuits
Circuits with Time Delays
RC circuits are frequently utilized to generate time delays in electronic systems. By choosing suitable values for R and C, the time constant can be modified to obtain the required delay. For instance, in a microcontroller circuit, an RC timing circuit may serve to postpone the triggering of a component.
Let’s use streetlights as an illustration. A streetlight controller mainly includes a sound control circuit, a light control circuit, and a timing circuit. Throughout the day, due to the light control circuit's effects (ignoring any noise), the electrical circuit's switch component stays open, keeping the LED light off. During the night, when it is quiet, the sound control circuit keeps the switch part open, resulting in the LED staying off. When a sound is sensed, the circuit's switch element closes, finalizing the LED's electrical route, which makes it illuminate. Due to the circuit's delayed response, the LED can remain lit for a predetermined time before switching off, with the illumination duration regulated by an RC integrator circuit
Signal Filtering
An RC circuit is a frequently used filtering circuit that uses capacitors and resistors to remove either high-frequency or low-frequency elements from a signal, thereby obtaining the intended filtering outcome.
In RC circuits, two frequently used filtering methods are low-pass filtering and high-pass filtering.
Low-Pass Filtering: A low-pass filter allows low-frequency signals to pass while attenuating high-frequency signals. In an RC circuit, the capacitor acts as the filtering component. When the input signal frequency is high, the capacitor's impedance is low, allowing current to pass; however, when the input signal frequency is low, the capacitor's impedance increases, preventing current flow, thereby filtering out the high-frequency signals.
High-Pass Filtering: A high-pass filter permits high-frequency signals to pass while blocking low-frequency signals. In an RC circuit, the resistor acts as the component for filtering. When the input signal exhibits a low frequency, the impedance of the resistor is low, allowing current to flow; in contrast, when the input signal shows a high frequency, the resistor's impedance rises, hindering current movement through the resistor and thereby filtering out the low-frequency signals.
It is essential to understand that the filtering performance of an RC circuit is influenced by the selected values of the resistor and capacitor. A greater capacitance usually leads to enhanced filtering efficiency, akin to the impact of a higher resistance value. Additionally, the RC circuit displays distinct filtering effects on different signal frequencies, making it essential to choose suitable capacitor and resistor values according to specific requirements.
Oscillators
RC circuits play a crucial role in the design of oscillators. An oscillator is an electronic circuit capable of generating periodic waveforms such as sine, square, or triangular waves, and it is frequently used in communication systems, clock signal generation, audio signal production, and more. Due to their simplicity, reliability, and cost-effectiveness, RC circuits have become essential components in oscillator design.
An RC circuit, made up of a resistor (R) and a capacitor (C), can generate phase delay and frequency selectivity, forming the foundation for oscillator operation. In an oscillator, the primary functions of an RC circuit include:
Frequency Determination: The frequency of the oscillator is established by the time constant of the RC circuit (τ = R × C).
Phase Delay: The RC circuit can provide the necessary phase delay to meet the oscillator's phase requirement, which typically needs a 360° phase shift.
Filtering and Waveform Shaping: The RC circuit serves the purpose of filtering and shaping the waveform, guaranteeing the stability and clarity of the output signal.
RC oscillators find extensive application in the subsequent fields:
Clock Signal Production: Supplying clock signals for microcontrollers and digital systems.
Audio Signal Generation: Employed to create sine waves or square waves in the audio frequency spectrum.
Testing and Measurement: Functioning as a signal source for the evaluation and calibration of electronic devices.
Communication Systems: Utilized in carrier production for modulation and demodulation circuits.
The significance of RC circuits in oscillators is undeniable. They facilitate consistent oscillation by providing phase delay and frequency selectivity, thereby satisfying the amplitude and phase demands necessary for oscillators. Although RC oscillators are generally intended for low-frequency applications, their simplicity, reliability, and cost-effectiveness make them a favored choice in various electronic systems. Regardless of whether it’s a phase-shift oscillator, Wien bridge oscillator, or square wave oscillator, RC circuits play a crucial role. Through careful design and optimization, RC oscillators can meet various application requirements, laying a solid foundation for modern electronic technology.
Pulse Shaping
In digital circuitry, RC circuits are utilized to contour pulses by altering their rise and fall durations. This is especially advantageous in communication systems and signal processing.
RC circuits are essential for shaping pulses. Pulse shaping refers to altering the waveform of an incoming pulse signal to improve its shape, minimize noise, or fulfill particular application needs. Owing to their fundamental charge and discharge properties, RC circuits can modify the rise time, fall time, amplitude, and waveform of pulse signals.
The use of RC circuits for pulse shaping is primarily evident in two areas:
- Low-pass RC circuit (integrating circuit): A low-pass RC circuit consists of a resistor and capacitor in series, with the capacitor connected in parallel at the output terminal. It combines the input pulse signal, mainly utilized for signal smoothing and prolonging the rise/fall time of pulses. The low-pass RC circuit can soften the abrupt edges of pulses, resulting in a smoother appearance. It is employed to remove high-frequency noise in digital signals, and in analog signal processing, it serves for smoothing the signals.
- High-Pass RC Circuit (Differentiator Circuit): A high-pass RC circuit consists of a resistor and capacitor connected in series, with variable resistor situated in parallel at the output terminal. It distinguishes input pulse signals and is mainly employed to emphasize alterations in the signal. This circuit is capable of generating spike pulses, highlighting the signal's edges and removing the DC component. It is commonly utilized to identify edge transitions in signals and is applied in digital communication to retrieve clock signals
Practical Considerations
What considerations must be addressed when designing and implementing RC circuits?
First, investigate the fundamental concepts of an RC circuit, clearing up misconceptions about time constants such as τ=RC and their impact on circuit performance. Next, think about selecting component specifications, including the accuracy and temperature coefficient of both capacitors and resistors, as well as parasitic features in actual circuits, like the ESR of capacitors or parasitic capacitance on the PCB. These factors can affect circuit in electronics, especially in applications that require high frequency or high accuracy.
Next, think about the type of fundamental circuit, such as low-pass, high-pass, integrator, or differentiator circuits, each requiring certain factors to take into account. For instance, when establishing the cutoff frequency of a low-pass filter, it’s crucial to select appropriate R and C values to achieve the desired frequency, while also considering load effects and the output impedance from the signal source.
The reliability of power supply and reduction of noise are essential, particularly in analog circuits, since fluctuations in the power supply can affect the operation of RC circuits. Decoupling capacitors or voltage regulation circuits may need to be added. Furthermore, in PCB design, issues like avoiding parasitic inductance or capacitance from long traces can impact high-frequency performance.
Regarding the influence of temperature, the properties of resistors and capacitors vary with temperature; in particular, electrolytic capacitors are sensitive to temperature variations, potentially causing a change in the time constant. As a result, under extreme temperature conditions, components that demonstrate superior temperature stability, such as metal film resistors and C0G/NP0 capacitors, should be selected.
Consider if the output impedance of the signal source matches the input impedance of the load in the RC circuit; if it does not, signal degradation or distortion might occur. For example, in integrator circuits, inadequate load impedance can affect the capacitor's discharge, altering the time constant.
EMI and interference design are crucial, especially in pulse shaping or high-frequency applications where RC circuits can produce or be affected by electromagnetic interference, requiring shielding or meticulous layout. This may involve using ground planes, shortening trace lengths, and avoiding crosstalk.
Real-world testing challenges, such as using an oscilloscope where the probe's input capacitance may parallel the test point, influencing the RC circuit's function and leading to measurement errors, must be considered. It may be necessary to use high-impedance probes or to compensate for the probe's capacitance.
In the end, concerns about safety and reliability involve confirming that the voltage rating of the capacitor is sufficient to avoid overvoltage breakdown, particularly considering the risk of reversed polarity in electrolytic capacitors. Maintaining operational stability is essential, since capacitor aging can cause changes in parameters.
