To choose a safe and reliable CAT III multimeter
What's the CAT III multimeter？
The digital multimeter is an adaptable electronic measuring device that offers high accuracy, clear readings, and multiple functions. It belongs to essential tools which can be utilized to assess various electrical parameters like direct current (DC) voltage, alternating current (AC) voltage, DC current, AC current, resistance, capacitance, DIODES, transistors, and temperature.
However, the wide range of electronic circuits demand varying safety levels for portable tools. How then are these safety levels determined?
What does multimeter CAT ratings define?
As per the IEC61010-1:2001 standard addressing the overall safety requirements for measurement, control, and laboratory instruments, locations where electrical personnel operate (or where electronic and electrical measurement devices are utilized) are generally classified into four categories: CAT I, CAT II, CAT III, and CAT IV. This standard meticulously outlines the varieties of electrical devices that workers may come across in various classifications of electrical settings, along with the safety rating for operating electronic and electrical measuring tools in those environments. It describes the measurements that can be performed by measurement devices in the tested electrical circuit and specifies the maximum "safety zone" relevant to the electrical component.
CAT levels are backwards compatible, indicating that a CAT IV multimeter is entirely safe to use in CAT I, CAT II, and CAT III settings. Nevertheless, a CAT I multimeter cannot be assured to be safe in CAT II, CAT III, or CAT IV settings.
Level of CAT rating are also referred to as measurement categories, overvoltage categories, or types of equipment. In the CAT rating system, the Roman numerals (I to IV) signify the branch circuit's location concerning the power source, determined based on the overall potential transient voltage risk.
CAT I: Secondary circuits designed not to connect to the primary supply, including electronic gadgets like standard laptops, and circuits energized by regulated low-voltage sources.
CAT II: Distribution at the local level, including standard power outlets and plug-in devices; this category encompasses household items like washing machines and portable electric tools that plug in.
CAT III: Electrical installations in buildings, including circuit breakers, wiring, switches, and industrial equipment.
CAT IV: Sources of low-voltage installations, primarily grid infrastructure such as underground utility vaults or outdoor power lines.
However, determining the appropriate circuit voltage category is only half the battle. Simply matching the assumed voltage with test and measurement equipment does not provide sufficient safety assurance. A faulty electrical unit could endure pulse or transient voltages several times higher than the specific tool's rated value. For instance, a line typically carrying 120 or 240 volts may experience thousands of volts due to lightning-induced transients, leading to short circuits and arcs that could severely harm inadequately equipped power infrastructure testers.
Essentially, tools must not only have an appropriate CAT multimeter rating for range of application, but the equipment must also be rated for a maximum voltage expected in any given environment to withstand potential hazardous voltage surges.
What are the advantages of CAT III multimeter？
The CAT III multimeter is a unique measuring device created for particular electrical settings. In comparison to regular multimeters like CAT II or CAT I, it provides substantial benefits in these aspects:
- Enhanced security level: CAT III multimeters are engineered to withstand greater energy transient surges, like those resulting from switching operations, short-circuit faults, or lightning-induced transients. For example, a CAT III 1000V multimeter can endure an 8000V transient pulse (according to testing standards), while a CAT II 1000V can only withstand 6000V. These devices are appropriate for application downstream in power distribution systems, including industrial distribution panels and motor control centers, to avoid damage to instruments or possible safety risks from high transient voltages.
- Dependability in severe conditions: Internal elements, like fuses and input protection circuits, employ materials with elevated voltage ratings to reduce the likelihood of damage due to overloads. The casing and interfaces are usually engineered for improved dust and impact resistance, making them ideal for intricate industrial environments. Significantly, even in industrial settings marked by electromagnetic interference or elevated noise levels, these devices preserve measurement consistency.
- Wider applicability: effortlessly tackling high-risk electrical settings for permanent installations like distribution panels, circuit breakers, bus ducts, and industrial motors. In addition, in fields such as industry, construction, and energy, CAT III is a compulsory requirement according to numerous safety regulations.
To choose a reliable CAT III multimeter？
For engineers who often handle electricity, "level of protection" is consistently the primary assurance. In comparison to accidents related to electronic equipment, incidents with handheld devices present a warning alarm to human health. It is widely recognized that multimeters are a vital portable testing device for engineers; therefore, the safety of operating a multimeter is especially important for on-site engineers.
The current market for CAT III multimeter showcases a wide range of prices, primarily influenced by many factors such as material quality, craftsmanship, durability, and measurement precision. Beside multimeter safety, how does one select a safe and reliable multimeter amidst this vast array of options?
Assessing the safety standard of fuses
Classification of Fuse Types
Glass Tube Encapsulation: This variety lacks an arc-extinguishing material and depends on the air's expansion when the fuse melts to quench the arc, leading to decreased arc suppression efficiency.
Ceramic Tube Enclosure: Includes quartz sand as a medium for extinguishing arcs (filler), enhancing the ability to interrupt currents.
How to rapidly assess the quality of a fuse?
Adjust the multimeter to the "Ω" setting, employing just one probe. Place the plug into the Ω socket and utilize the probe tip to make contact with both the "A" and "mA/uA" sockets. A reading implies that the fuse is functioning properly ("A" socket should show 0-0.5Ω, while "mA/uA" socket should show approximately 10KΩ). If it shows "OL," the fuse is blown.
Inspecting the safety of test probes
According to the safety standards for handheld electrical measurement equipment probes outlined in IEC61010-031:2008, test probes used for measurements at CAT III or IV levels must ensure that the accessible parts do not exceed 4mm.
By considering these three aspects, you are highly likely to select a relatively safe multimeter.

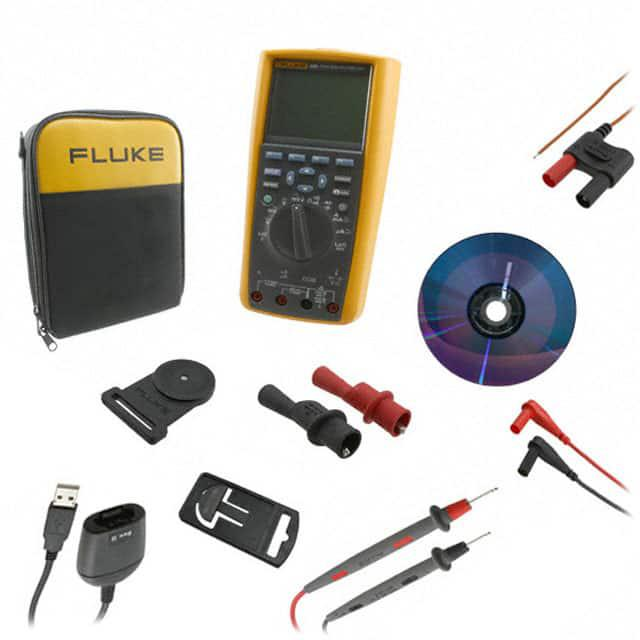

Here, we recommend a Fluke CAT III multimeter. Firstly, the quality and craftsmanship of Fluke multimeters are more reliable, with the plastic components being exceptionally sturdy. Typically, industrial electricians mainly use voltage and resistance settings, and the Fluke multimeter provides stable voltage measurement readings without fluctuations. Even in cases of misuse, such as measuring voltage range on the resistance setting, it does not result in damage to the device. It also supports continuity testing under live conditions, accurately zeroes out in resistance mode, and offers precise resistance measurements. Secondly, the Fluke multimeter boasts excellent water-resistant properties. Since work might involve exposure to rain, many domestic brands suffer from battery rusting when exposed to moisture, but Fluke's superior water resistance prevents this issue. Lastly, while numerous brands exhibit poor craftsmanship in their probe tips leading to durability issues and eventual contact failures, the probe connections in a Fluke multimeter are tight and have never experienced contact problems.
Superior protection: guidelines for measurement precautions
Although multimeters are easy to operate, electrical environments are very complicated, mishandling can result in electric shock since they interact directly with live circuits. Kindly be mindful of the subsequent aspects while utilizing CAT multimeter:
- Avoid using a multimeter in wet conditions or with live circuits to avoid leakage.
- Prior to measuring, thoroughly examine the probe insulation for any damage to prevent leakage.
- When changing the measurement range, make sure the probes are unplugged from the circuit under test to avoid arcing.
- For unfamiliar circuits, begin at the maximum range and slowly decrease to discover the suitable setting.
- When not in use, return the probes to their specific slots to safeguard the tips from harm.
Along with these precautions, rigorously follow electrical safety guidelines during on-site work and guarantee adequate personal protection. Ultimately, no multimeter is more valuable than your own life.
