Potentiometer vs Variable Resistor: Key Differences and Applications in Electronics
When designing or working with electronic circuits, one of the most fundamental components you’ll encounter is the resistor. Resistors control the flow of electric current, and their value can be adjusted for various applications. Among the many types of resistors, potentiometers and variable resistors stand out for their ability to modify resistance dynamically. Despite their similar functions, they have distinct features and applications. In this comprehensive guide, we’ll delve into the differences between potentiometers and variable resistors, explain how they work, and explore where and why they’re used in electronic circuits.
unikeyic Electronics offers a broad range of high-quality potentiometers, variable resistors, and other electronic components, making them an excellent choice for sourcing these components for your projects.
1. Introduction: Understanding Potentiometers and Variable Resistors
Both potentiometers and variable resistors are types of adjustable resistors, which means their resistance can be manually changed to modify how electrical current behaves in a circuit. These components are essential for adjusting key electrical parameters such as voltage and current, making them versatile tools in many electronic devices and systems.
Figure 1: Potentiometers
Potentiometers are generally used to adjust voltage levels in a circuit. They allow you to control the output voltage by changing the resistance between terminals, which is often used in applications like adjusting volume levels in audio equipment or regulating the brightness of a light.
Variable resistors (often called rheostats) are used to adjust current flow in a circuit. By altering the resistance between two terminals, variable resistors can regulate how much current passes through a circuit, making them ideal for applications like motor speed control or limiting the current in sensitive circuits.
Both of these components are commonly found in a wide range of applications, from consumer electronics like audio systems and lighting to more complex industrial control systems such as motor drives or power regulation systems.
2. Basic Definitions and Key Differences
Potentiometer:
A potentiometer is a three-terminal device, typically used to control voltage within a circuit. The three terminals allow it to act as a voltage divider, where the resistance between one of the terminals and the wiper (the adjustable part of the potentiometer) determines the output voltage. Potentiometers are used when fine-tuning voltage is necessary, such as in volume controls for audio systems or brightness settings for displays.
Key Features:Three terminalsAdjustable resistance for controlling voltageCan be adjusted manually via a knob or slider
Typical Uses:Volume control in audio equipmentBrightness adjustment in LED displays and lightsTuning circuits (e.g., radios or sensors)Fine-tuning feedback loops in systems like amplifiers
Variable Resistor:
A variable resistor, also known as a rheostat, is a two-terminal device that adjusts resistance in a circuit to control current flow. Unlike potentiometers, which divide voltage, variable resistors are designed to limit or modify the amount of current flowing through a circuit. They are commonly used in applications where regulating the amount of current is necessary, such as controlling the speed of motors or dimming lights.
Key Features:Two terminalsAdjustable resistance to control current flowTypically adjusted via a screw or dial
Typical Uses:Speed control for electric motorsBrightness control for incandescent lamps and light bulbsActing as a current-limiting resistor in circuits to protect sensitive components
Comparison:Number of Terminals: The main difference is in the number of terminals. Potentiometers have three terminals, allowing them to divide voltage and offer a variable output, whereas variable resistors only have two terminals, which control current flow by adjusting resistance.
Adjustment Method: Potentiometers are adjusted using a knob or slider to change the voltage output, while variable resistors are adjusted by turning a screw or dial to change the resistance and current flow in the circuit.In summary, potentiometers are ideal for adjusting voltage levels in circuits, whereas variable resistors are better suited for controlling current flow.
3. Physical Design and Construction
The design and construction of potentiometers and variable resistors differ, reflecting their distinct applications.
Potentiometers: These devices have a wiper that moves along a resistive track. As the wiper moves, the resistance between the wiper and the terminals changes, allowing for a variable output voltage. Potentiometers come in various forms, including rotary and linear designs, and can be adjusted using a shaft or slider.
Variable Resistors: These devices have a single adjustment point (usually a screw) that alters the resistance between two terminals. They are simpler in design compared to potentiometers and are often used where only resistance (not voltage) needs to be adjusted.
4. Applications in Circuits
Potentiometers and variable resistors serve different purposes in electronic circuits due to their design differences, though both are crucial components for controlling electrical parameters. Let’s break down how each component is applied across various circuits:
Potentiometers Applications:
Potentiometers are most commonly used in circuits where there is a need for variable voltage control. Their adjustable resistance allows them to regulate the output voltage within a circuit. Here are some typical applications:Volume Controls: Potentiometers are widely used in audio equipment to adjust the output sound level. In devices like amplifiers, radios, and music players, turning the potentiometer’s knob or slider alters the resistance, adjusting the voltage that controls the sound output.
Brightness Adjustment: Potentiometers are used to regulate the brightness of LEDs or light bulbs. By adjusting the resistance, the voltage applied to the light source changes, making it brighter or dimmer. This is common in home lighting systems or in displays that require manual brightness control.
Tuning Circuits: In radios and communication systems, potentiometers are used in tuning circuits to adjust frequencies. As the user turns the potentiometer, it changes the voltage, thereby selecting the desired frequency band in devices such as radios, TV tuners, and signal processors.
Feedback Control: Potentiometers also play an important role in feedback loops in systems like PID controllers (Proportional-Integral-Derivative). These systems are used in automation, robotics, and industrial equipment to control variables like temperature, pressure, or speed by adjusting the input voltage in real time.
Variable Resistors Application:
Variable resistors, or rheostats, are designed primarily for controlling current flow in a circuit. Their use is typically found in applications where adjusting the current is crucial. Below are common applications:Motor Speed Control: One of the most common uses of variable resistors is in DC motors for adjusting their speed. By varying the resistance in the motor circuit, the current flow is altered, which in turn adjusts the motor speed. This is commonly seen in tools like electric drills, fans, and even in industrial equipment.
Light Dimming: Variable resistors can also control the brightness of incandescent lamps and other resistive loads. As the resistance increases, the current flowing to the lamp decreases, thus dimming the light. This feature is typically used in dimmer switches for home lighting or decorative lighting systems.
Current-Limiting: In circuits where there is a need to protect sensitive components from high current, a variable resistor is used to limit the flow of current. This is especially important in circuits that include LEDs, sensitive microcontrollers, or other low-power components, where excessive current could cause damage.
5. How They Work: Functionality and Usage
Potentiometer Functionality:
A potentiometer functions as a voltage divider. It consists of a resistive track (usually made from carbon or cermet) with a wiper that moves along this track when adjusted by the user. As the wiper moves, it changes the resistance between the wiper and the fixed terminals, thereby adjusting the output voltage. Potentiometers are commonly used in applications like volume controls, where the user can adjust the voltage sent to an amplifier, changing the audio output level.
In a volume control, for example, the potentiometer divides the total voltage from a power supply into a lower voltage that is sent to the amplifier. By turning the knob, the user increases or decreases the resistance, which results in a higher or lower voltage output.
Variable Resistor Functionality:
A variable resistor works by adjusting the resistance between its two terminals, thus controlling the current that flows through a circuit. When the resistance is high, the current is reduced, and when the resistance is low, the current increases.
In a motor speed control application, for example, the variable resistor is placed in series with a DC motor. As the user adjusts the resistor, they change the amount of resistance in the circuit, thus controlling how much current flows through the motor and ultimately controlling the motor's speed.
Variable resistors are often used in circuits that require current regulation, such as in heating elements, LED circuits, or power supplies, where adjusting the current flow can control the intensity of the load or protect components.
6. Performance Differences
When comparing the performance of potentiometers and variable resistors, several factors influence their efficiency and application suitability.
Precision:
Potentiometers typically offer higher precision for voltage adjustments because they are designed to act as voltage dividers, providing fine-tuned control over the output voltage. This makes them ideal for applications where exact voltage control is needed, such as in audio systems or tuning circuits.
Variable resistors provide broader control over current but may not offer the same level of precision as potentiometers, particularly when fine adjustments are required in circuits where voltage regulation is essential.
Range of Adjustment:
Potentiometers generally offer a wider range of adjustment. As they can vary resistance between the two ends of the resistive track, they allow for continuous changes in output voltage from a lower to a higher value across their full range of resistance.
Variable resistors, in contrast, have a narrower range of adjustment because their primary function is to control current. The range of resistance adjustments is focused primarily on altering the current flow, making them suitable for applications like motor speed control and current limiting but less versatile in voltage regulation.
Tolerance and Power Ratings:
Potentiometers tend to have lower power ratings compared to variable resistors. Since they are often used for low-power applications (like volume control or tuning circuits), their power handling capability is sufficient for most applications but not ideal for high-power circuits.
Variable resistors are typically designed to handle higher power loads, especially in applications like motor control or heater regulation. As they need to adjust current in larger, more demanding circuits, they tend to have higher tolerance ratings and can handle more substantial power dissipation without overheating.
In summary, potentiometers are best suited for voltage control applications requiring high precision, whereas variable resistors are ideal for current control in circuits where load regulation is more critical. The choice between these components ultimately depends on the specific needs of the circuit, such as the type of adjustment required and the power handling capacity needed.
7. Choosing Between a Potentiometer and a Variable Resistor
Selecting the right component for your circuit design is crucial for achieving optimal performance. Deciding between a potentiometer and a variable resistor depends on several factors, including the nature of your application and the specific role you need the component to play. Let’s explore how to make this decision based on different considerations:
Voltage or Current Control
The fundamental difference between potentiometers and variable resistors lies in whether you need to control voltage or current in your circuit:Use a Potentiometer if you need to adjust voltage: Potentiometers are designed for voltage control. They are ideal in applications where you need to vary the output voltage in a circuit, such as controlling the volume on audio devices, brightness in lighting systems, or tuning circuits in radios. Potentiometers achieve this by acting as voltage dividers, where the user adjusts the wiper position to split the input voltage and provide a variable output.
Use a Variable Resistor if you need to control current: If your application requires adjusting the current flow, such as regulating the speed of a motor or limiting the current to prevent circuit overload, then a variable resistor (or rheostat) is the appropriate choice. Variable resistors adjust the resistance in a circuit between two terminals, which directly influences the amount of current flowing through the circuit.
Precision
When it comes to precision in controlling voltage or current, the requirements can differ:Potentiometers for precise voltage adjustments: Potentiometers offer more fine-grained control over voltage. They allow you to make small, incremental changes in voltage, which is essential for applications requiring accurate adjustments, such as audio volume controls, light dimmers, or tuning circuits. Potentiometers are designed to provide continuous resistance changes that let you control voltage very precisely, making them a preferred choice in high-precision applications.
Variable Resistors for broader current control: Variable resistors offer broader adjustments, typically for applications where extreme precision in current control is not necessary. These resistors adjust the current flow in the circuit by varying the resistance, but they do not provide the same level of fine-tuned control over current as potentiometers do over voltage. Motor control and current-limiting applications typically need broader adjustments, making variable resistors ideal.
Application Type
Different circuit applications require different components based on their functionality:Potentiometers in audio, feedback, and tuning systems: Potentiometers are widely used in audio equipment (e.g., volume controls in amplifiers, radios, and music players), tuning circuits (e.g., radios and communication devices), and feedback control systems (e.g., PID controllers). These applications need adjustable voltage to ensure the system operates within the desired range of parameters. For example, in an audio system, the potentiometer adjusts the output voltage that controls the speaker’s sound level. Similarly, in tuning systems, the potentiometer helps adjust the voltage to select the correct frequency.
Variable Resistors in motor control and power regulation: Variable resistors are most commonly used in applications requiring current regulation, such as in motor speed control and light dimming. For instance, when controlling the speed of a DC motor, a variable resistor is placed in series with the motor to adjust the current, and consequently, the speed. Similarly, current-limiting applications, where it is necessary to prevent excessive current from damaging components, rely on variable resistors.
Power Rating Considerations
Another important factor when choosing between these two components is the power rating of the resistor, which determines how much power the component can safely dissipate:Potentiometers generally have lower power ratings compared to variable resistors. This is because potentiometers are often used in low-power applications where precise voltage control is needed, such as audio control or tuning. If your circuit requires a higher power load, using a potentiometer may not be suitable, as it may overheat and fail.
Variable resistors are designed to handle higher power loads, especially in applications such as motor control and heating systems, where the current and power demands are significantly higher. The ability of a variable resistor to dissipate higher power is crucial in ensuring the longevity and stability of components like DC motors or incandescent lamps.
Cost and Availability
Cost: Potentiometers are generally more expensive than variable resistors because they offer finer control and are used in more specialized applications, particularly in consumer electronics. If budget is a key concern and the application requires a basic current adjustment, a variable resistor might be a more cost-effective solution.
Availability: Potentiometers are available in a wide range of standard values for consumer-grade electronic devices, making them easy to source. Variable resistors, while also widely available, are more commonly used in industrial or specialized applications like motor controls or lighting circuits, so they might be less readily available in general-purpose electronics stores.
Summary: When to Use a Potentiometer vs. a Variable Resistor

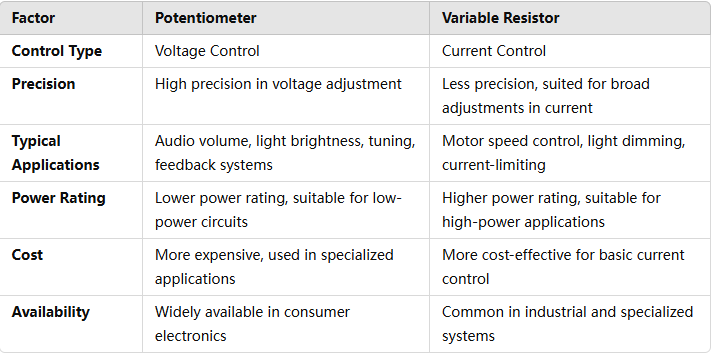

Figure 2: Potentiometer vs. Variable Resistor
In conclusion, choosing between a potentiometer and a variable resistor boils down to the specific needs of your circuit:Choose a potentiometer if you need precise voltage control for applications like audio systems, tuning, or feedback regulation.
Choose a variable resistor if you need to control current flow in applications such as motor speed regulation, dimming lights, or limiting current to prevent overloads.
By considering the type of control, precision requirements, application, power rating, and cost, you can make an informed decision that ensures your circuit operates efficiently and effectively.
8. Advantages and Disadvantages
Potentiometer:Advantages: Offers precise voltage control, highly versatile, useful in a wide range of applications.Disadvantages: More complex design, often more expensive, and may not be suitable for high-power applications.
Variable Resistor:Advantages: Simple to use, ideal for basic current control, more cost-effective.Disadvantages: Limited precision, not as versatile as potentiometers in certain applications.
9. Common Types and Variants of Potentiometers and Variable Resistors
Both potentiometers and variable resistors come in a variety of types, each with distinct characteristics designed to meet specific needs in electronic circuits. Let’s explore the common types and variants of each component and how they are used in different applications.
Potentiometers Types:
Rotary Potentiometers:Description: The most common type of potentiometer, where the user adjusts the resistance by rotating a knob or shaft.Advantages: Provides a smooth, continuous adjustment. Ideal for applications where the user needs to control voltage gradually, such as volume control in audio equipment or adjusting brightness in lighting systems.Applications: Audio equipment (volume controls), radios (tuning circuits), and electronic test equipment.
Linear Potentiometers:Description: These potentiometers provide a linear change in resistance as the adjustment element (typically a slider or lever) moves along a linear path.Advantages: Linear response makes them ideal for applications where you need precise control over the adjustment. The resistance change is directly proportional to the movement of the wiper.Applications: Position sensing (e.g., for measuring the position of a slider), automotive control systems, and control panels.
digital potentiometers:Description: A digital potentiometer (or "digipot") is controlled electronically rather than manually. It is typically adjusted using an external microcontroller or digital signal.Advantages: Offers precise control via digital signals, and can be controlled remotely, making them suitable for applications that require automation or integration with digital systems.Applications: Programmable audio devices, digital signal processing (DSP) systems, and embedded systems.
Slide Potentiometers:Description: Similar to linear potentiometers, but the adjustment is made via a slider rather than a rotary knob. The wiper moves along a track in a straight line.Advantages: Easier for users to control and adjust with a sliding motion, often used in environments where precise, hands-on control is needed.Applications: Audio mixing boards, light dimmers, and control panels for user interfaces.
Variable Resistors Types:
Wire-Wound Variable Resistors:Description: These resistors consist of a wire wound around a core, with a wiper that moves along the wire to change the resistance.
Advantages: Wire-wound resistors are known for their high power ratings and precision, making them suitable for applications where higher current and voltage are involved.
Applications: Power supplies, motor speed controls, and high-power resistive applications, such as in industrial machinery and heating elements.
Carbon-Film Variable Resistors:Description: These resistors use a carbon film on an insulating substrate. The resistance is adjusted by varying the position of the wiper on the carbon track.
Advantages: Carbon-film resistors are cost-effective and provide moderate precision, making them ideal for general-purpose applications. They also perform well in lower power settings.
Applications: Consumer electronics, lighting control, and basic current-limiting circuits.
Multi-Turn Variable Resistors:Description: These resistors feature a design that allows the user to make adjustments over multiple turns of the adjustment screw, providing finer control over the resistance.
Advantages: Multi-turn variable resistors offer high precision and fine adjustments in small steps, which is crucial in applications requiring delicate tuning or very accurate resistance settings.
Applications: Precision measurement devices, calibration circuits, and high-accuracy motor speed control.
Choosing the Right Type for Your Application:
For fine control over voltage (e.g., audio volume, lighting brightness), rotary potentiometers or linear potentiometers are ideal due to their smooth and continuous adjustment capabilities.
For applications requiring digital control, such as in automated systems or microcontroller projects, digital potentiometers provide a versatile and programmable solution.
For higher power handling or applications that demand high precision in resistance, wire-wound variable resistors are best suited due to their ability to handle higher loads and provide accurate resistance changes.
For precise adjustments in low-power applications, multi-turn variable resistors are preferred, offering finer control for applications such as calibration or sensitive feedback loops.
Each type of potentiometer or variable resistor is designed to serve specific circuit requirements, and choosing the right one depends on the level of control needed, the type of signal being controlled (voltage vs. current), and the power rating for the application.
10. Conclusion
In conclusion, while potentiometers and variable resistors both offer adjustable resistance, their functionality, applications, and design make them suitable for different tasks in electronic circuits. Potentiometers are ideal for voltage control and fine-tuned adjustments, while variable resistors are better suited for controlling current flow and power regulation.
For sourcing high-quality potentiometers and variable resistors, Unikeyic Electronics is a reliable distributor with a wide range of components for all your project needs. Whether you’re working on a hobby project or a professional application, Unikeyic Electronics offers excellent customer support and a variety of options to suit your needs.
Choose the right component for your project, and don’t hesitate to reach out to Unikeyic Electronics for more information or to place an order today!
