A Comprehensive Guide to Programmable Logic Development Boards and Kits

20 March, 2025

In the world of digital electronics and embedded systems, programmable logic development boards and kits play a crucial role in prototyping, testing, and deploying complex systems. Whether you're a student, hobbyist, or professional developer, having the right development kit can make a significant difference in the success of your project. In this guide, we’ll explore the different types of programmable logic development boards, their features, and how to choose the best one for your needs.

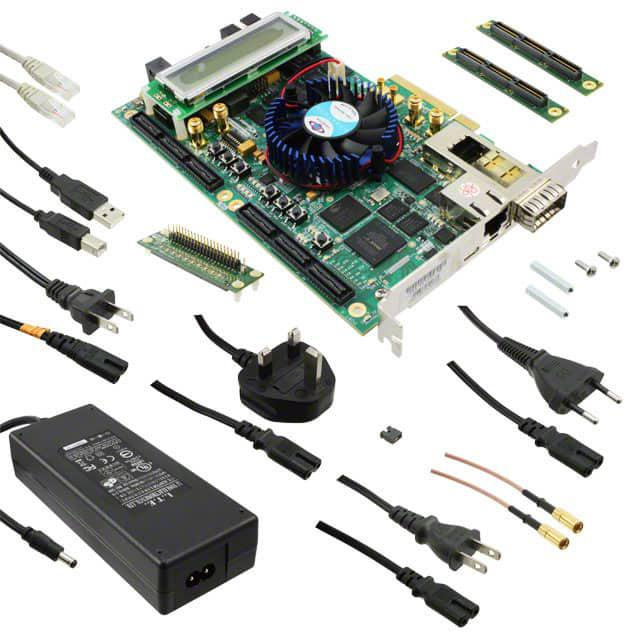

Figure 2: Programmable Logic Development Boards

1. Introduction to Programmable Logic Development Boards

What are Programmable Logic Development Boards?

Programmable logic devices (PLDs) are semiconductor devices used to build digital circuits that can be configured to perform specific functions. The two most common types of PLDs are:FPGAs (Field-Programmable Gate Arrays): These devices consist of an array of programmable logic blocks that can be configured to implement a wide range of digital functions. FPGAs are ideal for tasks that require parallel processing, such as signal processing, image processing, and high-speed data manipulation.

CPLDs (Complex Programmable Logic Devices): CPLDs are similar to FPGAs but typically have fewer logic blocks and are more suited for simpler applications that do not require the high processing power of an FPGA.

A programmable logic development board is a platform that houses a PLD, providing all the necessary components to design, test, and prototype digital systems. These boards typically come with built-in power supplies, clock sources, I/O interfaces, and debugging capabilities.

Why Use Development Boards and Kits?

Development boards and kits are invaluable tools for both beginners and professionals in the field of digital system design. They simplify the process of designing, testing, and debugging complex circuits by offering an integrated platform that contains essential components. This section will explore in greater detail why these boards are so widely used and how they contribute to the efficiency and effectiveness of the design process.

1. Simplified Design and Testing Process

One of the main reasons development boards are so widely adopted is that they eliminate the need for creating custom hardware from scratch. Typically, when designing digital systems, developers have to design and fabricate custom circuit boards, a time-consuming and often costly process. With development boards, this effort is already done for you. These boards come pre-configured with essential components such as power supply circuits, input/output (I/O) interfaces, clocks, and debugging tools. All these features are integrated into a single platform, allowing developers to focus on their core design work.

This pre-configured setup speeds up the entire development process. Developers can immediately start programming and testing their designs without spending time on hardware assembly. Whether it’s creating simple circuits or building more complex systems, development boards provide a quick, ready-to-use environment for experimentation.

2. Rapid Prototyping and Idea Validation

For developers, the ability to rapidly prototype and test their ideas is essential. Development boards are perfect for this because they allow you to implement, test, and modify your designs quickly. When working on a project, time is often of the essence, and delays in hardware development can significantly slow down progress. By using a development board, you can prototype a design, validate its functionality, and make modifications as needed in a fraction of the time it would take to design and build custom hardware.

The ability to modify your design on the fly is particularly valuable for early-stage prototypes, where changes are common. Instead of waiting for custom hardware to be fabricated, you can adjust your logic and experiment with different configurations on the development board. This flexibility makes it easier to iterate quickly and reach the optimal design faster.

3. Educational Tool for Learning Digital Logic Design

Development boards are also widely used in education, particularly in teaching digital logic design. For students, these boards provide a hands-on way to learn about digital circuits, logic gates, and other key principles of electrical engineering and computer science. By programming these boards, students gain practical experience with hardware and learn how to work with tools like HDL (Hardware Description Language), FPGAs, and CPLDs—skills that are highly sought after in the tech industry.

Since the boards come with documentation, tutorials, and examples, students can easily follow along with pre-defined lessons or explore their own projects. This approach enhances their understanding by allowing them to experiment with real hardware, making the concepts they learn more tangible and easier to understand.

4. Convenient for Hobbyists and Professionals

For hobbyists and engineers working on personal or professional projects, development boards offer a convenient way to experiment with more complex systems. They provide a flexible platform that can be used for a wide range of applications, from IoT (Internet of Things) devices to signal processing and image manipulation. With pre-configured I/O interfaces and processing power, hobbyists can quickly create custom systems and test their ideas.

Professionals benefit from development boards as well. In industries where speed and innovation are crucial, the ability to reduce development time is a significant advantage. Engineers working on prototype designs for new products can quickly implement their ideas, test them in a real-world environment, and then refine the design as needed. This streamlines the development cycle, helping bring products to market faster.

5. Reduction in Development Time and Increased Efficiency

One of the biggest challenges in any development project is the time it takes to move from concept to finished product. Development boards help reduce this time significantly by providing an integrated platform with many of the hardware components already in place. Instead of having to create everything from scratch, developers can focus on writing code and testing their designs. This reduction in development time is especially beneficial in fast-paced industries, where time-to-market is critical.

Moreover, development kits often come with a range of built-in debugging tools, such as logic analyzers, oscilloscopes, and signal generators, making the testing and debugging process much easier. This not only improves the quality of the design but also speeds up the overall process by helping developers identify and fix issues more efficiently.

In summary, development boards and kits serve as indispensable tools for a wide range of users, from students to professional engineers. They simplify the design process, provide a platform for rapid prototyping, and offer educational value. By reducing the time required for hardware development and offering a convenient testing environment, these boards enable faster innovation, higher-quality designs, and a more efficient development process. Whether you're just getting started with digital system design or you're a seasoned professional, development boards are an essential part of modern electronics prototyping.

2. Key Features of Programmable Logic Development Boards

Programmable logic development boards are designed to offer a complete and integrated platform for testing, designing, and prototyping digital circuits and systems. These boards can vary greatly depending on the target audience—ranging from beginners to advanced users—but they all share some core components that are essential for creating, programming, and debugging programmable logic devices (PLDs) like FPGAs (Field-Programmable Gate Arrays) or CPLDs (Complex Programmable Logic Devices). In this section, we’ll take a deeper dive into the key features and components of these development boards.

Components on the Development Board

FPGA or CPLD Chips: The Core Component

At the heart of any programmable logic development board lies the FPGA or CPLD chip. This chip is what gives the board its programmable nature and allows users to implement custom digital logic functions. Both FPGAs and CPLDs are types of PLDs, but they differ in their architecture and capabilities:FPGAs: These are highly flexible devices with a vast array of logic gates and interconnects, allowing for large, complex designs and high-speed processing. FPGAs can handle parallel processing and are ideal for tasks that require real-time performance, like signal processing or image processing.

CPLDs: These are smaller, less complex chips compared to FPGAs, typically used for simpler logic functions or lower-speed applications. They are well-suited for designs that need a smaller footprint and lower power consumption.

Both types of chips offer users the flexibility to create their own custom circuits, and the decision to use an FPGA or CPLD usually depends on the specific requirements of the project, such as performance, power consumption, and design complexity.

I/O Interfaces: Connecting the Board to External Systems

Programmable logic development boards come with a variety of input/output (I/O) interfaces to facilitate communication between the board and external systems. Some of the most common I/O interfaces include:General Purpose Input/Output (GPIO) Pins: These pins are used for digital signals—either input or output—and are a fundamental feature of any development board. GPIO pins allow the user to interact with external components, such as sensors, LEDs, motors, and other devices.

Serial Communication Ports: These ports include UART (Universal Asynchronous Receiver/Transmitter), SPI (Serial Peripheral Interface), and I2C (Inter-Integrated Circuit). These communication standards allow for serial data transfer, making them ideal for interfacing with external peripherals like sensors, memory chips, or other microcontrollers.

Advanced Interfaces: Some boards come with more sophisticated interfaces like Ethernet, USB, or PCIe, depending on the application. These interfaces allow for high-speed data transfer and are especially useful in applications like networking, high-speed data logging, or connecting to computers for real-time control.

These I/O interfaces make it easy to connect your development board to a wide range of devices and integrate it into larger systems.

Power Supplies: Ensuring Stability

A reliable power supply is essential for the proper functioning of any development board. These boards typically have built-in voltage regulators to ensure that the FPGA or CPLD chip and any connected peripherals receive the appropriate voltage and current for operation. Power supplies are often designed to handle a wide range of input voltages, making them versatile for different environments and use cases.

Power stability is particularly important when working with complex designs that involve high-speed circuits or multiple peripherals, as voltage fluctuations can lead to erratic behavior or unreliable results.

Clock Sources: Providing Timing for Digital Designs

Many digital circuits require precise timing to function correctly, and clock sources are integral to maintaining that timing. Development boards typically include one or more oscillators or clock generators that provide a stable clock signal to synchronize the operation of the FPGA or CPLD with other components. These clock sources are critical when designing high-speed digital systems or systems that require synchronous behavior, such as signal processing or communication systems.

Programming Interfaces: Uploading Designs to the PLD

Programming the FPGA or CPLD involves loading a configuration bitstream that defines the logic functions the chip will perform. Programming interfaces make this process possible, and most development boards come with interfaces like:USB: USB is the most common interface for programming and is widely supported by development tools. Many boards use USB for both power and programming, making the connection simple and convenient.

JTAG: The Joint Test Action Group (JTAG) interface is another common programming interface, used for debugging, testing, and uploading designs. JTAG is especially useful for more advanced users who need to perform low-level debugging and testing.

These interfaces enable the design files, written in HDL (Hardware Description Language) like VHDL or Verilog, to be uploaded onto the programmable logic device.

Compatibility and Flexibility

A major advantage of using development boards is the compatibility and flexibility they offer across a variety of development environments. When choosing a development board, it’s crucial to ensure that the board is compatible with popular software tools used to design and program PLDs. Some of the most commonly used software tools include:Xilinx Vivado: A comprehensive design suite for FPGAs that allows for the creation, simulation, and implementation of digital designs.

Intel Quartus: A similar software tool used for Intel FPGAs, providing a complete suite for design, simulation, and programming.

Project IceStorm: An open-source toolchain designed for Lattice FPGAs, providing a free and accessible alternative to commercial software.

The flexibility of these boards also makes them suitable for a wide range of applications. Whether you’re building simple digital logic circuits, designing custom signal processing systems, or developing embedded solutions, programmable logic development boards can be used in diverse fields, including:Signal Processing: FPGAs’ ability to process multiple data streams in parallel makes them ideal for applications like audio and video processing, communications, and real-time data analytics.

Embedded Systems: Many development boards feature System on Chip (SoC) designs, combining both a processor and an FPGA on a single chip, which is perfect for embedded applications like robotics, IoT devices, and automated control systems.

Image Processing: The parallel processing capabilities of FPGAs are particularly valuable in image and video processing applications, such as real-time face recognition, motion detection, and machine vision.

Programming and Debugging Capabilities

To program and test your designs, most development boards offer a variety of powerful programming and debugging tools. These are essential for ensuring your digital circuits perform as expected and for resolving any issues during the design process.

Logic Analyzers: Logic analyzers are used to capture and visualize signals in your design. These tools allow you to monitor the behavior of individual logic signals, providing insights into how different parts of your system are interacting. This is especially useful for debugging complex designs.

Oscilloscopes: Oscilloscopes are used to measure and visualize analog signals in the design. Although FPGAs and CPLDs are primarily digital devices, many designs involve analog components or mixed-signal systems. Oscilloscopes help ensure that the signal integrity and performance meet your specifications.

Simulators: Before implementing a design on hardware, it’s often useful to simulate its behavior. Simulation software helps you test your design in a virtual environment to identify issues early. This reduces the risk of errors and allows for rapid iteration and improvement.

These programming and debugging tools are indispensable for verification and validation, ensuring that your design is functioning as expected before committing to hardware implementation.

The key features of programmable logic development boards—FPGA or CPLD chips, versatile I/O interfaces, reliable power supplies, clock sources, and advanced programming and debugging tools—make them essential for anyone working in digital system design. By providing an integrated environment for rapid prototyping, testing, and debugging, these boards allow developers, engineers, and students to streamline their design workflows and create more complex systems with ease. Whether you're working on educational projects, hobbyist designs, or professional applications, choosing the right development board with these key features is critical to success.

3. Types of Programmable Logic Development Kits

Entry-Level Development Boards

Entry-level boards are ideal for beginners or students learning digital logic. These boards tend to have lower cost but sufficient power for basic applications. Examples include:Xilinx Spartan Series: These boards offer a good balance of affordability and functionality, making them a popular choice for educational purposes.

Altera Cyclone Series: Another cost-effective option, suitable for learning basic digital logic and FPGA design.

These boards typically come with basic features and I/O options but can handle simple designs and prototypes.

Mid-Range and Advanced Development Kits

Mid-range and advanced development kits target professional developers and are equipped with more powerful PLDs and advanced features. These boards are suitable for complex applications that require real-time processing or high-speed data manipulation. Examples include:Xilinx Zynq-7000 Series: These boards integrate an FPGA with a dual-core ARM processor, making them ideal for applications that require both hardware acceleration and software control.

Intel/Altera Arria Series: These boards provide high-performance FPGAs with specialized blocks for signal processing, high-speed interfaces, and large memory options.

These boards are equipped with extended I/O options, including high-speed transceivers, memory interfaces, and the capability to handle high-bandwidth applications.

System on Chip (SoC) Development Kits

SoC development kits integrate both an FPGA and a microprocessor (often an ARM core) on a single chip, enabling the development of systems that combine software control and hardware acceleration. Popular examples include:ZedBoard (Xilinx Zynq-7000 SoC): This board is perfect for embedded systems, robotics, and communication systems, where both processing power and hardware programmability are needed.

Terasic DE10-Nano: A versatile SoC platform with an FPGA and an ARM processor, widely used in embedded system development and IoT applications.

These kits are particularly valuable for advanced users who want to create complex systems with both processing and hardware acceleration.

4. Choosing the Right Programmable Logic Board for Your Application

Application-Specific Requirements

When choosing a development board, it’s important to consider your specific application needs. For example:Embedded Systems: If you're working on embedded systems, you might need a board with a strong processing core (e.g., Zynq SoC) to handle both software and hardware tasks.

Signal Processing: FPGAs with DSP capabilities (e.g., Xilinx Kintex or Intel Stratix) are well-suited for tasks that require high-speed data processing.

High-Speed Data Transfer: If your project requires fast data transfer, focus on boards with high-speed interfaces like Ethernet, PCIe, or USB 3.0.

Factors to Consider When Choosing a Board

Budget: For hobbyists, boards like the Digilent Nexys A7 or Terasic DE10-Lite offer a good balance of features and affordability.

I/O Requirements: Consider how many I/O pins your design needs (e.g., for GPIO, memory interfaces, serial communication).

Development Tools and Ecosystem: Make sure the board is compatible with widely used development tools like Xilinx Vivado, Intel Quartus, or LabVIEW FPGA.

5. Popular Programmable Logic Development Boards

Here’s a list of some popular development boards:Xilinx Spartan-6: Affordable, entry-level board for learning FPGA design.

Xilinx Zynq-7000: Combines an FPGA with an ARM processor, ideal for embedded systems.

Intel/Altera Cyclone IV/V: Cost-effective boards for entry-level to mid-range FPGA development.

Terasic DE10-Nano: Features an FPGA and ARM processor for versatile applications.

Digilent Nexys A7: A mid-range board that offers excellent balance between features and price.

Lattice iCE40: An ultra-low-power FPGA, suitable for small IoT projects.

6. Benefits of Using Programmable Logic Development Kits

Rapid Prototyping

Development boards enable rapid prototyping, allowing engineers to quickly test and validate their designs. This reduces time-to-market and the need for custom PCB fabrication in the early stages of development.

Reusability

Once a design is implemented on an FPGA or CPLD, it can be reprogrammed and reused for different applications, saving time and effort in future projects.

Real-Time Performance

FPGAs provide exceptional real-time performance because they can process data in parallel, making them ideal for applications like signal processing, image manipulation, and data streaming.

7. Where to Buy Programmable Logic Development Boards

unikeyic Electronics is a trusted distributor for a wide variety of programmable logic development boards, including products from major manufacturers like Xilinx, Intel, and Terasic. Their offerings cover everything from entry-level boards to advanced SoC development kits.

Other reputable online retailers include:Digi-Key: Known for a vast inventory and quick delivery.

Mouser Electronics: Offers a wide range of development boards with technical support.

RS Components: Great for global shipping and high-quality products.

Element14: Offers a broad selection of boards and development tools.

8. Conclusion

Choosing the right programmable logic development board is a crucial step in the success of your digital system design project. Whether you’re a beginner just starting out or a professional working on advanced applications, there’s a board out there that fits your needs. Be sure to consider your budget, application requirements, and the development tools available before making a decision.

Explore the wide range of options and take advantage of the powerful features these boards offer to create innovative and efficient designs.
