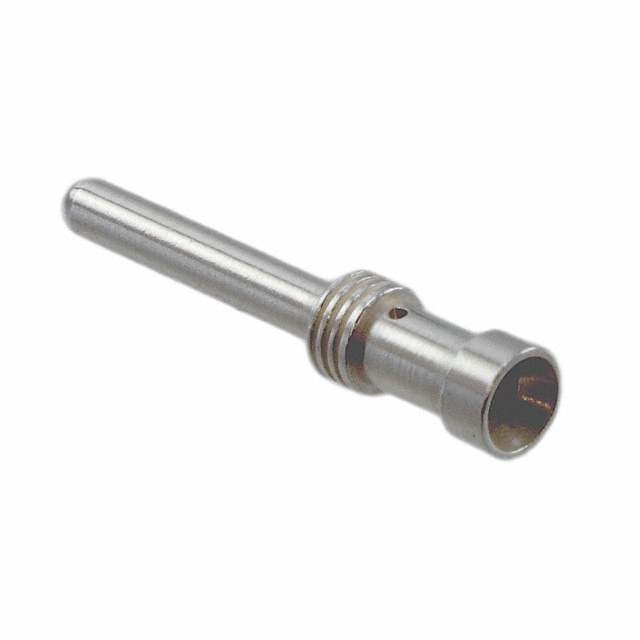

The Performance Advantages and Application of Silver Electrical Contacts
Whether in high-tech fields such as aeronautic application,telecommunications, automotive industry, or in everyday application requirement like instruments and switchgear, electrical contacts are ubiquitous. These contact assemblies are crucial components of electrical devices like automotive relays, current circuit breakers, and contact system. They ensure the opening and closing functions of circuits within electrical conductivity and bear the load current. The performance of electrical contacts directly affects the reliability, stability, and lifespan of electrical equipment, with silver electrical contacts being the most commonly used in scenarios of wide variety.
However, electrical contacts often represent the weakest link in many appliances because the materials used in the electrical metal contacts undergo a series of physical and chemical reactions during operation. Thus, selecting appropriate electrical contact materials is crucial. The ideal silver alloys must possess a complex set of characteristics, some of which can be inherently contradictory. While no material perfectly meets all these demands, silver electrical contacts are frequently chosen due to silver's excellent conductivity, machinability, and low, stable contact resistance.
Advantages of Silver Electrical Contacts
Silver,as a ideal choice of electrical metal contacts,has broad range of advantages in its electronic applications.
Electrical Performance
During the operation of discrete contact materials, electrode surfaces suffer from arc damage. Causes of electrode degradation include phase changes, thermal fatigue, plasma impact, material transfer, and morphological alterations. Therefore, contact materials must exhibit exceptional typical properties such as constant contact resistance to welding, arc erosion, electrical conductivity, and maintain a low and stable contact resistance.
Physical Properties
High specific heat, a high melting point, thermal stability, and good electrical and thermal conductivity are prerequisites for conducting electrical signals. Initially, contact surface arc energy inputs heat, melt, and evaporate the material. Additionally, forces acting on the contact surface—especially those on the walls of the molten pool—lead to significant erosion resistant in the wire form of tiny molten droplets. Effective thermal conductivity transfers heat generated at the contact surface swiftly to the discrete contact base, preventing welding. High hardness is also necessary to enhance wear resistance of silver.
Chemical Properties
Solid contact materials must withstand gas corrosion even in harsh environments. This includes having low chemical affinity with surrounding gases to avoid forming difficult-to-decompose substances that impede conductivity, thus reducing material loss—a factor critical for extending material lifespan.
Other Properties
In practical product description, electrical metal contact require a certain degree of machinability. For economic efficiency, materials should offer good cost-effectiveness. Moreover, given today's focus on green practices, the environmental impact of materials cannot be ignored (such as whether they contain heavy metals like cadmium).
Industrial Applications of Silver Electrical Contacts
As the crucial component of electrical connections, silver electrical contacts are extensively utilized across numerous high-current application due to their excellent conductivity, constant contact resistance, and wear resilience.
Their primary functions include current carrying capabilities, reducing energy loss, enhancing equipment longevity, and ensuring operational safety. Below is an analysis of range of application scenarios and specific functions:
1.Low Voltage Electrical Appliances
Current Circuit Breakers and Switchgear
Electrical Application Scenarios: Current Circuit breakers in household distribution boxes and industrial power distribution cabinets, isolation power switches.
Core Functions:
● Current Interruption: Quickly cut off the circuit during short circuits or overloads. Silver-based contacts (such as AgSnO₂) have high arc resistance, able to withstand instantaneous current flow of thousands of amperes, preventing contact welding.
● Low Contact Resistance: High conductivity of silver(resistivity of 1.59×10⁻⁸Ω·m) reduces heating and avoids energy loss (e.g., contact temperature rise can be reduced by 15~20℃ under 100A current).
Typical Case: In miniature current circuit breakers (MCBs), AgNi contacts enable a breaking capacity of 6kA, with a lifespan exceeding 10,000 operations.
Contactors and Relays
Electronic Application Scenarios: Electromagnetic contactors for motor control and automated production lines
Core Functions:
● High Frequency Operation: AgWC (silver tungsten contact) contacts have excellent wear resistance, supporting tens of thousands of starts and stops daily (e.g., packaging machinery contactor lifespan over 500,000 operations).
● Signal Stability: Pure silver electrical contacts in low-current automotive relays ensure unattenuated transmission of weak currents (<10mA), avoiding malfunctions in control systems.
2.High Voltage Power Systems
High Voltage Circuit Breakers
Application Scenarios: Vacuum circuit breakers and SF6 circuit breakers in substations and power transmission networks.
Core Functions:
● High Voltage Arc Resistance: Silver-tungsten (AgW) contacts containing 50%~70% tungsten, with a melting point as high as 3400℃, can withstand arc erosion properties from voltages above 10kV.
● Long-Life Design: After breaking a 40kA short-circuit current, the contact erosion rates is <0.1mm, ensuring equipment maintenance-free for 10 years.
Case Data: In certain 550kV GIS equipment, AgW contacts extend current circuit breaker mechanical life to 12,000 operations, far surpassing traditional copper contacts' 8,000 operations.
Isolating Power Switches
Application Scenarios: Isolation operations during high voltage line maintenance.
Core Functions:
● Environmental Corrosion Resistance: Silver-plated copper contacts resist oxidation in humid and salt spray environments, with contact resistance fluctuation <5% (pure copper-plated contacts may see minimal resistance increase by 200% due to oxidation).
3.Automotive and Transportation Electronics
High Voltage Systems for New Energy Vehicles
Application Scenarios: Battery Management Systems (BMS) and contactors for electric vehicle charging stations.
Core Functions:
● High Current Carrying: Dual-layer silver-metal oxide (AgSnO₂) contacts support continuous currents of 400A, with contact resistance <20μΩ, reducing energy loss during charging (efficiency improvement of 3%~5%).
● Anti-Vibration Design: The combination of silver-based contact system and spring structure ensures stable contact pressure amidst vehicle jolts (fluctuation <10%), preventing arc discharge.
Typical Case: In Tesla superchargers, AgSnO₂ contacts achieve 250kW fast charging, controlling contact temperature rise within 45℃.
Traditional Automotive Electronics
Application Scenarios: Car light power switches and ECU control automotive relays.
Core Functions:
● Reliable Cold Start: AgNi contacts maintain elasticity at -40℃, with virtually unchanged contact resistance, preventing cold start failures.
● Sulfurization Resistance: Gold-plated silver electrical contacts have excellent corrosion resistance from sulfur gases in engine compartments, extending operational electrical contact life to 200,000 cycles.
4. New Energy and Storage Systems
Photovoltaic Inverters
Application Scenarios: DC side current circuit breakers and MPPT controllers.
Core Functions:
● DC Arc Resistance: AgSnO₂ contacts reduce arc extinguishing time by 30% under DC 1000V compared to AgCdO, minimizing fire risk on photovoltaic panels.
● High Temperature Endurance: Contacts operate continuously in environments up to 85℃, with contact resistance variation rate <8%.
Energy Storage Battery Systems
Application Scenarios: Lithium battery pack protection power switches and energy storage converters.
Core Functions:
● Fast Interruption: Silver tungsten contacts can cut off 1000A fault currents within 2ms, preventing thermal runaway.
● Electrical contact life cycle: Supports 50 charge-discharge cycles per day, with contact mechanical wear rate <0.05μm per cycle.
5.Industrial Automation and Precision Equipment
Industrial Robots
Application Scenarios: Servo motor controllers and I/O module relays.
Core Functions:
● High-Frequency Signal Accuracy: Palladium-silver plated contacts maintain contact resistance fluctuation <1mΩ at 0.5A signal current, ensuring undistorted encoder signals.
● Electromagnetic Interference Resistance: Bimetal silver contacts’ low impedance characteristics (<5mΩ) reduce high-frequency noise coupling.
Medical Equipment
Application Scenarios: MRI equipment power switches and surgical robot contacts.
Core Functions:
● Biocompatibility: Rhodium-silver plated contacts avoid metal ion leaching, compliant with ISO 10993 medical industry standards.
● Sterile Environment Adaptation: Sealed contact design prevents disinfectant infiltration, achieving contact reliability of 99.999%.
6. Consumer Electronics and Smart Home
Smart Appliances
Application Scenarios: Air conditioner compressor relays and micro switches.
Core Functions:
● Energy Saving: Silver contacts reduce relay power consumption to below 0.5W (copper-plated contacts typically >1W), meeting EU ErP energy efficiency standards.
● Silent Operation: AgSnO₂ contacts paired with magnetic latching structures keep switching noise <30dB.
Wearable Devices
Application Scenarios: TWS earphone charging contacts and smartwatch buttons.
Core Functions:
● Miniaturization Design: Laser-processed silver contacts can be as small as 0.3mm×0.3mm, supporting ultra-thin devices (e.g., earphone contact thickness of only 0.1mm).
● Sweat Protection: Nano-coating technology gives contacts corrosion resistance in sweat with pH levels between 4 and 9, lasting over 3 years.
Silver electrical contacts, often regarded as the "invisible guardians" of electrical special applications, will continue to drive advancements in reliability and efficiency in wide range of industry such as energy, transportation, and industry through their technological progress.
