How does a Rangefinder Work

A rangefinder is a device that has become indispensable in various fields. It allows users to accurately measure the distance between themselves and a target. In this article, we'll explore how different types of rangefinders work.

Common Types of Rangefinders and How does a Rangefinder work

Laser Rangefinders

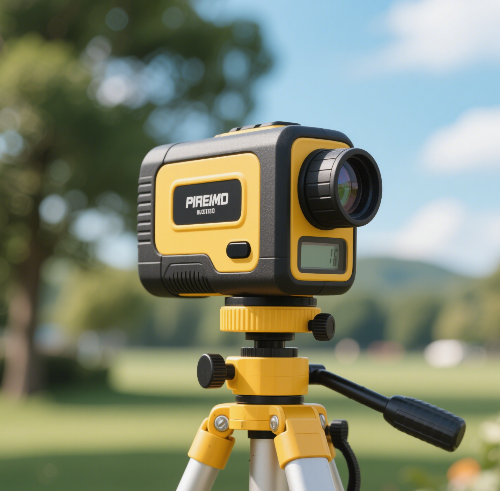

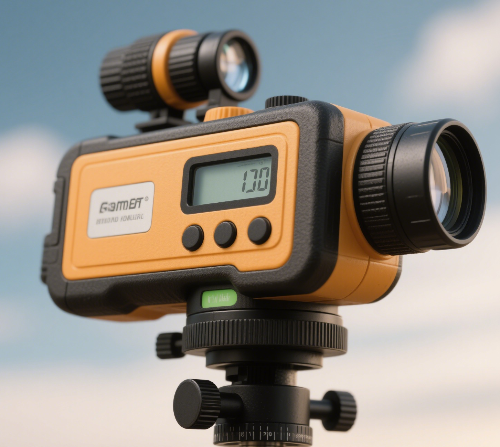

Laser rangefinders are among the most commonly used types today. The basic principle behind their operation lies in the use of a laser beam. When you aim a laser rangefinder at a target, it emits a short pulse of laser light. This laser beam travels at an incredibly high speed (the speed of light, approximately 299,792,458 meters per second in a vacuum).

The moment the laser beam is emitted, an internal timer in the rangefinder starts counting. When the laser beam hits the target, it reflects back towards the rangefinder. The rangefinder's detector then picks up this reflected light. At that instant, the timer stops. By knowing the time it took for the laser beam to travel to the target and back (let's call this time t), and using the fact that distance (d) is equal to speed (c, the speed of light) multiplied by time (t), but since the light traveled to the target and back, the actual distance to the target is calculated as d = c * t / 2.

Optical Rangefinders

Optical rangefinders work on a different principle. They use the concept of triangulation. An optical rangefinder typically has two separate viewing lenses or apertures that are a fixed distance apart (the baseline). When you look through the optical rangefinder at a target, your eyes (or the internal optical system) see the target from two slightly different angles.

The rangefinder then measures the angular difference between the two lines of sight to the target. Using trigonometry, specifically the tangent function, and knowing the length of the baseline, the distance to the target can be calculated. For instance, if the baseline is 10 centimeters and the measured angular difference is 1 degree, through trigonometric calculations, the distance to the target can be determined. Optical rangefinders were widely used before the advent of laser rangefinders. They are reliable but generally not as accurate as laser rangefinders over long distances.

Golf Rangefinders

Golf rangefinders have become a popular tool for golfers to improve their game. These rangefinders often use laser technology. When a golfer is on the course and wants to know the distance to the flagstick on a particular hole, they simply aim the golf rangefinder at the flagstick.

The laser beam is emitted and reflects off the flagstick back to the rangefinder. Based on the time-of-flight principle described earlier, the rangefinder calculates the distance. Some advanced golf rangefinders also take into account factors such as elevation changes. If there is a hill between the golfer and the flagstick, the rangefinder can use built-in sensors to measure the angle of elevation or depression and adjust the distance calculation accordingly. This helps golfers select the right club for their shot.

Applications of Rangerfinders in Sports

In sports events, electronic “referee” rangefinders, be it laser rangefinders or optical rangefinders, play a crucial role as an embodiment of surveying and mapping technology. Surveying and mapping technology, which seemingly is only closely related to geographical information and urban planning, actually has a wide and diverse range of applications. It not only plays a vital role in land management and engineering construction but also quietly permeates every aspect of our daily lives. In sports events, this technology, with its advantages such as broad perspectives for recording and precise data collection, brings great convenience to athletes' daily training, competition route planning, and even the viewing experience of the audience. It also provides accurate data support during the event, bringing modern technological innovation to the sports industry.

On the sports field, the precise measurement of the “chief measuring referee” and the accurate judgment of the “chief referee” are of great significance. Their fairness and professionalism embody the sports spirit and are also one of the key factors for the smooth progress of the competition. For example, today we will introduce two behind-the-scenes “workers” the total station and the laser rangefinder, whose roles are comparable to those of the “chief measuring referee” and the “chief referee”.

Total Station: It is a measuring instrument that integrates an electronic theodolite, an electro-optical distance meter, and a microprocessor. It can accurately measure distances and angles and calculate the exact distance between two points in real-time through a three-dimensional coordinate measurement system. Its effective range allows it to handle various sports scenarios, from large-scale stadiums to open-field events.

Laser Rangefinder: It is a measuring instrument that measures the distance to a target by modulating a certain parameter of the laser beam. It has the convenient advantages of being lightweight, small-sized, easy to operate, fast, and accurate. Its error is only one-fifth to one-several-hundredth of that of other optical rangefinders. When a laser rangefinder emits a laser beam towards a target, based on the time-of-flight principle, it can quickly and accurately determine the distance. This is especially useful in sports where split-second and precise distance measurements matter.

In Track and Field Events, rangefinders are widely used in jumping events such as long jump and triple jump. Measuring the axial horizontal distance in the long jump in field events was relatively simple in the early days, which was accomplished by pulling a tape measure or a steel ruler. After the emergence of laser rangefinders, the measurement speed and accuracy have been greatly improved, reducing human errors and enhancing the competition efficiency and fairness. And when considering the effective range of these rangefinders, they can accurately measure distances even in larger-sized stadiums without compromising on precision.

Although direct distance measurement with a steel ruler or rangefinder can achieve considerable accuracy, it cannot objectively measure when an athlete deviates from the axis. At this time, the total station, a fully-functional and high-precision instrument, comes in handy. After setting up the total station and establishing an assumed coordinate system and determining the reference point, it can accurately and objectively measure the athlete's axial horizontal distance. Moreover, these data can be directly transmitted to a computer, making data collection and processing simpler and more accurate.

On golf courses, golf rangefinders are indispensable for both amateur and professional players. Using laser technology, they pinpoint exact yardage to flagsticks, with advanced models incorporating slope mode to adjust for elevation (e.g., uphill or downhill shots). This slope adjustment helps golfers select the correct club, turning technical data into strategic advantage—critical for approach shots where a few yards can define success. High-end accurate golf rangefinder models even filter background clutter, focusing on the intended target (e.g., the flagstick rather than distant trees), ensuring accurate yardages in complex landscapes.

The full application of rangefinding instruments in sports events not only effectively improves the fairness of sports competitions and the efficiency of refereeing competition results but also provides scientific data support for athletes' training and competition strategies. With the continuous progress of technology, rangefinding instruments will develop more advanced functions, play an even more important role in sports events, and bring more precise and efficient technical support to the development of sports.
