Differentiating Pentode with a Triode by emphasizing their applications in real-world circuits

Embarking between a pentode and a triode involves comprehending their unique features and how they correspond to the particular application requirements of the users. Through a combination of their five electrodes, pentodes exhibit a higher gain and efficiency, thereby rendering themselves optimum for high-power and high-frequency applications like Audio Amplifiers as well as Radio Receivers and Transmitters. In contrast, despite their lower gain and potential for higher distortion, triodes are given prominence for their linear property as well as warm sound quality primarily because of their simpler three-electrode structure, subsequently rendering themselves flawless for high-fidelity audio applications and amplification of signals.

In order to assist users in making an informed choice based on performance requirements and desired audio characteristics, this article will cover the benefits, drawbacks and major applications of a pentode and a triode.

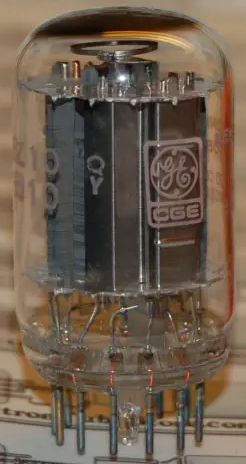

Pentode: A comprehensive overview

A pentode is a type of vacuum tube consisting of five active elements or electrodes such as the Cathode, Anode, Control Grid, Screen Grid, and Suppressor Grid. It's a more advanced version of the triode and tetrode vacuum tubes supporting higher gain than triodes and tetrodes thereby resulting in better amplification. The Suppressor Grid helps maintain linearity thus reducing distortion. The Screen Grid helps in maintaining an excellent frequency response, thus making it suitable for applications such as Audio amplifiers (especially in hi-fi and guitar amplifiers), Radio receivers and transmitters, Oscillators and RF amplification.

Construction and Symbol of a Pentode:

1. Cathode (K) – Emits electrons when heated.

2. Anode (Plate, A) – Responsible for electron flow collection and output current generation.

3. Control Grid (G1) – Modulates the flow of electrons between the cathode and anode; used for amplification.

4. Screen Grid (G2) – Reduces the capacitance between the control grid and the anode, increasing gain and frequency response.

5. Suppressor Grid (G3) – Placed between the screen grid and anode; it repels secondary electrons emitted from the anode back to the anode, preventing distortion and loss of efficiency.

Working Principle of a Pentode

A pentode vacuum tube operates on the principle of thermionic emission and electrostatic control of electron flow.

1. Thermionic Emission

●  The cathode is heated (usually indirectly by a filament).

●  This heat gives electrons enough energy to "boil off" the cathode surface and form an electron cloud.

2. Control of Electron Flow

●  A negative voltage is applied to G1 (control grid).

●  This grid controls how many electrons can pass from the cathode to the anode.

More negative Vg1 ⇒ fewer electrons get through ⇒ lower anode current.

Less negative Vg1 ⇒ more electrons ⇒ higher anode current.

3. Role of the Screen Grid (G2)

●  G2 is placed between G1 and the anode and is kept at a positive voltage (typically lower than the anode).

●  It attracts electrons, accelerating them towards the anode.

●  It also shields the control grid from the anode’s voltage, reducing interelectrode capacitance → improves frequency response and stability.

4. Suppressor Grid (G3)

●  As electrons hit the anode, they may cause secondary emission—knocking electrons off the anode.

●  Without G3, these secondary electrons could be attracted to the positively charged G2 → distortion and loss of gain.

●  G3 is usually connected to cathode potential (0V or negative), so it repels secondary electrons back to the anode.

5. Anode (Plate)

●  The positively charged anode collects the electrons, creating the anode current.

●  Since G2 handles much of the accelerating job, the anode current remains fairly constant even as its voltage changes (beyond a certain point) ⇒ flat V/I characteristics.

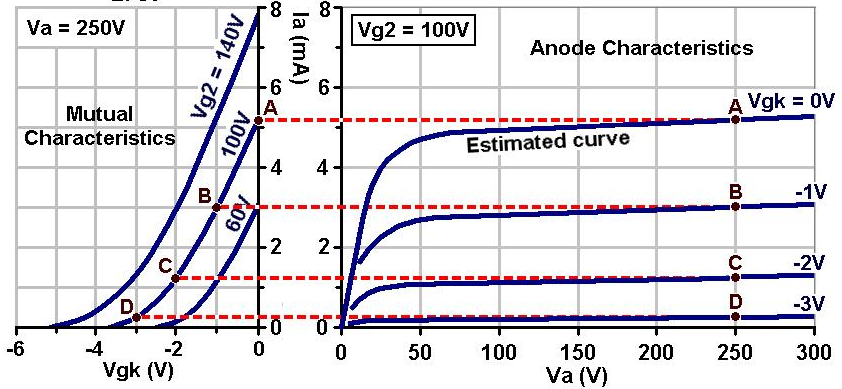

Pentode-V-I Characteristics

Classification of Pentodes

Pentodes can be categorized based on function and configuration.

Pentodes: Areas of Application

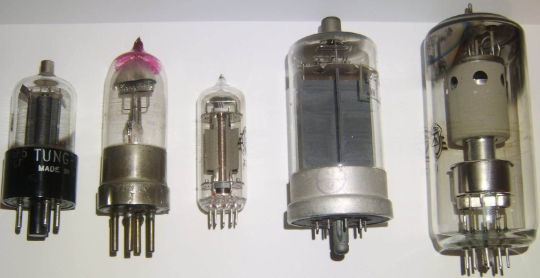

Triode: A comprehensive overview

A triode is the simplest type of vacuum tube amplifier, containing three main electrodes such as the Cathode, Control Grid and Anode inside a sealed, evacuated glass tube. A filament or heater is also available to heat the cathode for emitting electrons into the vacuum. The triode amplifies the input signal when the control grid is subjected to a small change in input voltage thereby causing a large change in output current at the anode.

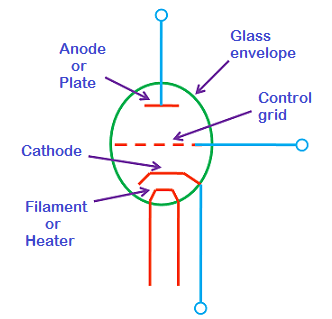

Construction and Symbol of a Triode

1. Cathode (K) – Emits electrons when heated (via thermionic emission).

2. Anode (Plate) – Responsible for electron flow collection and output current generation.

3. Control Grid (G1) – Controls the flow of electrons from cathode to anode.

Working Principle of a Triode

1. Thermionic Emission

●  The cathode is heated by a filament and emits electrons into the vacuum.

2. Control of Electron Flow

●  The control grid (G1) is placed between the cathode and anode.

●  Applying a negative voltage to the grid repels some electrons, reducing the current.

●  A small voltage on the grid controls a much larger current between cathode and anode.

3. Electron Collection

●  The anode (plate) is positively charged.

●  It attracts the electrons that pass through the grid, creating the anode (plate) current.

Classification of Triodes

Triodes: Areas of Application

Availability of the Pentodes and Triodes
