What is a Transducer? A Deep Dive into Energy Conversion

Have you ever stopped to think about how your car knows when the tire pressure is low, or how a doctor can see a baby during an ultrasound? The answer lies in a clever little device called a transducer. So, what is a transducer? At its simplest, it’s a tool that takes one type of energy and transforms it into another. This energy conversion process powers everything from your smartphone to massive industrial machines. In this article, we’ll unpack what makes transducers tick, explore their types, and see them in action—all in a way that’s easy to grasp and fun to learn.

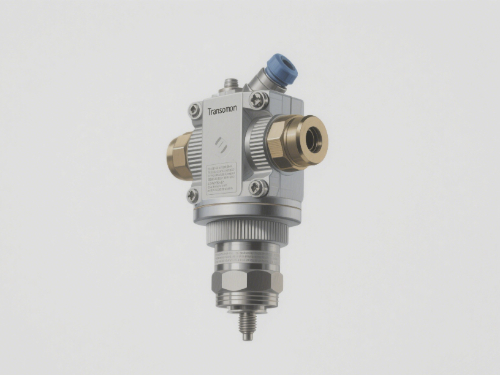

Fig1: Transducer

Defining a Transducer: The Basics

Let’s start with the essentials: to define a transducer, think of it as a bridge between the physical world and the electronic one. It’s a device that converts a physical phenomenon—like sound, pressure, or heat—into an electrical signal, or sometimes the other way around. This conversion is key in modern tech, letting machines “sense” or “act” based on their surroundings. For example, a microphone captures your voice as physical sound waves and turns them into electrical signals for recording. Meanwhile, a speaker flips that process, converting electrical energy back into sound you can hear. Pretty neat, right?

Transducers are all about transforming forms of energy. Whether it’s mechanical stress, temperature difference, or light energy, these devices make sure the right kind of energy gets where it needs to go, often as an electric signal or mechanical output.

Expert Insight: As Dr. Jane Smith, a leading researcher in sensor technology at MIT, explains, "Transducers are the unsung heroes of modern technology, silently converting energy to make our devices smarter and more responsive."

Types of Transducers: A Closer Look

Not all transducers are the same—they come in a variety of flavors, each suited to specific jobs. Here’s a rundown of the main types of transducer you’ll come across:

● Input Transducers: These take in physical changes and spit out electrical output. A classic example is a pressure transducer, which measures pressure level (like in a tire) and sends an output signal to a dashboard. Temperature sensors are another, turning heat into data for control systems.

● Output Transducers: These do the opposite, taking electrical charge or signals and turning them into physical actions. A motor converts electricity into motion, while a light bulb transforms it into visible light—think of a 100-watt bulb glowing bright.

● Active vs. Passive Transducers: Active transducers, like piezoelectric transducers, generate their own electrical charge from something like mechanical vibrations—no external power source needed. Passive transducers, such as resistive transducers, need a power input to work, changing electrical resistance based on conditions like pressure or heat.

● Specialized Types: You’ve got optical transducers for light energy, ultrasonic transducers for sound waves in ultrasound devices, and even linear transducers for precise position tracking. Each type has unique operating principles tailored to its task.

This variety means transducers can handle a wide range of application requirements, from consumer electronics to the medical field.

Table 1: Comparison of Common Transducer Types

Transducers in Everyday Life: Real-World Examples

Wondering where you’ve seen transducers at work? They’re hiding in plain sight! Here are some transducer examples that show their versatility:

● pressure sensors: Found in cars as pressure transducers, they monitor tire pressure and send alerts via electric currents to keep you safe on the road.

● Piezoelectric Materials: Used in piezoelectric transducers, these power things like lighters (spark from pressure) or motion sensors that detect movement through mechanical stress.

● Ultrasonic Transducers: In the medical field, these turn electrical energy into physical sound waves for imaging—like seeing a baby in an ultrasound.

● Temperature Sensors: Your thermostat uses these to detect a temperature difference and adjust the HVAC system, keeping your home cozy with precise accurate measurements.

From magnetic fields in inductive transducers to electric fields in current transducers, these devices are the unsung heroes of daily life.

How Transducers Work: The Nuts and Bolts

So, how does a transducer pull off this energy-switching trick? It’s all about a few key parts working together:

● Sensing Element: This is the “feeler”—it picks up the physical phenomena. In a pressure sensor, a diaphragm bends under force, while in a thermal transducer, it reacts to heat.

● Transduction Element: Here’s where the magic happens. This part converts the input into another form of energy. For instance, piezoelectric materials produce an electrical charge when squeezed, while electromagnetic induction in mechanical transducers generates power output.

● Signal Conditioning: Sometimes the signal output needs a tweak—amplification or filtering—to be useful in electronic devices or digital transducers.

The conversion process is what makes transducers so powerful, turning raw inputs like physical energy into actionable outputs like electricity into light or mechanical vibrations.

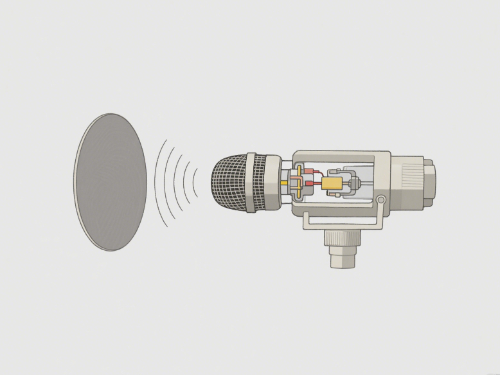

Fig2: Basic Operation of a Microphone Transducer

Why Transducer Efficiency Matters

Not every transducer is a superstar—some lose energy in the process. Transducer efficiency is all about how well it converts one type of energy to another without waste. Take a light bulb: a 100-watt bulb might turn most of its electrical energy into heat instead of visible light, making it less efficient. In critical spots like tire pressure monitoring or ultrasound devices, high efficiency ensures accurate measurements and reliable performance.

Factors like dynamic range, current output, and resistance to electromagnetic interference all play a role. Whether it’s an active transducer running solo or a passive transducer needing a boost, efficiency shapes how well it meets real-world demands.

Wrapping Up: The Power of Transducers

Next time you use a gadget or marvel at a medical scan, think about the transducer behind it. What is a transducer if not a master of transformation? From input transducers sensing the world to output transducers making things happen, these devices weave electrical signals and physical actions into our lives seamlessly. Whether it’s a pressure transducer keeping your car safe or a piezoelectric transducer sparking innovation, their role in energy conversion is nothing short of amazing. So, here’s to transducers—small but mighty bridges between energy and action.
