Understanding Programmable Oscillators

A programmable oscillatoris a versatile electronic component that generates precise frequencies for various applications. Unlike fixed-frequency oscillators, programmable oscillators can be configured to operate at different frequencies, offering flexibility in design and usage. These devices are essential in modern electronics, providing clock signals that synchronize operations in circuits, systems, and devices.

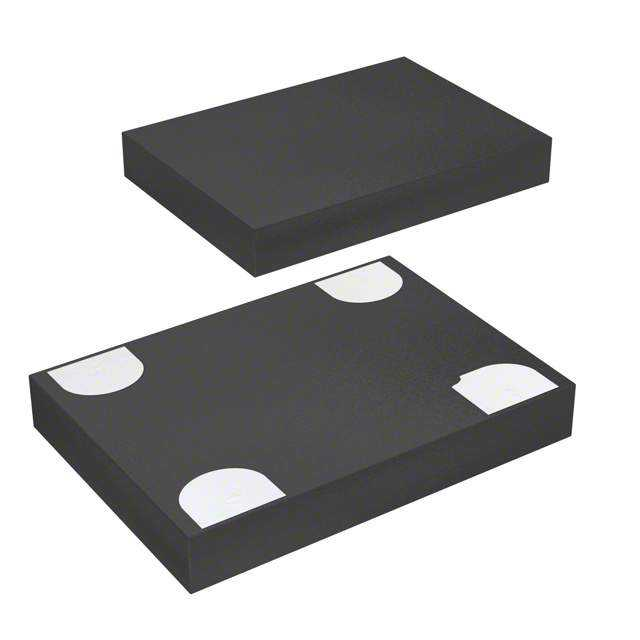

Introduction to the SiTime SiT8008BI-81-XXX-000.FP0000X

One standout example of a programmable oscillator is the SiTime SiT8008BI-81-XXX-000.FP0000X, available from unikey electronics. This particular model is designed to meet the demanding requirements of modern electronic applications, offering both reliability and versatility.

Key Specifications

-Reference Package: QFN (Quad Flat No-lead)

-Mounting Type: SMD (Surface-Mount Device) mount

-Operating Temperature: -40℃ to 85℃

-Dimensions: 7mm x 5mm x 1mm

-Frequency Range: 1MHz to 110MHz

-Frequency Stability: ±20ppm

Features and Benefits

1.Flexible Frequency Range: The SiTime SiT8008BI-81-XXX-000.FP0000X can be programmed to operate at any frequency between 1MHz and 110MHz. This wide range makes it suitable for a variety of applications, from consumer electronics to industrial equipment.

2.High Stability: With a frequency stability of ±20ppm, this oscillator ensures consistent performance even under varying environmental conditions. This level of precision is crucial for applications where timing accuracy is critical.

3.Robust Operating Temperature Range: The device operates reliably in temperatures ranging from -40℃ to 85℃, making it ideal for use in harsh industrial environments as well as in standard conditions.

4.Compact Size: The small dimensions (7mm x 5mm x 1mm) of the SiT8008BI-81-XXX-000.FP0000X allow it to be used in space-constrained applications. Its QFN package ensures that it can be easily integrated into compact PCBs (Printed Circuit Boards).

5.Surface-Mount Technology: The SMD mount type facilitates automated assembly processes, reducing manufacturing costs and improving production efficiency.

Applications

The SiTime SiT8008BI-81-XXX-000.FP0000X programmable oscillator can be used in a wide array of applications, including:

-Consumer Electronics: DSC, DVC, DVR, IP CAM, Tablets, e-books, SSD, GPON, EPON, and more can benefit from its small size and flexibility.

-Networking Equipment: Routers, switches, and other networking hardware require precise timing to manage data flow effectively.

-Industrial Control Systems: Machines and equipment in industrial settings often operate under extreme conditions, where the robust temperature range and high stability of this oscillator are advantageous.

-Medical Devices: The precision and reliability of this oscillator make it suitable for critical medical applications where timing accuracy is paramount.

Conclusion

The SiTime SiT8008BI-81-XXX-000.FP0000X programmable oscillator from Unikey Electronicsstands out as a versatile and reliable component for modern electronic designs. Its wide frequency range, high stability, robust temperature tolerance, compact size, and ease of integration make it an excellent choice for various applications across different industries. Whether you are designing consumer electronics or industrial control systems, this programmable oscillator can help ensure your device operates with precision and reliability.
