Understanding Capacitor Discharge Unit for Electronics Repair: Safe Way to Discharge Capacitors
A capacitor was invented way back in the year 1745 by a Dutch scientist named Pieter van Musschenbroek. One of the most fundamental components in electronics is it, utilised for storing and releasing electrical energy in circuits. It is a passive two-terminal device that stores and releases electrical energy. Unlike a battery, which generates energy through chemical reactions, a capacitor simply holds and releases energy in the form of an electric field between two conductive plates, separated by an insulating material called a dielectric. Today, capacitors are not just meant for blocking DC or bypassing AC. You will find them in applications such as frequency tuning, coupling of different stages of amplifiers, noise filtering, and so on.

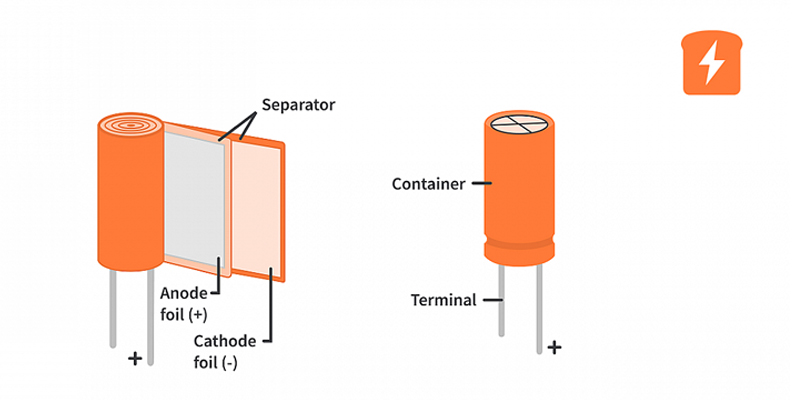

Basic Structure and Working Principle:
A capacitor is made up of:
● Two conductive plates (usually metal)
● One dielectric layer (insulating material such as ceramic, paper, plastic, or even air)
When a voltage is applied across the plates, electric charges accumulate on them—positive on one side and negative on the other. This separation of charges creates an electric field in the dielectric, and energy is stored in this field.
Once the external voltage is removed, the capacitor can release this stored energy, discharging into the circuit.
Key Parameters:
● Capacitance (C): The ability of a capacitor to store charge. Measured in Farads (F).
● Voltage Rating (V): The maximum voltage the capacitor can handle without breaking down.
● Polarity: Some capacitors (like electrolytic types) are polarized, meaning they must be connected the right way in a circuit.
● Dielectric Material: Affects the capacitor’s properties, such as size, tolerance, and temperature stability.

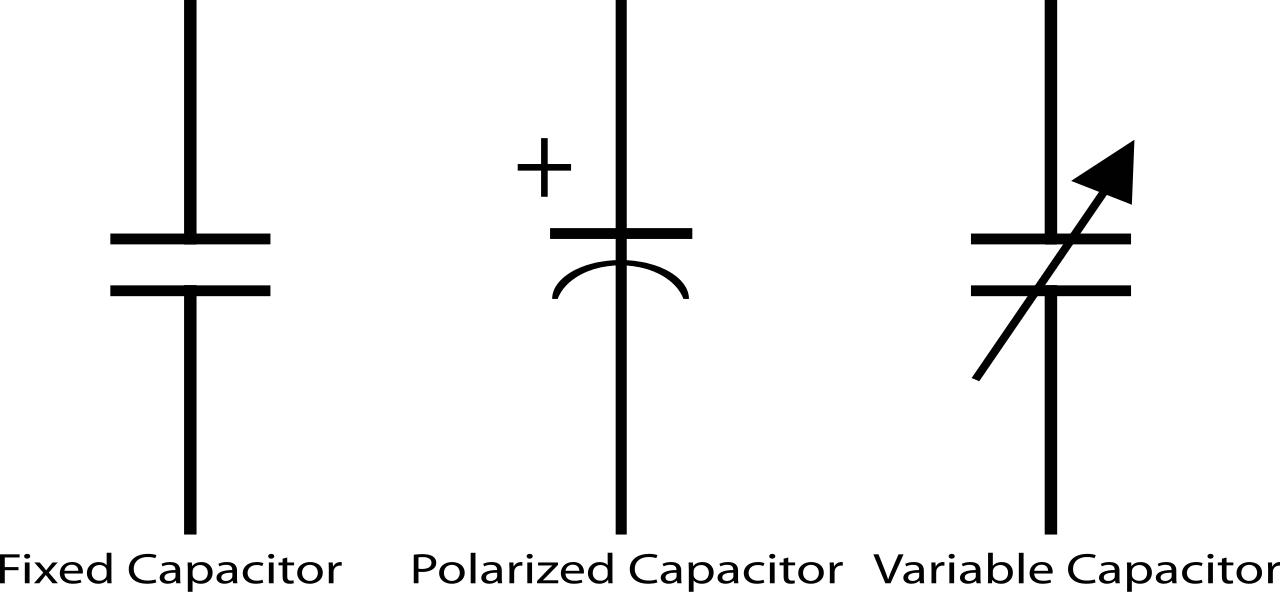

Symbols:
What is Capacitance?
Capacitance is the ability of a capacitor to store electrical charge. It tells us how much electric charge a capacitor can hold at a given voltage.
In simple words:
Capacitance is like the “capacity” of a capacitor—how much electricity it can store.
Capacitance Units:
● Farad (F) – the main unit
1 Farad is very large for most circuits.
● Common sub-units:
Microfarads (µF) = 10−610^{-6}10−6 F
Nanofarads (nF) = 10−910^{-9}10−9 F
Picofarads (pF) = 10−1210^{-12}10−12 F
Formula:
Capacitance is defined as:
Q=C×V
Where:
● Q = Charge (in Coulombs)
● C = Capacitance (in Farads)
● V = Voltage (in Volts)
So, a capacitor has 1 farad of capacitance if it can store 1 coulomb of charge at 1 volt.

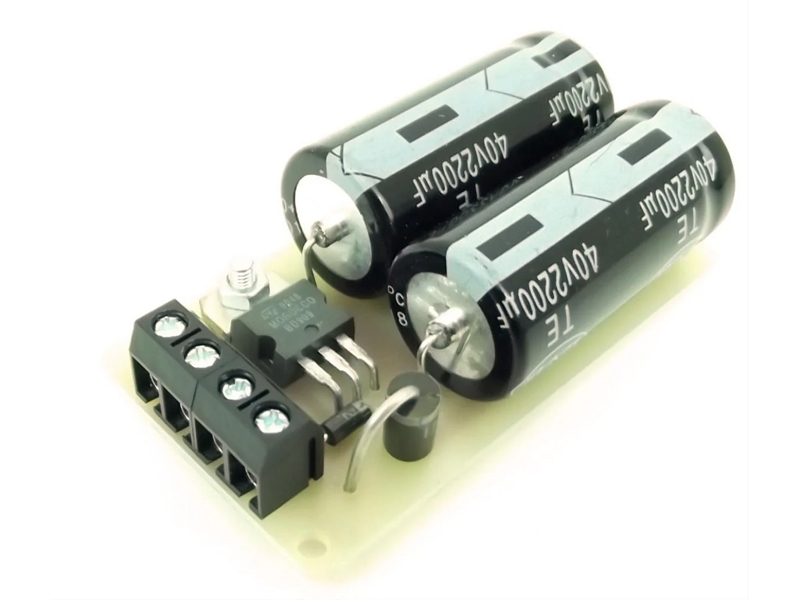

Capacitor Discharge Unit (CDU):
A Capacitor Discharge Unit (CDU) is a device that stores electrical energy in capacitors and releases it in a high-current burst when needed, typically for operating solenoid-type point motors in model railroads. This "burst" of power helps overcome stuck or sticky points and ensures a more reliable and forceful switching action. When we are working with capacitors, it is essential for safety and efficiency to understand how they discharge. It ensures that dangerous charges are removed after a capacitor has been energised. Let us break down and go deeper into the real-world importance of this CDU.
A discharging capacitor refers to the process where a charged capacitor releases its stored electrical energy back into a circuit. When a capacitor is connected to a load or a resistor, the accumulated charge on its plates begins to flow, gradually reducing the voltage across its terminals until it reaches zero. The total process is very effective in many electronic applications, like in camera flashes, where devices rapidly discharge the energy stored in the capacitor to produce a bright burst of light. Technicians also discharge a capacitor as an important safety step when working with electronic components, as even when they turn off the power supply, a charged capacitor can still hold dangerous levels of voltage. Proper discharging—using a resistor or discharge tool—is crucial to avoid electric shock and damage to sensitive electronic parts.
Characteristics of Capacitor Discharge
● Time Constant (τ): τ = R × C, where R is Resistance and C is Capacitance.
● Exponential Decay: V(t) = V₀ * e^(-t/RC)
● Safe Voltage Level: Typically, below 30V.
● Temperature Dependency: Discharge rate may vary with temperature.
Discharging a Capacitor:
Discharging a capacitor means removing or releasing the stored electrical energy from it. When a capacitor is charged, it holds electrical potential between its plates. Discharging allows that energy to flow out, usually through a resistor, until the capacitor’s voltage drops to zero.
● Importance: If you touch a charged capacitor accidentally, especially a large one, it can give you a painful or dangerous electric shock. So, discharging it safely before working on a circuit is crucial.
● How it happens naturally: In some circuits, capacitors automatically discharge when the device is turned off through resistors or other components. But not all devices are designed that way.
Features of Capacitor Discharge Units (CDUs)
● Built-in Resistors: Control discharge speed safely.
● Status Indicators: LEDs show discharge completion.
● Manual or Automatic Operation: Varies by unit.
● Voltage Rating: Must be matched to application.
● Portability: Handheld options available for fieldwork.
How to Discharge Capacitors Safely?
Safety first! Discharging a capacitor the wrong way can damage components, hurt you, or even start a fire in high-voltage situations. Here’s how to do it safely:
Safe Discharging Steps:
● Turn Off Power: Unplug the device or disconnect power.
● Check Voltage: Use a multi-meter to measure the capacitor's voltage.
● Use a Resistor Tool: Connect a high-wattage resistor (like 2kΩ–10kΩ, 5W–10W) across the capacitor terminals.
This allows the charge to drain slowly without sparks or damage:
● Wait: It may take several seconds to minutes, depending on the capacitor size.
● Verify: Use a multi-meter again to confirm voltage is near 0V.
● Short with Caution: Only if needed, you can briefly short the terminals with an insulated screwdriver after using the resistor, but this is usually a last resort and only for low-voltage capacitors.
What Not to Do:
● Never just short a large or high-voltage capacitor directly, as it can cause loud sparks or an explosion.
● Don’t use your fingers or metal tools without insulation.
How to Discharge an Air Conditioner Capacitor?
Air conditioners often contain run/start capacitors in the compressor or fan motors. These are dangerous because they can hold a high charge even when unplugged.
Steps for Discharging an AC Capacitor:
1. Turn off the power at the breaker box.
2. Remove the cover panel of the AC unit.
3. Locate the capacitor (metal can-shaped with 2–3 terminals).
4. Use a resistor tool (or a capacitor discharge pen).
5. Connect the tool across the terminals.
6. Wait and measure the voltage afterwards to ensure it's discharged.
Important Note: Use insulated tools and wear rubber gloves. If you’re unsure or uncomfortable, it’s always best to hire a professional.

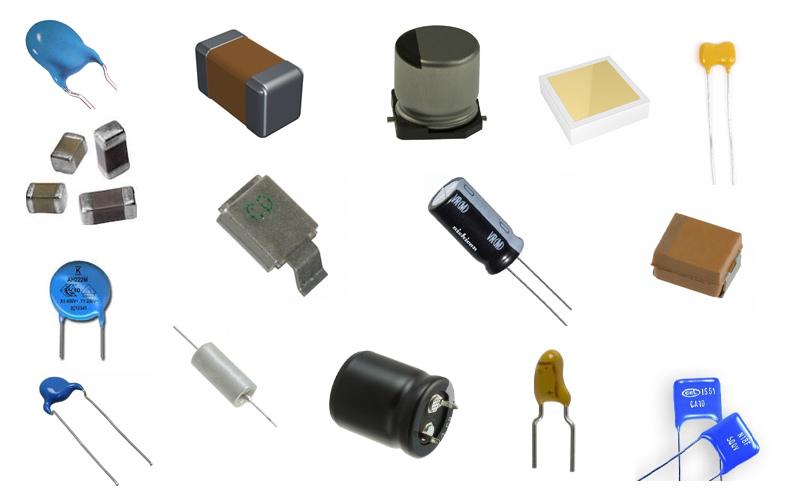

Types of Capacitors:
There are many different types of capacitors, and each one is made for a specific job. Those are...

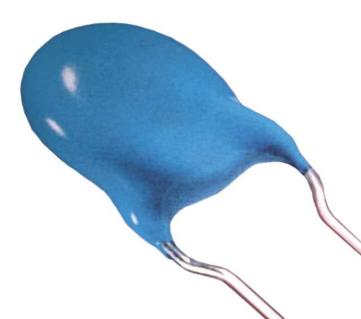

These capacitors are two-terminal, non-polar devices constructed of alternating layers of metal and ceramic, with the ceramic material acting as the dielectric. They are the most common and are usually used in everyday electronics because they’re small and cheap. The EIA has specified two classes of ceramic dielectrics: class-1 and class-2. Currently, ceramic disk capacitors are the largest selling capacitors.
● Usage:
Low-precision Coupling.
Filtering Applications handling high frequencies.
● Pricing and Availability: TheC911U471KUYDAA7317 is available at $0.0763 per unit, along with other ceramic capacitors on store. (Note: Price may vary depending on the capacitor’s specifications)

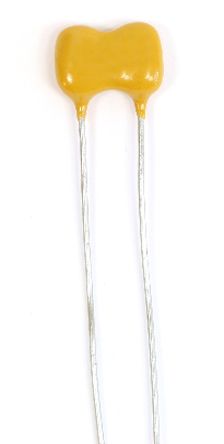

The mineral ‘Mica’ is one of the oldest dielectric materials used in capacitor construction. It is a natural mineral that’s known for being very stable, heat-resistant, and reliable. These capacitors are usually small in size but offer high accuracy, low loss, and good stability, even at high frequencies. It also has two types: Clamped mica capacitor and Bonded silvered mica capacitor. They don’t change much with temperature or time, which makes them a good choice for sensitive or high-performance electronics.
● Usage:
Radio circuits
RF (radio frequency) applications
other places where precision really matters.
● Pricing and Availability: The 495600 is available at $6.4485 per unit, along with other mica capacitors on store. (Note: Price may vary depending on the capacitor’s specifications)

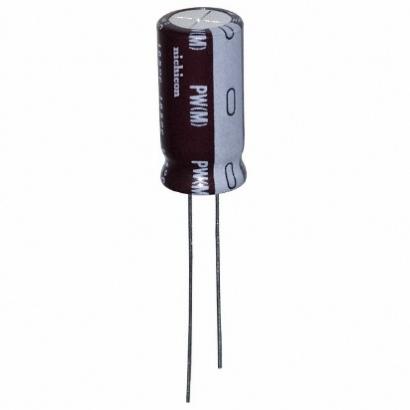

An aluminium capacitor, also known as an aluminium electrolytic capacitor, is used where a large amount of capacitance (from 1 μf to 15 μf) is required. These capacitors are polarized, meaning they have a positive and a negative side and must be connected the right way in a circuit. Aluminium capacitors are quite common because they’re affordable, widely available, and work well in many electronic devices. However, they don’t last as long as some other types and can dry out or leak over time, especially under high heat.
● Usage:
Power supply filtering
Audio amplifiers
Other applications where a large amount of energy is needed quickly
● Pricing and Availability: The UPW2A680MPD is available at $0.0186 per unit, along with other aluminium capacitors on store. (Note: Price may vary depending on the capacitor’s specifications)

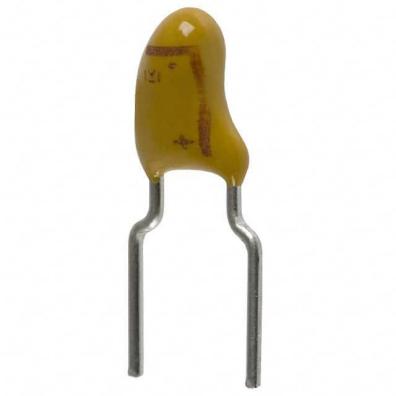

They are some special electrolytic capacitors whose size are comparable to that of dics type ceramic capacitors. These are tantalum capacitors. These low-voltage components offer up to several hundred microfarads of capacitance and enjoy lot of advantages over aluminium electrolytics. Tantalum capacitors are also polarized but are smaller and more stable, making them good for compact devices.
● Usage:
Compact devices like smartphones
Laptops, and medical electronics
● Pricing and Availability: The T356A334K050AT is available at $1.3674 per unit, along with other tantalum capacitors on store. (Note: Price may vary depending on the capacitor’s specifications)

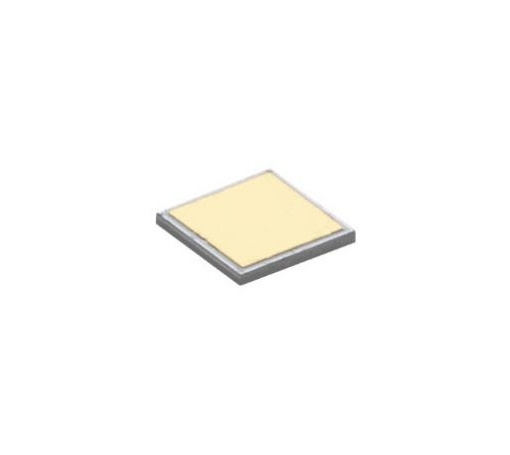

A film capacitor is a type of capacitor that uses a thin plastic film as the dielectric material. The film is usually rolled or stacked with metal layers to create the capacitor. These capacitors are known for being very stable, reliable, and long-lasting. Film capacitors are non-polarized, so they can be connected in any direction in a circuit.
● Usage:
Power supplies
Motor circuits
Audio equipment.
● Pricing and Availability: The 935146522310-W0T is available at $0.7357 per unit, along with other film capacitors on store. (Note: Price may vary depending on the capacitor’s specifications)
If you want to know more about these capacitors, you may visit the company’s official store.
Real-World Applications of Capacitor Discharge and CDU
● Consumer Electronics: TVs, monitors, power supplies.
● Air Conditioning Systems: For motor-run capacitors.
● Welding Machines: Used in capacitor discharge welding.
● Medical Devices: Defibrillators and safety testing.
● Industrial Equipment: For capacitor bank safety.
● Educational Labs: Used in demonstrations and labs.
Conclusion:
Capacitor discharge is really important in electronics because it helps keep things safe and working properly, especially when you are fixing or testing devices. When a capacitor holds a lot of charge, it can be dangerous if it's not handled the right way. That is why people use capacitor discharge units to safely let out the stored energy. These tools are super useful in circuits that have high voltage or big capacitors because they make sure the discharge happens in a controlled way, without sparks or damage. It's just a simple but smart step to avoid getting shocked or messing up the parts. As the search data shows, the importance of safely handling capacitors is increasingly recognised.
By understanding the definitions, symbols, characteristics, features, and real-world applications, anyone, from students to engineers, can better appreciate and safely manage capacitor-related tasks. Whether you’re discharging a small capacitor in a circuit board or a large one in an HVAC system, using the right tools and knowledge makes all the difference. Apart from these capacitors, the other electronic components are also available on unikeyic Electronics.
