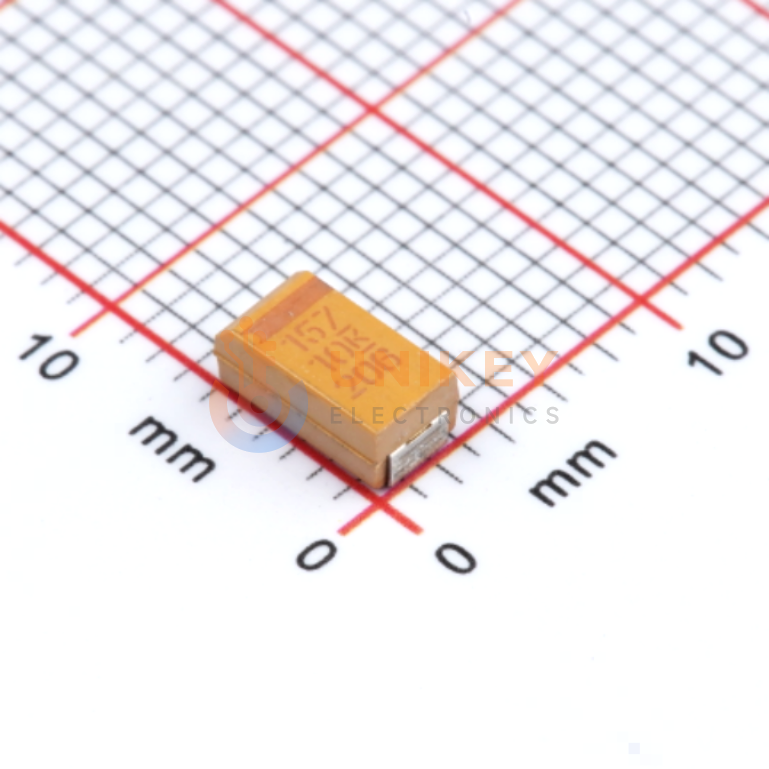

Tantalum Capacitors

Tantalum capacitors are a type of passive electronic component that store and release electrical energy in an electronic circuit. They are named after the element tantalum, which is used in their construction due to its high capacitance density.

Definition:
Tantalum capacitors consist of a tantalum powder anode, a dielectric layer made from tantalum pentoxide (Ta2O5), and a conductive cathode. The dielectric layer is formed by anodizing the tantalum anode, creating a thin, insulating film. The cathode is typically made from a conductive material such as manganese dioxide or a solid electrolyte.

Function:
The primary function of a tantalum capacitor is to provide capacitance, which allows it to store an electrical charge. This is achieved by creating an electric field between the anode and cathode when a voltage is applied. Tantalum capacitors are known for their high capacitance values in a small physical size, making them ideal for applications where space is limited.

Applications:
Tantalum capacitors are widely used in various electronic devices due to their compact size and high reliability. Some common applications include:

1. Portable Electronics: In smartphones, tablets, and laptops, where space is at a premium.
2. Automotive Electronics: For engine control units, infotainment systems, and other automotive electronics.
3. Industrial Control Systems: In PLCs (Programmable Logic Controllers) and other control systems.
4. Medical Equipment: In devices that require stable and reliable capacitance.
5. and : In systems that demand high reliability and performance.

Selection Criteria:
When choosing a tantalum capacitor, several factors should be considered:

1. Capacitance Value: The amount of charge the capacitor can store at a given voltage.
2. Voltage Rating: The maximum voltage the capacitor can withstand without breaking down.
3. Size and Form Factor: The physical dimensions and shape of the capacitor, which must fit within the available space.
4. Temperature Range: The operating temperature range of the capacitor, which should match the environment in which it will be used.
5. Reliability and Lifespan: The expected lifespan and reliability of the capacitor, which can be influenced by factors such as the quality of the dielectric and the manufacturing process.
6. Cost: Tantalum capacitors can be more expensive than other types of capacitors, so cost may be a consideration.

In summary, tantalum capacitors offer high capacitance in a small package, making them suitable for a wide range of applications where space is limited and high performance is required. When selecting a tantalum capacitor, it is important to consider the capacitance, voltage rating, size, temperature range, reliability, and cost to ensure the best fit for the specific application.
