The Precision Dancer of Directed Electromagnetic Waves: The Past and Present of the Uda Antenna

In a humble laboratory at Tokyo Imperial University in 1926, Shintaro Uda inadvertently sparked a revolution in radio technology by arranging several metal rods at specific intervals. This electronic device, later known globally as the Uda Antenna, redefined the physical laws of spatial control of electromagnetic waves with its distinctive directional radiation properties. From transoceanic shortwave communication stations to modern 5G millimeter-wave base stations, from radio waves to UAV image transmission systems, this precise structure composed of a driven element, reflector, and directors continues to orchestrate a directional dance of electromagnetic energy across space.

I. The Structural Secrets: The Electromagnetic Symphony of Parasitic Elements

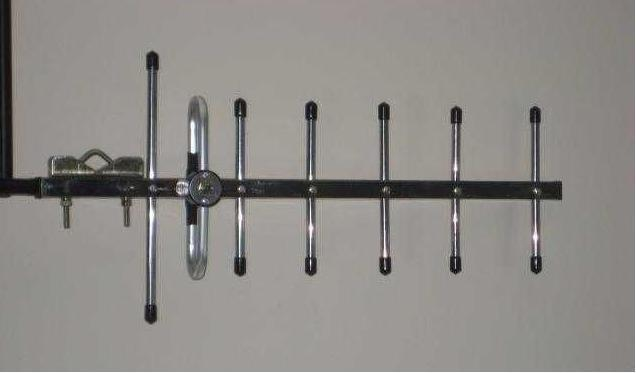

The core allure of the Yagi-Uda antenna lies in its elegant structural design. The central dipole antenna serves as the driving element, transforming the current fluctuations from the transmission line into spatial electromagnetic fields. Positioned approximately 0.2 wavelengths behind it, a additional reflector slightly longer than the driven element acts like an acoustic baffle, concentrating the originally diffused electromagnetic wave energy into the forward space by adjusting the surface current phase. In front of the driven element, multiple director elements are arranged at intervals of 0.1-0.15 wavelengths, progressively shorter in length. These seemingly passive elements rods function as precise electromagnetic lenses: each director induces a current that produces secondary radiation, constructively interfering with the forward wave, thus enhancing the main lobe gain of the radiation pattern by 10-15 dBi.

This collaborative mechanism of parasitic elements essentially deconstructs Maxwell's equations in space. When electromagnetic waves reach the director surfaces, free electrons within the metal conductors are driven by the electric field to form oscillating currents. As the directors are slightly shorter than their resonant length, their induced current phases lead those of the driven element, causing the secondary radiated wavefronts from each director to overlap and form a highly directional beam. In 1953, Japan’s NHK television conducted empirical tests showing that a standard 5-element Yagi-Uda antenna could enhance the reception strength of UHF signals from Tokyo Tower by 22dB, equivalent to extending the effective transmission range to 16 times that of an original dipole antenna.

II. Engineering Interpretations of Directional Characteristics

The radiation pattern of optical Yagi-Uda antenna is the essence of its role as a directional antenna. A typical three-element structure (one reflector, one driven element, and one director) can achieve a half-power beamwidth of 70°-90° and a front-to-back ratio exceeding 15 dB. With ten elements, the beamwidth can be compressed to 30°, and gain surpasses 14 dBi, making it shine in satellite communication. In the European Space Agency's deep space tracking network, an end-fire array system composed of 64 Yagi antennas can capture transmission of signals from probes emitting only 1 watt of power at a distance of 380,000 kilometers, the Earth-Moon distance.

The frequency range of the antenna choices is limited by physical size and material characteristics. Traditional Yagi antennas exhibit optimal performance in the VHF band (30-300MHz), with elements ranging from 2.5 meters for reflectors (at 100 MHz) to 1.8 meters for directors. Entering the microwave band, metal losses and precision manufacturing become major challenges. Modern millimeter-wave Yagi arrays, made using aluminum nitride ceramic substrates and thin-film processes, can extend operating frequencies up to 60GHz, with array of element sizes reduced to the millimeter scale. A certain 5G equipment manufacturer developed a 28GHz Yagi patch antenna integrating 16 micro-directors within a chip area of 3.5mm x 2.8mm, achieving a remarkable 25 dBi gain.

III. The Evolution History of Yagi Uda Antenna：From the Shortwave Era to the Terahertz Frontier

The evolutionary history of the typical Yagi-Uda antenna reflects a century-long journey of wireless communication technology. During World War II, Allied radar systems enhanced detection ranges to 200 kilometers with improved Yagi antennas, reducing losses by 40% using silver-plated metal directors. In the 1970s, the proliferation of television broadcasts gave rise to log-periodic Yagi antennas, which, through innovative gradient structure designs, expanded bandwidth to 10:1, perfectly covering VHF and UHF TV bands. Entering the 21st century, plasma Yagi antennas broke through physical size limitations—by forming reconfigurable parasitic elements with ionized gas, allowing a single type of antenna to dynamically tune across the 1-6GHz range.

In the emerging battlefield of terahertz waves (0.1-10THz), the Yagi framework is experiencing a resurgence. The surface plasmonic properties of graphene materials perfectly align with the Yagi's directional mechanisms. A German research institute developed a graphene Yagi antenna achieving 82% radiation efficiency at a 0.3THz resonant frequency point, a 2.3-fold improvement over traditional metal structures. This nano-antenna type can be integrated onto chip surfaces, providing a physical foundation for atomically precise beamforming in 6G communications. Even more revolutionary is the optical Yagi antenna—manipulating light wave directional radiation through arrays of nanosilver rods, extending the Yagi principle to the visible spectrum and paving new paths for quantum communication and high-resolution microscopic imaging.

IV. New Era of Yagi-Uda Antenna:The Future Verses of Spatial Electromagnetic Art

The contemporary interpretation of the typical Yagi-Uda antenna has long surpassed Uda's initial imagination. In phased array radar domains, active electronically scanned arrays composed of thousands of Yagi elements can achieve millisecond-level beam agility. The AN/MPQ-65 radar in the US Patriot missile defense system uses the dynamic combination of 256 X-band Yagi modules to track and lock onto 20 targets within 100 microseconds. In civilian applications, drones equipped with foldable Yagi antennas form a 1.2-meter aperture upon deployment, extending HD video transmission distances up to 50 kilometers.

The integration of new materials and artificial intelligence is reshaping the design paradigm of Yagi antennas. MIT's development of an intelligent Yagi system utilizes piezoelectric ceramics to micro-adjust spacing between director, optimizing angle radiation characteristics for specific frequencies in real-time. In 5G base stations, such self-optimizing antennas can reduce signal coverage blind spots by 60%. Meanwhile, new Yagi structures based on metasurfaces achieve three-dimensional beam scanning and multi-band multiplexing by controlling electromagnetic wave phases with sub-wavelength units. After deploying this technology, a 6G experimental system achieved both a 32° beamwidth and 18 dBi gain at 28GHz and 140GHz dual frequency bands simultaneously.

From the simple metal rods in Shintaro Uda's laboratory to the precise arrays capturing cosmic microwave background radiation in space telescopes, the Yagi-Uda antenna elucidates profound electromagnetic philosophy with the simplest structures. As terahertz waves traverse nano-directors and intelligent algorithms continuously optimize the electromagnetic response of parasitic elements, this nearly century-old technology remains ever-writing new chapters in directional radiation. In the foreseeable future, the Yagi framework may converge with quantum entanglement effects, inaugurating a new epoch of directed energy transmission beyond classical electromagnetic theory—a final verse in the electromagnetic poetry Uda could never have foreseen during his earnest experiments.
