Manchester Encoding: Technical Principles, Evolutionary Path and Modern Applications

Since its inception in the 1940s, Manchester encoding has maintained a unique position in the field of communication engineering as a classic digital signal coding method. The core design principle is the seamless integration of clock signals with digtal data transmission through specific voltage transition rules, enabling self-synchronizing formats for transmission and effectively resolving the traditional need for separate clock signal transmission. This simple encoding scheme laid the foundational physical layer for early Ethernet and local area network technologies and continues to exhibit lasting vitality in areas such as radio frequency identification (RFID) and industrial control buses. This article systematically elucidates the encoding process, variants, and engineering applications from the perspective of technical implementation mechanisms, while also analyzing its evolutionary direction in digital communication systems.

Technical Principles of Manchester Coding

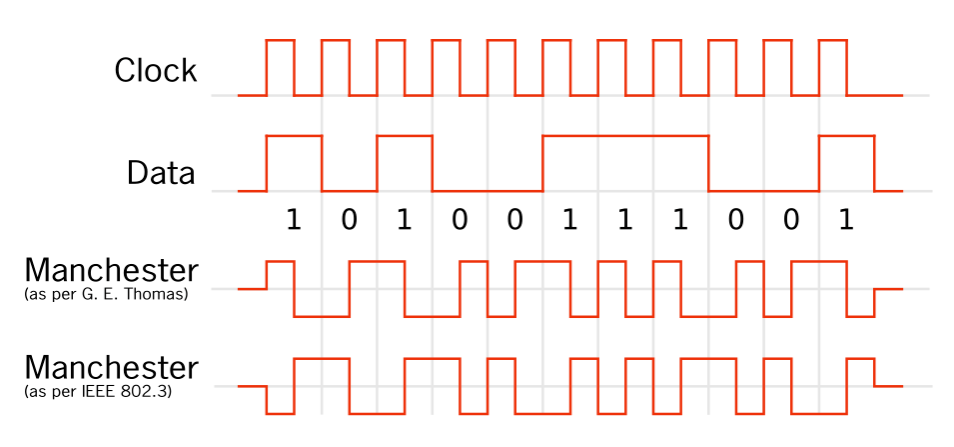

The distinct feature of Manchester encoding is the inevitable frequent voltage transition within each bit period. Specifically, standard Manchester encoding divides the transmission period of time of each bit into two equal bit intervals, using the direction of the frequent voltage transition at the midpoint to represent data information. For example, logic "0" is typically defined as maintaining a high level during the first half-period of time and transitioning to a low level during the second half-period of time, while logic "1" uses the opposite sequence. This design ensures a transition at the center of each bit, allowing the receiver to use these transitions as clock frequency for synchronization issue, thus eliminating the need for a separate clock signal. At the physical implementation level, this encoding method usually employs TTL or RS-232 standard voltage levels, where digital signal regeneration can be achieved through comparator circuits, significantly reducing hardware complexity.

Technical Advantages

Compared to common encoding scheme requiring independent clock input channels, the self-synchronizing characteristic of Manchester encoding brings multiple technical advantages.

Firstly, in long-distance transmission scenarios, signal distortion caused by cable impedance mismatch or noisy environment changes can severely affect clock recovery precision. Manchester-encoded signal enforces at least one transition per bit, enabling the receiver's phase-locked loop (PLL) to continuously track message signal phase changes. Experimental data show that in a hundred-meter coaxial cable transmission environment, the clock synchronization bit error of this encoding technique can be controlled within ±0.5%, which led to its widespread adoption in the early 10BASE-T Ethernet standard.

Secondly, the constant 50% duty cycle design results in a more uniform original signal spectrum distribution, effectively suppressing high-frequency harmonic components and aiding in compliance with electromagnetic compatibility (EMC) standards. In industrial automation settings, this feature is particularly crucial—for instance, RFID readers on automotive production lines maintain a tag recognition rate of over 99% even under strong electromagnetic interference, thanks to the robustness of Manchester-encoded signal .

Differential Manchester

As communication channel demand increased noise immunity, Differential Manchester Encoding emerged as an important evolutionary variant. Differential Manchester retains the basic self-synchronizing mechanism while making two key improvements to the encoding rules:

first, it enforces a level transition at the start of each bit period, providing a more stable reference point for clock recovery;

second, it shifts from absolute level representation to relative digital data transmission. Specifically, logic "0" triggers an additional transition at the start of the bit, while logic "1" maintains the level unchanged. This differential simple encoding scheme significantly enhances the system's resistance to common-mode interference, as signal level no longer relies on absolute voltage level but rather on detecting the occurrence of transition events.

This feature of Differential Manchester is particularly important in aerospace telemetry systems—when satellite telemetry signal transition to the ionosphere, Differential Manchester Encoding effectively counters baseline drift issues caused by amplitude fluctuations. Measured data indicate that under the same electrical signal-to-noise ratio, the bit error rate (BER) of the differential version of Differential Manchester can be reduced by two orders of magnitude compared to standard Manchester encoding.

Applications of Manchester Encoder

Limitations of the Application

Despite its remarkable technical advantages, Manchester encoding faces inherent limitations in practical applications. The most significant challenge stems from bandwidth efficiency loss: since each bit period must include at least one transition, its reliable data transmission rate is only 50% of the physical channel baud rate. For example, 10Mbps Ethernet using Manchester-encoded signal requires a 20 MHz of bandwidth, whereas non-return-to-zero (NRZ) encoding at the same rate only needs 10MHz. This efficiency drawback has led to its gradual replacement by more efficient encoding schemes like 8B/10B in gigabit-level high-speed communication channel. Additionally, frequent level transitions result in a high edge rate, potentially causing extra dynamic power consumption in battery-powered IoT devices. To address this, researchers have developed Slow-Edge Manchester Encoding, which improves energy efficiency by 40% by reducing signal level, though this optimization often comes at the expense of noise immunity.

The Impact of Modern Communication Technology

In engineering practice, classic application cases of Manchester encoding profoundly influence the development trajectory of modern communication technology. The early Ethernet standard (10BASE-T) utilized standard Manchester encoding for 10Mbps reliable data transmission, with transformer-coupled designs in twisted-pair transmission architectures fully exploiting the DC-balance characteristic of this common encoding scheme. In RFID systems, the EPC Gen2 standard employs FM0 encoding, essentially an improved version of Manchester encoding, that adjusts pulse width to convey data information, retaining self-synchronizing properties while meeting the energy harvesting requirements of passive tags. The LIN bus protocol in automotive electronics innovatively applies Manchester encoding in single-wire communication: the master node achieves frame synchronization by sending a specially formatted BREAK field (13 consecutive dominant-level bits), ensuring reliability while significantly reducing vehicle network wiring costs.

Applications in Emerging Fields

Today, as the rapid advancement of the Internet of Things and edge computing unfolds, Manchester encoding is experiencing renewed vitality in emerging fields. In energy-harvesting sensor networks, researchers are combining Manchester encoding with backscatter communication technology to develop ambient monitoring devices that require no external power. These devicespromote accurate data transmission by modulating the timing of reflected analog signal transitions, achieving power implementation as low as microwatts. In radiation-hardened electronic design, the dual-transition mechanism of Differential Manchester Encoding has proven effective in mitigating single-event upset (SEU) effects, leading to increased adoption in spacecraft control systems. Cutting-edge exploration directions include hybrid schemes combining Manchester encoding with pulse-width modulation scheme (PWM), which enhance limited bandwidth utilization to over 75% while maintaining self-clock protocol capabilities.

Reflecting on the developmental course of digital communication technology, Manchester encoding embodies the engineering wisdom of "simplicity equals reliability" through its ingenious design philosophy. Although surpassed in absolute performance metrics by more efficient modern codes, the balance it establishes in clock synchronization, interference resistance, and hardware cost remains irreplaceable in certain application scenarios. Looking ahead, as semiconductor processes and coding theory evolve in concert, this half-century-old technology may continue to innovate, writing new chapters in emerging fields such as smart sensing and biomedical electronics.
