List of Passive Electronic Components: Functions and Applications and Differences from Active Electronic Parts

In the world of electronics, passive components play a crucial role in the functionality and stability of circuits. Unlike active components, which require an external power source to operate, passive components rely on the electrical energy provided by the circuit itself. Understanding the various types of passive components and their applications is essential for designing efficient and reliable electronic systems. In this article, we will explore the key types of passive electronic components, their functions, and applications. We will also introduce unikeyic Electronics, a leading distributor that provides a wide range of high-quality passive components from various brands.

Passive Electronic Components

What are Passive Electronic Components?

Passive electronic components are those that do not require an external power source to function. They include resistors, capacitors, inductors, and other components that influence the current and voltage in a circuit without amplifying the power. These components are fundamental in controlling the behavior of electronic circuits.



List of Passive Electronic Components: Functions and Applications

1. Resistors

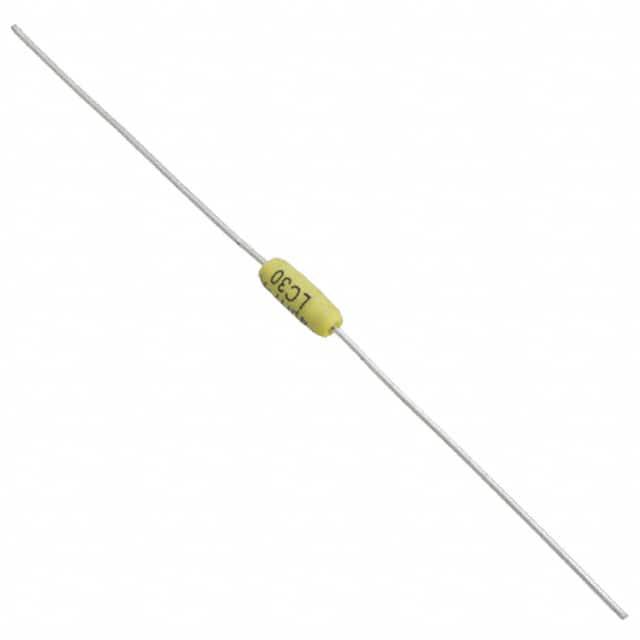

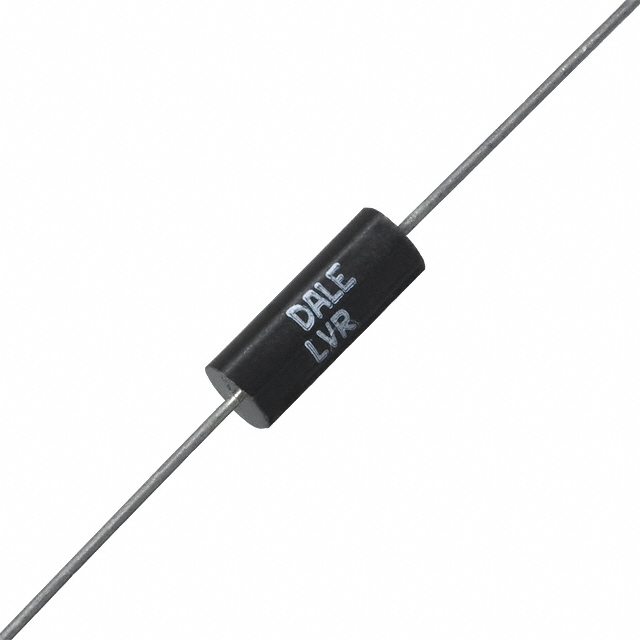

Through Hole Resistors

Function: Resistors limit the flow of electric current in a circuit. They are used to control voltage and current levels, divide voltages, and dissipate power.

Applications:Voltage dividersCurrent limitingSignal conditioning

Pull-up/pull-down resistors in digital circuits

2. Capacitors

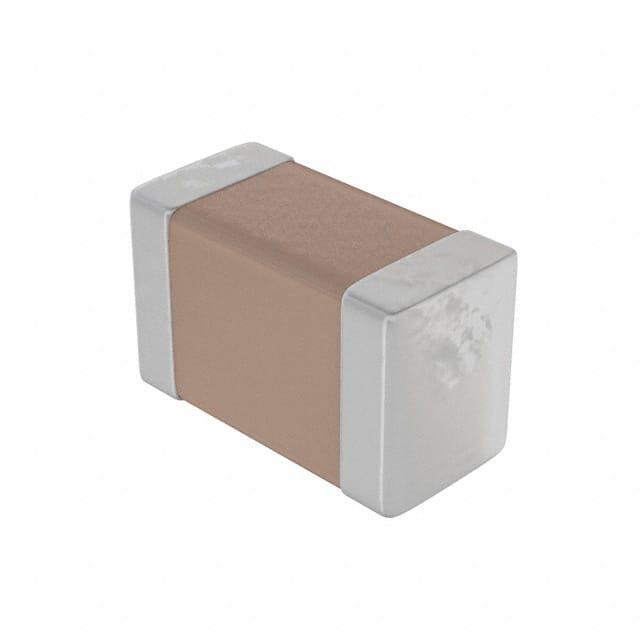

Ceramic Capacitors

Function: Capacitors store and release electrical energy. They are used for filtering, energy storage, and coupling/decoupling signals.

Applications:Power supply filteringSignal coupling and decouplingTiming circuitsEnergy storage in flash devices3. Inductors

Through Hole Inductors

Function: Inductors store energy in a magnetic field when electrical current flows through them. They are used for filtering, energy storage, and in resonant circuits.

Applications:Power supply filtersInductive sensorsTransformersTuned circuits for radio frequency applications4. Transformers

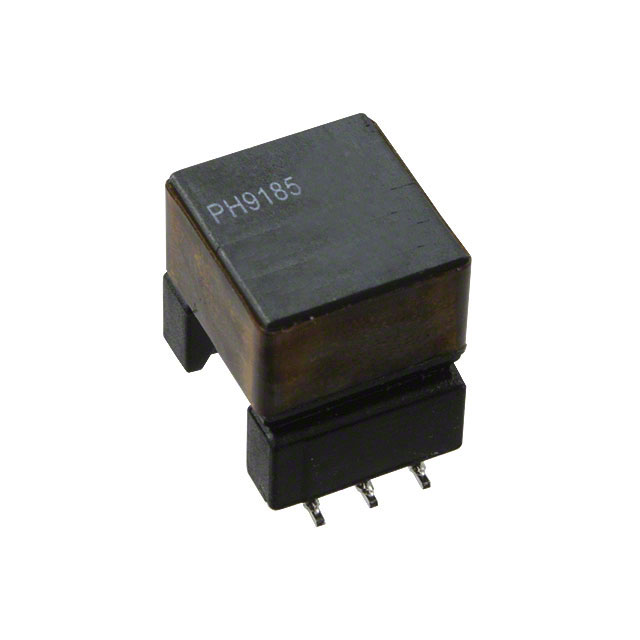

Power Transformers

Function: Transformers transfer electrical energy between two or more circuits through electromagnetic induction. They are used to increase or decrease voltage levels.

Applications:Power supply voltage conversionIsolation transformersImpedance matchingaudio transformers5. Filters

Common Mode Filters

Function: Filters are networks of resistors, capacitors, and inductors that allow certain frequencies to pass while blocking others. They are essential in signal processing.

Applications:Audio processingRadio frequency (RF) communicationPower supply noise reductionData transmission systems6. Crystal Oscillators

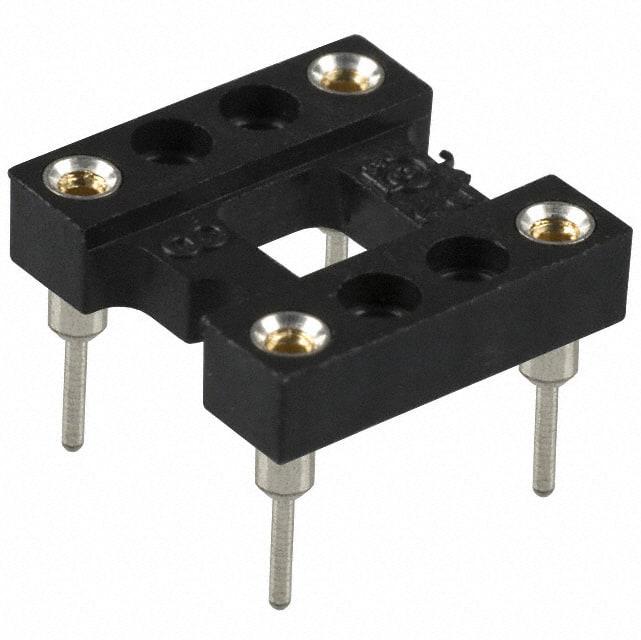

Crystal Oscillator Accessories

Function: Crystal oscillators generate precise frequency signals used for timing purposes. They are made of quartz crystal and are known for their stability.

Applications:Microprocessor clocksCommunication devicesFrequency control in transmitters and receiversTimekeeping in watches and clocks7. Varistors

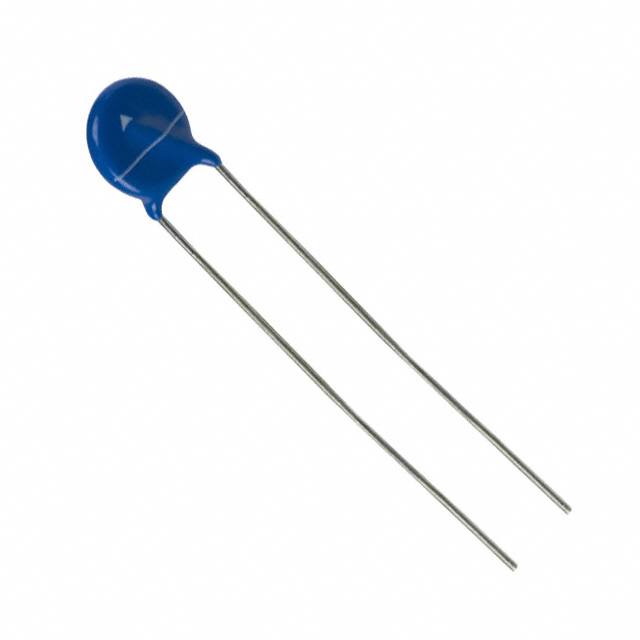

Varistor

Function: Varistors protect circuits against excessive transient voltages by changing resistance based on the voltage applied.

Applications:Surge protection in power suppliesTransient voltage suppression in communication linesCircuit protection in automotive electronicsProtection of sensitive electronic equipment



Passive electronic components application areas

Passive Electronic Components play a vital role in modern electronic equipment, and their application fields are wide and diverse. The following are the main application areas of Passive Electronic Components:1. Consumer electronics: passive electronic parts, such as resistors, capacitors and inductors, are widely used in consumer electronic products such as smart phones, tablets and laptops, and are used for functions such as filtering, coupling, signal processing and power management.2.Automotive field: With the development of electric vehicles and autonomous driving technology, the demand for passive electronic parts in automotive electronic systems has increased significantly. These components are used in sensor signal processing, filtering, power management, and inverters and battery management systems for electric vehicles.3.Industrial automation: passive electronic parts are used in industrial automation equipment for power conversion, stability control and signal regulation to ensure system reliability and efficiency.4.Communication equipment: In wireless communication and network equipment, passive electronic parts are used in key circuits such as filters, matching networks and couplers to improve signal quality and system performance.5.Medical equipment: passive electronic parts are used in medical equipment for signal processing, filtering and noise suppression to ensure the stability and reliability of equipment.6.Energy management: In energy management systems such as photovoltaic, wind energy and uninterruptible power supply, passive electronic parts are used for energy storage, filtering and power conversion to improve energy utilization efficiency and system stability.7.Internet of Things (IoT) : With the development of Internet of Things technology, passive electronic parts with low power consumption and high efficiency have become the design focus and are widely used in smart homes, wearable devices and sensor networks.8.Oil and gas industry: In the oil and gas industry, passive electronic parts are used in downhole sensors, logging tools, and pumping electronics to improve tool reliability and system design complexity.Passive Electronic Components play an indispensable role in many industries and promote the development and application of modern electronic technology because of their characteristics that they can work without external power supply.



Passive Electronic Components Feature

Passive Electronic Components have the following characteristics:1. Independent of external power supply: passive electronic parts do not need external power supply to work, they only rely on input signals to achieve their functions. This means that there is no need for an external power supply in the circuit to enable them to operate normally.2. No energy generation: passive electronic parts do not have built-in energy or power amplification mechanism, they can not actively generate or enhance signals, can only transmit, adjust or convert signals. They work primarily by consuming electrical energy or converting electrical energy into other forms of energy.3.No amplification function: passive electronic parts do not have the ability to amplify the signal, their role is similar to the attenuator, its gain is always less than 1.4. Energy storage and dissipation: passive electronic parts can store energy (such as capacitors and inductors) or dissipate energy (such as resistors). Resistors convert the received energy into heat, while inductors and capacitors store energy in electric or magnetic fields.5. Bidirectional: Most passive electronic parts are bidirectional and can be connected in either direction of the circuit unless there is a specific polarity mark.6. Wide application: passive electronic parts play an important role in electronic circuits, which are used for filtering, terminal matching network, power decoupling network, etc. They are widely used in power transmission and distribution systems, electronic equipment and communication systems.The characteristics of Passive Electronic Components include no dependence on external power supply, no energy generation, no amplification function, energy storage and dissipation, and bidirectional, which makes them indispensable in electronic circuit design.



The role of passive electronic components

Passive Electronic Components play a vital role in the circuit, although they do not produce energy themselves, they can perform a variety of functions by storing, dissipating, or converting energy. Common passive electronic parts include resistors, capacitors, and inductors, which have the following primary roles in circuit design:1. Limit current: The resistor limits the current flow through its resistance value, which is often used for buck, partial voltage or shunt. In addition, resistors can be used as load, feedback, coupling, and isolation elements.2. Storage of electrical energy: capacitors can store charge and energy, usually used for filtering, coupling, decoupling, energy storage signal processing and other occasions. Capacitors have a "pass-through" effect on AC signals and prevent DC from passing through.3. Storage of magnetic energy: inductors store magnetic field energy through the principle of electromagnetic induction, often used in filtering, tuning, energy storage, and impedance matching applications. The inductor has a "blocking" effect on alternating current and does not block on direct current.4. Signal processing: passive electronic parts also play an important role in signal processing, such as filtering, coupling, feedback, timing and oscillation. These features make passive electronic parts indispensable in analog, digital, and power management circuits.5. Protection circuit: passive electronic parts can protect the circuit from excessive signal levels, such as resistors can dissipate excessive power and reduce the volume of the speaker.6. Energy conversion: The transformer as one of the passive electronic parts, can change the voltage or frequency and is widely used in power systems and electronic equipment.Although passive electronic parts do not have the ability to amplify signals, they provide necessary functional support in electronic circuit design by controlling parameters such as current, voltage and frequency, and are indispensable basic components of modern electronic equipment.



Passive electronic components classification

Passive Electronic Components refer to components that can work without external power supply in a circuit, and connect, transmit, and regulate signals through their own characteristics. According to different classification standards, Passive Electronic Components can be divided into the following categories:1. Classification by function:passive electronic parts: Passive electronic parts are used for signal processing and transmission in circuits, including resistors, capacitors, inductors, transformers, relays, keys, buzzers/horns, and switches.passive Connection electronic parts: passive electronic parts are used to physically connect circuits, including connectors, sockets, connection cables, and printed circuit boards (PCBS).2. Classification by physical characteristics:Energy-dissipating components, such as resistors, consume electrical energy by blocking the flow of current, changing the voltage and current in the circuit.Energy storage components: such as capacitors and inductors, the former is used to store charge, the latter is used to store magnetic field energy, usually for filtering, coupling and impedance matching.3. Classification by application field:Universal components: such as resistors, capacitors, inductors, etc., are widely used in various electronic devices.Special components: such as transformers, relays, etc., with specific functions and application scenarios.4. Classification by package form:Chip components: such as chip resistors, chip capacitors, etc., often used in surface mount technology.Traditional package components: such as resistance bars, inductance bars, etc., usually used in traditional circuit board assembly.These classification methods help us better understand and apply the role of Passive Electronic Components in various electronic systems.



Passive Electronic Components detection method

There are a variety of detection methods for Passive Electronic Components, mainly depending on the parameters to be measured and the type of component. The following are some common ways to detect Passive Electronic Components:1. Impedance analyzer: used to measure resistance, inductance and capacitance and other parameters. Impedance analyzer can accurately measure the impedance characteristics of components, suitable for resistance, capacitance, inductance, and other components detection.2. Vector network analyzer (VNA): mainly used for the test of RF and microwave components, such as filters, antennas, etc. VNA measures insertion loss (IL), return loss (RL), and polarization-dependent loss (PDL), which are critical to characterizing passive electronic parts.3. Time domain reflectometer (TDR): used to measure the reflection and delay on the transmission line, suitable for the test of cable, antenna and other transmission media. TDR can quickly detect fault points in the transmission line.4. LCR tester: instrument specially used for measuring inductance, capacitance, and resistance. LCR tester is widely used in the quality control and production process of electronic products, and can provide high-precision measurement results.5. Spectrum analyzer (OSA): used for the test of optical passive electronic parts, such as filters and photonic integrated circuits. OSA can measure insertion loss, isolation, flatness and other parameters, which is suitable for WDM devices and photonic integrated circuits.6. Oscilloscope: used to measure voltage and current waveform, suitable for the test of magnetic components such as inductors and transformers. The oscilloscope can observe the response characteristics of components at different frequencies.7. Ultrasonic testing: used for non-destructive testing of components such as multi-layer ceramic capacitors (MLCC), which can detect internal defects such as holes, cracks, etc.8. Automatic test system: With the increase in the complexity of EMC testing, the automatic test system adopts virtual instrument technology and conducts insertion loss testing based on the signal source spectrum analyzer to meet the strict data post-processing requirements.Through the above methods, the performance of Passive Electronic Components can be comprehensively detected and evaluated to ensure their reliability and stability in the circuit.



Passive Electronic Components fault prevention

Fault prevention of Passive Electronic Components involves multiple aspects, including ESD prevention, environment control, heat dissipation management, and periodic maintenance. The following are detailed precautions:1. Electrostatic protection:- When handling Passive Electronic Components, strict ESD measures must be taken to prevent electrostatic discharge (ESD) from damaging the components. This includes using an ESD wrist strap, ESD gloves, and an ESD workbench.- Release static electricity from the body before removing or installing components, such as by touching grounded objects.- Store components in anti-static packaging and minimize contact time before installation.2. Environmental control:- Ensure that the ambient temperature and humidity of the device are within an appropriate range to avoid component failure due to high or low temperature.- Use a proper grounding method, such as a grounded workbench or desktop, to reduce static accumulation.3. Heat management:- Optimize the heat dissipation design of the device and arrange heat sinks or fans properly to ensure that the working temperature of passive electronic parts, such as the MLCC, is within a safe range.- Avoid overheating electronic components during the welding process, as overheating can cause component damage or even fire.4. Regular maintenance:- Regular maintenance and maintenance of electronic equipment, including cleaning the equipment shell, checking whether the wiring is loose, etc.- Regular inspection and maintenance of equipment, timely detection and resolution of potential problems to reduce the risk of failure.5. Reasonable selection of working voltage:- Select an appropriate voltage range based on the specifications of passive electronic parts and actual application requirements to avoid component failure due to high or low voltage.By taking the above measures, you can effectively prevent the failure of Passive Electronic Components and improve the stability and reliability of electronic devices.



Passive Electronic Components Maintenance

The maintenance of Passive Electronic Components needs to follow some basic principles and steps to ensure its long-term stable operation. The following is the detailed maintenance method:1. Regular inspection and cleaning:- Periodically check the mechanical connection and electrical performance of Passive Electronic Components to ensure that they are in good contact to avoid problems caused by loose or poor contact.- Clean probe contact points to maintain good electrical conductivity and avoid dust and dirt affecting instrument performance.- Clean the surface of the equipment with a clean, dry cloth and avoid using corrosive liquids or abrasive cleaners.2. Avoid overuse and environmental control:- Reasonable arrangement of use time and frequency, to avoid long-term continuous operation of the instrument, to prevent overheating and damage.- Store the equipment in a dry, cool place away from direct sunlight and moisture to prevent moisture or damage to the components.3. Maintenance and maintenance cycle:- Annual maintenance and maintenance under normal operating conditions, including checking the housing, connection terminal color, terminal connection, etc.- For specific equipment, such as passive discharge instrument, the reference voltage should be calibrated regularly to ensure the accuracy of detection.4. Safe operation:Before any maintenance or maintenance work is carried out, it must be ensured that the equipment is not live and is operated by professionally qualified personnel.- Only after all power is disconnected can maintenance work be carried out to prevent the risk of electric shock.5. Storage and transportation:- Avoid bending probes or leads during storage to prevent damage.- Use original batteries and be careful not to discard depleted batteries to avoid the risk of battery explosion.Through the above steps, you can effectively extend the service life of Passive Electronic Components and ensure their stability and reliability during use.



Passive electronic components storage

The storage of Passive Electronic Components requires special attention to their long-term storage conditions to ensure that the components do not degrade or fail during storage. The Long-Term Storage (LTS) standard for Passive Electronic Components is designed to provide practical storage guidelines for Passive Electronic Components, including requirements for material management, storage media, packaging materials, and inventory checks.In actual operation, the storage of Passive Electronic Components should follow the following points:1. Humidity sensitivity: the storage conditions of humidity sensitive components and non-humidity sensitive components are different. Moisture-sensitive components need moisture-proof packaging, while passive electronic parts can use non-moisture-proof packaging.2. Packaging materials: Choosing the right packaging materials is the key, usually using anti-static materials to protect the components, to avoid damage to the components caused by electrostatic discharge.3. Storage environment: Passive Electronic Components should be stored in a dry, clean, temperature and humidity control environment to reduce the impact of environmental factors on component performance.4. Inventory management: regularly check the inventory to ensure that the components are stored in the best condition, and update the inventory information in a timely manner, so that the required components can be quickly found when needed.5. Failure mechanism analysis: understand the possible failure mechanism and mode of Passive Electronic Components during long-term storage, and take corresponding mitigation measures, such as regularly reassessing the inventory status and updating dry packaging.The storage of Passive Electronic Components needs to consider multiple aspects such as environmental control, packaging selection and inventory management to ensure that components can maintain good working condition after long-term storage.



Passive electronic components procurement

The procurement of Passive Electronic Components involves many aspects, including supplier selection, cost control, technical requirements, and supply chain management. The following is a detailed analysis of Passive Electronic Components procurement:1. Supplier selection:- passive electronic parts are diverse and involve a large number of suppliers. Therefore, when choosing a supplier, it is necessary to consider factors such as its supply capacity, product quality and price.- It is recommended to establish a long-term relationship with a larger authorized distributor to avoid the risk of AD hoc buying strategies, especially when the market is out of stock.2. Cost control:- passive electronic parts are leveraged procurement materials, focusing on seeking the optimal cost. Some companies use bidding or target pricing to purchase passive electronic parts in order to get the best purchase price.3. Technical requirements:- passive electronic parts procurement not only focuses on cost optimization but also needs to pay attention to technical factors. The selection in the design phase is very critical, because the engineer's arbitrary selection may lead to later unprocurement or procurement difficulty.- In the selection process, the power, volume, application environment and other factors should be considered, and the supplier should be involved in the design stage as early as possible.4. Supply chain management:- Shortage of materials is a common problem in the procurement of passive electronic parts, especially high-technology components such as MLCC. It is recommended that complete machine manufacturers establish long-term partnerships with authorized distributors who specialize in representing these product lines to solve out-of-stock problems.- For hard-to-find components, it is recommended to develop a longer end-of-life plan (EOL) and review the functional and environmental test results of new components to ensure they meet requirements.5. Procurement Strategy:- When purchasing passive electronic parts, fully understand the market supply situation and ensure that the selected components can meet the needs of the product design.- In the procurement process, it is necessary to control costs and ensure quality, and carefully analyze component model information to ensure reasonable ordering.The procurement of Passive Electronic Components requires comprehensive consideration of supplier selection, cost control, technical requirements and supply chain management. Through reasonable procurement strategy and long-term stable supply chain relationship, it can effectively reduce procurement costs and improve product quality.



Active Electronic Components

What are active electronic components

Active electronic components refer to those electronic components that require external power to work properly. They can actively provide energy, control the flow of current and voltage, and are usually used for functions such as signal amplification, conversion and processing. These components play a vital role in circuits because they can not only enhance signals, but also introduce new energy to achieve complex circuit functions.



Active electronic components application areas

Active electronic components play an important role in multiple fields, and their applications are wide and diverse. The following are the main application areas:1. Consumer electronics: Active components are essential in devices such as smartphones, TVs, tablets, etc. These devices usually rely on active components such as integrated circuits (ICs), operational amplifiers, and transistors to process signals, amplify audio and video signals, and perform power management.2. Automotive: In modern cars, active components are used for engine management, safety systems, infotainment systems, and power management and motor control in electric and hybrid vehicles. In addition, active components are also used in automotive communication systems such as the controller area network (CAN) bus.3. Industrial automation: In industrial environments, active components are used for process control, monitoring, and automation. For example, variable frequency drives and motor controllers both rely on active components to achieve precise production process management.4. Telecommunications and network equipment: Active components are used in routers, switches, and other network equipment for signal amplification and transmission. In addition, in fiber-optic communication systems, active components such as lasers and photodetectors are also indispensable.5. Healthcare: In medical devices such as MRI machines, X-ray machines, and ultrasound systems, active components are used to monitor vital signs and perform diagnostic functions. Medical implants such as pacemakers and defibrillators also contain active components.6. Renewable energy: With the development of renewable energy technology, active components play an important role in solar panels, inverters, and other related equipment to improve energy conversion efficiency.7. Display devices: In computer monitors, televisions, and other electronic devices, active components such as OLED and LCD displays are used to modulate light and create visual effects.8). Internet of Things (IoT): Active components are used for connectivity and data processing in IoT devices, especially in small battery-powered devices, where low-power design is particularly important.9. 5G communications: In 5G networks, active antenna arrangements (AAS) and other active electronic components are key technologies used to improve network capacity and coverage.Active electronic components play an indispensable role in modern electronic systems, and their application areas cover a wide range of areas from consumer electronics to high-end industries, driving technological progress and innovation.



Characteristics of active electronic components

Active electronic components have the following characteristics:1. External power supply required: Active components must rely on external power supply to operate normally when working. This is because they usually contain power supply inside, or need external power supply to provide energy to realize their functions.2. Energy conversion and amplification: Active components can actively generate, control or amplify electrical signals, converting external energy into current or power output. For example, transistors can amplify signals, and integrated circuits can perform complex signal processing and operations.3. Signal processing capabilities: Active components play key roles in circuits such as signal amplification, oscillation, and modulation, enabling circuits to enhance signal strength or change signal characteristics.4. Complexity and cost: Since active components are usually more complex than passive components, their cost is relatively high. However, this complexity brings higher performance and flexibility.5. Dependence: Active components are highly dependent on power supply. Once there is a problem with the power supply, the operation of the entire circuit may be affected.6. Wide application: Active components are widely used in various electronic devices, such as computers, mobile phones, audio equipment, etc., and are an indispensable part of modern electronic systems.In summary, active electronic components play a vital role in electronic circuits by relying on external power supplies to provide energy and actively processing signals.



Active electronic components function

Active electronic components play a vital role in electronic circuits, and their main roles include signal amplification, conversion and control functions. These components rely on an external power source to work and are able to actively process electrical signals or energy.1.Signal amplification: active components such as transistors and operational amplifiers can amplify the power of the input signal, thereby enhancing the signal strength. For example, transistors are often used for current amplification or switching operations, while operational amplifiers are used for linear amplification, differential amplification, integration, and differentiation of signals.2.Signal conversion: active components can also convert one form of energy into another form. For example, DIODES allow current to flow in one direction and are often used in rectifier circuits to convert alternating current to direct current. In addition, field-effect transistors (FETs) control current through electric field effects, which have the advantages of high input resistance and low noise.3.Signal processing: Integrated circuit (IC) is a small circuit that integrates multiple electronic components on a silicon chip, which is widely used in signal processing, amplification and conversion. They are capable of performing complex mathematical operations, logical judgments, and data processing.4.Control function: active components such as thyristor rectifiers and electronic switches (such as mosfet and IGBT) for power control and switching power supply, they control the current to achieve the load switching and regulation.5.Oscillation and modulation: active components can also generate an oscillating signal and modulate, such as an oscillator used to generate a stable frequency signal, and a modulator is used to change the frequency or amplitude of the signal.Active electronic components ensure the normal operation and functional realization of electronic devices by providing energy, controlling current and voltage, and processing signals. These components are indispensable in modern electronic devices, and with the development of science and technology, their types and performance are constantly updated and improved.



Active electronic components classification

Active electronic components refer to those electronic components that require external power to work properly. They can provide energy and control the flow of charge. According to different classification standards, active electronic components can be divided into the following categories:

1. Discrete devices: This type of component includes individual semiconductor devices, such as diodes, transistors (including bipolar transistors and field-effect transistors), thyristors (controlled silicon), etc. These discrete devices are usually used in circuits as switches, amplifiers or rectifiers and other basic functions.

Rectifier Diodes Bridge Rectifier Diodes

2. Integrated circuits (IC): Integrated circuits are miniature wholes that integrate multiple active and passive components on a small silicon chip and are widely used in various electronic devices. Integrated circuits can be further divided into analog integrated circuits and digital integrated circuits. The former is used for signal processing and amplification, and the latter is used for logical operations and data processing.3. Power supply components: including independent power supplies and controlled power supplies. Independent power supplies such as batteries and DC power supplies provide stable voltage or current; controlled power supplies are controlled by other parts in the circuit.4. Display devices: such as LCD displays, seven-segment displays, etc., are used to display information. Although they are not active components in the traditional sense, they play an important role in electronic systems.5. Other special components: such as oscillators, tunnel diodes, gas discharge tubes, etc., these components have unique functions in specific applications.

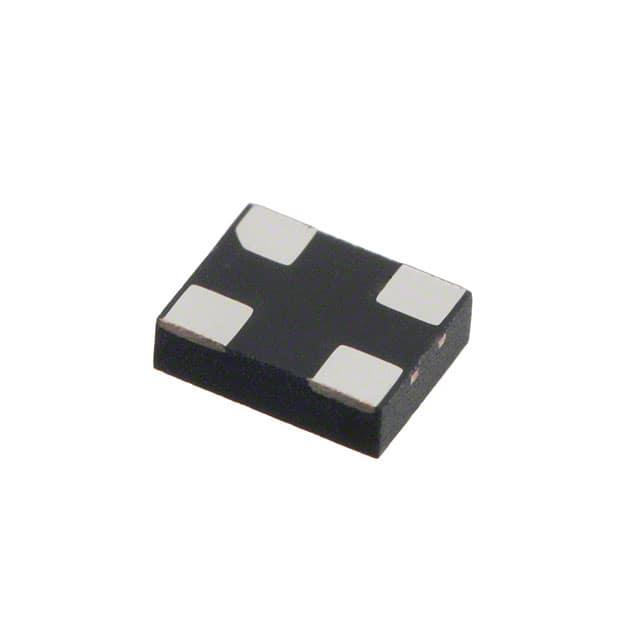

Programmable Oscillator

In summary, active electronic components play an indispensable role in modern electronic circuits, realizing various functions by providing energy and controlling the flow of current. These components include discrete devices, integrated circuits, power components, and some special components, which together form the cornerstone of complex electronic systems.



Active electronic component detection methods

There are various detection methods for active electronic components, mainly including the following:1. Oscilloscope and signal generator detection: By using an oscilloscope to observe the waveform and the signal frequency and amplitude output by the signal generator, it is possible to determine whether the working status and performance of the active component are normal. This method is suitable for evaluating the performance of the component in the actual circuit.2. Input and output characteristic measurement: For circuits containing active components such as active filters, their performance can be evaluated by measuring input and output characteristics. For example, a signal of a specific frequency is generated by a function generator, and an oscilloscope is used to measure the output characteristics of the filter to analyze its parameters such as frequency response, phase response, and gain.3. Voltage and current testing: For power modules with active PFC (power factor correction), the voltage can be input through an AC source, and the input current and voltage waveforms can be tested. At the same time, the voltage after PFC can be monitored to verify the safety of the switch tube and other power devices and the ability of the current to track voltage changes.4. Harmonic detection: In the power system, the harmonic current detection methods of active filters include time domain detection method and frequency domain detection method. Time domain detection methods such as the p-q method based on the instantaneous reactive power principle, and frequency domain detection methods include FFT method and harmonic filter method.5. X-ray detection: X-ray technology is a non-destructive detection method that can provide a detailed view of the internal structure of electronic components, helping to identify solder joints, wire connections and hidden defects.6. FESEM technology: Use high-energy electron beams to irradiate samples, excite electrons in samples, form images, and analyze the microstructure and composition of electronic components. This technology is suitable for detection in semiconductors, microelectronics and other fields.7. Automated optical inspection (AOI) and ICT electrical testing: These methods are mainly used for the detection of electronic components on PCB boards, and potential problems such as missing components, solder bridges and misaligned solder joints can be quickly identified through automated systems.8. Deep learning technology: Computer vision-based target detection algorithms can achieve efficient and automated electronic component recognition, especially for automated detection in PCB production and inspection processes.These methods have their own advantages and disadvantages, and usually need to select appropriate detection methods according to specific application scenarios and component types to ensure the quality and reliability of components.



Maintenance of active electronic components

Maintenance of active electronic components is an important measure to ensure their normal operation and extend their service life. Here are some specific maintenance suggestions:1. Regular cleaning: Regularly clean the dust and dirt inside and outside the equipment, especially around the cooling fan and the position of the air inlet and outlet to maintain good heat dissipation. For active filters, it is recommended to perform deep cleaning once a quarter to prevent dust accumulation from affecting the heat dissipation performance of the equipment.2. Check the connection: Regularly check whether the connection lines of the equipment are tight, loose or burnt, and ensure that all connections are firm and reliable.3. Check the working status: Regularly check the working status of the equipment, including whether the fan, temperature rise, circuit breaker and other components are working properly, and whether the protective cover is damaged or missing.4. Avoid overload: Do not let the equipment work at full load or overload for a long time to avoid damage to internal components.5. Environmental control: Ensure that the equipment operates in a suitable environment to avoid the influence of high temperature, humidity or corrosive gases. If the equipment is exposed to the air for a long time, dust is easy to accumulate, so it needs to be cleaned regularly.6. Power-off operation: Before any maintenance operation, it is necessary to ensure that the equipment is powered off and wait for a period of time to ensure that the capacitor is fully discharged to avoid the risk of electric shock.7. Professional maintenance: The maintenance of equipment such as active power filters should be performed by experienced electricians or professionals to ensure safety and normal operation of the equipment.8. Regular calibration: For equipment that requires precise output, such as power supplies, regular calibration is performed to ensure that its output accuracy meets the requirements.Through the above measures, the efficiency and life of active electronic components can be effectively improved, and the stable operation of the equipment can be guaranteed.



Active electronic component storage

The storage of active electronic components requires consideration of several factors to ensure that their performance and life are not affected. Here are some key points about the storage of active electronic components:1. Storage environment:- Active electronic components should be stored in a dry, well-ventilated environment to avoid moisture and corrosive substances.- The storage temperature should be between -40°C and +55°C, and the relative humidity should be between 15% and 90% (below 20°C).- Avoid placing the device outdoors or in direct sunlight, and keep it away from high temperatures, dust accumulation and chemical contamination.2. Packaging requirements:- The device usually needs to be stored in the original packaging to prevent damage and contamination. If it needs to be stored for a long time, it is recommended to use moisture-proof and anti-static packaging materials.- For long-term storage, it is recommended to check the integrity of the packaging regularly to ensure that there is no mold or damage.3. Special storage conditions:- For contaminated active electronic devices containing lithium batteries, it is recommended to use nitrogen sealing devices for storage, and keep the nitrogen purity above 99.2% and the pressure between 0.2Mpa and 0.3Mpa.- Avoid severe vibration and impact during storage, and do not store upside down.4. Anti-static measures:- Static-sensitive active electronic components should be stored in anti-static storage cabinets or anti-static boxes to prevent damage caused by electrostatic discharge.5. Precautions for long-term storage:- If active electronic components need to be stored for a long time, it is recommended to test them before use to ensure that they function properly.- For certain types of active components, such as high-temperature resistant large-capacity storage, they can work at extreme temperatures, but environmental conditions still need to be paid attention to for long-term storage.The storage of active electronic components requires comprehensive consideration of environmental conditions, packaging methods and anti-static measures to ensure that they maintain good performance and reliability over a long period of time.



Difference between active and passive electronic parts

Active electronic parts and passive electronic parts play different roles in electronic circuits, and their main differences are reflected in energy sources, working principles and functional characteristics.1. Energy source:- active electronic parts: requires an external power supply to work properly. There is a power supply inside these devices, which can consume electrical energy to realize the functions of signal amplification and transformation. For example, transistors, integrated circuits, operational amplifiers, etc.- passive electronic parts: work without an external power supply. They affect the circuit through charge storage or impedance changes, such as resistance, capacitance, and inductance.2. Working principle:- active electronic parts: adjusts the output signals by amplifying, gaining, and filtering the input signals. They can actively control current and voltage to achieve signal enhancement or conversion.- passive electronic parts: affects a circuit by transmitting signals, storing energy, or filtering signals, and does not involve active energy conversion.3. Functional features:- active electronic parts: Used for complex functions such as signal amplification, modulation, and demodulation. Active electronic parts are the core components of electronic circuits. They are capable of generating or controlling current and voltage to enable complex signal processing.- passive electronic parts: Functions such as signal transmission, filtering, and energy storage. They do not consume energy, but only serve to block, store, or transmit signals as they flow through.In summary, the application of active electronic parts and passive electronic parts in electronic circuits has its own emphasis. active electronic parts rely on external power supply and can actively process and convert signals, while passive electronic parts do not require external power supply and are mainly used for signal transmission and basic energy storage or conversion.



What are the specific application cases of active electronic parts and passive electronic parts in modern electronic devices

Active electronic parts and passive electronic parts are widely used in modern electronic devices. The following are specific application cases:Example of active electronic parts1. Transistor:Rf millimeter wave integrated circuit: The performance of traditional MOSFET devices is difficult to meet the production design requirements due to the reduction of its feature size, so the new three-dimensional gate structure FinFET and other active electronic parts came into being.Data converters and amplifiers: In ANALOG DEVICES' μModule devices, active components such as data converters and amplifiers are integrated into a passive gain and filtering network built with passive electronic parts to achieve a complete precision signal chain.2. Integrated circuit:Hybrid integrated circuit: A variety of active electronic parts are integrated on a membrane integrated circuit on a ceramic substrate to form a highly reliable, high-density and high-performance circuit module with specific circuit functions or even system functions.



Example of passive electronic parts

1. On-chip inductors and transformers:In RF millimeter wave integrated circuits, passive electronic parts such as on-chip inductors and on-chip transformers are widely used in front-end transceiver systems to improve the overall performance of the system.2. Multi-functional passive electronic parts:- Components with different functions such as filtering, power division, coupling, crossover, equalization, phase shift, and balun. These multi-functional passive electronic parts can significantly reduce the number of components and switching required by the system, greatly reduce circuit size, reduce plug loss, and improve integration.3. Integrated passive technology:iPassives™ technology: Analog Devices' iPassives™ technology is designed to provide passive electronic parts such as diodes, resistors, inductors and capacitors, simplifying signal chain design and overcoming the limitations of existing methods. These high-quality passive electronic parts can contain many high-quality passive electronic parts in a very small package and achieve precise matching during the manufacturing process.4.Microwave passive electronic parts:Microwave filter: Microwave filter is one of the most widely used passive electronic parts in microwave systems, and its development trend is integrated modularity, miniaturization and high performance. For example, the 4.825GHz multi-zero bandpass filter is a typical microwave passive electronic parts application.



How to distinguish the role and importance of active electronic parts and passive electronic parts in circuit design?

In circuit design, active electronic parts and passive electronic parts play different roles and have different importance. The following is a detailed explanation of the role and importance of these two devices in circuit design:



The role and importance of active electronic parts

Active electronic parts such as transistors, diodes, integrated circuits, etc., are mainly used for signal amplification and conversion. For example, transistors can be used as electronic switches or amplifiers, while integrated circuits integrate multiple functions such as rectifiers, oscillators, modulators, etc. These devices are able to provide energy or signal to fulfill the function of the circuit.In integrated circuit design, active electronic parts play a decisive role. They can not only amplify the signal, but also carry out nonlinear transformations, such as rectification and modulation. In addition, active electronic parts are also very important in high-frequency communication circuits because they are able to process high-frequency signals and complete complex signal processing tasks.active electronic parts, such as ideal voltage sources and ideal current sources, can generate and maintain a certain output voltage or current, thereby providing a stable power supply to the circuit. This is critical for power supply design and system performance.



The role and importance of passive electronic parts

Passive electronic parts include resistors, capacitors, and inductors, which are the basic components of hardware circuits. These components work without an external power supply in the circuit, so they are called passive electronic parts.Passive electronic parts play an important role in analog signal processing and digital signal processing. For example, RLC circuits are used for amplification, attenuation, coupling, tuning, and filtering; Pull-up and pull-down resistors are used for impedance matching; LC circuits are used for noise suppression and energy accumulation. These functions make passive electronic parts indispensable in circuit design.Reasonable selection and application of passive electronic parts not only determines the stability of hardware circuit design, but also affects the overall quality and performance of electronic equipment. For example, in switched mode power supply (SMPS) design, the choice of resistance, capacitance, and inductance has a huge impact on system performance.In the design of high frequency circuit, the high frequency characteristics of passive electronic parts (such as distribution parameters) need special attention. Although these components are also used in low-frequency circuits, their characteristics are different when operating in high frequency bands.Active electronic parts and passive electronic parts have their unique functions and importance in circuit design. active electronic parts are mainly responsible for signal amplification and conversion, providing necessary energy or signals, while passive electronic parts, as basic components, play an important role in signal processing, circuit stability and high frequency characteristics.



In actual electronic projects, how to select appropriate active electronic parts and passive electronic parts to optimize performance?

In a real electronic project, selecting suitable active and passive electronic parts to optimize performance is a complex and critical process. Here are some detailed suggestions:1.Determine performance requirements and cost targetsBefore designing any electronic system, it is first necessary to define the main performance indicators and cost objectives of the system. For example, power supply efficiency, heat generated, physical size, output power, and cost are all important factors to consider.2.Analyze the influence of active and passive electronic partsThe choice of active and passive electronic parts has a significant impact on the overall performance of the power supply. For example, in a switched mode power supply (SMPS) design, the choice of external components such as resistors, capacitors, inductors, diodes, and MOSFETs directly affects the efficiency, heat generation, physical size, and cost of the system.3.Use integrated design toolsIntegrated design tools such as ADI's ADIsimPower help designers easily compare the performance of different components and make quick decisions based on specific requirements. These tools simplify the design process and ensure that the most suitable components are selected.4.Focus on key parametersFor different components, you need to focus on different key parameters:Resistance: In the case of feedback, compensation and current detection, the resistance tolerance and temperature coefficient will have an impact.-Capacitance: A capacitor that is much larger than the voltage withstand voltage applied to it should be selected to ensure that the capacitance value does not change during normal operation. The C0G/NP0 dielectric capacitor minimizes signal distortion.-Inductance: Choosing the right inductance is critical to power chain design, especially in multi-rail applications.-Diode: The breakdown voltage rating of the diode should be higher than the system voltage, and the forward current rating should be greater than the effective value of the inductor current designed in the circuit.- MOSFET: Select the right MOSFET to consider whether its maximum power rating is greater than the design requirements.5.Consider the advantages of integrating passive electronic partsCompared with discrete components, integrated passive electronic parts have better matching, lower interconnection parasitic parameters and higher reliability. This advantage is due to the element's tight placement and microshading process, which allows it to maintain a better matching record over the entire temperature, mechanical stress and service life range.6.Application simulation and modelingComponent modeling and simulation is very important in optimizing the electrical performance and reliability of electronic systems. Simulation can predict how components will behave in real-world applications, allowing more accurate choices to be made.7.Experience in practical applicationIn actual applications, you also need to adjust the selection policy according to the actual application scenario. For example, at low supply voltages, active damped circuits can significantly reduce power consumption and are recommended.Selecting active and passive electronic parts requires comprehensive consideration of performance requirements, cost objectives, key parameters of components, and actual application scenarios.



Why Choose Unikeyic Electronics for Passive Components?

Unikeyic Electronics is a leading global distributor specializing in high-quality electronic passive components. With a vast inventory and a commitment to excellence, Unikeyic Electronics ensures that customers have access to a wide range of components from various reputable brands.Extensive InventoryUnikeyic Electronics offers an extensive list of passive electronic components, including resistors, capacitors, inductors, diodes, transformers, filters, crystal oscillators, and varistors. Whether you are working on a simple DIY project or a complex industrial application, Unikeyic Electronics has the components you need.Quality AssuranceAs an authorized distributor, Unikeyic Electronics guarantees the authenticity and quality of all its products. This ensures that you receive reliable components that meet industry standards and specifications.Detailed Product InformationUnikeyic Electronics provides detailed product descriptions, specifications, and datasheets for each component. This information helps you make informed decisions and ensures compatibility with your project requirements.Competitive PricingUnikeyic Electronics offers competitive pricing on all their components, making it a cost-effective option for purchasing passive electronic components. Additionally, Unikeyic frequently offers promotions and discounts, providing even greater value.Excellent Customer SupportUnikeyic Electronics is committed to providing exceptional customer support. Their knowledgeable team is available to assist with any questions, from component selection to technical queries, ensuring a smooth and satisfying purchasing experience.



Conclusion

Passive electronic components are essential building blocks in any electronic circuit, providing critical functions that influence the behavior and performance of the system. Understanding the different types of passive components and their applications is vital for designing effective and reliable circuits.When sourcing these components, it is important to choose a reliable and reputable supplier. Unikeyic Electronics stands out as a leading distributor, offering a wide range of high-quality passive components from various brands. With their extensive inventory, quality assurance, competitive pricing, and excellent customer support, Unikeyic Electronics is your trusted partner for all your passive electronic component needs.Explore Unikeyic Electronics' offerings today and ensure the success of your electronic projects with the best components available.



Passive Electronic Components FAQ

1. What are passive electronic components, and how do they differ from active components?Passive electronic components are components that do not require external power to operate and do not amplify or generate energy. They can store, filter, or dissipate energy. In contrast, active components, like transistors and integrated circuits, require an external power source and can amplify signals. Examples in a list of passive electronic components include resistors, capacitors, and inductors.

2. What are the most common types of passive electronic components?The most common types of passive electronic components include resistors, capacitors, inductors, and transformers. Other components in the list of passive electronic components may include filters, ferrite beads, and diodes used for voltage regulation.

3. Why are resistors, capacitors, and inductors considered essential in the list of passive electronic components?Resistors, capacitors, and inductors are foundational elements in circuit design because they manage current flow, store and release energy, and filter signals. Resistors control current levels, capacitors store electrical energy, and inductors manage magnetic fields in AC circuits.

4. Can passive electronic components affect circuit performance and stability?Yes, passive electronic components significantly impact the performance and stability of electronic circuits. The values and quality of these components determine filtering efficiency, signal integrity, and the overall reliability of the circuit. Choosing the right components from the list of passive electronic components ensures optimal circuit operation.

5. What are the differences between surface-mount and through-hole passive electronic components?Surface-mount passive electronic components are smaller and suited for compact, high-density designs, while through-hole components are larger and provide more robust mechanical connections, often used in power applications. Both types are commonly found in the list of passive electronic components depending on the application and design requirements.

6. How do I choose the right passive electronic components for my circuit design?When selecting components from the list of passive electronic components, consider factors such as the required resistance, capacitance, or inductance values, voltage ratings, tolerance, power ratings, and the specific function the component needs to perform within the circuit.
