What is FFC：The Invisible Veins and Spatial Revolution of the Electronic Interconnect World

In the cleanroom of the Precision Engineering Laboratory at the University of Tokyo, a roll of silvery material only 0.12 millimeters thick is being fed into a nanoscale patch machine. This material, known as FFC (Flat Flexible Cable), is an electronic interconnect medium that, with its unique two-dimensional flexibility and millimeter-range bending radius, is reshaping the spatial layout rules of modern electronic devices. What is FFC? From electrical signal transmission cable within the hinges of foldable smartphones to the precise control of the wrist joints in Da Vinci surgical robots, FFC creates an invisible neural network in both electronic and medical devices, compressing traditional three-dimensional wiring harnesses into a two-dimensional plane and heralding a new era of high-density interconnectivity.

I. The Meaning of FFC: Structural Deconstruction of Microscopic Lamination

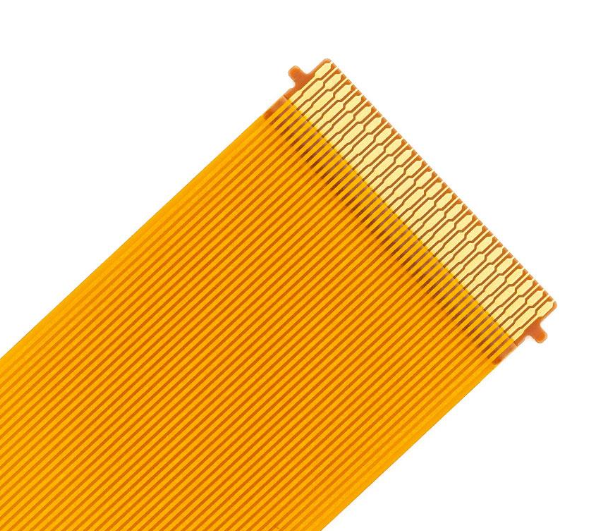

The essence of FFC lies in its planar harness composed of ultra-thin conductors and insulating materials. Its core layer uses high-purity rolled copper foil, etched through photolithography to form parallel flat wires just 0.05mm thick, with spacing precisely controlled between 0.3-1.27mm. These micron-scale conductors are encased in dual layers of polyimide (PI) film, a space-grade material that maintains stable dielectric properties from -269°C to +400°C, allowing FFC to operate reliably in extreme environments like MRI machines. More advanced versions are coated with a nickel/gold alloy layer on the surface, reducing contact resistance to below 5mΩ/cm, meeting the transmission loss requirements of 5G millimeter-wave antenna arrays.

Compared to traditional bendable cable assemblies, the two-dimensional structure of flexible flat cables offers revolutionary spatial efficiency. In the cramped space between the motherboard and display of a smartphone, the 0.1mm thick FFC snakes around camera modules, integrating 40 electrical signal channels within a vertical space of just 4mm. This capability for tight space compression is even more pronounced in medical endoscopes: inside a 3mm diameter probe, eight layers of FFC are stacked conformally, transmitting 4K video signals while maintaining 360° flexural performance, reducing the volume of traditional coaxial harnesses by 80%.

II. Manufacturing Process: The Precise Dance of Microns

The creation of FFC begins with nanometer precision stamping molds. In a temperature and humidity-controlled cleanroom, 18-micron-thick electrolytic copper foil is fed into a continuous stamping machine, executing 200 stamping actions per minute and forming basic wire patterns with ±2μm tolerance. It then enters a vacuum laminating machine where, under 120°C and 5MPa pressure, the polyimide film is permanently bonded to the copper foil, achieving an interface shear strength of 15MPa. The most critical process is the precise welding of terminals—utilizing laser micro-spot welding technology to form 80μm diameter welds on wires with 0.3mm spacing, ensuring the contact resistance change rate remains under 1% under 200g of tension.

Breakthroughs in this manufacturing process have enabled FFC cable assembly manufacturer to make modular leaps. In automotive electronics ECU connection systems, pre-terminated FFC modules reduce assembly time from 45 minutes to just 90 seconds. At joint sites of industrial robots, bend-resistant FFC components maintain electrical signal attenuation within 3% after 10 million cycles, far exceeding the lifespan limit of 500,000 cycles for conventional ribbon cable configuration. Cutting-edge technologies integrate FFC with rigid-flex PCB (Printed Circuit Boards), creating three-dimensional circuit architectures, allowing a satellite camera manufacturer to compress control module volume by 60% and reduce weight to 120 grams.

III. Application Revolution: From Consumer Electronics to Life Support

In the field of medical devices, FFC is redefining the reliability standards of life-support systems. In the transcutaneous energy incoming transfer system of artificial hearts, six-layer FFC is spirally embedded in titanium conduits, delivering 100W of power amidst 40,000 daily bends with a failure rate of less than 0.001 times per year. Within the serpentine arms of minimally invasive surgical robots, 128-channel FFC transmit force feedback signals with a curvature radius of just 0.08mm, enabling surgeons to sense tissue reactive forces as slight as 0.1N. In wearable health monitoring patches, biocompatible FFC directly laminated onto flexible substrates tracks epidermal impedance and temperature changes in real-time, enhancing chronic disease monitoring accuracy to medical-grade levels.

Consumer electronics' reliance on FFC is even deeper. In the hinge area of foldable phones, 0.12mm thick FFC withstands 5mm of tensile deformation amid 100 daily folds, with anisotropic conductive adhesive ensuring electrical resistance fluctuation remains under 5% after a million folds. In TWS earphone charging cases, three-dimensionally molded FFC replaces traditional FPC, integrating wireless charging coils and battery management circuits within an 8mm³ space, reducing electronic product volume by 30%. This space compression capability is equally crucial in financial electrical equipment—the high-speed encryption modules of trading terminals employ FFC for three-dimensional interconnection, minimizing electromagnetic leakage while reducing signal transmission delay to 0.3ns, ensuring timing precision for high-frequency trading.

IV. Material Revolution: Beyond Copper's Conductive Philosophy

The advent of graphene composite FFC is pushing beyond the physical limits of traditional metal conductors. By growing single-layer graphene on polyimide via chemical vapor deposition and forming nano-silver bridge structures through molecular self-assembly, this new FFC achieves sheet resistance as low as 0.1Ω/sq while maintaining an astonishing thickness of 0.01mm. A quantum computer prototype using this material transmits superconducting qubit signals with crosstalk noise suppressed to -90dB, enhancing fidelity to 99.99%. Even more revolutionary is liquid metal FFC, which employs gallium-indium-tin alloy-filled microfluidic channels that can self-heal conductive paths after ballistic impacts, providing ultimate resilience solutions for military electronics.

In terms of extreme environment adaptability, carbon nanotube-enhanced FFC shows tremendous potential. Replacing metal flat wires with vertically aligned CNT bundles, its current-carrying capacity reaches 100 times that of copper, with weight reduced by 80%. The solar sail deployment mechanism of deep-space probes uses this FFC, maintaining flexibility at -180°C cryogenic conditions, aiding the Juno probe in extended Jupiter exploration five years beyond expectations. Meanwhile, biodegradable FFC made from polylactic acid fully decomposes within 18 months after implantation, offering eco-friendly solutions for temporary medical monitoring electronic devices.

V. The Future Frontier: From Electronic Neural Networks to Smart Skin

FFC technology is deeply merging with flexible electronics and artificial intelligence, giving rise to a new generation of intelligent interconnected systems. In bionic robotics, skin-like FFC integrates into silicone matrices with fractal designs, simultaneously transmitting power and tactile information, enabling mechanical fingers to detect texture differences as small as 0.1mm. "Neuro-facades" in smart buildings integrate FFC with photovoltaic films, generating power while monitoring stress distribution for structural health self-diagnosis. Cutting-edge brain-machine interfaces use submicron FFC arrays, integrating 1,024 electrodes within a 4cm² area, achieving single-neuron resolution in motor cortex signal acquisition for the first time.

When combined with printed electronics technology, FFC spawns conductive networks that can be inkjet-printed directly. An intelligent packaging solution prints FFC circuits on PET film, tracking temperature fluctuations in cold chain logistics, reducing monitoring actual costs to 1/20th of traditional schemes. In aerospace, the fusion of FFC and optical fibers is being tested—transmitting 40Gbps optical signals and 10A power concurrently within a 0.2mm thickness, offering integrated solutions for space station energy and information networks.

From the bulky wiring harnesses within the IBM 360 computers to the invisible FFC threads in foldable smartphones, electronic interconnect technology has undergone a transformation from mechanical to intelligent. As self-healing FFC autonomously repairs flexible printed circuits at Mars bases, and neuromorphic FFC simulates synaptic transmissions in brain-like chips, this seemingly simple flat cable is redefining the dimensions of connectivity in the smart era. Perhaps one day, FFC will evolve into the living tissue of electronic systems, weaving an intelligently interconnected neural network between the microscopic and macroscopic realms.
