Understanding Potentiometers: Their Versatile Applications in Electronics Devices
Understanding Potentiometers
A potentiometer is an adjustable electronic component. Its fundamental design comprises a resistor body along with a rotating or sliding mechanism. The resistor housing has two fixed ends. When a voltage is applied to these two fixed ends, the location of the moving contact on the resistor body can be changed by manually turning the rotating shaft or adjusting the sliding handle (i.e., the rotating or sliding mechanism). In this way, the electrical resistance value between the moving contact and either of the fixed ends will change accordingly, affecting the magnitude of the voltage and electric current. A voltage with a certain relationship to the position of the moving contact can be obtained between the moving contact and the fixed contact.
Most potentiometers are used as voltage dividers. In this case, it is actually a four-terminal component (although it has three-terminal resistor in its basic structure, when used as a voltage divider, it involves four connection points: the two fixed ends and the two output terminals connected to the moving contact). It is often used in scenarios such as adjusting the volume switch of speakers and the electric power of laser heads.
Types of Potentiometers
Linear Potentiometer
Showcases excellent accuracy, strong stability, low temperature coefficient, dependable electrical connection, resistance to high temperatures, and robust power-handling ability. However, it has limitations such as a narrow resistance range, poor high-frequency performance, low resolution, a tendency for high-resistance wire wound potentiometers to break easily, relatively large size, and higher cost.
Membrane Potentiometer
Offers a wide resistance range, decent resolution, simple manufacturing process, and low price. Nevertheless, it suffers from high dynamic noise and poor moisture resistance.
Organic Solid-Core Potentiometer
Provides a wide resistance range, high resolution, good heat resistance, strong overload capacity, excellent wear resistance, and high reliability. Yet, it exhibits poor moisture-heat resistance and relatively high dynamic noise.
Metal-Glaze Potentiometer
Combines the advantages of organic solid-core potentiometers with a small resistance temperature coefficient (similar to that of linear potentiometers). However, it has drawbacks such as large dynamic contact resistance and large equivalent noise resistance.

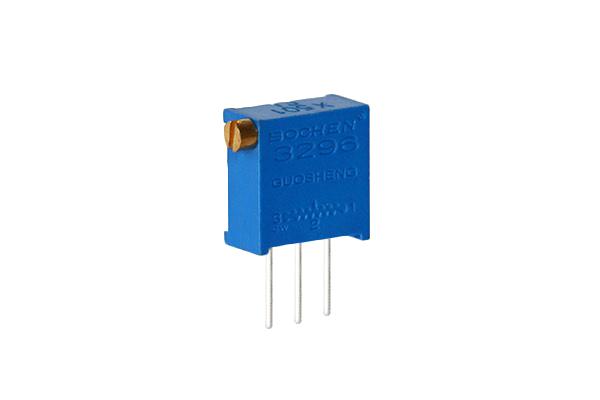

Multi-Turn Potentiometer
Multiturn potentiometer composed of multiple concentric circular rings, each with a slidable contact point. Its operating principle is based on the voltage division principle, where voltage is distributed across the various rings when electric current flows. By adjusting the position of the electrical contact points, the effective length between two contact points can be altered, thereby changing the resistance value along that segment.

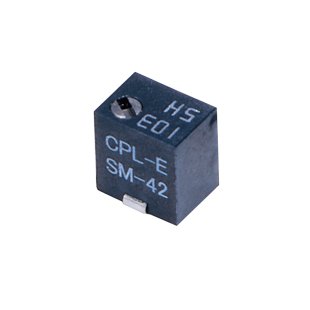

Rotary Potentiometer
Its core component is a circular resistive component, with a movable contact ingeniously mounted on a rotating shaft. When the shaft is turned, the movable contact slides along the resistive component, enabling resistance value adjustment.
Linear Slider PotentiometerThe resistive wire is designed as an elongated strip, with the movable contact cleverly embedded on a sliding handle. As the handle slides smoothly left and right, the movable contact moves steadily across the surface of the resistive material, achieving precise adjustment. This design ensures both intuitive operation and high regulation accuracy.
Logarithmic Taper Potentiometer
The output characteristics of a logarithmic potentiometer exhibit a logarithmic relationship between the resistance value, output voltage, and the rotation angle of the sliding contact. This type of potentiometer is commonly used in precise control tone electric circuits within audio equipment. The nominal resistance range and specification series of the potentiometer align precisely with those of standard resistor series.
Main Parameters of Potentiometer
Rated Power
The maximum power that can be dissipated across the two fixed terminals of a potentiometer is defined as its power rating. It is important to note that the power rating does not equal the electric power between the center tap and the fixed terminals. The rated power of a potentiometer refers to the maximum power that it can continuously withstand over a long period under specified rated temperatures, in both DC and AC motors, with an atmospheric pressure ranging from 87 to 107 kPa.
Nominal Resistance
The nominal resistance value indicated on the product, with its series being similar to that of resistors.
Tolerance Grade
The range of allowable deviation between the measured resistance value and the nominal resistance value varies depending on the precision grade, with tolerances of 20%, 10%, 5%, 2%, and 1% being common. Precision potentiometers can achieve an accuracy of up to 0.1%.
Resistance Variation Characteristics
This refers to the relationship between the resistance value and the rotation angle (or sliding travel) of the wiper position contact. This relationship can take any functional form, with linear, logarithmic, and reverse logarithmic (exponential) being the most commonly used. In practice, linear potentiometers are suitable for use as adjustable voltage dividers, while reverse logarithmic (exponential) potentiometers are ideal for volume controls in radios, tape recorders, phonographs, and televisions. If a direct replacement is needed during maintenance and no identical type is available, a linear potentiometer can be used as a substitute, but a logarithmic potentiometer should not be used as a replacement. Logarithmic potentiometers are only suitable for applications such as tone control.
Applications of Potentiometer
Adjusting Circuit Voltage
By adjusting a potentiometer, the resistance value in a circuit can be altered, thereby controlling the voltage level within the circuit. This is a common practice in many circuits, particularly in DC power supply circuits. Typically, the resistance value of the potentiometer changes within a relatively small range. As it changes, the current flowing through it also varies, consequently altering the circuit's voltage.
Controlling Current
Potentiometers can be employed to regulate the current magnitude in a electrical circuit. For instance, in amplifiers, they are used to control the offset electric current. By adjusting the resistance potentiometer value, the magnitude and direction of the offset flow of current can be managed, ultimately enhancing sound quality.
Modulating Amplification Factor
Potentiometers are also utilized to adjust the amplification factor in electronic circuits, a common application in amplifiers. Since amplifiers often need to boost low-voltage electrical signals to higher voltage ranges for proper output, altering the resistance potentiometer values can modify the amplifier's gain, ensuring its output signals meets specific requirements.
Volume Control
Potentiometers are frequently used to offer audio control in electronic devices. For example, the volume control in audio equipment is achieved through potentiometers. By rotating the potentiometer, the resistance value in the circuit changes, thereby adjusting the output audio volume.

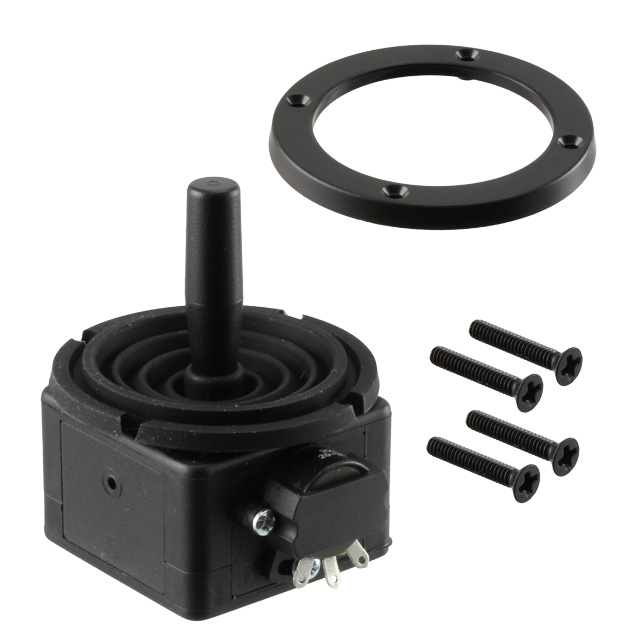

Sensor signal adjustment
In many sensor application scenarios, potentiometers are used to adjust the digital signals output by sensors. For example, in a position sensor, a potentiometer can convert mechanical displacement into changes in electrical signals. When an object is displaced, it drives the sliding contact of the potentiometer to move, causing a corresponding control over resistance value, and then outputting a voltage signal proportional to the displacement. This characteristic enables potentiometers to be widely used in the industrial automation field to measure parameters such as the position and angle of objects, providing accurate data support for the automated production process.
