Digital Circuits vs Analog Circuits: Spotlighting their differences alongside core applications in modern electronics

24 June, 2025

Analog and digital circuits are widely used throughout the field of electrical and electronics engineering and for applications involving signal processing. This unikeyic Electronics article discusses the operation of analog and digital circuits, as well as the major differences between an analog signal and a digital signal.

Digital Circuits vs Analog Circuits

Aspect	Analog Signal	Digital Signal
Nature	Continuous	Discrete
Signal Values	Infinite possible values within a range	Finite set of values (usually two: 0 and 1)
Waveform	Smooth and continuous (e.g., sine wave)	Square or rectangular waveform (step-wise)
Representation	Physical quantities (e.g., voltage, current) vary smoothly	Uses binary values (0s and 1s)
Data Type	Real-world signals	Encoded information
Accuracy	Can be very accurate in ideal conditions	Limited by sampling rate and bit resolution
Susceptibility to Noise	High – small noise can distort the signal	Low system can tolerate some noise
Signal Processing	More complex; harder to filter and amplify without distortion	Easier; can use logic operations and algorithms
Bandwidth Requirement	Lower	Higher (especially for high-speed data)
Storage	Difficult to store directly without conversion	Easy to store in memory and digital media
Transmission	Degrades over long distances (requires amplification)	More robust; can use error correction
Examples	Sound from a microphone, analog video, sensor outputs	Data in a computer, digital audio, digital communication
Conversion	May require ADC (Analog-to-Digital Converter) for processing	May need DAC (Digital-to-Analog Converter) for real-world use
Equipment	Uses ANALOG DEVICES: amplifiers, filters, oscillators	Uses digital devices: microcontrollers, logic gates, computers
Cost	Sometimes lower for simple systems	Higher due to complexity and components
Flexibility	Less flexible, harder to modify once built	Highly flexible; can be reprogrammed or reconfigured

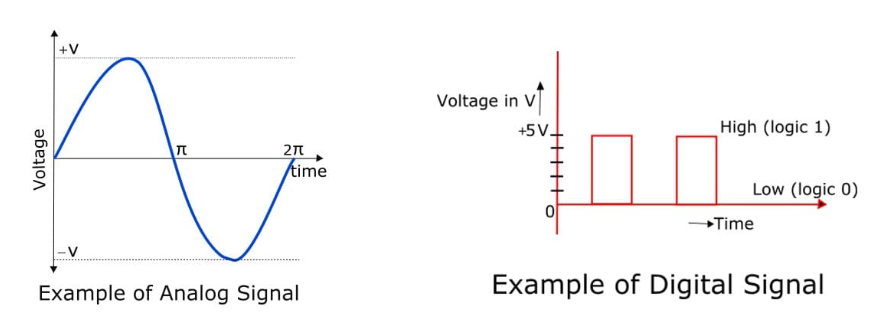

example of analog and digital signal

Digital Circuits vs Analog Circuits: Application Differences

Aspect	Analog Circuits	Digital Circuits
Use Cases	Natural, real-world signal processing	Data handling, computation, and control logic
Signal Type	Varying continuously (e.g., voltage, current)	Binary (0s and 1s)
Complexity	Suited for simpler or low-level signal tasks	Ideal for complex, high-speed, programmable tasks
Accuracy	High for real-time, continuous signals	High for data precision and repeatability

Analog Circuits: A comprehensive overview

An analog circuit is a type of electronic circuit that manipulates any analog signal or data and produces an output that is also in analog form. An analog circuit will process and manipulate signals that change continuously over time, so that devices can manipulate or handle natural, real-world information in its original form. Analog circuits consist of resistors, inductors and capacitors, etc. An analog circuit can be classified into two different types depending on the type of components used and their mode of operation, namely: active circuit and passive circuit. Active analog circuit is an amplifier and passive circuit is a low-pass filter.

Analog Circuits

Characteristic Features	Description
Signal Type	Continuous – The voltage or current can have any value within a range
Real-world input/output	Analog circuits are often used to interact with natural signals like sound, light, temperature, or motion
Signal Fidelity	They maintain the original waveform of the input signal, but can be affected by noise and distortion
Example Signal	Audio waveform, temperature sensor output
Components	Resistors, capacitors, inductors, op-amps, transistors
Precision	High – but susceptible to noise and distortion
Design Complexity	Harder to design and troubleshoot due to continuous signals
Power Consumption	Often lower, but depends on design
Real-world Applications	Audio amplifiers, radio transmitters, analog sensors, power supplies
Susceptibility to Noise	High – small interference can alter the signal significantly
Storage	Hard to store analog signals directly; usually converted to digital first

Examples of Analog Circuits:

● Audio amplifiers

● Voltage regulators

● Radio frequency (RF) transmitters and receivers

● Analog filters

● Temperature sensor circuits

Applications of Analog Circuits:

Application Area	Example Devices/Systems	Why Analog?
Audio Equipment	Amplifiers, equalizers, and analog radios	Continuous audio waveforms need smooth processing
Sensors & Instrumentation	Thermocouples, strain gauges, temperature sensors	Sensors typically produce continuous (analog) outputs
Power Electronics	Voltage regulators, AC power control	Power and signal levels vary continuously
Communication Systems	AM/FM radios, analog telephones	Modulation and transmission of continuous waveforms
Medical Devices	ECG, EEG machines	Body signals (like heart rhythms) are analog by nature
Control Systems	Analog PID controllers	Real-time, smooth control based on variable inputs

Digital Circuits: A Comprehensive Overview

A digital circuit is an electronic system, that operates on digital signals typically in binary form (0's or 1's), that allows computation, control and data processing in modern electronics. A digital signal looks like a square wave — a series of abrupt transitions between high (1) and low (0) states. The basic element of digital circuits is the digital logic gates (AND, OR, NOT, NAND, NOR, XOR, XNOR). In digital circuits, all circuits are active circuits, therefore the circuit must have an additional power source to power the circuit. Small voltage fluctuations do not typically affect the circuit's output, that is why digital circuits are more reliable and noise-resistant.

Digital Circuits

Characteristic Features	Description
Signal Type	Discrete – Signals have fixed values, commonly two levels—Low (0) and High (1)
Time-domain pulses	Changes occur at specific intervals, making them easy to sample and process
Example Signal	Clock pulses, digital logic signals
Components	Logic gates, flip-flops, registers, counters, multiplexers, microcontrollers, FPGAs
Logic-based operation	Operate using logic gates (AND, OR, NOT, etc.) to perform operations
Precision	Can be extremely precise; immune to small noise changes
Design Complexity	Easier to design with simulation tools; scalable for complex systems
Power Consumption	Often higher due to switching activity (though low-power design is possible)
Real-world Applications	Computers, smartphones, digital watches, data processing systems
Susceptibility to Noise	Low – as long as the noise doesn’t push a signal over threshold limits. Easier to maintain integrity over long distances or during transmission
Storage	Easily stored and processed in memory systems (RAM, flash, etc.). Perfect for Computing and Digital Electronics
Easily scalable and programmable	Often used in systems like microprocessors, microcontrollers, and FPGAs

Examples of Digital Circuits:

● Calculators

● Digital clocks

● Computers and Smartphones

● Logic controllers in industrial systems

● Digital communication systems devices (Wi-Fi, Ethernet)

Applications of Digital Circuits:

Application Area	Example Devices/Systems	Why Digital?
Computers & Microprocessors	Laptops, Smartphones, Tablets	Require binary logic and fast data processing
Digital Communication	Wi-Fi, Bluetooth, 4G/5G networks	Efficient data compression, transmission, and error correction
Embedded Systems	Smart appliances, automotive ECUs	Programmable logic with low error rates
Data Storage	SSDs, HDDs, USB drives	Reliable binary data storage and retrieval
Multimedia Processing	Digital cameras, MP3 players, video editing	Digital signals are easy to manipulate and store
Automation & Robotics	PLCs, CNC machines, IoT devices	Complex decision-making using logic circuits
