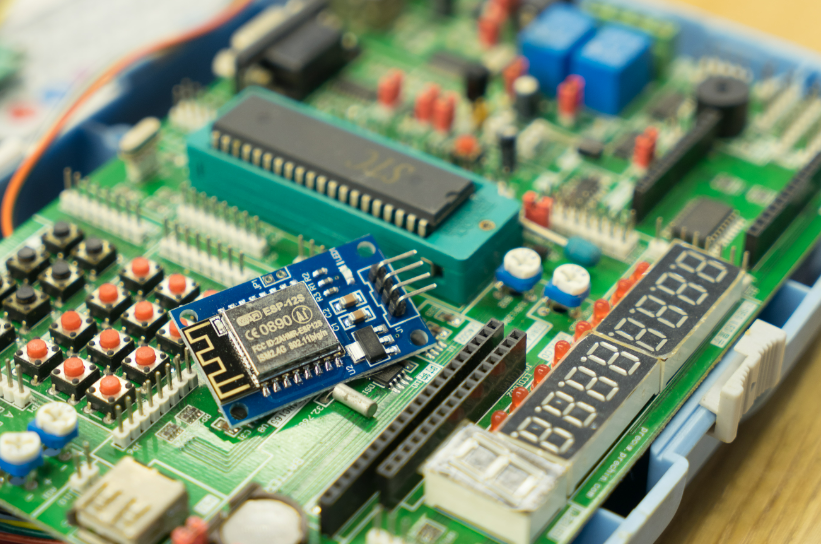

Detailed Description of the Main Types of Discrete Components
Discrete components refer to individual electronic components that perform specific functions within an electrical circuit. These include single transistors, diodes, field-effect transistors (FETs), bipolar junction transistors (BJTs), thyristors, and more. Semiconductor discrete devices are essential functional units whose operations cannot be further divided. Their primary roles encompass rectification, voltage regulation, switching, mixing, amplification, and other critical tasks in electronic devices. They serve as the ferromagnetic core elements for power conversion and complex circuit control across a wide range of applications.
Characteristics of Discrete Electronic Components
● High Precision
Discrete devices exhibit stable performance and characteristics, delivering high precision essential for discrete circuits requiring meticulous control. This makes them invaluable in applications demanding accuracy.
● Strong Customizability
These electronic devices can be tailored to meet specific application requirements, offering a level of customization that is beneficial in specialized situations. This flexibility allows for optimized performance in unique environments.
● High Power Handling
Discrete devices are typically capable of handling higher power and voltage levels compared to integrated circuits. This capability makes them ideal for applications that involve processing high-power electrical signals.
● High Reliability
Comprising fewer electronic components, discrete components tend to have lower failure rates, thus offering enhanced reliability. Their simplicity contributes to their robustness, making them suitable for critical operations where dependability is crucial.
Market of Discrete Components
The market size for discrete devices has benefited from the growing demand for electronic products, the impetus of emerging technologies, and the rapid development of the semiconductor industry. Consequently, China's semiconductor discrete device market is experiencing steady growth.
According to the "2024-2029 China Semiconductor Discrete Device Market Status Research Analysis and Development Prospect Forecast Report" released by the China Business Industry Research Institute, the market size for semiconductor discrete devices in China reached approximately 314.8 billion yuan in 2023, with a compound annual growth rate of 2.51% over the past five years. Analysts at the China Business Industry Research Institute predict that the market size will reach 322.7 billion yuan by 2024.
Classification of Discrete Components
Structural Classification of Discrete Components
Discrete components can be structurally classified into three major categories: DIODES, transistors, and MOSFETs. Each category serves distinct functions based on their inherent characteristics:
1.Diodes:
Diodes utilize their unidirectional conductivity to perform tasks such as rectification, voltage regulation, and protection. They are widely used in consumer modern electronics, power management, and industrial control due to their simplicity, reliability, and efficiency, meeting a wide range of needs.
2.Transistors:
Billions of transistors employ current control to achieve input signal amplification and switching functions. They are essential in communication equipment, household appliances, and automotive electronics. Their high gain and excellent linearity make them critical components in these applications.

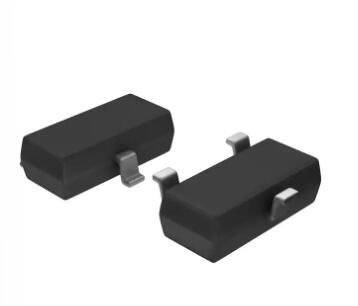

3.MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors):
As voltage-controlled devices, MOSFETs offer advantages like rapid switching, high radio frequency, and low energy consumption. These features make them highly suitable for use in new energy vehicles, communication systems, and industrial equipment, providing vital support for modern efficient circuit boards hole design process.
Each of these complex device types plays a crucial role in fulfilling the diverse demands of today's electronic markets, enabling advancements in various magnetic fields through their specialized capabilities.
Classification by Core Function
Rectification Devices
Rectification devices are specifically designed to convert alternating current (AC) into direct current (DC), a fundamental process necessary for powering most electronics. These components are essential in various applications due to their ability to efficiently handle power conversion. Key diversity of devices include:
1.Rectifier Diodes:
Standard Rectifier Diodes: Allow flow of current in only one direction, effectively converting AC to DC. They are basic external components used in power supplies for transforming AC input into DC output.
2.Fast Recovery Diodes:
Designed to switch off rapidly after conducting, minimizing losses and enhancing efficiency in high-frequency applications such as switch-mode power supplies.
Known for their low forward voltage drop and fast switching capabilities, making them ideal for high-speed and high-efficiency applications.
4.Bridge Rectifiers:
Comprise four semiconductor diodes arranged in a bridge configuration to provide full-wave rectification, efficiently converting the entire AC waveform into DC. This hole design is commonplace in most power supply units.
5.Silicon Controlled Rectifiers (SCRs):
While primarily used in controlled rectification and phase control applications, SCRs can also be part of rectification schemes where controllable rectification is required.
These rectification devices are vital in ensuring the stable operation of electronic circuits by providing consistent DC power from AC major sources. Their efficiency and reliability make them indispensable in magnetic fields like power management, motor drives, and industrial controls, particularly wherever efficient electrical energy conversion is critical.
Switching Devices
Switching devices are integral components in electronic circuits, designed to control the flow of electricity by opening and closing electrical circuits. They are crucial for efficient power management and signal processing in a range of applications. Here are the primary types of switching devices:
1.Transistors:
Bipolar Junction Transistors (BJTs): Used for switching application and amplifying input signals. They operate based on excessive current input and are prevalent in discrete circuits.
Field Effect Transistors (FETs): Including MOSFETs, which are voltage-controlled switches known for their high efficiency and fast switching speeds.
2.MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors):
Widely used in both digital and discrete circuits due to their ability to switch rapidly and efficiently. They are fundamental in applications such as power supplies, motor controllers, and audio amplifiers.
3.IGBTs (Insulated Gate Bipolar Transistors):
Combine the easy gate-drive characteristics of MOSFETs with the high-current and low-saturation-voltage capability of BJTs, making them ideal for high-power applications like electric vehicle drivetrains and industrial motor drives.
4.Thyristors:
Silicon Controlled Rectifiers (SCRs): Allow current flow once triggered and continue conducting until the current is interrupted or drops below a certain threshold.
Triacs: Useful for AC applications, allowing current to be controlled in both directions, ideal for light dimming and speed control in AC motors.
5.Relays:
Electromechanical or solid-state devices used to control large power loads from a small control signal. They provide electrical isolation between control and output current circuits.
These switching devices are essential for controlling power and digital signal flows in various electronic systems. They enable precise manipulation of electrical energy, ensuring efficient operation of everything from consumer electronics to complex industrial machinery. Their versatility and effectiveness in managing power make them foundational elements in modern electronic design.
Voltage Regulation and Protection Devices
Voltage regulation and protection devices play a critical role in maintaining the stability and safety of electronic systems. They ensure that discrete circuits operate within safe voltage levels and protect sensitive electrical components from breakdown voltage, surges, and other electrical anomalies. Here are the main types of these devices:
1.Voltage Regulators:
Linear Voltage Regulators: Provide stable output voltage by dissipating excess power as excess heat. Commonly used in low-noise applications.
Switching Voltage Regulators: More efficient than linear regulators, using a switching element to maintain the output voltage. Suitable for high-efficiency requirements.
Zener Diodes: Function both as voltage regulators and protection devices, maintaining a constant output voltage by breaking down at a precise reverse voltage drop.

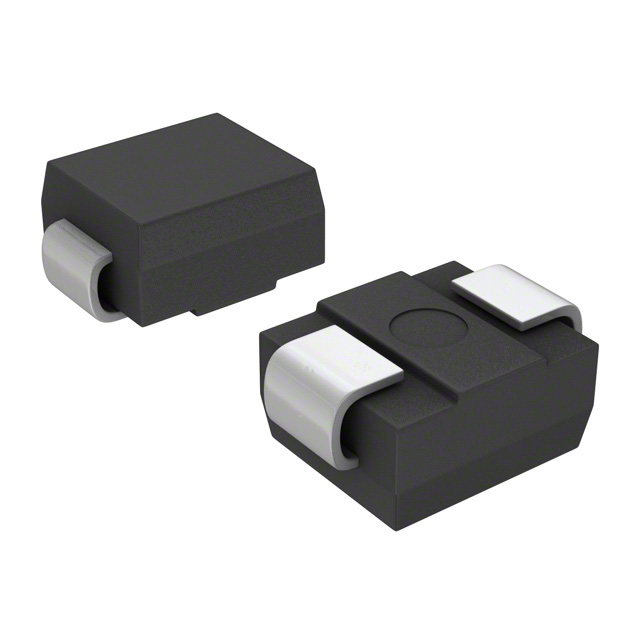

2.Transient Voltage Suppressors (TVS):
Designed to protect specialist circuits from voltage spikes by clamping excessive voltage to a safe level. They react quickly to transient events like lightning strikes or inductive load switching.
3.Varistors (Voltage-Dependent Resistors):
Protect against voltage surges by changing resistance with the applied voltage drop, effectively absorbing and dissipating electrical energy from transient voltages.
4.ESD Protection Devices:
Protect sensitive electronic components from electrostatic discharge (ESD), which can occur during handling or operation. These devices prevent damage by shunting ESD currents away from sensitive parts of a circuit board.
5.Fuses and circuit breakers:
Provide overcurrent protection by breaking the copper circuit when the current exceeds a predetermined level, preventing damage from overloads or short current circuits.
These regulation and protection devices are essential for safeguarding electronic systems, ensuring their longevity and reliability. By managing voltage levels and protecting against electrical disturbances, they help maintain optimal performance across various applications, from consumer electronics to industrial systems.
Amplification and Drive Devices
Amplification and drive devices are crucial in electronic systems for enhancing signal strength and controlling power to various component placement. These devices are essential in applications ranging from audio amplification to motor control. Here are the primary types of these devices:
1.Operational Amplifiers (Op-Amps):
Versatile electrical components used for original signal amplification, filtering, and mathematical operations in digital logic circuits. They provide high gain and can be configured in numerous ways to perform different functions.
2.Transistors:
Bipolar Junction Transistors (BJTs): Used for amplifying current and driving loads. Commonly found in audio amplifiers and other signal boosting applications.
Field Effect Transistors (FETs): Including MOSFETs, used for voltage amplification and as switches in various electronic applications.
3.Power Amplifiers:
Specialized amplifiers designed to drive high-power loads such as speakers or RF transmitters. They amplify the power of a primary signal without altering its waveform shape.
4.Driver ICs:
Integrated circuits specifically designed to provide the necessary current flow and voltage levels to drive other components like LEDs, motors, and relays. Examples include LED drivers, motor drivers, and display drivers.
5.Darlington Transistors:
A pair of BJTs configured to provide high current gain. They are used in situations requiring substantial current amplification and are often found in motor control circuits.
These amplification and drive devices are fundamental for ensuring that electronic signals are properly strengthened and that family of components receive the appropriate power levels to function correctly. Whether boosting an audio signal in a speaker system or providing precise control in motor operations, these devices enable effective and efficient electronic performance across a wide range of applications.
At this point, we have gained a fundamental understanding of the landscape of discrete devices. With such a diverse range of types, these semiconductor devices work together and complement each other in applications, much like players on a World Cup team. Each component assumes a particular role akin to "forwards," "midfielders," "defenders," and "goalkeepers," all contributing their unique strengths to form a powerful and efficient team. This collaborative synergy allows them to effectively cover various voltage and frequency ranges, ensuring robust performance across different electronic systems.
