What is a thermistor: The electronic code of temperature perception in a precise dialogue with the laws of physics
What is a thermistor? In the history of human exploration of accurate temperature measurement, the thermistor serves as a silent interpreter, translating invisible temperature compensation into precise resistance changes. This electronic component, made from sintered metallic oxides, has become an indispensable temperature sensor in modern industrial and consumer electronics due to its unique property of changing electrical resistance with temperature difference. From battery thermal management in smartphones to thermal protection systems in spacecraft, from precise temperature control in medical devices to monitoring power batteries in electric vehicles, thermistors bridge the physical world and the digital realm with high sensitivity to temperature changes across a wide range from -100°C to +300°C.
The Physical Secret of Rremote Temperature Monitor:The Quantum Dance of Resistance and Temperature

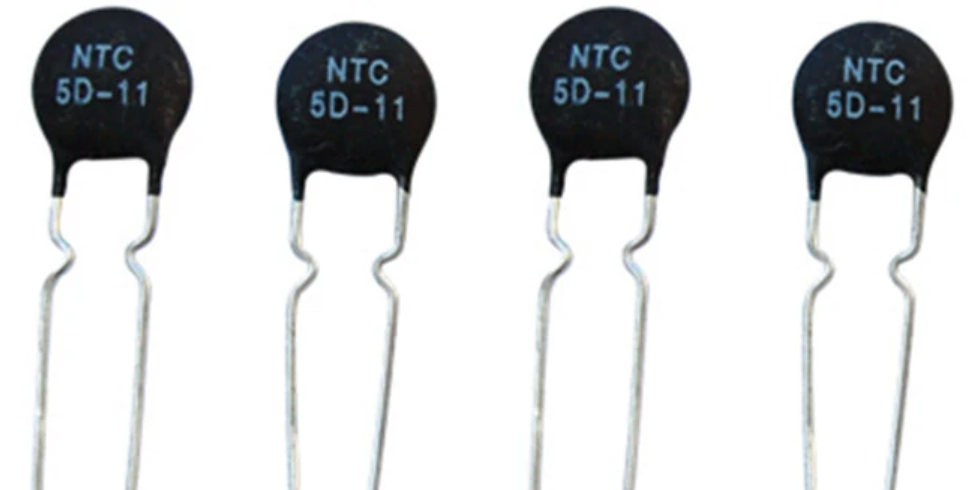

The core secret of thermistor chips lies hidden within their microscopic crystal structure. Taking the typical Negative Temperature Coefficient (NTC) thermistor as an example, its main material is usually a fine mixture of transition metal oxides such as manganese, nickel, and cobalt. During the high-temperature sintering process, these metallic oxides form semiconductor crystals with a spinel structure, where the concentration and mobility of charge carriers directly determine the temperature-resistance characteristics of the electronic device. As ambient temperature rises, increased lattice vibrations release more free electrons, a quantum effect that enhances the overall conductivity of the material, manifesting macroscopically as a decrease in resistance with rising temperature—a negative temperature coefficient phenomenon. Laboratory data shows that high-quality NTC thermistors can achieve coefficient of resistance temperature to -4%/°C between 25°C and 85°C, surpassing the sensitivity of traditional platinum resistance thermometers by tenfold.
In contrast, Positive Temperature Coefficient (PTC) thermistors are typically made from barium titanate doped with trace amounts of rare earth elements. Below the Curie temperature, Positive Temperature Coefficient thermistors exhibit ordinary semiconductor materials; once the critical temperature is surpassed, an internal ferroelectric phase transition occurs, causing the electrical resistance value to increase dramatically by 3-6 orders of magnitude. This nonlinear characteristic is widely used in overcurrent protection. When abnormal current flow in a electrical circuit cause temperature increase, the steep increase in PTC thermistor resistance can automatically cut off the current flow. A certain brand's electric vehicle battery management system uses a PTC array for thermal runaway protection,electric circuit resistance increase to over 10kΩ within 50 milliseconds when single cell temperatures exceed 80°C, effectively preventing heat propagation.
The Art of Sensors for Temperature:From Quantum Effects to Industrial Settings

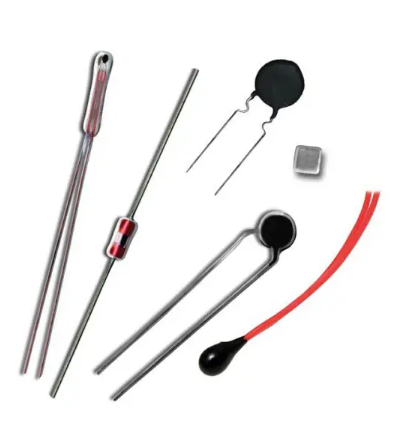

In practical variety of applications of temperature measurement,the types of thermistors have demonstrated remarkable adaptability to environmental conditions. NTC thermistor exhibit excellent linearity in the broad range of -50°C to +150°C, with their resistance-temperature curve precisely described by the Steinhart-Hart equation: 1/T = A + B·lnR + C·(lnR)^3, where A, B, C are characteristic parameters of the device. This mathematical model enables thermistor temperature inversion accuracy within a wide temperature range to reach ±0.1°C. Medical-grade thermometers use micro NTC chips, combined with digital filtering algorithms, to measure human body temperatures from 32.0°C to 42.0°C within 2 seconds, achieving a resolution of 0.01°C.
Facing the challenges of extreme temperature environments, engineers have developed common type of thermistor solutions. High-temperature negative temperature coefficient thermistor used in deep well oil exploration are encapsulated with alumina ceramic materials and platinum-rhodium alloy leads, capable of continuous operation at 300°C and 100MPa pressure for 5000 hours. Meanwhile, ultra-low types of temperature sensors deployed at Antarctic research stations extend effective measurement limits down to -100°C by adjusting the energy band structure with germanium doping. These specialized devices shine in aerospace applications; NASA's Mars rover Curiosity features a temperature measurement system with 12 NTC components, providing precise thermal environment data during its seven-year mission on Mars, with range of temperature fluctuations being from -125°C to +20°C.
Evolution in Material Science of Sensors for Temperature: From Metallic Oxides to Nanostructures
The nanotechnology engineering of metallic oxide materials is reshaping the performance boundaries of thermistors. While traditional manganese-nickel-cobalt oxide sintered bodies are cost-effective, long-term drift issues caused by grain boundary effects remain a challenge for high-precision applications. Recent studies demonstrate that zinc oxide nanowire arrays, prepared using Atomic Layer Deposition (ALD) technology and controlled to diameters below 20nm, achieve both a -5.2%/°C negative temperature coefficient and a stability index of 0.05%/year. This nanostructure endows devices with dual advantages: enhanced temperature sensitivity due to quantum confinement effects, and reduced noise interference from grain boundary scattering due to one-dimensional electron transport paths.
In the realm of positive temperature coefficient materials, breakthroughs have been made in improving the abruptness of phase transitions in barium titanate-based PTCs. By introducing graphene quantum dots as grain boundary modifiers, researchers have successfully increase in resistance mutation slope of PTCs to 200%/°C while controlling the precision of the action temperature point within ±1°C. This smart material is applied in over-temperature protection modules of 5G base stations, reducing thermal damage risks by 90% by cutting off RF paths within 10 milliseconds when power amplifier temperatures exceed safe operation. More cutting-edge exploration focuses on flexible thermistors; a Korean laboratory has developed indium oxide nanofiber films that maintain stable temperature response characteristics under a bending radius of 1mm, paving new pathways for epidermal temperature monitoring in wearable devices.
Infinite Possibilities for Future Temperature Sensor Types
Thermistor technology is evolving rapidly through integration with artificial intelligence and the Internet of Things, spawning a new generation of intelligent temperature heating systems. In Industry 4.0 factories, digital twin systems equipped with NTC arrays can construct real-time three-dimensional temperature fields of electronic equipment, predicting bearing overheating faults through machine learning algorithms, thereby reducing unplanned downtime by 40%. In the field of agricultural IoT, wireless thermistor sensor networks embedded in soil, combined with Narrowband IoT (NB-IoT) technology, are reshaping decision-making models for precision irrigation—one smart farm saw water efficiency improve by 35% and crop yield increase by 22% after deploying 500 temperature nodes.
At the forefront of quantum technology, scientists are exploring novel thermosensitive materials based on topological insulators. These materials' surface electronic states exhibit ultra-sensitive response to temperature changes, with theoretical calculations showing temperature resolutions of up to 10μK, sufficient to detect metabolic heat changes in single cells. Although practical application remains distant, this breakthrough suggests that temperature measurement technology will enter submicroscopic scales, potentially allowing us to observe the thermal motion trajectories of individual molecules in chemical reactions in the near future.
From the initial sintering of metallic oxides to today’s nano-intelligent materials, the evolutionary history of thermistors mirrors humanity's quest to understand the essence of constant temperature at a microscopic level. In this era of interconnectedness, these small temperature sensors continue to craft new chapters in the interaction between the physical world and digital civilization with quantum-level sensitivity. As fifth-generation thermistor materials break the 300°C temperature limit and flexible devices enable continuous imperceptible monitoring of human body temperature, we have every reason to believe that this technology, born in the 1930s, will continue to chart new horizons in the domain of temperature sensing elements.
