What Are Patch Cables and Why Are They Essential for You?

What are Patch Cables?

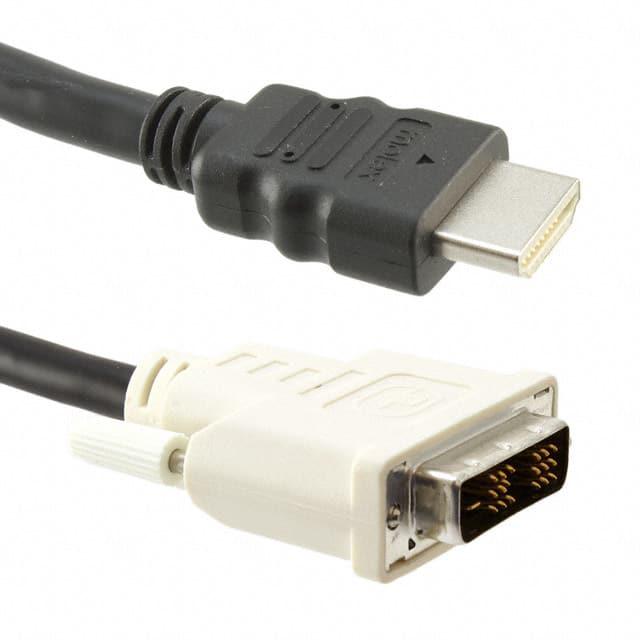

Patch cords, also known as patch cords, are short cables used to connect one electronic or network device to another. They serve as an intermediate link between components to carry data, audio or video signals. The term “patch cord” comes from the early days of telecommunications, when carriers would physically “splice” connections together using cables and sockets.

Patch cables usually have connectors at each end and are designed to fit into specific ports on the connected device. These connectors can vary greatly depending on the type and purpose of the cable. For example, Ethernet patch cables typically use Cat6 RJ45 connectors, the familiar square plugs used for networking equipment. Audio patch cords, on the other hand, may use RCA, XLR, or TRS connectors, each of which is suitable for a different audio-related application.

What are patch cords used for

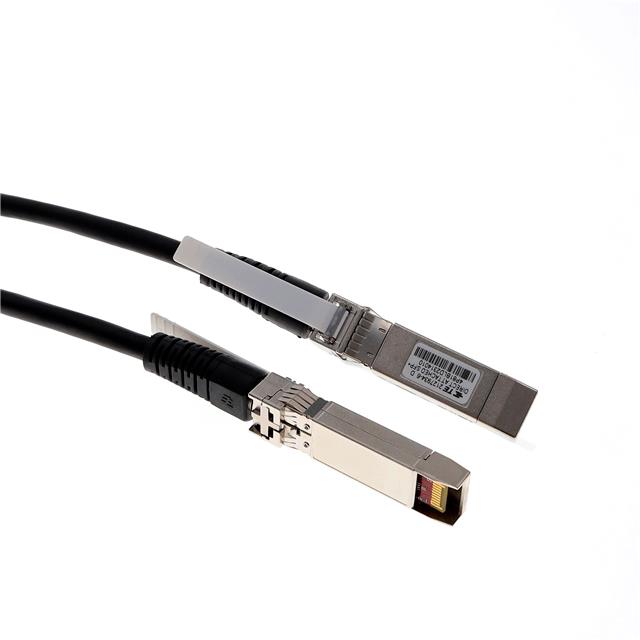

Network Patchcord Practices in Critical Application Scenarios In modern network architecture, patch cords of different specifications play an irreplaceable role in specific scenarios. Take the data center as an example, it is like the heart of the digital world, and the interconnection between devices has strict requirements on the performance of cables. Engineers often choose Cat6a enhanced patch cords as the “neural network” of server clusters, and its optimized stranding structure can effectively inhibit signal crosstalk between adjacent cabinets. When faced with the need for large-scale data exchange, Cat7 patch cables equipped with an independent aluminum foil shielding layer becomes the first choice, this double shielding design can ensure the stability of 40Gbps transmission even in high-density cabling environment. It is worth noting that the fiber optic patch cords across the server room often use LC-LC interface OM4 multimode specifications, the ceramic core can withstand more than 10,000 times of unplugging operations, especially suitable for cloud service infrastructure that requires frequent adjustments.

Turning to the commercial office environment, the application of network patch cords presents different technical characteristics. Cat5e flat patch cords are commonly used in open office areas to connect workstation terminals. Not only is it easy to hide the wiring, but the 0.2mm-thick TPE cover can also withstand repeated crushing by office chair wheels. In the intelligent conference room scenario, Cat6 patch cords with polarized markings become mainstream, and technicians achieve rapid fault location through distinctive color coding (e.g., blue for data, yellow for voice). It is worth noting that modern smart buildings are beginning to popularize Cat6a patch cords with PoE++ power supply, and the 23AWG wire diameter of these cables can stably carry 90W of power output, perfectly supporting the collaborative work of 4K video conferencing systems and IoT terminals.

Home network deployment shows another dimension of patch cord application. Concealed multimedia box is usually reserved 0.5 meters Cat6 short patch cable, this kind of cable is mostly designed with skeletonless RJ45 crystal head, which is convenient to complete the cascade operation of router in a small space. Gamer groups prefer braided mesh patch cables with EMI filter ring, this design can not only inhibit the network jitter caused by electromagnetic interference of the graphics card, its nylon braid can also prevent accidental disconnection caused by pet chewing. In recent years, with the popularity of 8K streaming media, support for HDBaseT protocol Cat7 patch cables began to enter the high-end home theater systems, its metal snap type connectors to ensure continuous and stable 48Gbps video streaming transmission.

Patch cords in the industrial sector face tougher environmental challenges. In the automotive manufacturing plant, oil and grease resistant IP67 Cat6a patch cords become the standard, with stainless steel connector jackets to resist corrosion from cutting fluids, and special thermoplastic elastomer covers to maintain flexibility from -40°C to 105°C. Food processing plants tend to use 316 patch cords with metal snap-on connectors to ensure continuous and stable video streaming. Food processors use shielded patch cords with 316 stainless steel housings, which are fully sealed to resist high-pressure water jet cleaning and avoid the risk of short circuits caused by metal debris intrusion. It is worth mentioning that the oil rigs use composite patch cords reinforced with Kevlar tensile fibers, even in a constant vibration environment can maintain a reliable gigabit connection.

This scenario-based jumper selection strategy not only reflects the trend of specialization in network infrastructure construction, but also reflects the depth of demand for digital transformation in various industries. From 400G optical module interconnections in data centers to Wi-Fi 6 backhaul networks in smart homes, the proper selection of jumper types has become a fundamental technical decision to ensure the stable operation of digital systems. With the continuous evolution of the TIA-568.2-D standard, the future of patch cord technology will usher in new breakthroughs in impedance matching accuracy, end-face plating process, etc., to further promote the network performance of various application scenarios.

Differences Between Patch Cables and Ethernet Cables

In networking, the terms "patch cables" and "Ethernet cables" are often used interchangeably, leading to confusion. While both facilitate data transmission, they serve distinct roles. Patch cables are a subset of Ethernet Patch cables, optimized for specific short-range applications, whereas Ethernet cables encompass a broader category, including those designed for permanent infrastructure. Understanding their differences in use cases, flexibility, durability, and cost is essential for building efficient networks.

Use in Temporary Connections

The primary distinction lies in their deployment scenarios. Patch cables excel in temporary or dynamic environments. Their design caters to short-distance connections, such as linking devices in an office (e.g., computer to wall jack) or interconnecting switches and servers in data center racks. Their plug-and-play nature allows for quick reconfiguration, making them ideal for setups requiring frequent changes, like trade shows, office rearrangements, or lab testing.

In contrast, Ethernet Patch cables used in structured cabling are built for permanence. These cables, often referred to as "horizontal" or "solid-core" cables, are installed within walls, ceilings, or conduits to establish a network backbone. They connect wall outlets to central patch panels, forming a fixed infrastructure. Once installed, they remain untouched for years, providing reliable long-term connectivity.

Flexibility and Durability Considerations

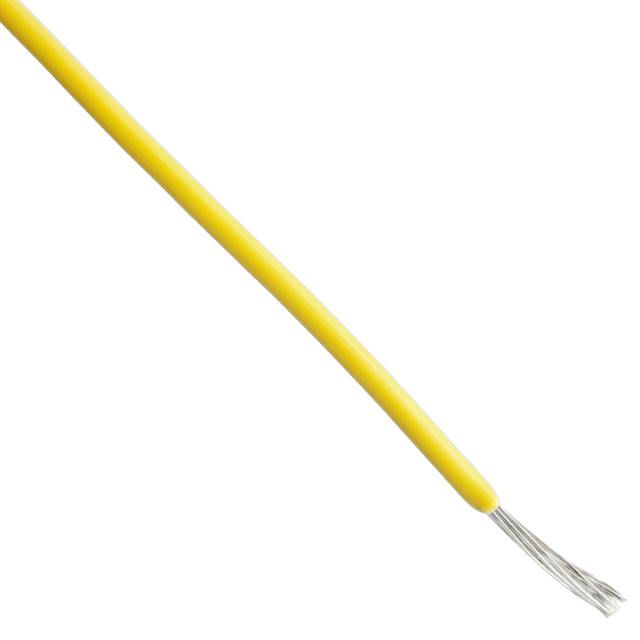

Physical construction differences dictate their flexibility and lifespan. Patch cables typically use stranded copper cable conductors, where multiple thin wires are twisted together. This design enhances flexibility, allowing the cable to withstand repeated bending and movement without breaking. However, this flexibility comes at a cost: stranded wires are more prone to signal attenuation over long distances, limiting their use to shorter runs (typically under 10 meters).

Structured Ethernet cables, on the other hand, employ solid cable conductors—a single thick copper cable strand. These are rigid and less tolerant of bending, making them unsuitable for frequent handling. However, solid cable cores offer superior electrical performance over extended distances (up to 100 meters), which is critical for permanent installations. Their rigidity also reduces wear in static environments, ensuring longevity when undisturbed.

Jacket materials further influence durability. Patch cables often feature robust PVC or LSZH (Low Smoke Zero Halogen) jackets to resist physical stress from movement. Structured cables may use thinner jackets but prioritize fire safety ratings (e.g., CMP for plenum spaces). Repeatedly bending solid-core cables can cause microfractures, leading to signal loss, whereas stranded cables, though more flexible, may fray over time if subjected to excessive twisting.

Cost-Effectiveness

Cost considerations vary based on scale and application. Patch cables are cost-effective for small-scale or temporary setups. Pre-made lengths (e.g., 1m, 3M) are affordable and eliminate the need for custom termination. However, purchasing multiple pre-made cables for large installations becomes expensive compared to bulk Ethernet cable.

For permanent installations, bulk solid-core Ethernet cable is more economical. A 305-meter spool of Cat6 costs significantly less per meter than pre-made patch cables. However, this requires additional expenses for connectors, wall plates, and professional installation. Labor costs for running cables through walls can be high, but this one-time investment pays off in reliability and reduced maintenance.

Durability also impacts long-term costs. While patch cables are cheaper upfront, frequent replacements due to wear in high-traffic areas can add up. Structured cables, once installed, rarely need attention unless physically damaged. For businesses, balancing initial costs against scalability is key: temporary setups favor patch cables, while permanent networks benefit from structured cabling.

Types of Patch Cables

Common Types of Patch Cables

Cat5e CablesCat5e cables are the most basic and cost-effective option, supporting speeds up to 1 Gbps and bandwidths of 100 MHz. They are ideal for home networks, small offices, or connecting devices like printers and routers. While limited in performance compared to newer standards, their affordability and backward compatibility make them a popular choice for non-demanding environments.

Cat6 and Cat6a Patch CablesCat6 cables support speeds up to 10 Gbps over shorter distances (up to 55 meters) with a bandwidth of 250 MHz, while Cat6a (augmented) extends this to 10 Gbps over 100 meters at 500 MHz. These cables feature tighter twisted pairs and thicker insulation to reduce crosstalk. Cat6 is widely used in offices and data centers for high network speed connections between switches, servers, and workstations. Cat6a, with its superior shielding, is preferred for industrial settings or environments with electromagnetic interference (EMI).

Cat7 and Cat7a Patch CablesCat7 cables support 10 Gbps speeds at 600 MHz bandwidth and include individual shielding for each twisted pair (S/FTP), offering robust protection against EMI. Cat7a pushes this further to 1,000 MHz, supporting future 40 Gbps applications over short distances. These cables are used in data centers, audiovisual setups, and industrial automation systems where signal integrity is critical.

Cat8 Patch CablesDesigned for cutting-edge infrastructure, Cat8 cables support 25–40 Gbps speeds at 2,000 MHz bandwidth over 30 meters. They feature heavy shielding (typically S/FTP or F/FTP) to minimize interference in high-density environments. Cat8 is primarily deployed in enterprise data centers, high-performance computing clusters, and for backbone connections in server racks.

Shielded (STP/FTP) vs. Unshielded CablesShielded patch cables (STP or FTP) use metallic foil or braiding to protect against EMI, making them suitable for factories, medical facilities, or outdoor installations. Unshielded (UTP) cables lack this protection but are lighter and more flexible, ideal for office desks or home networks with minimal interference.

Fiber Patch CablesThough not traditional Ethernet patch cords, fiber patch cables (e.g., single-mode or multimode) use light to transmit data, offering ultra-high speeds and immunity to EMI. They are used in long-distance backbone connections, telecommunications, and data centers requiring low latency and high bandwidth.

Types of Flex Patch Cables

Flex Patch Cable 12

In a networking context, Flex Patch Cable 12 might be used in a local area network (LAN) within a small office. It can connect multiple devices like computers, printers, and routers, enabling seamless data transfer between them. The flexibility of this cable makes it easy to route through cable ducts or around furniture, ensuring a tidy and functional cabling infrastructure.

Flex Patch Cable 16

In industrial settings, Flex Patch Cable 16 might be employed to connect control panels to various sensors and actuators. The additional conductors allow for the transmission of more signals, which is crucial for controlling complex machinery. Its flexibility ensures that it can be bent and routed in tight spaces within industrial enclosures.

Flex Patch Cable 18

Flex Patch Cable 18, boasting 18 conductors, is designed for the most demanding applications. In data centers, it can be used to connect servers to high-density switches. The large number of conductors enables high-speed data transfer across multiple channels simultaneously, facilitating the efficient operation of the data center.

For high-end audio systems, such as those found in professional recording studios or large -scale concert venues, Flex Patch Cable 18 can handle a vast array of audio signals. It can connect multiple audio processors, power amplifiers, and speaker arrays, providing a comprehensive and reliable audio connection solution.
