What are Anmometers Used for

An anemometer, as the name implies, is an instrument for measuring approximate wind speed. In wind turbines, anemometers are widely used to monitor and measure the wind speed in wind farms, providing crucial data for the safe operation and efficient power generation of wind turbines.

An anemometer is a critical meteorological instrument designed to measure wind speed and air velocity. Widely used in wind turbine condition monitoring, weather stations, industrial applications, and environmental monitoring, anemometers provide essential data for optimizing energy production, ensuring safety, and advancing scientific research. This article explores the working principles, types, and diverse applications of anemometers to demonstrate their versatility.

Working Principles of Anemometers

Anemometers operate on diverse physical principles, each suited to specific scenarios:

1.Ultrasonic AnemometersThese measurement devices emit ultrasonic sound waves and the time of flight measurement of these pulses between transducers. Wind speed is calculated based on the speed of sound varies with wind direction and air motion. Advantages include high spatial resolution, immunity to mechanical wear, and accuracy in harsh environments. They are ideal for wind resource assessment studies and turbine condition monitoring systems.

2.Mechanical Anemometers

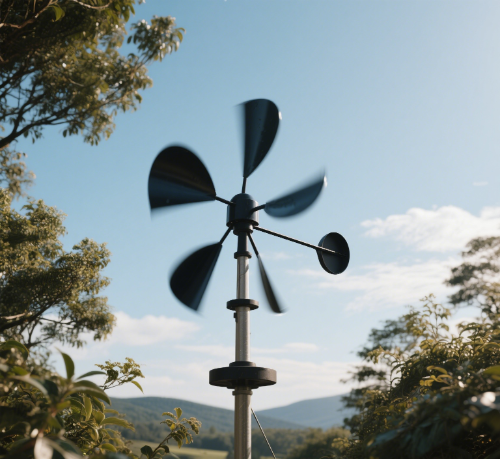

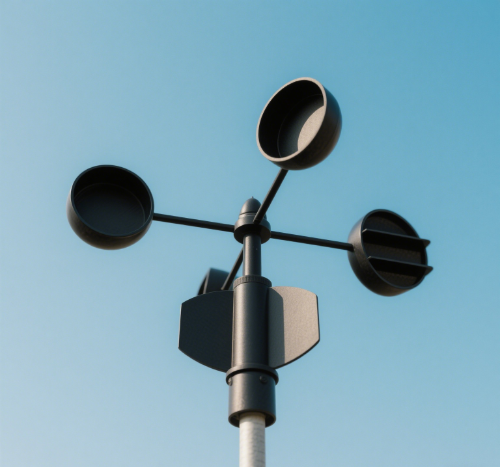

● Cup Anemometers: The classic three-cup anemometer, invented by John Thomas Romney Robinson in the 19th century, uses rotating cups whose rotational speed correlates with wind speed. Improvements like the four-cup anemometer enhance accuracy in turbulent flows.

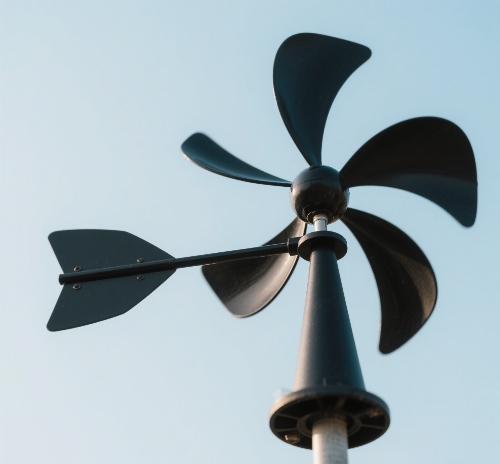

● Vane Anemometers: These combine a wind vane for direction measurements with rotating blades to measure air velocity, often used in ventilation systems and industrial applications.

3.Thermal Anemometers

Hot-Wire Anemometers: A fine-wire anemometer heated electrically measures air flow by detecting changes in resistance caused by cooling from wind. They excel in measuring rapid velocity fluctuations and are used in wind tunnels and gas flows.

Constant-Temperature Anemometers (CTA): These maintain a fixed wire temperature, providing a voltage output proportional to wind speed.

4.Pressure-Based Anemometers

● Pitot Tube Anemometers: Measure dynamic pressure and static pressure differences to calculate wind speed. Used in aviation and HVAC systems.

● Plate Anemometers: Utilize wind pressure on a flat plate to estimate wind velocity, historically used in shafts of mines for airflow analysis.

5.Lidar Wind SensingLidar (Light Detection and Ranging) uses laser scattering to track particles in the air, providing three-dimensional wind speed data with high precision over long distances. This technology is pivotal for wind tunnel measurements and atmospheric wind studies.

Types of Anemometers

Based on design and application, anemometers are categorized as follows:

1.Planar Anemometers

Measure wind in a single horizontal direction. Examples include cup anemometers and ultrasonic anemometers.

Key for meteorological instrument networks and weather station setups.

2.Three-Dimensional Anemometers

Capture horizontal and vertical wind components, such as Three-dimensional sonic anemometers and lidar systems.

Essential for wind farm layout planning and studying rough weather impacts.

3.Portable Anemometers

Lightweight devices like digital anemometers with real-time monitoring capabilities. Used in outdoor activities and field investigations.

4.Specialized Anemometers

Rotorvane Anemometer: Combines a rotor and vane for simultaneous speed and direction measurement.

Acoustic Resonance Anemometers: Detect wind-induced frequency shifts in sound waves, useful in cold environmental conditions.

Applications of Anemometers

1. Wind Energy Systems

● Wind Energy Resource AssessmentAnemometers are deployed at standard anemometer height (e.g., 10–100 meters) to collect long-term wind speed measurements. Data on average wind speed, wind pressure, and range of wind speeds inform site selection and annual energy production (AEP) estimates. For example, three-cup anemometers remain an industry standard for feasibility studies.

● Operation Control and OptimizationReal-time data from ultrasonic anemometers feeds into turbine control systems to adjust blade pitch, yaw angle, and rotational speed. This ensures alignment with wind direction and maximizes power curve tracking. Advanced systems even integrate turbine condition monitoring to detect mechanical stress.

● Safety AssuranceDuring extreme wind speed events (e.g., storms), anemometers play a crucial role in ensuring the safety of wind turbines. When the wind speed exceeds the safe operating limits of a turbine, anemometers trigger emergency shutdowns or blade feathering. Metal pressure tube anemometers, with their robust design, are well - suited for harsh environments. In a coastal area where strong winds and salt - laden air can pose a threat to anemometers, metal pressure tube anemometers can withstand the conditions and provide accurate wind speed data. This data is then used to protect the turbines from damage during severe weather events.

● Data Analysis and Performance EvaluationLong-term datasets enable wind turbine performance evaluation, identifying deviations from predicted volumetric flow rate or rate of wind speed changes. This supports maintenance scheduling and design improvements.

2. Meteorology and Climate Science

● Weather ForecastingAnemometers on weather buoys, towers, and drones provide instantaneous wind speed data for predicting storms, weather patterns, and light winds.

● Environmental MonitoringUsed to study air pollution dispersion, thermal flow meter interactions, and effects of wind on ecosystems. Sonic anemometers are critical for atmospheric boundary layer research.

3. Industrial and Engineering Applications

● HVAC and Ventilation SystemsVane anemometers and hot-wire devices optimize airflow in buildings, mines, and factories, ensuring reliable operation and compliance with safety standards.

● Aerodynamics and Wind Tunnel TestingHot-wire anemometers measure turbulent flows in wind tunnels, aiding aircraft and vehicle design. Pressure transducers in Pitot tubes validate computational fluid dynamics (CFD) models.

● Urban PlanningAnemometers are used to assess wind flow around skyscrapers. In a city, tall buildings can significantly affect the wind patterns at street level. By using anemometers to measure the wind flow around buildings, urban planners can design buildings in a way that mitigates the wind pressure effects on pedestrians. This helps in creating more comfortable and safe urban environments. For example, by designing buildings with setbacks or wind - deflecting features, the wind speed at street level can be reduced, making it more pleasant for people to walk around.

4. Historical and Niche Uses

Early anemometers, such as the 15th-century Italian architect Leon Battista Alberti’s mechanical design, laid the groundwork for modern instruments. Alberti's design was a simple yet innovative approach to measuring wind speed. His ideas inspired further developments in anemometer technology. John Patterson’s three-cup anemometer (1926) became a global standard due to its simplicity and durability. This design was widely adopted around the world and was a significant improvement over previous anemometers. Modern innovations like image velocimetry and Savonius wind turbine-integrated sensors showcase interdisciplinary advancements. Image velocimetry combines optical techniques with anemometry to provide detailed information about the flow patterns. Savonius wind turbine-integrated sensors are designed to measure the wind speed specifically for Savonius-type wind turbines, optimizing their performance.

Technical Challenges and Innovations

1.Calibration and AccuracyEnsuring precise wind speed measurements is a challenge. In low - wind conditions, some anemometers may have a poor response, leading to inaccurate readings. Thermal anemometers, in particular, require careful calibration to achieve a linear response. Calibration involves comparing the readings of an anemometer with a known standard. This process needs to be carried out regularly to ensure the accuracy of the measurements. New calibration techniques are constantly being developed to improve the accuracy of anemometers, especially in challenging conditions.

2.Extreme ConditionsMeasurement devices like three - dimensional sonic anemometers must withstand rough weather, such as strong winds, heavy rain, and snow. Constant - voltage anemometers need to maintain stability in cold environments. In polar regions, for example, the low temperatures can affect the performance of anemometers. Engineers are developing new materials and designs to make anemometers more resilient to extreme conditions. For example, using materials that are less affected by temperature changes or designing anemometers with built - in heating elements to prevent freezing.

3.Integration with IoTModern anemometers feature digital outputs for integration with turbine condition monitoring systems and cloud - based analytics platforms. By integrating anemometers with the Internet of Things (IoT), the data can be transmitted in real - time to remote locations. This allows for continuous monitoring and analysis of wind speed data. For example, in a wind farm, the data from anemometers can be sent to a central control room, where operators can monitor the performance of the turbines in real - time. The data can also be stored in the cloud for long - term analysis, enabling the identification of trends and patterns over time.

Future Trends

1.Miniaturization and Smart SensorsPortable devices with additional functions (e.g., air pressure and ambient temperature sensing) will dominate outdoor activities and environmental monitoring.

2.Lidar and Drone-Based SystemsLidar’s long-distance measurement capabilities and drone-mounted sensors will revolutionize wind resource assessment and weather observations.

3.AI-Driven AnalyticsMachine learning algorithms will process wind speed data to predict reverse times in wind patterns and optimize grid integration.

Conclusion

From ancient devices like pressure plates to cutting-edge Three-dimensional sonic anemometers, these instruments have evolved to meet the demands of industrial applications, renewable energy, and climate science. By incorporating innovations like ultrasonic sound waves and lidar technology, anemometers will continue to play a pivotal role in harnessing wind flow energy and understanding air motion dynamics. As the wind energy sector grows, advancements in spatial resolution, dynamic pressure sensing, and IoT integration will ensure anemometers remain indispensable tools for a sustainable future.
