Factors Determining Battery Charging Safety: Insights and Charger Teardown from Unikeyic
The design and construction of a battery charger play a crucial role in its safety. Many substandard chargers rely on a simple current-limiting resistor to charge batteries, which can result in the charger continuing to charge indefinitely if not manually disconnected, posing significant safety risks. To help users understand the factors that determine the safety of battery chargers, unikeyic shares detailed teardown information, aiding in the selection of reliable battery chargers.
Parameter Configuration Clarifies Charging Purpose

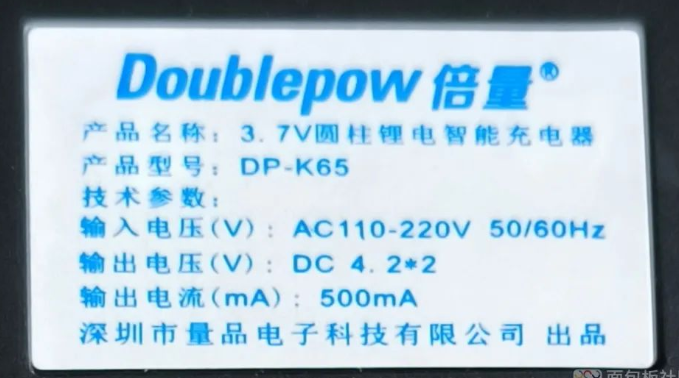

When you obtain a battery charger, it’s important first to examine the label information rather than immediately disassembling it. For instance, in a 3.7V lithium battery charger, the 3.7V indicates that the charger is designed for charging 3.7-volt batteries. The label might also show an output voltage of DC 4.2V, indicating that when the battery is fully charged, its voltage will be 4.2V. If there is a notation like "x2," it means the charger can simultaneously charge two batteries.
Focus on Chip Model After Disassembly

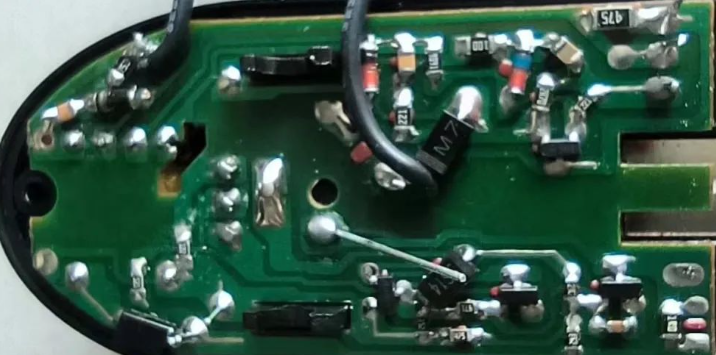

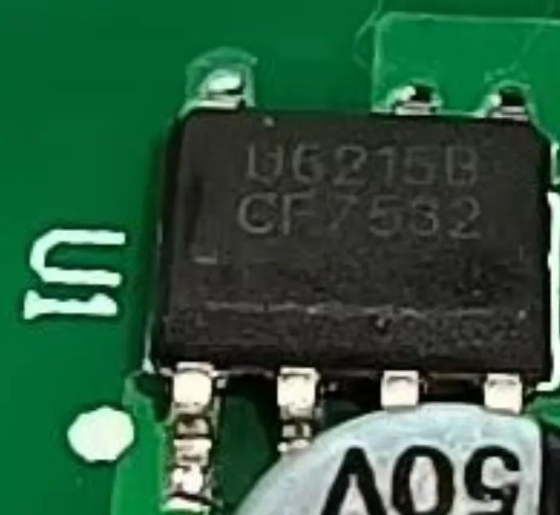

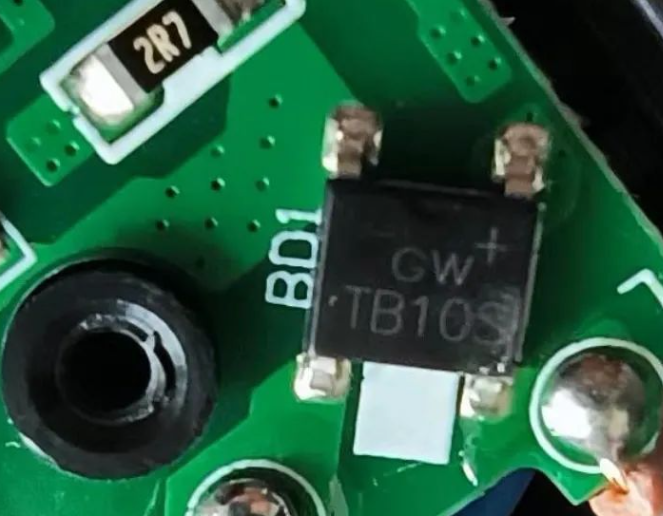

To disassemble a charger, start by removing the label and unscrewing the case to expose the circuit board. On examining the PCB (Printed Circuit Board), pay special attention to the chips used. For example, the charger we dissected uses a TB10S chip along with a rectifier bridge. The controller is an ac-dc controller, and it also includes a battery charging management chip, responsible for controlling the LED indicator and charging current. This dual-chip design ensures the charger automatically disconnects after the battery is fully charged, making it a very safe option.
Simple Chargers Utilize Capacitors and Filters
Some battery chargers have simpler designs, and a teardown might reveal no sophisticated chips. This simplicity does not necessarily mean the charger is unsafe. Examine the capacitors and filters on the PCB of simpler chargers, and consider the type of batteries they charge. Some batteries have built-in overcharge protection, which is an essential feature to consider.ConclusionUnderstanding these aspects through charger teardowns, as provided by resources like Unikeyic, enables users to make informed decisions when selecting battery chargers. By doing thorough research, one can choose the appropriate charger, ensuring both safety and the longevity of rechargeable batteries.
