Active vs. Passive Components: Understanding Their Roles in Modern Electronics

1. Definition and Fundamental Differences Between Active and Passive Components

Active Components

Active components are electronic components that require an external power source to operate and can control or amplify the flow of electrical signals. These components are fundamental in electronic devices and circuits because they are responsible for performing functions like signal amplification, switching, and energy conversion. They have the ability to either generate or modify energy and can actively change the characteristics of electrical signals in a circuit.

Key characteristics of active components:

Require External Power: Active components need an external power supply to operate. Without this external power, they cannot function.Signal Amplification or Control: They can amplify signals (such as increasing voltage or current) or switch them on and off (as in the case of logic gates or switches).Energy Modifying: Active components can change the electrical characteristics of a signal, including amplitude, frequency, and phase.Directionality: They often allow energy to flow in one direction, as seen in components like DIODES and transistors, which help control the direction of current flow.

Key Examples of Active Components:

Transistors: Transistors are perhaps the most well-known active components. They are used to amplify or switch electronic signals in circuits. Modern electronics, such as computers and smartphones, rely heavily on transistors for processing and controlling signals.

Example: A BJT (Bipolar Junction Transistor) or MOSFET (Metal Oxide Semiconductor Field Effect Transistor), commonly used in amplifiers or switching power supplies.Diodes: Diodes allow current to flow in one direction only, and they are essential for rectifying alternating current (AC) into direct current (DC). They are used in circuits where directionality and control over current flow are important.

Figure 1: Diodes

Example: LEDs (Light Emitting Diodes), which are used for visual indicators in electronics.Integrated Circuits (ICs): ICs are collections of active components (like transistors, diodes, and resistors) embedded into a single package. They serve as the brains of many devices, performing specific tasks such as processing signals, memory storage, and computation.Example: A microprocessor, which processes information in computers, or a voltage regulator IC, which ensures consistent voltage levels in power supplies.

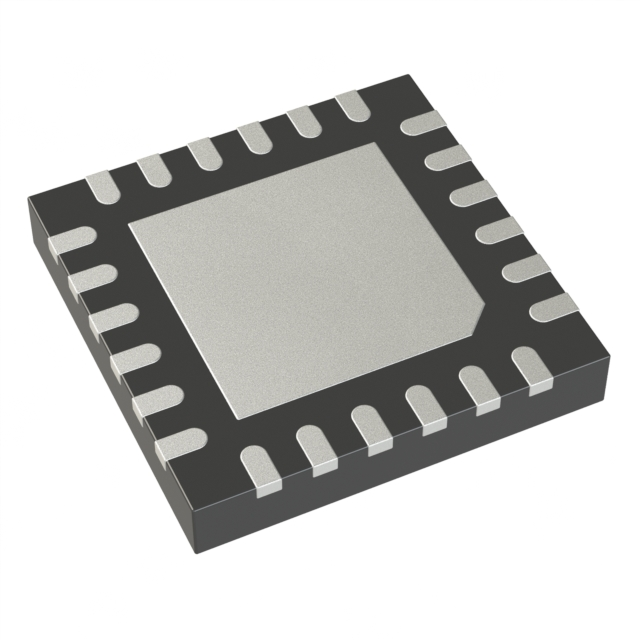

Figure 2: Integrated Circuits

Operational Amplifiers (Op-Amps): Op-amps are versatile active components used in many analog circuits. They can amplify weak electrical signals and are used in various applications such as filters, amplifiers, oscillators, and analog-to-digital conversion circuits.Example: A TL081 Op-Amp, commonly used in audio and signal processing circuits.

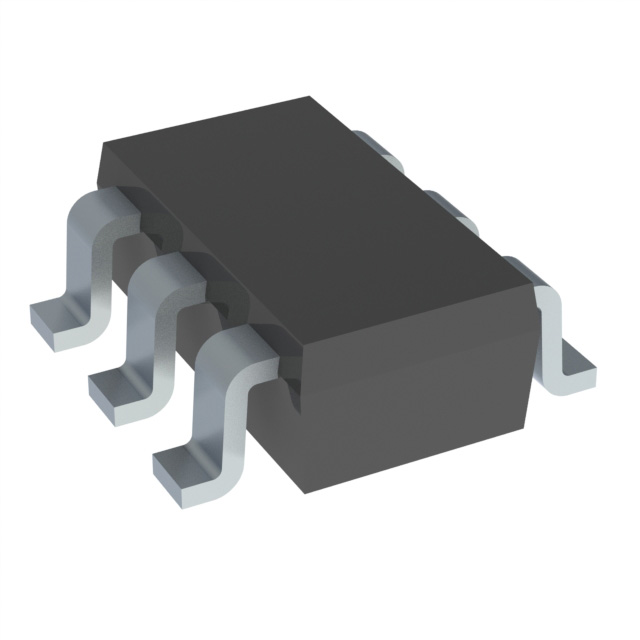

Figure 3: Operational Amplifiers

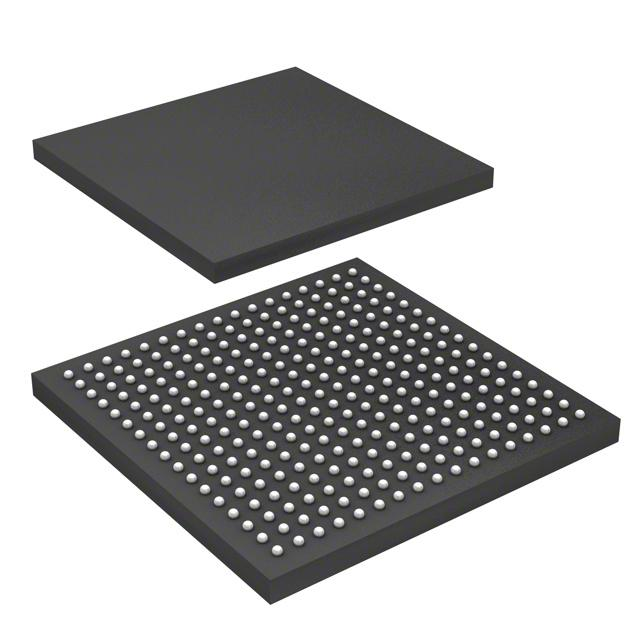

Microprocessors: microprocessors are complex integrated circuits that serve as the central processing unit (CPU) in computers and other devices. They execute instructions and handle computation, making them one of the most crucial components in modern electronics.Example: Intel Core i7 or ARM-based processors used in smartphones and embedded systems.

Passive Components

On the other hand, passive components do not require an external power source to operate. They can only store, regulate, or release energy that is already present in the circuit but cannot amplify or actively control electrical signals. Essentially, passive components manage the flow of electrical current or voltage without altering the energy levels in a circuit.

Key characteristics of passive components:

Do Not Require External Power: Unlike active components, passive components do not need an external power supply to function. They simply respond to the existing electrical signals.Energy Storage or Dissipation: Passive components are used to store energy (such as in capacitors) or dissipate energy (like resistors, which convert electrical energy into heat).No Signal Amplification: Passive components cannot amplify a signal; they can only influence the signal's flow or characteristics (like filtering or impedance matching).Linear Behavior: Most passive components have a linear relationship with voltage and current, meaning their response is directly proportional to the amount of electrical energy applied.

Key Examples of Passive Components:

Resistors: Resistors are used to limit or regulate the flow of electrical current in a circuit. They follow Ohm's Law, meaning the current passing through them is directly proportional to the voltage applied. Resistors dissipate energy as heat and are crucial in ensuring that circuits operate within their specified voltage and current limits.

Example: A 1kΩ resistor, used in current-limiting applications or voltage dividers.Capacitors: Capacitors store electrical energy in an electric field between two conductors. They can smooth out voltage fluctuations, filter signals, or store energy for later use. Capacitors are often used in power supplies and signal processing circuits.

Example: A 100μF electrolytic capacitor used in power supply filtering or decoupling applications.Inductors: Inductors store energy in the form of a magnetic field when current flows through them. They are typically used in filtering, energy storage, and inductive load applications, such as transformers and chokes.

Example: A 10μH inductor, used in radio frequency (RF) circuits or switching power supplies.Transformers: Transformers are used to increase or decrease AC voltage levels. They consist of coils of wire wound around a magnetic core and rely on electromagnetic induction to transfer energy between the coils.

Example: A step-down transformer used in power adapters to convert high-voltage AC to low-voltage AC or DC.Piezoelectric Elements: Piezoelectric components convert mechanical stress into an electrical charge. They are used in a variety of applications, such as in sensors, actuators, and ultrasonic devices.

Example: Piezoelectric buzzers used in alarms or piezoelectric sensors in industrial systems.

Active vs. Passive Components

While both active and passive components play vital roles in the design and operation of modern electronic circuits, their functions are distinct but complementary. Active components are responsible for amplifying and controlling electrical signals, which is essential for enabling advanced functions in electronic devices. Meanwhile, passive components provide essential services like regulating energy flow, filtering signals, and maintaining system stability. Understanding the differences between these two types of components is fundamental for designing efficient, reliable, and high-performance electronic systems.

2. Functional Roles in Electronic Circuits

How Active Components Work

Active components are the "powerhouses" of an electronic circuit. Their primary role is to manipulate or control the flow of electrical energy, and they require an external power source to function. These components can perform various tasks, including signal amplification, switching, and regulation.

Signal Amplification

One of the most common roles of active components is to amplify signals. For instance, in audio amplifiers, active components like transistors and operational amplifiers (op-amps) increase the strength of weak audio signals so they can drive speakers or other output devices. The active component takes a small input signal and, using power from an external source, amplifies it to a level suitable for the output.

Signal Switching

Active components are also used to switch signals on and off. This function is essential in logic circuits, such as those found in microprocessors, memory chips, and digital devices. For example, transistors serve as the building blocks for digital logic gates (AND, OR, NOT, etc.), allowing computers to perform complex calculations and make decisions based on input signals. These components switch signals in response to a voltage or current applied to their control terminals, enabling circuits to either allow or block the passage of signals.

Regulation of Electrical Flow

Active components like diodes and transistors are key in controlling the flow of electricity within circuits. For instance, in power supply circuits, voltage regulators are used to ensure that a constant output voltage is maintained despite variations in input power or load conditions. These components are crucial in preventing damage to other parts of the circuit by stabilizing voltage levels.

In power amplifiers, active components ensure that the flow of power is regulated, meaning that signals can be amplified without distortion or loss of quality.

How Passive Components Work

While active components are responsible for manipulating and controlling signals, passive components do not alter the electrical flow in an active way. Instead, their role is often to shape, condition, and stabilize the electrical environment in which active components operate. Passive components do not require an external power source to function, and they rely solely on the electrical signals passing through them.

FilteringPassive components like capacitors and inductors are used for filtering signals in various applications. For instance, in a power supply circuit, capacitors are commonly employed to smooth out fluctuations in voltage (filtering out noise and ripple) after the signal has been rectified. Inductors are used in filters to block high-frequency noise and allow low-frequency signals to pass, as they oppose changes in current.

In audio circuits, capacitors are often used to filter out unwanted frequencies, ensuring that only the desired signal passes through to the next stage of amplification or processing. This is especially important for preventing distortion or interference in high-fidelity sound systems.

Energy Storage

Capacitors and inductors are also key components in energy storage. A capacitor can store energy in the form of an electric field, which can be released when needed to smooth the power supply or provide short bursts of energy. Similarly, inductors store energy in a magnetic field and release it gradually, making them useful for applications like inductive heating or energy transfer in switching power supplies.

Inductors are also used in transformers to step up or step down voltages, while capacitors are used in various timing circuits, such as those in oscillators or clock circuits.

Limiting Current and Protecting Circuits

Resistors are passive components that control the flow of current by offering resistance. In many circuits, they are used to limit the current to a safe level, protecting sensitive active components (like transistors or microchips) from overcurrent that could cause damage. For example, resistors are often placed in series with LEDs to limit the current flowing through them, ensuring that they don’t burn out.

Similarly, fuses and thermistors (temperature-sensitive resistors) act as protective components in circuits, ensuring that current flow is cut off if it exceeds a certain threshold, thereby preventing potential damage to the entire system.

Maintaining Stable Signal Behavior

In addition to filtering and limiting, passive components like resistors and capacitors work together to stabilize the behavior of a circuit. For instance, resistors can be used in conjunction with capacitors in RC circuits to control timing or frequency characteristics, enabling stable signal processing.

Passive components also play a crucial role in managing the impedance of a circuit, which is especially important in high-frequency applications like radio frequency (RF) circuits. Inductors and capacitors are key in tuning circuits to a desired frequency, ensuring efficient signal transmission.

Tuning and Frequency Control

For applications that require precise control of frequency, such as oscillators, filters, or tuning circuits, passive components like resistors, capacitors, and inductors are essential. These components determine the resonance frequency of the circuit, which is critical for tuning radios, televisions, and other communication devices. By adjusting the values of these components, engineers can control the frequency response of the circuit, ensuring that it performs optimally for specific applications.

In summary, active components (like transistors, diodes, and integrated circuits) perform dynamic tasks such as amplification, signal switching, and regulation, requiring an external power source to function. On the other hand, passive components (such as resistors, capacitors, and inductors) manage and stabilize the electrical signals, ensuring that the active components function properly. Together, active and passive components complement each other and form the backbone of modern electronic circuits, working synergistically to provide reliable and efficient performance across a wide range of applications.

3. Power Requirements

Active Components' Power Needs

Active components are integral to the functioning of electronic circuits, and one of their defining characteristics is that they require an external power source to operate. Unlike passive components, which merely react to the electrical signals passing through them, active components manipulate these signals and often require power to perform their functions.

Powering Active Components Active components, such as transistors, diodes, and integrated circuits (ICs), rely on a power supply to perform their tasks. This external power allows active components to process, amplify, switch, or regulate signals. The power needed for these operations is typically provided through DC (direct current) or AC (alternating current), depending on the application.

Transistors, which are a cornerstone of active electronics, require a small DC bias current to switch signals on or off. This allows them to function as amplifiers or switches in digital circuits.

Operational Amplifiers (Op-Amps) also need a continuous external power supply to amplify voltage signals. These components often run on a dual power supply (e.g., +15V and -15V), which ensures that the op-amp can output both positive and negative voltage swings, enabling amplification of AC signals such as audio, video, or sensor data.

Integrated Circuits (ICs) can include a wide variety of active components embedded within them, and these ICs require a steady supply of power to function. For example, microcontrollers and microprocessors require specific voltages to run, typically ranging from 1.8V to 3.3V for modern chips, but they can require higher power levels for high-performance tasks, such as running computations or controlling motors in robotics.

Voltage and Current Requirements The power requirements of active components vary widely depending on the specific function and the circuit's complexity. High-power active components, such as power transistors in power amplifiers or voltage regulators, require substantial voltage and current to regulate and supply power to other parts of a circuit. For example, power supply ICs are designed to handle larger power inputs and distribute power efficiently across the circuit, ensuring that components receive the correct voltage without causing overheating or power loss.

In contrast, low-power active components such as digital ICs, microcontrollers, and sensors may only require milliamps of current and a lower voltage to operate. However, as circuits become more advanced and demand for power efficiency increases, the power requirements for these components must be carefully managed to prevent energy wastage.

Power Dissipation Another aspect of power requirements for active components is power dissipation. When active components like transistors or ICs process electrical signals, some of the power is inevitably converted into heat. Managing heat dissipation is crucial to prevent overheating, which can lead to component failure or reduced efficiency. For this reason, active components are often equipped with heat sinks, fans, or thermal pads to help dissipate excess heat.

For instance, power transistors in power supplies or motor drivers are likely to generate more heat, while digital ICs in microprocessors generate less heat due to their lower power consumption but can still require thermal management for higher performance scenarios.

Passive Components' Lack of Power Requirement

Unlike active components, passive components do not require an external power supply to function. They are reactive components, meaning they respond to the electrical signals passing through them but do not contribute to the generation, amplification, or switching of these signals.

Energy Storage and Reactance Passive components, such as resistors, capacitors, and inductors, rely on the flow of electrical signals to perform their functions but do not require external power sources. These components are designed to either dissipate, store, or react to the electrical energy present in the circuit.

Resistors dissipate electrical energy in the form of heat, which is a result of the current passing through them. The energy dissipation does not require a dedicated power supply; it is a natural consequence of the resistor's interaction with the current in the circuit.

Capacitors store electrical energy in an electric field when voltage is applied across their terminals. Once charged, they can release energy when required, such as in filtering applications. Capacitors do not need an external power source; they simply react to the applied voltage and store or release energy based on the circuit's needs.

Inductors store energy in a magnetic field when current passes through them. Similar to capacitors, inductors do not need a continuous power supply; instead, they react to changes in current and store energy temporarily.Powerless Functionality While passive components like capacitors and inductors store or release energy, they are not the source of the energy themselves. Instead, they passively influence the behavior of the circuit. For example, capacitors can smooth voltage fluctuations in a power supply without requiring an external power source to function. Inductors can filter high-frequency signals in a power circuit or radio-frequency application without an external supply of energy.

Additionally, passive components such as resistors do not store or release energy but instead restrict the flow of current or limit voltage across other components. This functionality does not require any external power but simply ensures that the circuit operates within safe, predefined limits.

Energy Conservation In many electronic circuits, passive components are designed to conserve energy rather than generate or amplify it. For example, in energy-saving applications, passive components can help control current, ensuring that only the necessary amount of energy flows through a circuit, thereby improving efficiency.

In high-frequency applications, passive components like filters, resonators, and matching networks serve to minimize signal loss and ensure the efficient transmission of power or data. These components help to optimize the performance of active components by conditioning the electrical environment in which they operate.

In conclusion, the primary difference between active and passive components lies in their power requirements. Active components need an external power source to perform their functions, whether it’s signal amplification, regulation, or switching, and often involve power dissipation. On the other hand, passive components do not require an external power source. Instead, they react to electrical signals and influence circuit behavior through energy storage, dissipation, or reactance.

Understanding the role of both active and passive components and their power requirements is essential for designing efficient and functional electronic circuits, especially in the context of modern, miniaturized systems that demand high-performance capabilities with minimal energy consumption.

4. Applications in Electronic Devices

Active Components in Devices

Active components are essential for driving the functionality of modern electronic devices, enabling them to process, amplify, and manage signals. Here are some key applications:

Computing:

CPUs (Central Processing Units) and GPUs (Graphics Processing Units) are core active components in computers and mobile devices. They are responsible for executing instructions and processing data, which are fundamental to computing tasks such as running applications and rendering graphics.Microcontrollers are used in embedded systems for controlling devices and machines, from home appliances to automotive systems. These devices rely on active components to manage inputs, outputs, and communication.

Communication Systems:

Active components, such as modems and RF amplifiers, are crucial in both wired and wireless communication systems. Modems convert digital data into analog signals and vice versa for internet connectivity, while RF amplifiers boost radio frequency signals for wireless communication, including Wi-Fi, cellular networks.

Power Management:

Power regulators and switching power supplies are active components used to control the distribution and regulation of power within electronic devices. They ensure that the correct voltage and current are supplied to various parts of a device, such as in laptops, smartphones, and power stations.

Consumer Electronics:

In smartphones, TVs, and audio equipment, active components like transistors, diodes, and integrated circuits are used for signal processing, amplification, and controlling various functions, from adjusting volume to processing digital signals.

Passive Components in Devices

While active components are responsible for driving circuits, passive components play a critical role in supporting and enhancing the functionality of devices. Here's how passive components contribute:

Filtering:

Capacitors are used in power supplies and communication systems to filter noise and smooth out voltage fluctuations, ensuring stable operation of active components. For example, in power supply circuits, capacitors help filter out unwanted high-frequency noise to provide clean, stable DC power to sensitive electronics.

Signal Conditioning:

Resistors in voltage dividers or biasing circuits are used to adjust the amplitude of signals, set reference voltages, or limit current in active components. This helps ensure proper operation and prevents damage from excessive current or voltage levels.

Energy Storage:

Inductors are used for storing energy in a magnetic field. In power supply circuits, they smooth out current fluctuations and help regulate energy flow. They are also used in applications like transformers in power distribution systems.

Impedance Matching:

Capacitors and inductors are used in signal pathways to match impedance and ensure optimal signal transmission. For instance, they are crucial in high-speed data transmission systems like USB ports and HDMI connections to maintain signal integrity and prevent reflections that could degrade performance.

In summary, active and passive components each have critical roles in modern electronic devices, with active components providing power, amplification, and control, and passive components ensuring stability, efficiency, and signal quality. Their combined functionality drives the performance of everything from consumer gadgets to industrial systems.

5. Performance and Efficiency

Impact of Active Components

Active components are at the heart of a device’s performance capabilities. Their primary role is to process, amplify, and switch signals, which directly impacts factors like speed, processing power, and signal integrity. For example:Processing Power: Active components such as microprocessors and digital signal processors (DSPs) are responsible for executing tasks and running applications. The performance of these components, often measured in clock speed (GHz), determines how quickly a device can process data.

Speed and Signal Integrity: Transistors, the fundamental building blocks of active components, control the flow of electrical signals through a circuit. The faster these transistors can switch, the faster the overall circuit can operate. Operational amplifiers (op-amps) and voltage regulators contribute to maintaining signal integrity, ensuring that the signals are accurately transmitted without degradation over distance or time.

Versatility: Active components enable diverse applications, from high-speed computing (e.g., CPUs, GPUs) to communications (e.g., RF amplifiers, modems). Their ability to adjust, amplify, and modulate signals gives electronics their adaptability and broad functionality.

Role of Passive Components in Efficiency

While active components provide the processing power and functionality, passive components are essential in ensuring the overall efficiency of a system. Their roles include:Power Management: Passive components like capacitors and inductors help stabilize power supply systems. For instance, capacitors filter out noise and smooth voltage fluctuations, which ensures that active components, such as microprocessors and transistors, receive a clean and stable power supply.

Signal Quality: Resistors and capacitors can shape signals and reduce unwanted interference. For example, capacitors are used in low-pass filters to remove high-frequency noise from signals, improving the overall quality and accuracy of signal transmission in sensitive applications.

Energy Conservation: By limiting energy loss and helping to balance current and voltage, passive components ensure that the overall circuit operates more efficiently. For example, in power supplies, inductors and capacitors work together to prevent energy loss while regulating voltage to the required levels.

In summary, active components drive performance, but passive components ensure that the system operates efficiently, reliably, and with minimal power loss.

6. Design Considerations

Choosing Active Components

Selecting the right active components is a crucial step in electronic design, as these components directly affect the functionality and performance of the circuit. Engineers consider several key factors:Voltage and Current Ratings: The voltage and current requirements of the circuit will dictate the type of active component used. For example, power transistors and voltage regulators must be chosen based on the voltage range they will need to handle.

Frequency Response: Active components like operational amplifiers and oscillators must be selected based on their frequency response. For high-frequency applications, such as RF communication or signal processing, the bandwidth and slew rate of the component are critical parameters.

Switching Speed: Components like MOSFETs or transistors in digital circuits must switch at the required speed to handle high-speed data transmission or fast processing. For example, high-speed logic gates are used in modern computing systems to process information at GHz speeds.

Power Consumption: Active components such as microcontrollers or integrated circuits (ICs) are chosen based on their power consumption to ensure efficient operation, especially in battery-powered devices.

Choosing Passive Components

When selecting passive components, engineers need to consider parameters such as:Resistance, Capacitance, and Inductance: The choice of resistors, capacitors, and inductors depends on the specific circuit requirements, such as setting the desired voltage, current, or time constant. For example, resistors in voltage dividers must be carefully selected based on the required output voltage.

Tolerance and Stability: Passive components need to meet certain tolerance levels to ensure consistent performance over time. For example, capacitors used in timing circuits must have a low tolerance to ensure accurate timing intervals.

Heat Resistance: Both active and passive components can generate heat during operation. Engineers must choose components that can handle the thermal load in high-power circuits, ensuring they won't degrade or fail due to overheating.

Size and Form Factor: With the trend toward miniaturization, passive components are selected based on their size to fit in compact, high-density designs. For example, surface-mount resistors and capacitors are used in modern smartphones and wearable devices.

Challenges in Design

Choosing the right mix of active and passive components presents several challenges:Component Compatibility: Engineers must ensure that active and passive components are compatible with each other in terms of voltage, current, and power requirements. An improperly matched component could lead to inefficiencies, malfunction, or failure.

Reliability: Ensuring that both types of components will perform consistently over the expected lifetime of the device is crucial. Design engineers must account for variations in environmental conditions (e.g., temperature, humidity) that could affect performance.

Complexity of Design: Balancing the needs of performance, power consumption, size, and cost can make circuit design complex. Engineers need to carefully select components to meet these requirements while minimizing trade-offs.

7. Size and Miniaturization Trends

Miniaturization of Active Components

The push toward smaller, more powerful devices has driven innovations in the miniaturization of active components:Microprocessors: Over the years, microprocessors have become increasingly compact, with semiconductor manufacturers pushing the boundaries of Moore’s Law. Modern processors can deliver higher performance while occupying smaller physical spaces, thanks to advancements in 3D chip stacking and FinFET technology.

Integrated Circuits (ICs): Advances in IC design have led to the development of highly integrated components that combine multiple functions (e.g., microcontrollers, sensors, and power regulators) onto a single chip. This has dramatically reduced the size of electronics while improving their performance and reducing power consumption.

Miniaturization of Passive Components

As electronic devices continue to shrink, passive components are also evolving to meet the demands for smaller, lighter, and more efficient products:Surface-Mount Devices (SMD): Resistors, capacitors, and inductors have transitioned to smaller, surface-mount designs to fit into compact, high-density layouts. This trend is particularly evident in smartphones, wearables, and medical devices, where size is crucial.

Flexible Electronics: Passive components are also being integrated into flexible substrates for wearable technology and flexible displays. Innovations in materials, such as conductive inks and organic semiconductors, allow passive components to be made thinner and more adaptable to new form factors.

In conclusion, both active and passive components are continuously evolving in size and efficiency to meet the demands of modern electronics. Their miniaturization is key to creating the next generation of small, high-performance, and energy-efficient devices, enabling new applications across a variety of industries.

8. Conclusion: The Interdependence of Active and Passive Components

In conclusion, active and passive components are both indispensable for the operation of modern electronic systems. Active components, such as transistors and diodes, provide the necessary energy to amplify, switch, and process signals, enabling the core functionality of electronic devices. On the other hand, passive components like resistors, capacitors, and inductors play a crucial role in shaping, filtering, and conditioning these signals, ensuring stable operation and optimal performance.

These components work in tandem, each complementing the other to achieve desired outcomes. Active components can’t function effectively without passive components to regulate power, filter noise, and stabilize signals. Likewise, passive components would be ineffective without active components to drive the signals and provide the power needed to make them useful in practical applications.

In the design of integrated circuits (ICs), power management systems, communication devices, and a wide range of other electronics, understanding the complementary nature of active and passive components is essential. Effective integration of both types ensures reliable, efficient, and high-performing systems. Engineers and designers must leverage the strengths of both components to create electronic systems that are compact, powerful, and energy-efficient.

FAQ Section

1. What is the main difference between active and passive components?Active components require an external power source to operate and are capable of amplifying or controlling electrical signals (e.g., transistors, diodes, op-amps). Passive components, on the other hand, do not require any external power source and cannot amplify signals. They simply store or dissipate energy in the form of heat, manage current, or filter signals (e.g., resistors, capacitors, inductors).

2. Can passive components amplify signals like active components?No, passive components cannot amplify signals. They can only either dissipate or store energy, modify signal characteristics (e.g., frequency, phase), or manage current flow. Only active components, such as transistors and operational amplifiers, have the capability to amplify or switch signals.

3. Which type of component is more energy-efficient, active or passive?Passive components are typically more energy-efficient since they do not require an external power supply to operate. They simply react to the energy present in the circuit and help to manage, filter, or store it. Active components, while necessary for signal processing, can consume more energy to operate, especially in high-power applications like amplification and switching.

4. How do passive components help in reducing power consumption in circuits?Passive components contribute to power efficiency by stabilizing voltage levels, filtering out noise, and controlling current flow. For example, capacitors help smooth voltage variations, inductors are used in power supplies to store and release energy efficiently, and resistors limit current to prevent excessive energy consumption. Together, they help prevent energy waste and ensure the efficient operation of the active components.

5. What are some examples of circuits that rely heavily on active components?Amplifiers: In audio amplifiers, transistors amplify weak audio signals to drive speakers.Oscillators: Active components, such as op-amps, generate periodic signals used in clocks and radio transmitters.Switching Power Supplies: Active components like MOSFETs or diodes are essential for converting and regulating power efficiently.Microprocessors and Microcontrollers: These devices are the backbone of computing systems, handling data processing, computation, and logic operations.
