Top Benefits of Gallium Nitride FETs in High-Power and High-Frequency Applications
Gallium Nitride (GaN) Field-Effect Transistors (FETs) are revolutionizing the world of electronics, particularly in high-power and high-frequency applications. With superior efficiency, faster switching speeds, and better thermal performance than traditional silicon-based transistors, Gallium Nitride Field-effect Transistors are becoming the go-to solution for modern power systems. In this article, we'll explore the top benefits of Gallium Nitride Field-effect Transistors, delve into their applications, and explain why engineers should consider working with trusted distributors like unikeyic Electronics, which offers leading GaN FET brands such as Transphorm, Infineon Technologies, NXP Semiconductors, and STMicroelectronics.
Introduction: What Are Gallium Nitride FETs?
Gallium Nitride (GaN) is a wide-bandgap semiconductor material that provides significant advantages over traditional materials like silicon (Si) and silicon carbide (SiC). Gallium Nitride Field-effect Transistors are designed to operate at higher power levels, frequencies, and temperatures than their silicon counterparts, making them ideal for applications that demand high efficiency and low thermal dissipation. Their unique properties enable systems to achieve faster switching speeds and higher voltage handling, leading to more compact, efficient, and reliable electronic designs.
Advantages of Gallium Nitride in High-Power Applications
High Efficiency and Power Density
One of the most significant advantages of Gallium Nitride Field-effect Transistors is their high efficiency and power density. Compared to silicon-based transistors, Gallium Nitride Field-effect Transistors can handle greater power levels while maintaining a smaller physical size. This makes them ideal for power electronics applications such as inverters, DC-DC converters, and power supplies.Gallium Nitride Field-effect Transistors' superior efficiency helps reduce energy loss in power conversion, making them essential for industries like electric vehicles (EVs), renewable energy systems, and industrial power supplies. Their ability to maintain high efficiency even under heavy loads means that systems using Gallium Nitride Field-effect Transistors will generate less heat, resulting in improved system longevity and reliability.
High Voltage Handling
Another key benefit of Gallium Nitride Field-effect Transistors is their ability to handle higher voltages compared to traditional silicon transistors. They have higher breakdown voltages, making them suitable for applications that require the management of high-power levels and high-voltage systems.For example, in electric vehicles, Gallium Nitride Field-effect Transistors are used in on-board chargers and power inverters, where they can efficiently manage high power without the heat generation that typically occurs with silicon-based components.
Reduced Power Loss
Gallium Nitride Field-effect Transistors have a lower on-resistance compared to silicon transistors, which results in lower conduction losses. Additionally, their faster switching speeds reduce switching losses, making them far more efficient. In high-power applications like motor control, solar inverters, and data center power supplies, this increased efficiency translates into lower energy consumption and reduced cooling requirements, which can help save operational costs.
High-Frequency Performance of Gallium Nitride FETs
Fast Switching Speeds
Gallium Nitride Field-effect Transistors excel in high-frequency environments, thanks to their fast switching speeds. Traditional silicon-based transistors struggle with high-speed switching due to their limited frequency response. However, Gallium Nitride Field-effect Transistors can switch much faster, making them ideal for applications like RF amplifiers, telecommunication systems, and radar systems.Their ability to handle frequencies in the GHz range enables Gallium Nitride Field-effect Transistors to be used in next-generation 5G communications and wireless communication equipment. This is because they can operate at higher frequencies with minimal power loss, ensuring better signal quality and reliability.
Low Parasitic Capacitance and Inductance
Gallium Nitride Field-Effect Transistors (GaN FETs) exhibit low parasitic capacitance and inductance, minimizing energy losses during switching transitions. This characteristic is particularly important in high-frequency applications, where parasitic elements can significantly impact performance. In systems like microwave devices or advanced communication equipment, GaN's efficient high-frequency operation provides a notable advantage over traditional materials like silicon.
Thermal Management and Reliability
Superior Thermal Conductivity
Gallium Nitride Field-effect Transistors exhibit superior thermal conductivity compared to silicon-based semiconductors. This allows them to operate at higher temperatures without compromising performance, making them well-suited for high-power applications where heat dissipation is critical.Due to their efficient power conversion and fast switching capabilities, Gallium Nitride Field-effect Transistors generate less heat compared to traditional devices. This reduces the need for extensive cooling solutions, such as heat sinks and active cooling systems, which can save space and lower overall system costs.
Reduced Cooling Requirements
Because of their thermal efficiency, Gallium Nitride Field-effect Transistors can operate in high-power systems without the need for heavy thermal management solutions. This is particularly important for industries such as automotive and industrial automation, where systems are exposed to continuous, high-power demands and need reliable, efficient heat management.
Applications of Gallium Nitride FETs
Electric Vehicles (EVs)
Gallium Nitride Field-effect Transistors are transforming the electric vehicle (EV) market. They are used in on-board chargers, inverters, and DC-DC converters to improve power conversion efficiency and reduce the overall size and weight of the power electronics in EVs. The reduced energy loss and improved efficiency lead to faster charging times and increased driving range for EVs.
Power Supplies and Industrial Electronics
Gallium Nitride Field-effect Transistors are also a key technology in power supplies and industrial electronics. Their high efficiency and power handling capabilities make them perfect for use in uninterruptible power supplies (UPS), industrial motor drives, and automation systems. GaN technology helps these devices handle large power loads efficiently, providing more reliable and cost-effective solutions for industrial applications.
Telecommunications
In the telecommunications sector, Gallium Nitride Field-effect Transistors are used in 5G infrastructure, radio frequency (RF) systems, and microwave amplifiers. Their ability to operate at high frequencies and with minimal losses makes them ideal for next-generation 5G networks, ensuring high-speed communication with reduced interference.
Renewable Energy
Gallium Nitride Field-effect Transistors are becoming increasingly important in renewable energy systems, such as solar inverters and wind turbines. The efficiency and thermal management properties of Gallium Nitride Field-effect Transistors ensure that energy conversion is maximized, leading to more efficient use of renewable energy.
Challenges and Considerations When Using Gallium Nitride Field-effect Transistors
Cost Considerations
While Gallium Nitride Field-effect Transistors offer superior performance, their initial cost can be higher than traditional silicon-based devices. However, when considering the long-term benefits—such as reduced cooling costs, higher efficiency, and greater durability—the total cost of ownership can be lower.
Gate Drive Requirements
Gallium Nitride Field-effect Transistors typically require specialized gate drivers to manage their fast switching speeds and high voltage requirements. Ensuring the proper gate drive circuitry is used is essential to optimize the performance of GaN-based power systems.
Packaging and Integration
Gallium Nitride Field-effect Transistors require careful packaging to handle the high voltages and power levels they are designed for. Proper integration into existing systems is necessary to ensure they deliver optimal performance and reliability.
Why Choose Unikeyic Electronics as Your GaN FET Supplier
As Gallium Nitride (GaN) Field-Effect Transistors (FETs) become increasingly popular in high-power and high-frequency applications, it’s essential to source your components from a trusted distributor. Unikeyic Electronics offers a wide selection of high-quality Gallium Nitride Field-effect Transistors from some of the most reputable brands in the industry, including Transphorm, Infineon Technologies, NXP Semiconductors, and STMicroelectronics. Here’s a brief introduction to each of these leading brands:
Transphorm
Transphorm is a pioneer in the development of GaN power devices. Their Gallium Nitride Field-effect Transistors are designed to deliver superior performance in high-efficiency, high-frequency, and high-voltage applications. Transphorm’s Gallium Nitride Field-effect Transistors offer lower conduction losses, faster switching speeds, and enhanced thermal performance, making them ideal for power supplies, electric vehicles (EVs), renewable energy systems, and industrial applications. With a strong focus on energy efficiency and reliability, Transphorm continues to be a leader in GaN technology.
Figure 1: Transphorm
Infineon Technologies
Infineon Technologies is a global leader in semiconductor solutions with a strong focus on energy efficiency and sustainable innovations. Their Gallium Nitride Field-effect Transistors are engineered for high-power applications, offering exceptional switching characteristics and high breakdown voltage, making them well-suited for electric vehicle chargers, motor drives, and power electronics. Infineon’s extensive experience in semiconductor development ensures that their GaN products are reliable, efficient, and ready for the most demanding applications.
Figure 2: Infineon Technologies
NXP Semiconductors
NXP Semiconductors is known for delivering high-performance semiconductor solutions across a range of industries, from automotive to industrial and communication sectors. Their Gallium Nitride Field-effect Transistors enable faster switching, higher efficiency, and improved thermal management. These features make NXP's GaN transistors ideal for high-power wireless communication systems, automotive electronics, and power management. With a strong focus on security and connectivity, NXP continues to drive advancements in GaN technology to meet the growing demands of modern electronic systems.

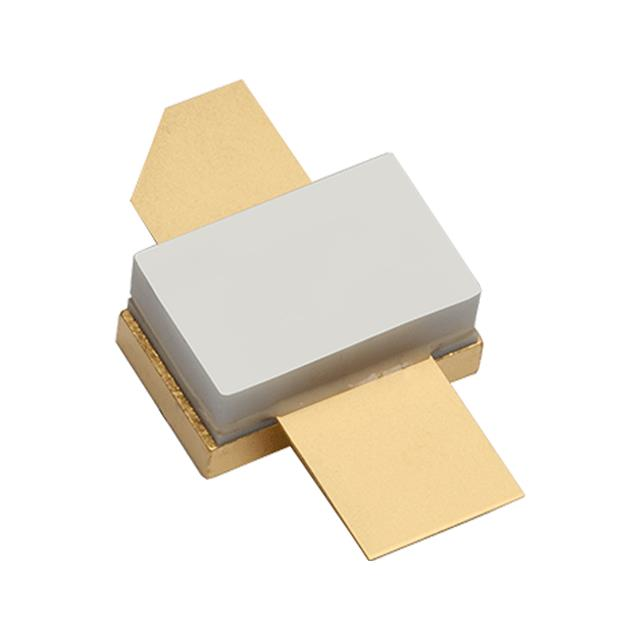

Figure 3: NXP Semiconductors
STMicroelectronics
STMicroelectronics is a well-established name in the electronics industry, renowned for its innovation and leadership in power management and automation solutions. ST’s Gallium Nitride Field-effect Transistors deliver superior performance in high-power applications such as industrial drives, solar inverters, and electric vehicle charging systems. Their GaN devices offer higher switching frequency, low Rds(on), and excellent thermal performance, making them a reliable choice for applications that require robust and energy-efficient solutions.

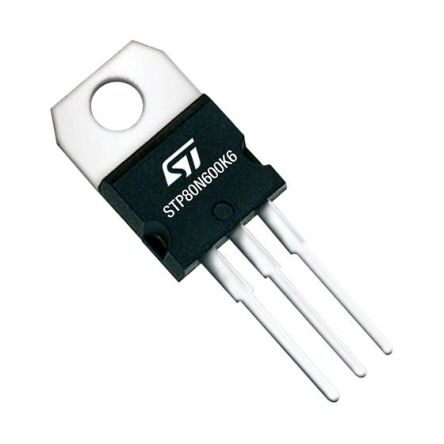

Figure 4: STMicroelectronics
Unikeyic Electronics: Your Trusted GaN FET Distributor
At Unikeyic Electronics, we provide access to the latest and most reliable Gallium Nitride Field-effect Transistors from Transphorm, Infineon Technologies, NXP Semiconductors, and STMicroelectronics. Our extensive product catalog, combined with our expert technical support, ensures that you can find the best GaN solutions for your high-power and high-frequency applications. Whether you are designing electric vehicles, developing 5G infrastructure, or working on power electronics, Unikeyic Electronics is your go-to distributor for Gallium Nitride Field-effect Transistors, delivering top-tier products with the performance and reliability you can trust.
Conclusion: The Future of Gallium Nitride FETs
Gallium Nitride FETs represent the future of high-power and high-frequency electronics. Their superior performance in terms of efficiency, thermal management, and high-frequency capabilities makes them an essential technology for modern power systems. As demand for energy-efficient and compact solutions grows in industries like automotive, telecommunications, and renewable energy, the role of Gallium Nitride Field-effect Transistors will continue to expand.
For engineers looking to integrate Gallium Nitride Field-effect Transistors into their designs, Unikeyic Electronics offers a range of trusted GaN FET products from leading manufacturers. Choosing the right supplier ensures that you have access to high-performance components backed by expert technical support, so you can create the most efficient and reliable systems possible.
FAQ: Gallium Nitride Field-Effect Transistors (GaN FETs)
Q1: What are the main advantages of using Gallium Nitride (GaN) over Silicon in power electronics?A1: Gallium Nitride offers significant advantages over traditional silicon semiconductors, particularly in high-power and high-frequency applications. GaN transistors can operate at higher voltages, temperatures, and frequencies, providing higher efficiency and smaller form factors compared to silicon-based devices. This makes them ideal for applications that require smaller, more efficient designs with minimal heat generation, such as power conversion systems and high-frequency amplifiers.
Q2: How does the gate drive circuitry for Gallium Nitride Field-effect Transistors differ from traditional MOSFETs?A2: Gallium Nitride Field-effect Transistors typically require higher gate drive voltage than traditional MOSFETs to fully turn on. This means that the gate driver must be capable of providing higher voltage levels and faster switching times to fully leverage the performance benefits of GaN. Additionally, Gallium Nitride Field-effect Transistors may require more sophisticated gate control to handle the faster switching speeds and ensure efficient operation at high frequencies.
Q3: Are Gallium Nitride Field-effect Transistors more reliable than traditional transistors?A3: Yes, Gallium Nitride Field-effect Transistors generally offer higher reliability than traditional silicon transistors, particularly in high-temperature and high-power conditions. Their robustness and ability to handle extreme environments make them suitable for demanding applications like electric vehicles, renewable energy, and industrial power systems. Additionally, the durability of Gallium Nitride Field-effect Transistors reduces the likelihood of failure over time, contributing to longer operational lifespans.
Q4: What are the challenges of integrating Gallium Nitride Field-effect Transistors into existing power designs?A4: One of the main challenges is ensuring that the power supply design and circuit board layout can support the high switching speeds and thermal management requirements of Gallium Nitride Field-effect Transistors. This often requires modifications to the overall design, including optimized heat dissipation solutions, faster gate drive circuits, and shielding to prevent electromagnetic interference (EMI). While integrating Gallium Nitride Field-effect Transistors can bring significant performance improvements, careful attention to these factors is essential.
Q5: Can Gallium Nitride Field-effect Transistors be used in low-power applications?A5: Gallium Nitride Field-effect Transistors are typically favored for high-power and high-frequency applications due to their efficiency at handling large amounts of power. However, they can also be used in low-power applications where high efficiency, fast switching, and compact form factors are required. For example, wireless chargers, smart grids, and LED drivers may benefit from GaN technology, but they are more commonly found in higher power or high-frequency systems.
Q6: How do Gallium Nitride Field-effect Transistors compare in terms of cost?A6: While Gallium Nitride Field-effect Transistors are typically more expensive than traditional silicon MOSFETs due to the advanced manufacturing processes involved, the long-term cost benefits can outweigh the initial investment. Gallium Nitride Field-effect Transistors offer higher efficiency, smaller sizes, and reduced cooling requirements, leading to overall cost savings in terms of energy consumption and system complexity. As the technology matures, prices are expected to continue decreasing, making Gallium Nitride Field-effect Transistors more accessible for a wider range of applications.
Q7: Are there any safety concerns when using Gallium Nitride Field-effect Transistors?A7: Gallium Nitride Field-effect Transistors are generally safe to use, but like any semiconductor device, they must be handled properly to avoid damage. It’s important to ensure that gate voltages and thermal conditions remain within the specified operating limits to prevent failure. Overvoltage, overcurrent, and thermal stress can cause degradation or failure of the device. Following manufacturer guidelines and using adequate heat sinks or cooling solutions can mitigate these risks.
Q8: Are Gallium Nitride Field-effect Transistors compatible with existing power converter topologies?A8: Yes, Gallium Nitride Field-effect Transistors are compatible with most existing power converter topologies, such as buck converters, boost converters, and inverters. However, to fully exploit the high-speed switching capabilities of GaN, some adjustments to the switching frequency and filtering may be necessary. Engineers may need to redesign certain aspects of the converter to optimize performance, but Gallium Nitride Field-effect Transistors can seamlessly integrate into both new designs and existing systems with careful planning.
Q9: How do Gallium Nitride Field-effect Transistors perform in terms of efficiency?A9: Gallium Nitride Field-effect Transistors are known for their superior efficiency, especially in high-power and high-frequency applications. They exhibit lower conduction losses and faster switching speeds, which means they generate less heat and deliver more power with minimal losses. This makes them an excellent choice for systems where power efficiency is critical, such as in electric vehicle charging stations, power supplies, and data centers.
Q10: How do I select the right GaN FET for my application?A10: When selecting a GaN FET, it’s important to consider several factors, including voltage rating, current rating, switching speed, and thermal management requirements. You should also review the gate drive specifications and ensure that the component is compatible with your circuit's design. For high-power applications, consider devices that can handle larger currents and provide better thermal dissipation. Unikeyic Electronics offers a wide range of Gallium Nitride Field-effect Transistors from leading brands like Transphorm, Infineon Technologies, NXP Semiconductors, and STMicroelectronics, and their technical support team can help guide you to the best solution for your needs.With the above FAQ, we hope to address some of the common questions about Gallium Nitride FETs, helping you make more informed decisions when integrating them into your power applications. If you have more specific queries or need personalized recommendations, Unikeyic Electronics is here to assist with expert advice and the best GaN FET options for your project.
