Understanding Light Dependent Resistors (LDRs): A Comprehensive Guide

In the world of electronics, Light Dependent Resistors (LDRs), also known as photoresistors, play an essential role in detecting and responding to changes in light intensity. These versatile and cost-effective components are widely used across various applications, from consumer electronics to industrial systems. In this article, we’ll delve into what makes LDRs indispensable, their construction, applications, and why sourcing them from trusted distributors like unikeyic Electronics ensures the best performance for your projects.

1. Introduction to Light Dependent Resistors

A Light Dependent Resistor (LDR), also known as a photoresistor or photoconductive cell, is a passive electronic component that responds to changes in light intensity by altering its electrical resistance. LDRs are widely used in applications that require automatic light sensing and control.The primary characteristic of an LDR is its ability to decrease resistance as light intensity increases, and vice versa. This makes them ideal for circuits where responsiveness to ambient light is crucial. Their simplicity, affordability, and adaptability have made them a staple in both consumer and industrial electronics.

2. How LDRs Work

The operation of Light Dependent Resistors (LDRs) is rooted in the principle of photoconductivity, a process where the electrical conductivity of a material changes in response to light exposure. This phenomenon is key to how LDRs function as light-sensitive components in various electronic circuits.

Photoconductivity and the Role of Light

Photoconductivity is the core principle behind the operation of an LDR. When light, specifically photons, strikes the photoconductive material in the LDR, it excites the electrons within the material. This process energizes the electrons, allowing them to move more freely through the material, which in turn reduces the material's electrical resistance.

For an LDR, the photoconductive material typically used is cadmium sulfide (CdS). CdS is a semiconductor material that is highly sensitive to visible light, which makes it well-suited for light-detection applications. When illuminated, CdS responds by altering its conductivity—lowering its resistance in the presence of light and increasing it in darkness.

Resistance-Light Relationship

The relationship between resistance and light intensity is inversely proportional. In a dark environment, the LDR has a high resistance, often in the megaohm range (ranging from hundreds of kiloohms to several megaohms). This high resistance prevents significant current from flowing through the circuit.

However, when exposed to light, the intensity of the light causes the resistance of the LDR to decrease. The greater the light intensity, the more electrons are excited and the lower the resistance becomes, allowing for more current to flow through the circuit. This reduction in resistance can be quite dramatic, and it typically reaches a point where the current flow through the circuit is substantial in bright light conditions. The result is a variable resistance that changes dynamically in response to the light level.

This change in resistance in response to light intensity is what makes LDRs extremely useful in circuits that require automatic light detection and control. For example, as the light level increases, the LDR’s resistance decreases, which can be used to trigger changes in a circuit, such as turning on a light when it gets dark, or activating a light sensor in cameras, security systems, or other light-sensitive devices.

Practical Example of LDR Behavior

Consider an LDR used in an automatic streetlight system. In darkness, the LDR’s high resistance prevents current from flowing freely through the circuit, keeping the streetlight off. As the sun rises and the light intensity increases, the LDR's resistance drops, allowing more current to pass through the circuit, activating the streetlight. Similarly, this principle is applied in solar-powered devices, where the LDR can control the flow of energy based on available light levels.

Key Material: Cadmium Sulfide (CdS)

CdS is one of the most commonly used materials in LDRs due to its high sensitivity to visible light. It is a semiconductor, meaning that its conductivity can be precisely controlled by light. CdS’s high sensitivity to light in the visible spectrum makes it ideal for general-purpose light-sensing applications.CdS-based LDRs are reliable and perform well across a wide range of lighting conditions. They are often used in applications where simple light-to-resistance conversions are needed, such as in light meters, brightness control systems, and automated lighting systems.

In essence, the functioning of an LDR hinges on its ability to change its resistance in response to light intensity, making it a valuable component in a broad spectrum of applications. As light hits the photoconductive material (usually CdS), the material's resistance decreases, allowing more current to flow through the circuit. This simple yet powerful principle of photoconductivity enables LDRs to function as light-sensitive switches or variable resistors, which are essential for various automation and sensing systems.

3. Construction and Design

LDRs have a simple yet robust construction, designed for reliable performance in diverse environments:Photoconductive Layer: A thin layer of cadmium sulfide (CdS) or a similar material forms the light-sensitive element.

Electrodes: Two metal contacts are placed on either side of the photoconductive material to ensure electrical connectivity.

Protective Coating: Many LDRs are coated with a transparent protective layer to shield them from environmental factors like moisture, dust, or UV exposure, especially in outdoor applications.

Shapes and Sizes: LDRs are available in various shapes, such as round or rectangular disks, and sizes ranging from compact designs for portable electronics to larger models for industrial use.

These features allow LDRs to integrate seamlessly into a wide range of devices.

4. Key Features of Light Dependent Resistors

1. Wide Resistance Range

LDRs can transition from very high resistance in the dark to low resistance under bright light, making them suitable for applications across varying light conditions.

2. Sensitivity to Visible Light

LDRs are typically tuned to respond to specific wavelengths, especially in the visible spectrum, enhancing their versatility.

3. Cost-Effectiveness

As simple components, LDRs are affordable and ideal for large-scale manufacturing.

4. No Polarity

Unlike many electronic components, LDRs are non-polarized, simplifying their installation in circuits regardless of orientation.

5. Durability

LDRs are rugged and can operate reliably over extended periods, even in challenging conditions.

5. Applications of Light Dependent Resistors

The versatility of Light Dependent Resistors (LDRs) makes them invaluable components in many industries, ranging from consumer electronics to industrial automation. Their ability to detect light and adjust electrical resistance accordingly has led to widespread use in numerous applications that enhance convenience, safety, and efficiency in everyday life. Below are some key applications of LDRs:

Consumer Electronics

LDRs are commonly used in automatic brightness adjustment systems, making them crucial in televisions, displays, and digital devices. These systems help maintain optimal viewing conditions by adjusting the brightness of the screen based on the surrounding light levels. For instance, in a television, when the ambient light increases (such as when a room’s lights are turned on), the LDR detects the change and adjusts the screen brightness to maintain a clear and comfortable viewing experience. This technology extends to devices like smartphones, tablets, and laptops, where auto-brightness ensures the screen remains legible under various lighting conditions while conserving battery life.

Lighting Systems

One of the most common applications of LDRs is in automatic lighting systems, particularly in streetlights and outdoor lighting setups. LDRs are used to control when streetlights turn on or off based on ambient light levels. During the day, the LDR detects the light and keeps the streetlight off. As night falls and light levels drop, the LDR detects the change and triggers the streetlight to turn on. Similarly, garden lights, security lights, and solar-powered lamps often use LDRs to automate their operation based on the surrounding light levels.

This application enhances energy efficiency by ensuring that lighting systems operate only when needed, saving power during daylight hours and providing illumination when it’s dark.

Security Systems

In home security and workplace safety applications, LDRs are frequently used in light-sensitive alarms and motion detection systems. For example, LDRs are used in motion sensors that detect changes in light levels when an object moves in and out of a designated area. These sensors can trigger alarms, lights, or other security measures when a person or object disrupts the light source, making them a vital tool for intruder detection and surveillance systems.

Additionally, LDRs are incorporated into light-sensitive security devices, such as automated gates or access control systems, which detect changes in ambient light to trigger specific actions.

Industrial Automation

LDRs are also employed in industrial automation for flame detection systems and robotic vision technologies. In flame detection, the LDR can detect the presence of light emitted from flames or sparks, making it valuable in environments like oil rigs, factories, or power plants, where early flame detection is critical for safety. The ability to react to changes in light levels helps mitigate risks associated with potential fire hazards.

In robotic vision, LDRs are often used to sense the surrounding light and adjust the robot's vision system accordingly. This enables robots to perform tasks in a wide range of environments, from dimly lit factories to bright outdoor locations, providing more accurate detection and analysis in their operations.

Photography

LDRs play a crucial role in the world of photography, especially in light meters. Light meters are essential tools for photographers to measure the amount of light in a scene and determine the appropriate exposure settings for a camera. By accurately gauging light intensity, LDRs help ensure that photos are taken with the correct balance of light, preventing underexposure or overexposure. In both film cameras and digital cameras, LDRs can measure the ambient light and adjust camera settings such as aperture, shutter speed, and ISO for optimal results.

IoT and Smart Home Devices

With the growing trend of smart home automation, LDRs are being increasingly integrated into IoT devices. In smart homes, LDRs are used for tasks like automated window shading, where the LDR detects the ambient light levels and adjusts window blinds or shades to block excessive sunlight during the day and allow light during the evening. LDRs are also integral in smart garden lighting systems, where they can automate the lighting based on the time of day or weather conditions.

Additionally, LDRs are used in energy management systems within smart homes to monitor and control the use of lighting and other appliances. By automatically adjusting lighting based on the time of day or current light conditions, smart systems help conserve energy, reduce electricity bills, and enhance the overall comfort of residents.

The widespread use of LDRs across a variety of industries underscores their utility in enhancing convenience, safety, and efficiency. From consumer electronics like automatic brightness adjustment in smartphones and TVs, to security systems for light-sensitive alarms and motion detectors, and industrial automation in flame detection systems and robotics, LDRs are an indispensable tool in modern technology.

In photography, IoT, and smart homes, LDRs continue to play a crucial role in automating systems for improved functionality and energy efficiency. Their ability to detect subtle changes in light levels makes them the ideal choice for a range of applications, improving both convenience and reliability in diverse fields. Whether for lighting automation, security, or industrial use, LDRs help ensure optimal performance, making them a vital component in the development of innovative, smart technologies.

6. Advantages of LDRs

LDRs offer numerous benefits that make them a popular choice in light-sensitive applications:Simple Integration: LDRs are easy to use in circuits, requiring minimal components for operation.

Low Power Consumption: Their passive nature means they consume very little energy, ideal for battery-powered or energy-efficient designs.

Versatile Applications: From consumer electronics to industrial automation, LDRs can adapt to a wide range of uses.

Sensitivity to Subtle Light Changes: Their responsiveness allows for precise detection of even small variations in ambient light.

These attributes make LDRs a cost-effective and reliable solution for light detection tasks.

7. Comparing LDRs with Other Light Sensors

When choosing a light sensor, it's essential to compare LDRs with alternatives like photodiodes, phototransistors, and light-to-digital converters:

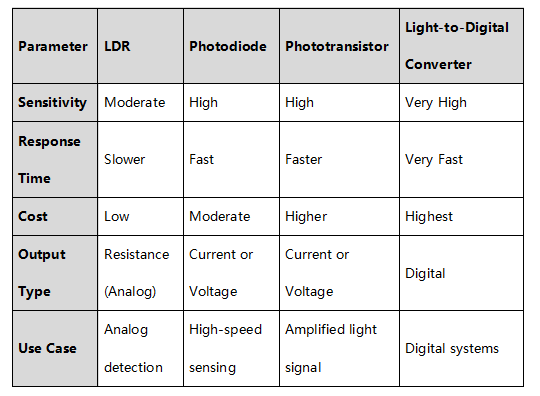

Figure 2: difference between LDR and photodiodes, phototransistors, and opto digital converters

Parameter LDR Photodiode Phototransistor Light-to-Digital ConverterSensitivity Moderate High High Very HighResponse Time Slower Fast Faster Very FastCost Low Moderate Higher HighestOutput Type Resistance (Analog) Current or Voltage Current or Voltage DigitalUse Case Analog detection High-speed sensing Amplified light signal Digital systemsLDR Advantages: LDRs excel in cost-sensitive projects and analog light intensity detection, where their simplicity and affordability outweigh their slower response time.

8. Tips for Choosing the Right LDR

Selecting the right LDR ensures optimal performance in your project. Key considerations include:Resistance Range and Sensitivity: Match the LDR’s resistance range to your circuit’s requirements.

Wavelength Responsiveness: Ensure the LDR is sensitive to the wavelength of your light source, typically in the visible spectrum.

Environmental Factors: For outdoor use, choose LDRs with protective coatings to withstand temperature variations, humidity, and UV exposure.

By tailoring these factors to your application, you can achieve accurate and reliable light detection.

9. Circuit Design Examples with LDRs

LDRs are ideal for a variety of circuit designs, ranging from simple to advanced.

Beginner-Friendly Circuit:Light/Dark-Activated Switch: Connect the LDR in series with a relay or transistor to control an LED or small appliance.

Voltage Divider: Use an LDR and a fixed resistor to create a voltage divider for analog signal processing.

Advanced Circuit:Analog-to-Digital Conversion: Pair the LDR with a microcontroller to convert resistance changes into digital values for IoT applications.

Light Intensity Meter: Build a device that displays light levels on an LCD using an LDR and an ADC module.

Diagrams and simulations can enhance understanding, providing clear guidance for hobbyists and engineers alike.

10. How to Test and Calibrate LDRs

To ensure Light Dependent Resistors (LDRs) perform accurately in your applications, proper testing and calibration are crucial. These steps will help you verify that the LDR behaves as expected and that it is integrated correctly into your circuit. Let’s explore how to test and calibrate LDRs for optimal performance.

1. Testing an LDR with a Multimeter

Testing an LDR is relatively straightforward and can be done using a digital multimeter to measure its resistance under different lighting conditions. Here's how to do it:Step 1: Set the Multimeter to Resistance ModeFirst, turn your multimeter to the resistance (Ω) setting. You can either set it to a manual range (if your multimeter is not auto-ranging) or let it auto-select the appropriate range.

Step 2: Measure the Resistance in DarknessBegin by measuring the resistance of the LDR in a dark environment. Cover the LDR or place it in a completely dark area to ensure it is not exposed to any light. The resistance in the dark will be high, often in the megaohms (MΩ) range. For example, a typical LDR may have a resistance of around 10 MΩ when no light is present.

Step 3: Measure the Resistance in LightNow expose the LDR to light (preferably a controlled light source such as a lamp or LED) and measure the resistance again. The resistance should decrease as the light intensity increases. For instance, in bright light, the resistance could drop to a few hundred ohms or even lower, depending on the LDR's specifications. This decrease in resistance indicates that the LDR is responsive to light.

Step 4: Compare the MeasurementsThe key observation here is the wide variation in resistance based on light exposure. A properly functioning LDR should exhibit a significant resistance change from dark to light. If the LDR does not show this response, it may be damaged or unsuitable for your application.

2. Calibration of the LDR

After testing the LDR, the next step is calibration, particularly if you’re using the LDR in circuits like automatic street lighting, light-sensitive alarms, or light-controlled dimmers. Calibration helps ensure the LDR responds appropriately to specific light levels and triggers actions at the desired thresholds.Here are the key steps in calibrating your LDR:Step 1: Determine the Light Intensity RangeIdentify the range of light intensities that the LDR will be exposed to in its application. For example, a streetlight circuit may need to detect the difference between daylight, twilight, and nighttime conditions. You can use a light meter or another LDR to quantify the light levels that your LDR will encounter. This step is important because the LDR's resistance will vary significantly depending on the light intensity.

Step 2: Set the Desired Light ThresholdsBased on the light levels measured in Step 1, establish the specific light thresholds for triggering actions in your system. For example, in a streetlight circuit, you might want the light to turn on at twilight (when the light intensity drops to a certain level) and off at dawn (when the light intensity increases beyond a set threshold).These thresholds are often set using comparators or op-amps in a circuit. The LDR’s resistance will be used as a variable input to these circuits, and when the resistance crosses a predefined threshold (indicating a specific light level), the circuit can trigger an action like switching a light on or off.

Step 3: Fine-Tune the CalibrationOnce you’ve set your initial thresholds, fine-tune the circuit for optimal performance. For example, in a light-activated streetlight, test the system to ensure that the streetlight turns on when the ambient light falls below a certain level (e.g., dusk) and turns off when the light rises above a certain level (e.g., dawn).You might need to adjust the circuit slightly to account for changes in light intensity caused by weather conditions (clouds, fog, etc.) or specific use cases. For instance, if your system is too sensitive and switches on the light at a level of light that is too bright, you can adjust the threshold until it triggers at the desired light intensity.

Step 4: Test and IterateAfter calibrating, test the circuit multiple times under real-world conditions to ensure that it operates as expected. If the LDR is part of a security system, test it by simulating the lighting conditions that would trigger alarms. In photography applications, you can calibrate the LDR to detect a specific exposure level by adjusting its light-sensing threshold in relation to the ambient light.During testing, observe how the LDR responds to varying light intensities, and make further adjustments to your circuit as necessary to ensure reliable operation.

3. Practical Example: Streetlight Calibration

Let’s say you're designing a streetlight circuit that should turn on at dusk and off at dawn. Here’s how you could approach the calibration:Measure the ambient light levels during dusk and dawn using an LDR or light meter.

Set the LDR’s threshold resistance to activate the streetlight at dusk and deactivate it at dawn. This may involve adjusting the light-sensing circuit to detect the precise transition between daylight and night.

Fine-tune the system to account for factors like the angle of sunlight or streetlights that may alter the readings.

By calibrating the system correctly, you ensure that the streetlight system is energy-efficient and only operates when needed, avoiding unnecessary power consumption during daylight.

4. Calibration in Complex Systems

For more advanced applications such as robotic vision or industrial flame detection systems, you may need to calibrate LDRs for precision. These applications require extremely accurate light intensity detection, and may involve:Multiple LDRs arranged in arrays to detect light from different angles or distances.

Custom light-filtering lenses to ensure the LDR is sensitive only to specific wavelengths of light.

Software calibration if the LDR is part of a smart device or IoT system, where real-time environmental adjustments are needed.

Testing and calibrating Light Dependent Resistors (LDRs) is essential for ensuring that they work accurately and reliably in your circuits. By using a multimeter to test their resistance under varying light conditions and calibrating them to respond to specific light thresholds, you can ensure that your LDR-based systems (such as streetlights, security systems, and photography equipment) function optimally. Proper calibration is especially important for sensitive applications that require precise light detection.

By following these steps, you can ensure that your LDRs provide consistent and reliable performance, contributing to the success of your projects, whether they're simple light switches or complex industrial systems.

11. Future Trends and Innovations

The field of Light Dependent Resistors continues to evolve, driven by technological advancements and environmental considerations:Enhanced Sensitivity and Durability: Future LDRs may incorporate new materials to improve light response and longevity.

Integration with Smart Systems: LDRs could be paired with AI and IoT platforms for advanced light-based automation.

Regulations on CdS Material: As cadmium sulfide is a toxic material, research into eco-friendly alternatives is accelerating.

These innovations will likely expand the applications of LDRs in cutting-edge technologies.

12. Distributor Recommendation

When it comes to Light Dependent Resistors (LDRs), choosing the right brand is crucial to ensure reliable performance and durability. Unikeyic Electronics partners with trusted brands that offer high-quality LDRs to meet the needs of various applications. Here’s a closer look at some of the top brands available through Unikeyic Electronics:

1. TOKEN: A Leader in Optoelectronic Components

TOKEN is a renowned brand in the optoelectronic industry, offering a wide range of LDRs with exceptional reliability and performance. TOKEN’s LDRs are known for their precise light sensitivity and long-lasting durability, making them ideal for both consumer electronics and industrial applications.Key Features of TOKEN LDRs:Wide Resistance Range: TOKEN LDRs offer a broad resistance range, making them suitable for various light intensity levels.

Fast Response Time: The LDRs from TOKEN respond quickly to changes in light, making them perfect for light-sensitive switches and security systems.

Excellent Stability: TOKEN LDRs are engineered to perform consistently even in varying environmental conditions.

Applications:Automated Lighting SystemsPhotography: Accurate exposure controlEnvironmental Monitoring: Solar energy systems

2. SENBA: High Sensitivity and Precision

SENBA is another leading manufacturer that specializes in high-performance LDRs. Known for their high sensitivity to light and precision, SENBA LDRs are used in applications that require accurate light detection across various wavelengths.

Key Features of SENBA LDRs:High Sensitivity: SENBA LDRs are particularly sensitive to low light levels, making them ideal for applications like dusk-to-dawn lighting systems or security lights.Versatile Response: These LDRs work well with both visible and infrared light, providing versatile solutions for specialized applications.Customizable for Specific Needs: SENBA offers customizable options to meet the unique requirements of your project.

Applications:Automated StreetlightsSolar-Powered SystemsInfrared Sensors

3. LUNA OPTOELECTRONICS: Advanced Photodetector Solutions

LUNA OPTOELECTRONICS is a leading name in the optoelectronics field, providing innovative solutions for light detection. Their LDRs are designed for high-precision light sensing, ensuring that even subtle changes in light intensity are detected accurately. LUNA's products are ideal for advanced applications that require precise control and robust performance.

Key Features of LUNA OPTOELECTRONICS LDRs:High Light Sensitivity: LUNA LDRs can detect even slight variations in light levels, ensuring accurate feedback in critical systems.Durability: Their products are known for their long lifespan and resilience under harsh environmental conditions, including extreme temperatures and humidity.Low Power Consumption: Designed to operate efficiently with minimal energy consumption, these LDRs are perfect for battery-operated devices and energy-saving systems.

Applications:Smart Home Automation: Light-controlled smart devicesRobotic Systems: Vision and sensing systems for robotsFlame Detection: For safety and industrial applications

4. SEMITEC: A Trusted Name in Photoconductive Devices

SEMITEC is a well-respected brand in the field of photoconductive devices, including LDRs. Known for their precision and reliability, SEMITEC LDRs are used in various high-end applications where performance cannot be compromised.

Key Features of SEMITEC LDRs:Precision Light Detection: SEMITEC LDRs are designed for exact light sensitivity, making them perfect for precise light measurement and control.Fast and Stable Response: These LDRs offer fast response times and consistent performance over extended periods.Wide Operating Temperature Range: SEMITEC LDRs are robust and perform well across a wide range of temperatures, making them suitable for outdoor and industrial applications.

Applications:Industrial Automation: For flame detection, process monitoring, and machine vision systems.Optical Instruments: Accurate light measurement for scientific equipment.Consumer Electronics: Used in devices requiring light-sensitive controls like TVs and projectors.

Why Choose LDRs from Unikeyic Electronics?

Unikeyic Electronics offers LDRs from these trusted brands—TOKEN, SENBA, LUNA OPTOELECTRONICS, and SEMITEC—ensuring that you get the best components for your projects. By partnering with these reputable manufacturers, Unikeyic Electronics provides LDRs that guarantee:Reliability and Durability: Each brand is committed to offering high-quality products that perform well in various conditions and for long periods.

Competitive Pricing: Unikeyic Electronics offers these premium brands at affordable prices, ensuring value for money in both small-scale and large-scale projects.

Wide Selection: Whether you need a high-sensitivity LDR for precise light control or a robust LDR for outdoor use, Unikeyic has the right components for your needs.

Expert Support: Unikeyic provides professional guidance to help you choose the right LDR for your specific application, ensuring a perfect fit for your circuit design.

By sourcing LDRs from Unikeyic Electronics, you can rest assured that you're getting top-quality products with excellent support and prompt delivery.

In conclusion, LDRs from TOKEN, SENBA, LUNA OPTOELECTRONICS, and SEMITEC provide a variety of benefits depending on your project’s needs, from precise light sensing to cost-effective solutions. For reliable, high-performance LDRs that meet industry standards, Unikeyic Electronics is your trusted distributor.

13. FAQs about LDRs

1、What is the response time of an LDR?LDRs have a slower response time compared to photodiodes or phototransistors, typically in milliseconds to seconds.

2、Can LDRs detect infrared or ultraviolet light?Standard LDRs are sensitive to visible light; specialized sensors are required for infrared or UV detection.

3、How do LDRs behave under varying temperatures?Temperature changes can affect resistance values, so consider temperature compensation techniques in critical applications.

14. Conclusion

Light Dependent Resistors are indispensable in modern electronics, offering simplicity, versatility, and cost-effectiveness. Whether in consumer gadgets, industrial systems, or smart homes, their adaptability ensures widespread use.
