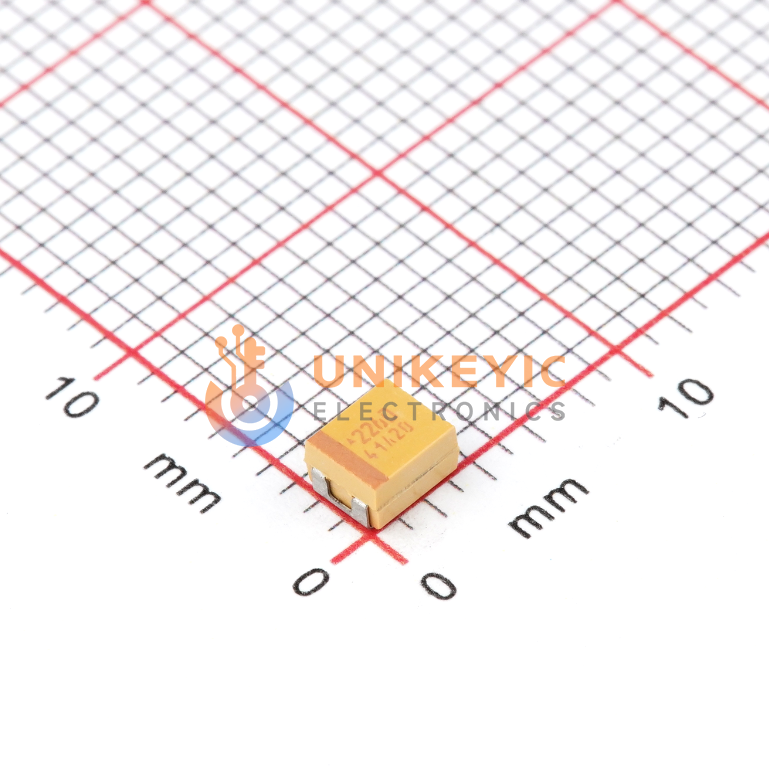

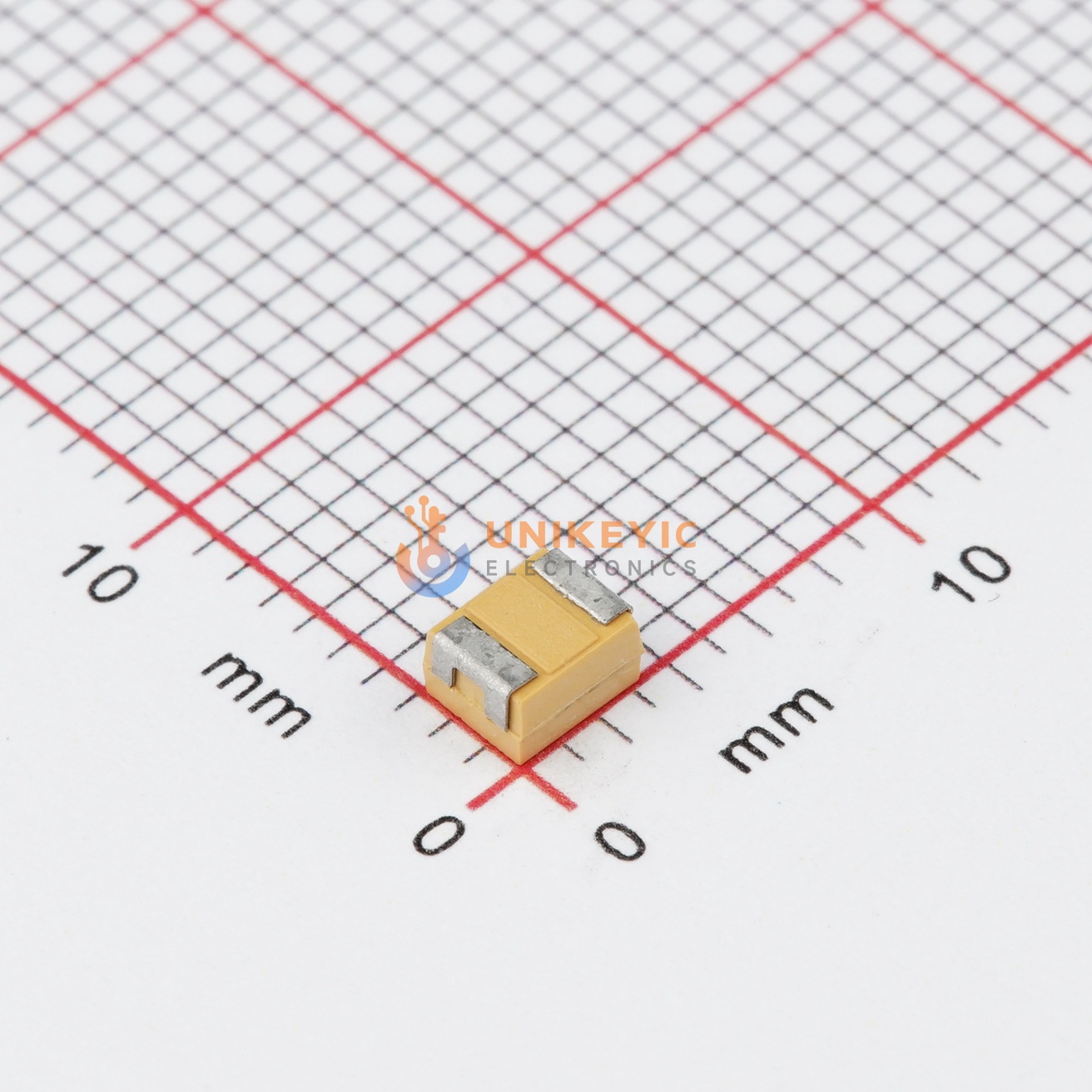

KYOCERA AVX TAJB226K020RNJ image
Images are for reference only

TAJB226K020RNJ

22μF 1%/1000hours@85°C ±10% 20V 1.8Ω 1210,1411 SMD mount 3.5mm*2.8mm*2.1mm

Other Names:TAJB226K020RNJ

more
TAJB226K020RNJ
TAJB226K020RNJ(

Manufacturer:KYOCERA AVX

Manufacturer Part:TAJB226K020RNJ

Email Document
ECAD Model:

In Stock

44,998 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.2852

Ext. Price (USD)

$0.28

Total price$0.28
MOQ1Mult1SPQ2,000DC2632+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.2852
$0.28
10
$0.2216
$2.21
30
$0.1905
$5.71
100
$0.1627
$16.27
500
$0.1552
$77.60
1,000
$0.1506
$150.60
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance
22 µF
Voltage-Rated
20 V
ESR (Equivalent Series Resistance)
1.8Ohm
Failure Rate
-
Operating Temperature
-55°C ~ 125°C
Height-Seated (Max)
0.083" (2.10mm)
Lead Spacing
-
Package/Case
1411 (3528 Metric), 1210
Size / Dimension
0.138" L x 0.110" W (3.50mm x 2.80mm)
Lifetime @ Temp.
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
General Purpose
Manufacturer Size Code
B
Mounting Type
Surface Mount
Rid
563789
Series
TAJ
Tolerance
±10%

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

In circuit selection, AVX TAJB226K020RNJ should be evaluated as a polarized SMT tantalum capacitor with 22 µF capacitance and 20 V rating at 85°C. The datasheet lists 13 V category voltage at 125°C, 1.8 Ω maximum ESR at 100 kHz, and RMS current ratings of 217 mA at 25°C, 196 mA at 85°C, and 87 mA at 125°C. The polarity band identifies the anode (+), so orientation must be checked against the design documentation.
