Amplifiers and Comparators

Amplifiers and comparators are fundamental components in electronics, each serving distinct roles in signal processing and circuit design.

Definition:
- Amplifier: An electronic device that increases the amplitude of a signal, typically used to boost weak signals to a level suitable for further processing or transmission.

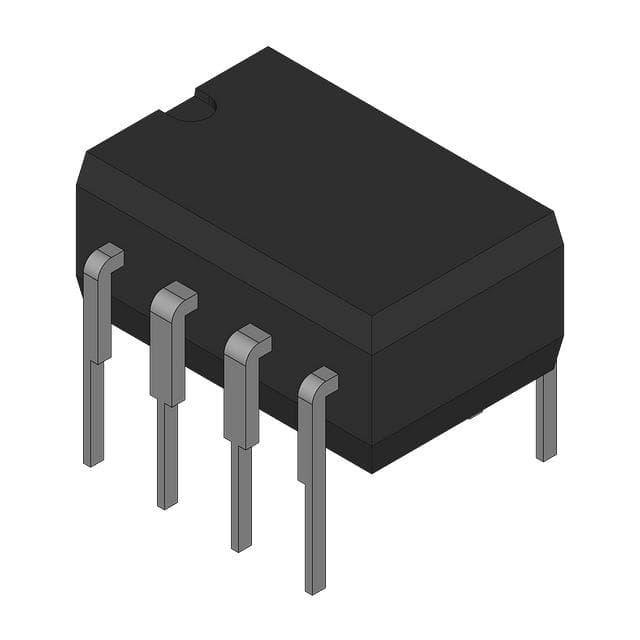

- Comparator: A circuit that compares two input voltages and outputs a digital signal indicating which input is greater. It essentially functions as a precision voltmeter that can only indicate if one voltage is above or below another.

Function:
- Amplifiers: They can be classified into different types based on their function, such as operational amplifiers (op-amps), power amplifiers, and audio amplifiers. Op-amps are versatile and used in various applications like signal conditioning, filtering, and gain adjustment. Power amplifiers are designed to drive loads like speakers with high current and voltage. Audio amplifiers are specifically tailored for audio signal amplification.
- Comparators: They are used in applications where the exact value of the input voltages is not required, but rather a decision needs to be made based on their relative levels. Comparators are the building blocks of digital circuits and are used in applications like analog-to-digital conversion, zero-crossing detection, and error amplifiers in control systems.

Applications:
- Amplifiers:

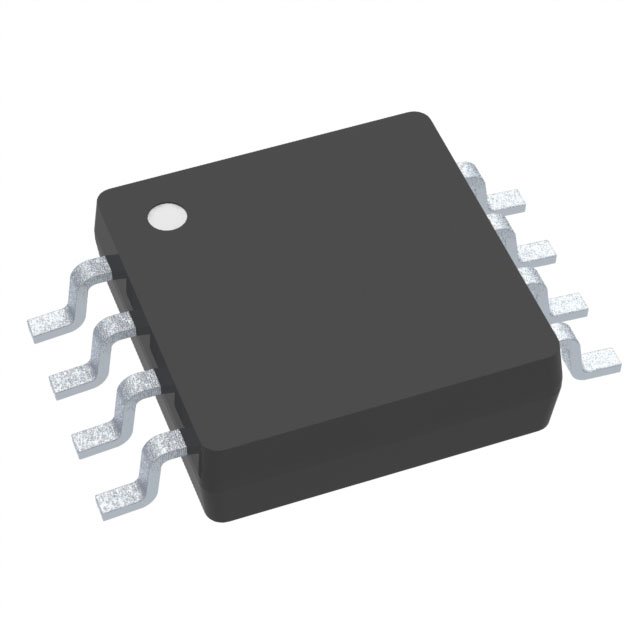

- Op-amps: Used in a wide range of applications from simple gain circuits to complex filters and oscillators.
- Power amplifiers: Commonly found in audio systems, public address systems, and radio transmitters.

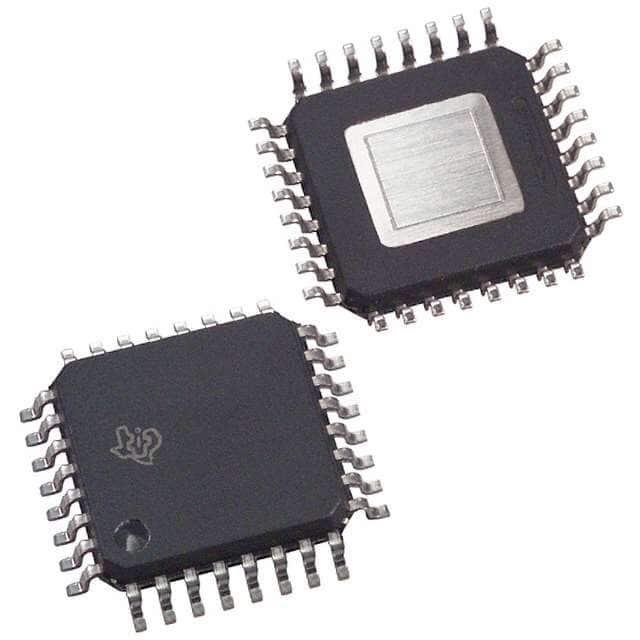

- Audio amplifiers: Used in home theater systems, car audio, and professional sound reinforcement.
- Comparators:
- ADCs: Comparators are used in successive approximation, flash, and ramp converters to digitize analog signals.
- Control Systems: They are used to compare sensor inputs with set points for feedback control in systems like thermostats and motor controllers.
- Signal Processing: Used in peak detectors, Schmitt triggers for noise reduction, and window comparators for signal windowing.

Selection Criteria:
- For Amplifiers:
- Gain: The amount of amplification required.
- Bandwidth: The frequency range over which the amplifier must operate effectively.
- Input and Output Impedance: Matching the amplifier's impedance with the source and load for optimal signal transfer.
- Power Requirements: The amount of power needed to drive the load.
- Noise Performance: Low-noise amplifiers are crucial for sensitive applications.
- For Comparators:
- Speed: The response time of the comparator, important for fast-changing signals.
- Accuracy: The ability to accurately compare voltage levels.
- Hysteresis: A property that provides stability in the output by preventing rapid toggling.
- Input Offset Voltage: The minimum input voltage difference required to change the output state.
- Power Supply Rejection Ratio (PSRR): Indicates how well the comparator rejects variations in the power supply voltage.

When selecting amplifiers and comparators, it's essential to consider the specific requirements of the application, such as the signal type, the environment in which the device will operate, and the desired performance characteristics.
