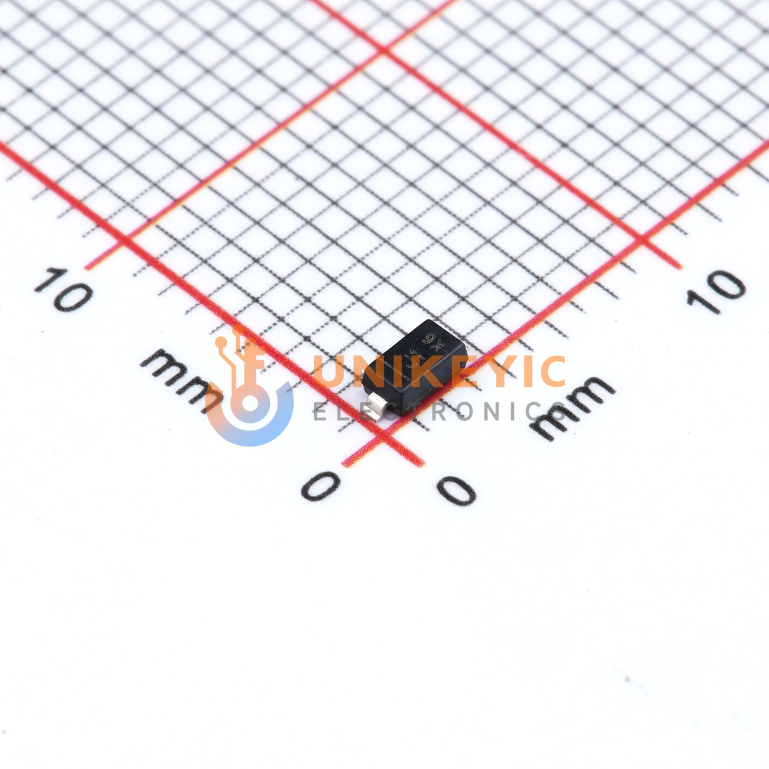

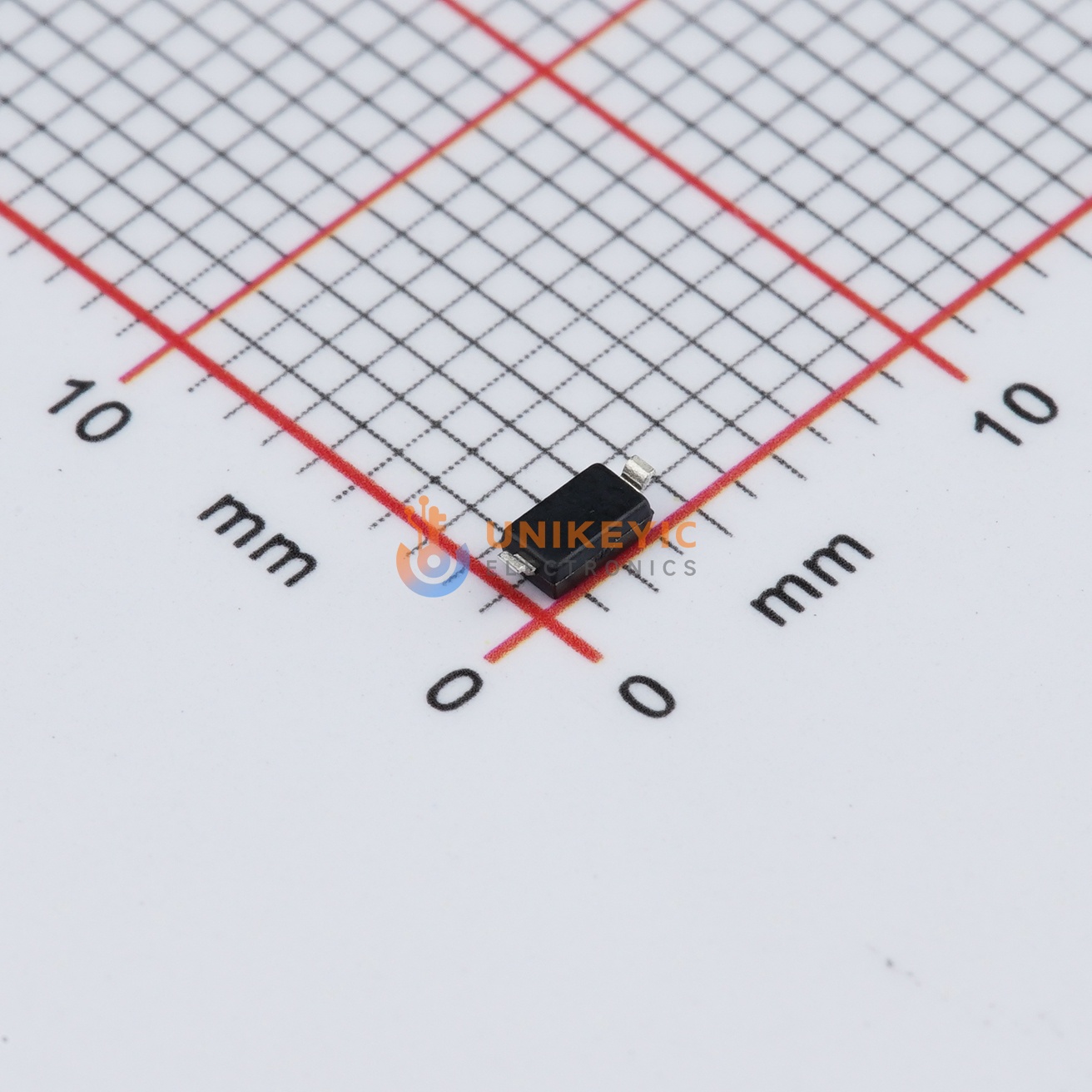

DIODES MMSZ5246B-7-F image
Images are for reference only

MMSZ5246B-7-F

DiodesZetex Zener Diode Single 16V SMD 500mW SOD-123

Other Names:MMSZ5246B7F

more
MMSZ5246B-7-F

Manufacturer:DIODES

Manufacturer Part:MMSZ5246B-7-F

Email Document
ECAD Model:

In Stock

41 In stock, ready to ship

Quantity

10

Unit Price (USD)

$0.0624

Ext. Price (USD)

$0.62

Total price$0.62
MOQ10Mult1SPQ3,000DC2504+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.0624
$0.62
100
$0.0497
$4.97
300
$0.0433
$12.99
3,000
$0.0385
$115.50
6,000
$0.0347
$208.20
9,000
$0.0328
$295.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current - Reverse Leakage @ Vr
100 nA @ 12 V
Power - Max
500 mW
Voltage - Forward (Vf) (Max) @ If
900 mV @ 10 mA
Voltage - Zener (Nom) (Vz)
16 V
Impedance (Max) (Zzt)
17 Ohms
Operating Temperature
-65°C ~ 150°C
Package/Case
SOD-123
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
MMSZ5246
Mounting Type
Surface Mount
Series
-
Supplier Device Package
SOD-123
Tolerance
±5%
