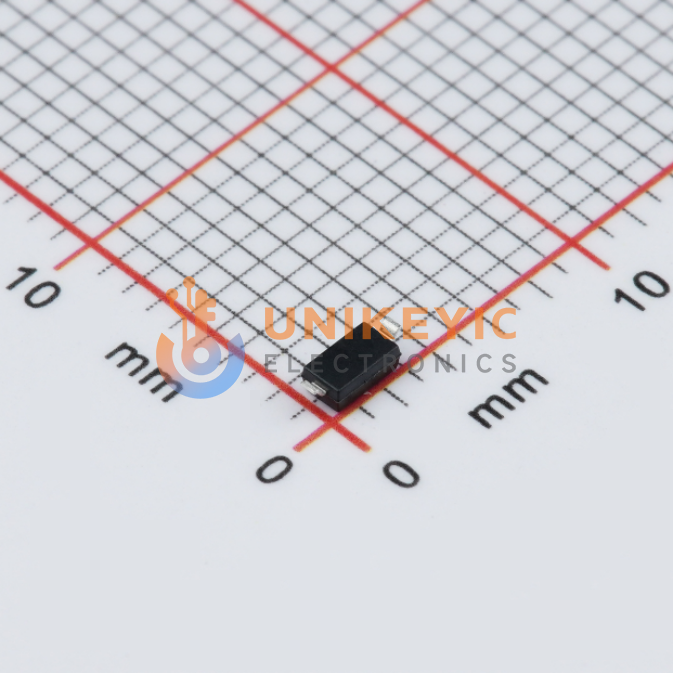

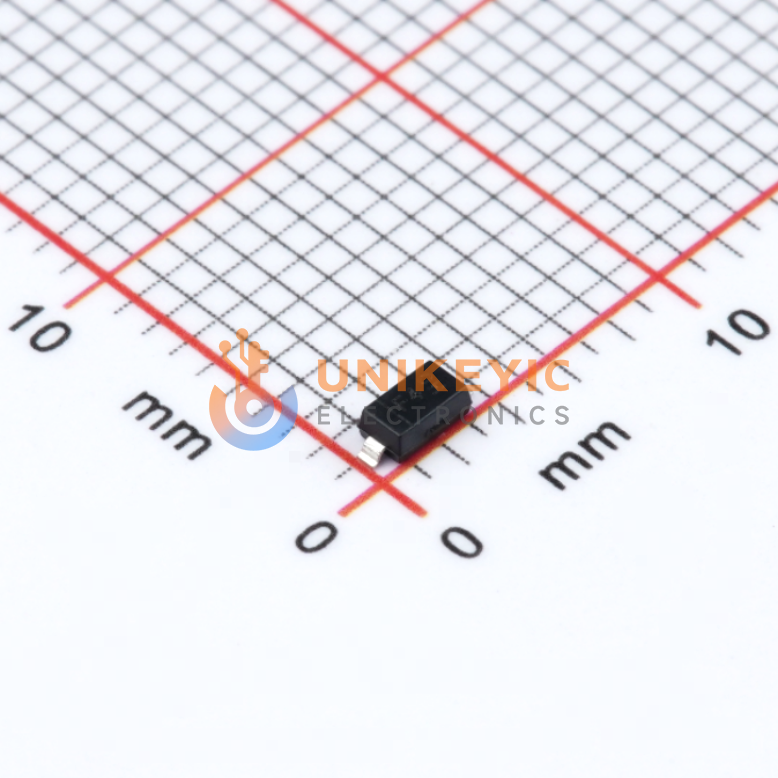

Images are for reference only
MMSZ5239B-7-F
Discrete Diode, 9.1V, ±5%, 3μA, 10Ω, 500mW, SOD-123 SMD, 2.65mm × 1.55mm × 1.1mm
Other Names:MMSZ5239B-7-F
more
MMSZ5239B7F
Manufacturer:DIODES
Manufacturer Part:MMSZ5239B-7-F
Datasheet:DIODES MMSZ5239B-7-F Datasheet (PDF)
Email Document
In Stock
1 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.0433
Ext. Price (USD)
$0.04
Total price$0.04
MOQ1Mult1SPQ3,000DC25+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0433
$0.04
200
$0.0278
$5.56
1,500
$0.0242
$36.30
3,000
$0.0214
$64.20
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current - Reverse Leakage @ Vr | 3 µA @ 7 V |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 9.1 V |
| Impedance (Max) (Zzt) | 10 Ohms |
| Operating Temperature | -65°C ~ 150°C |
| Package/Case | SOD-123 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | MMSZ5239 |
| Mounting Type | Surface Mount |
| Rid | 724986 |
| Series | - |
| Supplier Device Package | SOD-123 |
| Tolerance | ±5% |
