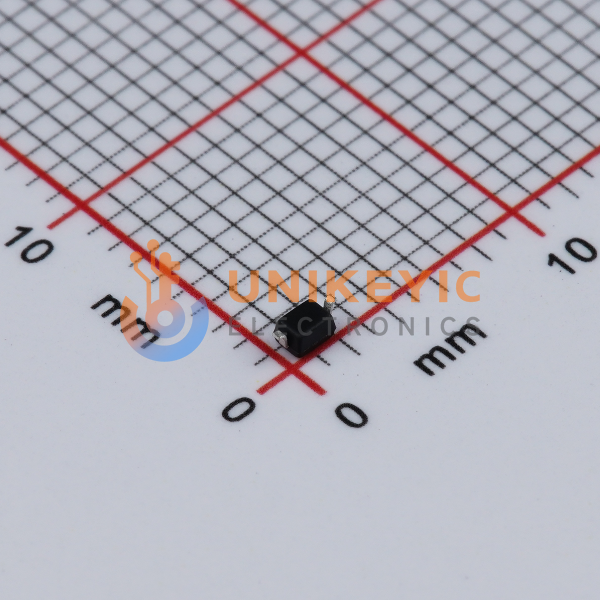

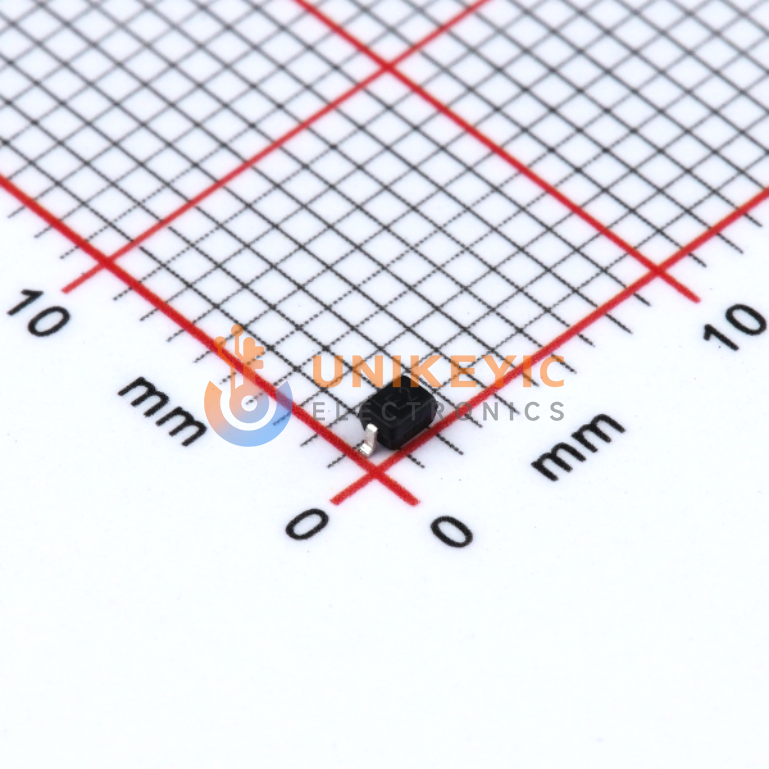

Images are for reference only
MMSZ5232BS-7-F
DiodesZetex Single Zener Diode, Vz=5.6V SMD 200mW SOD-323
Other Names:MMSZ5232BS7F
more
MMSZ5232BS-7-F
Manufacturer:DIODES
Manufacturer Part:MMSZ5232BS-7-F
Datasheet:DIODES MMSZ5232BS-7-F Datasheet (PDF)
Email Document
In Stock
112 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.709
Ext. Price (USD)
$0.70
Total price$0.70
MOQ1Mult1SPQ3,000DC2604+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.709
$0.70
10
$0.1521
$1.52
100
$0.0778
$7.78
500
$0.0654
$32.70
3,000
$0.0529
$158.70
9,000
$0.0498
$448.20
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current - Reverse Leakage @ Vr | 5 µA @ 3 V |
| Power - Max | 200 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Impedance (Max) (Zzt) | 11 Ohms |
| Operating Temperature | -65°C ~ 150°C |
| Package/Case | SC-76, SOD-323 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | MMSZ5232 |
| Mounting Type | Surface Mount |
| Rid | 815868 |
| Series | - |
| Supplier Device Package | SOD-323 |
| Tolerance | ±5% |
