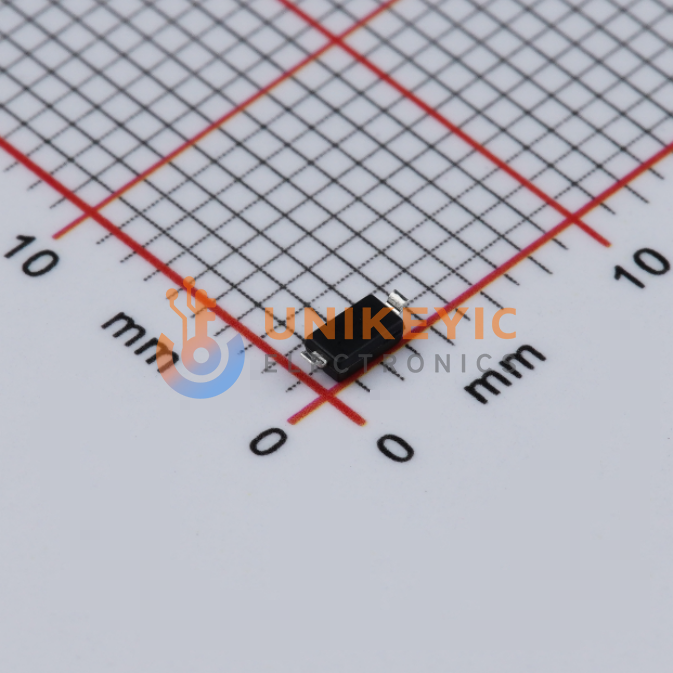

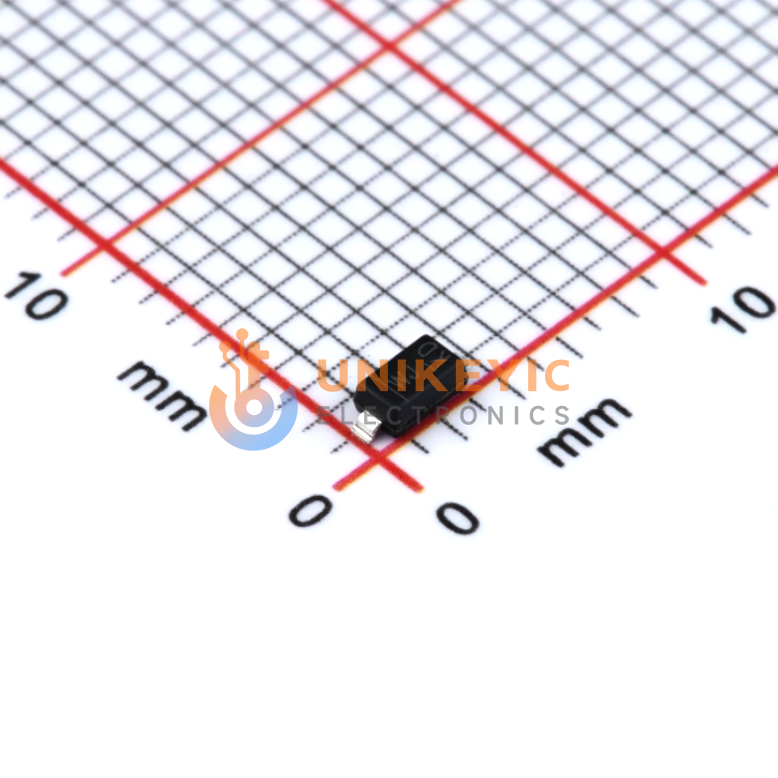

BZT52C15-7-F
DiodesZetex Zener Diode, 15V, 500mW, SOD-123, SMD
Other Names:BZT52C157F
more
BZT52C15-7-F
Manufacturer:DIODES
Manufacturer Part:BZT52C15-7-F
Datasheet:DIODES BZT52C15-7-F Datasheet (PDF)
Email Document
In Stock
11,877 In stock, ready to ship
Quantity
10
Unit Price (USD)
$0.1888
Ext. Price (USD)
$1.88
Total price$1.88
MOQ10Mult1SPQ3,000DC2626+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
10
$0.1888
$1.88
100
$0.1506
$15.06
300
$0.1156
$34.68
1,000
$0.1087
$108.70
3,000
$0.1028
$308.40
6,000
$0.0988
$592.80
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current - Reverse Leakage @ Vr | 100 nA @ 10.5 V |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Voltage - Zener (Nom) (Vz) | 15 V |
| Impedance (Max) (Zzt) | 30 Ohms |
| Operating Temperature | -65°C ~ 150°C |
| Package/Case | SOD-123 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | BZT52 |
| Mounting Type | Surface Mount |
| Rid | 1837358 |
| Series | - |
| Supplier Device Package | SOD-123 |
| Tolerance | ±6% |
