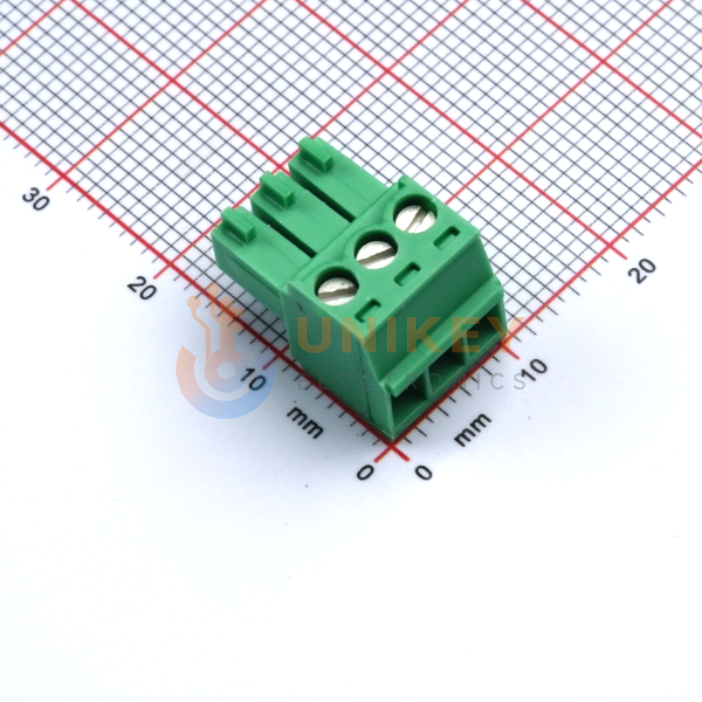

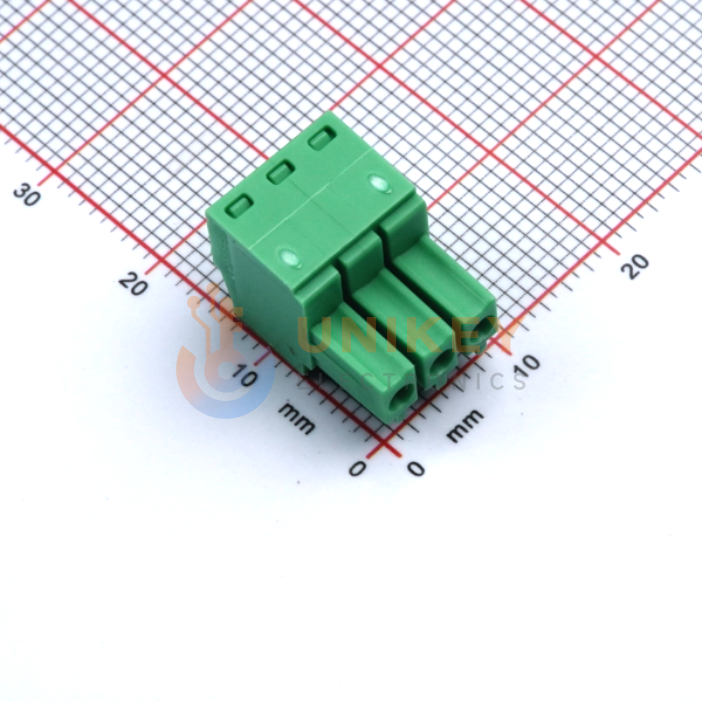

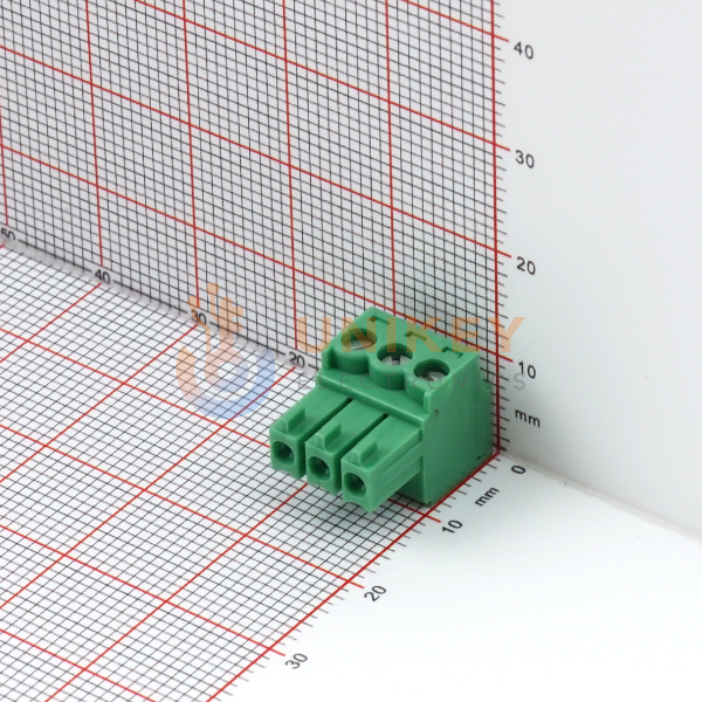

Phoenix Contact 1840379 image
Images are for reference only

1840379

Phoenix Contact MC 1.5/3-ST-3.5, 3.5mm Pitch 3P Pluggable Terminal Block Header, 320V, Screw Mount, Green

Other Names:1840379

Manufacturer:Phoenix Contact

Manufacturer Part:1840379

Email Document
ECAD Model:

In Stock

17 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.6709

Ext. Price (USD)

$0.67

Total price$0.67
MOQ1Mult1SPQ250DC2606+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.6709
$0.67
250
$0.6214
$155.35
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-IEC
8A
Voltage - UL
300 V
Operating Temperature
-
Header Orientation
-
Number of Levels
1
Plug Wire Entry
180°
Termination Style
Screw - Rising Cage Clamp
Wire Gauge or Range - AWG
14-30 AWG
Wire Gauge or Range - mm²
0.14-1.5mm²
Wire Strip Length
7mm
Current-UL
8 A
Voltage - IEC
320 V
Color
Green
Contact Material
-
Contact Mating Finish
Tin
Housing Material
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Packaging
Bulk
Contact Tail Length
-
Insulation Height
0.437" (11.10mm)
Pitch
0.138" (3.50mm)
Positions Per Level
3
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
-
Mounting Type
Free Hanging (In-Line)
Number of Positions
3
Rid
340811
Screw Size
M2
Series
MINI-COMBICON MC
Torque-Screw
0.22-0.25 Nm (1.9-2.2 Lb-In)
