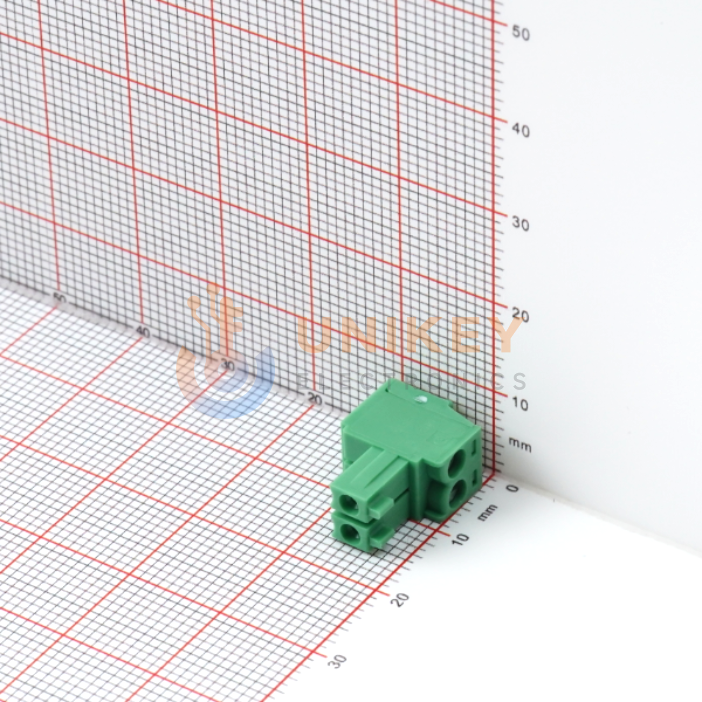

Phoenix Contact 1840366 image
Images are for reference only

1840366

Phoenix Contact MC 1.5/2-ST-3.5 Series PCB Pluggable Terminal Block Plug, 3.5mm Pitch, 2 Pos, 320V, Screw Mount, Green

Other Names:1840366

Manufacturer:Phoenix Contact

Manufacturer Part:1840366

Email Document
ECAD Model:

In Stock

6,418 In stock, ready to ship

Quantity

1

Unit Price (USD)

$0.8058

Ext. Price (USD)

$0.80

Total price$0.80
MOQ1Mult1SPQ250DC2631+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.8058
$0.80
10
$0.6566
$6.56
30
$0.5809
$17.42
250
$0.4921
$123.02
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-IEC
8A
Voltage - UL
300 V
Operating Temperature
-
Header Orientation
-
Number of Levels
1
Plug Wire Entry
180°
Termination Style
Screw - Rising Cage Clamp
Wire Gauge or Range - AWG
14-30 AWG
Wire Gauge or Range - mm²
0.14-1.5mm²
Wire Strip Length
7mm
Current-UL
8 A
Voltage - IEC
320 V
Color
Green
Contact Material
-
Contact Mating Finish
Tin
Housing Material
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Packaging
Bulk
Contact Tail Length
-
Insulation Height
0.437" (11.10mm)
Pitch
0.138" (3.50mm)
Positions Per Level
2
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
-
Mounting Type
Free Hanging (In-Line)
Number of Positions
2
Rid
349178
Screw Size
M2
Series
MINI-COMBICON MC
Torque-Screw
0.22-0.25 Nm (1.9-2.2 Lb-In)

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For PHOENIX CONTACT 1840366, the manufacturer datasheet lists certifications including CB, CSA, CUL, GOST, UL, and VDE-PZI. It also notes WEEE/RoHS compliance since 01/01/2003. Agency ratings include 300 V and 8 A for CSA, CUL, and UL, with AWG ranges specified separately. Product compliance information further states RoHS3 Compliant, REACH Unaffected, ECCN EAR99, and MSL 1.
