1803633

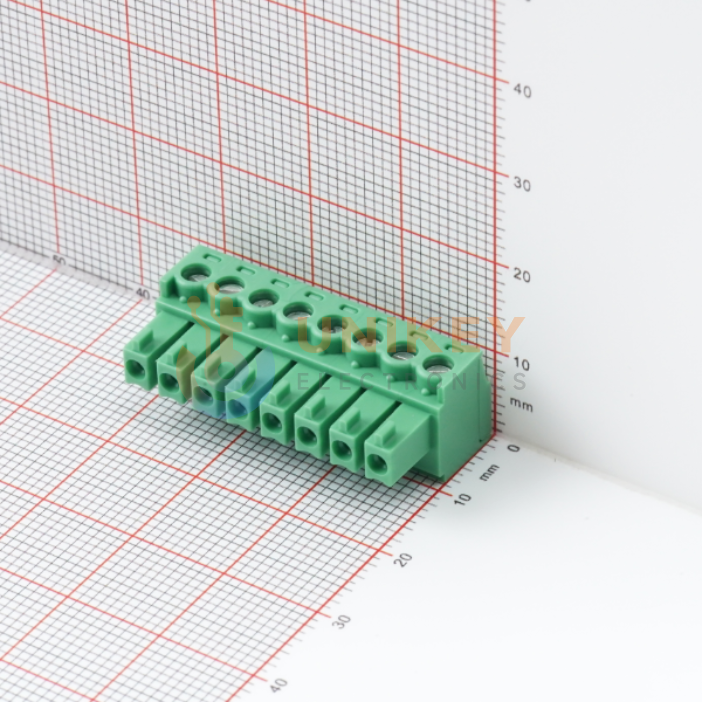

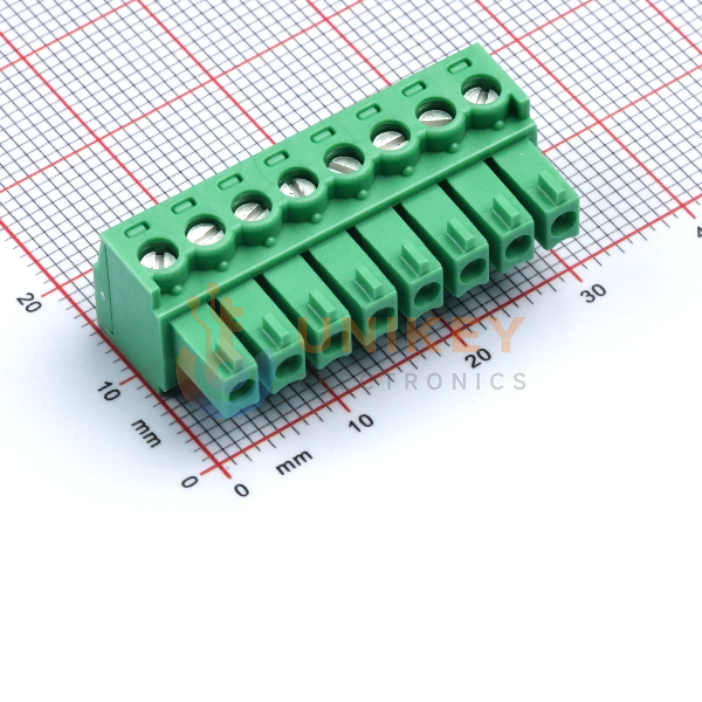

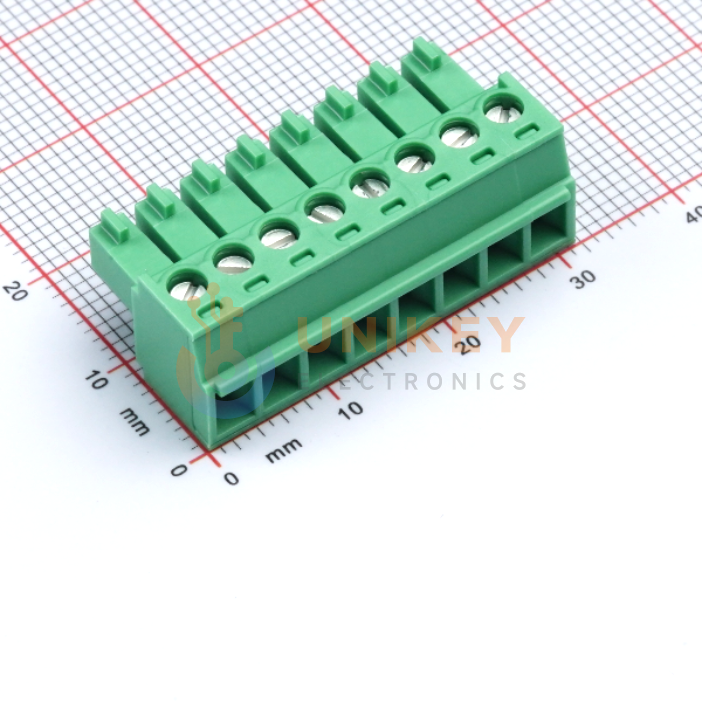

Phoenix Contact Pluggable Terminal Block MC 1.5/8-ST-3.81 3.81mm Pitch 8Pos 300V Screw Green
Other Names:1803633
Manufacturer:Phoenix Contact
Manufacturer Part:1803633
Datasheet:Phoenix Contact 1803633 Datasheet (PDF)
Email Document
In Stock
125 In stock, ready to ship
Quantity
1
Unit Price (USD)
$3.0895
Ext. Price (USD)
$3.08
Total price$3.08
MOQ1Mult1SPQ50DC2626+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$3.0895
$3.08
10
$2.5174
$25.17
50
$2.1241
$106.20
150
$1.942
$291.30
500
$1.837
$918.50
1,000
$1.7428
$1,742.80
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current-IEC | 8A |
| Voltage - UL | 300 V |
| Operating Temperature | - |
| Header Orientation | - |
| Number of Levels | 1 |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Rising Cage Clamp |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Wire Strip Length | 7mm |
| Current-UL | 8 A |
| Voltage - IEC | 320 V |
| Color | Green |
| Contact Material | - |
| Contact Mating Finish | Tin |
| Housing Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Packaging | Bulk |
| Contact Tail Length | - |
| Insulation Height | 0.437" (11.10mm) |
| Pitch | 0.150" (3.81mm) |
| Positions Per Level | 8 |
| Ingress Protection | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Features | - |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Screw Size | M2 |
| Series | COMBICON MC |
| Torque-Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
