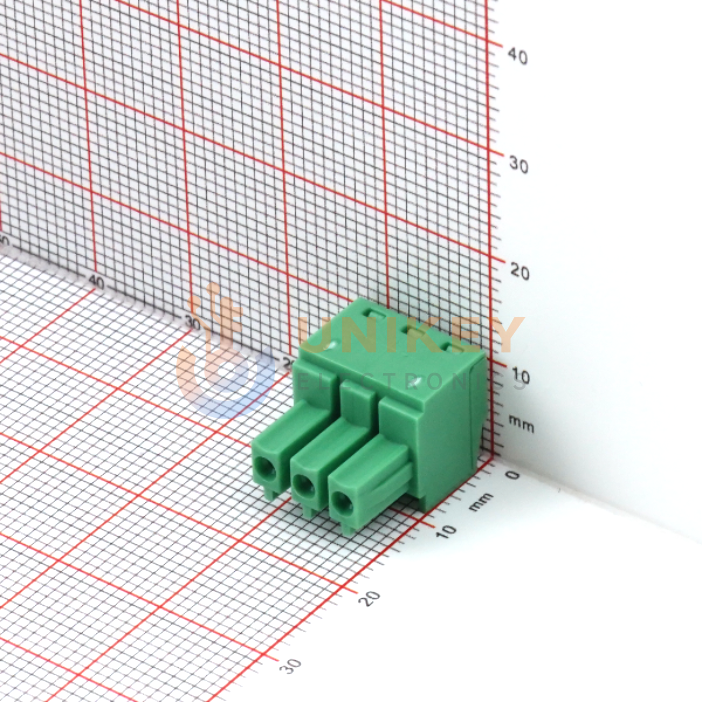

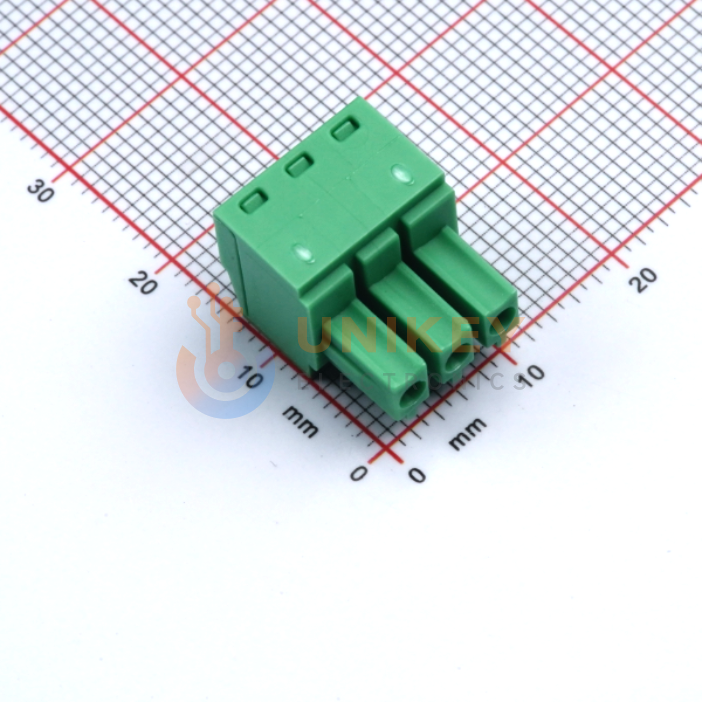

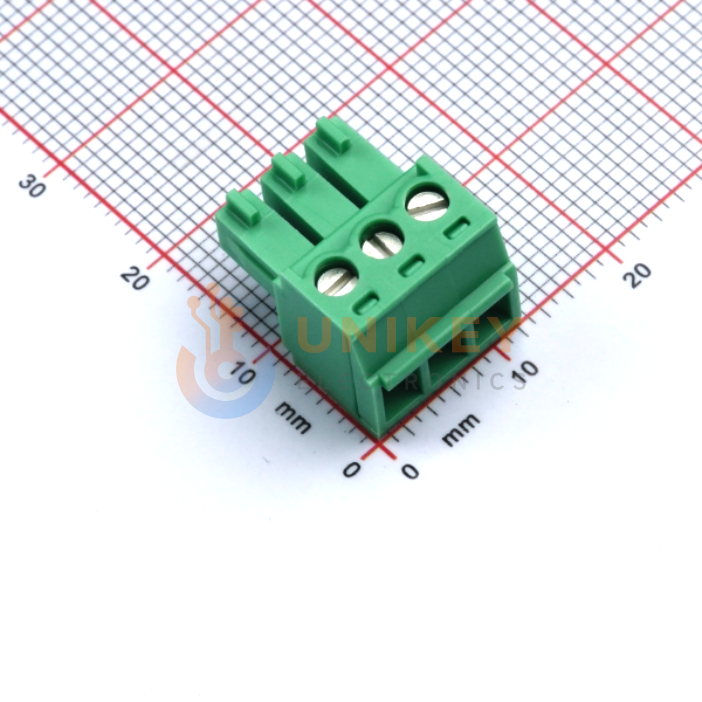

Phoenix Contact 1803581 image
Images are for reference only

1803581

Phoenix Contact MC Series PCB Pluggable Terminal Block, 3.81mm Pitch, 3 Pos, Screw Mount

Other Names:1803581

Manufacturer:Phoenix Contact

Manufacturer Part:1803581

Email Document
ECAD Model:

In Stock

2,195 In stock, ready to ship

Quantity

1

Unit Price (USD)

$1.208

Ext. Price (USD)

$1.20

Total price$1.20
MOQ1Mult1SPQ250DC2627+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$1.208
$1.20
10
$0.9843
$9.84
50
$0.8305
$41.52
150
$0.7593
$113.89
500
$0.7183
$359.15
1,000
$0.6815
$681.50
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Current-IEC
8A
Voltage - UL
300 V
Operating Temperature
-
Header Orientation
-
Number of Levels
1
Plug Wire Entry
180°
Termination Style
Screw - Rising Cage Clamp
Wire Gauge or Range - AWG
14-30 AWG
Wire Gauge or Range - mm²
0.14-1.5mm²
Wire Strip Length
7mm
Current-UL
8 A
Voltage - IEC
320 V
Color
Green
Contact Material
-
Contact Mating Finish
Tin
Housing Material
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Packaging
Bulk
Contact Tail Length
-
Insulation Height
0.437" (11.10mm)
Pitch
0.150" (3.81mm)
Positions Per Level
3
Ingress Protection
-
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Features
-
Mounting Type
Free Hanging (In-Line)
Number of Positions
3
Rid
260530
Screw Size
M2
Series
COMBICON MC
Torque-Screw
0.22-0.25 Nm (1.9-2.2 Lb-In)

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

For the PHOENIX CONTACT 1803581, check that the panel design supports a 3-position, 3.81 mm pitch plug component with screw connection and the required mating interface. Electrical review should cover 8 A nominal current, 160 V nominal voltage, 320 V rated voltage for category II/2, and UL ratings of 300 V and 8 A where applicable. Wiring review should confirm conductor size, 7 mm strip length, and 0.22 Nm to 0.25 Nm screw torque.
