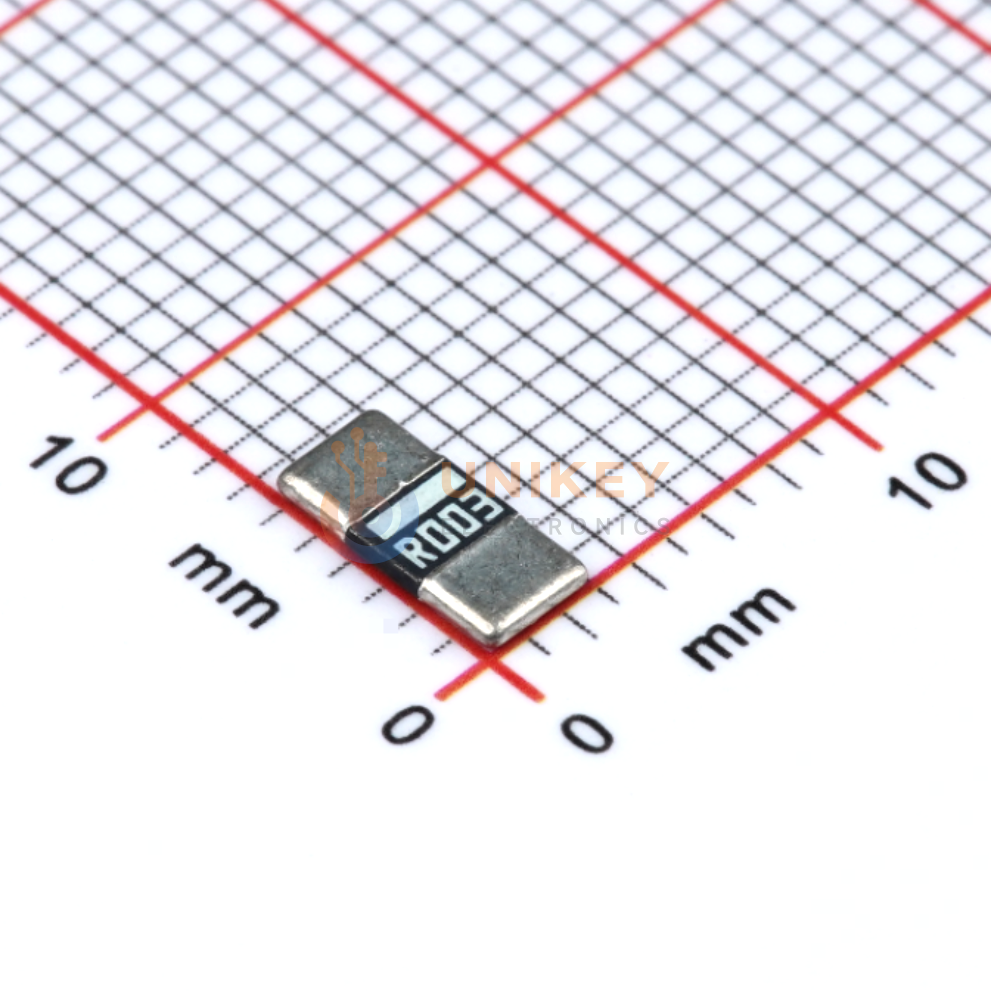

Images are for reference only
PA2512FKF070R003E
Chip Resistor 3mΩ ±1% 1W ±100ppm/°C 2512 SMD 6.35mm × 3.18mm × 880μm
Other Names:PA2512FKF070R003E
Manufacturer:YAGEO
Manufacturer Part:PA2512FKF070R003E
Datasheet:YAGEO PA2512FKF070R003E Datasheet (PDF)
Email Document
In Stock
17,913 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.0649
Ext. Price (USD)
$0.32
Total price$0.32
MOQ5Mult5SPQ4,000DC2603+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0649
$0.06
4,000
$0.0608
$243.20
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Power (Watts) | 1W |
| Failure Rate | - |
| Operating Temperature | -55°C ~ 170°C |
| Number of Terminations | 2 |
| Composition | Metal Element |
| Height-Seated (Max) | 0.035" (0.88mm) |
| Package/Case | 2512 (6432 Metric) |
| Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Temperature Coefficient | ±100ppm/°C |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Ratings | AEC-Q200 |
| Resistance | 3 mOhms |
| Rid | 5138657 |
| Series | PA_E |
| Supplier Device Package | 2512 |
| Tolerance | ±1% |
Frequently Asked Questions (FAQs)
The YAGEO PA2512FKF070R003E belongs to the PA2512 range rated for -55°C to +170°C operation. The datasheet lists high-temperature exposure testing at 1,000 hours at 170±3ºC unpowered with a ±(1.0%+0.0005Ω) requirement. It also lists moisture resistance cycling and biased humidity testing at 1,000 hours, 85ºC/85% RH, 10% operating power, with a ±(0.5%+0.0005Ω) requirement. Final use should follow the datasheet derating guidance.
