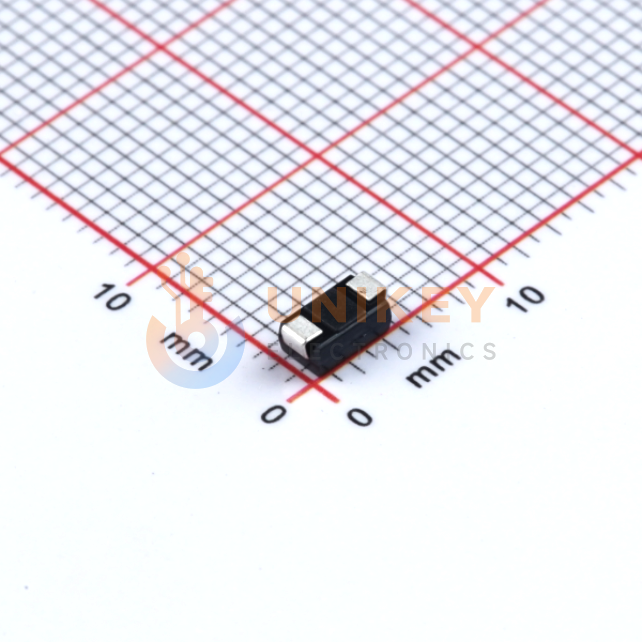

TWGMC SS34 image
Images are for reference only

SS34

40V 100A 500μA 40V 3A SMA(DO-214AC) 4.5mm × 2.7mm × 5.2mm

Other Names:SS34

Manufacturer:TWGMC

Manufacturer Part:SS34

Email Document
ECAD Model:

In Stock

11,002 In stock, ready to ship

Quantity

20

Unit Price (USD)

$0.0265

Ext. Price (USD)

$0.53

Total price$0.53
MOQ20Mult1SPQ2,000DC2615+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
20
$0.0265
$0.53
200
$0.0209
$4.18
600
$0.0184
$11.04
2,000
$0.013
$26.00
10,000
$0.0123
$123.00
20,000
$0.0118
$236.00
Volume discounts available for larger quantities.
Get Quote

Specifications

AttributeValue
Category Name
Datasheet
RoHS
Package / Case (Metric)
SMA(DO-214AC)
Mounting Type
Application Level
Industrial
Product Status
On sale
SPM
Operating Temperature
-55℃~125℃
Length/Width/Height
4.5mm*2.7mm*5.2mm
Configuration
-
Forward Current
3A
Repetitive Peak Reverse Voltage (Vrrm)
40V
Reverse Current
500μA
Reverse Recovery Time
-
Surge Forward Current
100A
Reverse Voltage (Vr)
40V

Certifications

top50
9001
ilac
db
sme500

Frequently Asked Questions (FAQs)

The TWGMC SS34 is a surface-mount Schottky barrier rectifier in the DO-214AC/SMA package. According to the manufacturer datasheet, SS34 is part of the SS32 through SS3200 rectifier family and is specified with a 40 V maximum repetitive peak reverse voltage and 3.0 A average forward rectified current. The device is described as unipolar, using a metal-silicon junction and majority carrier conduction, with Pin 1 as cathode and Pin 2 as anode.
