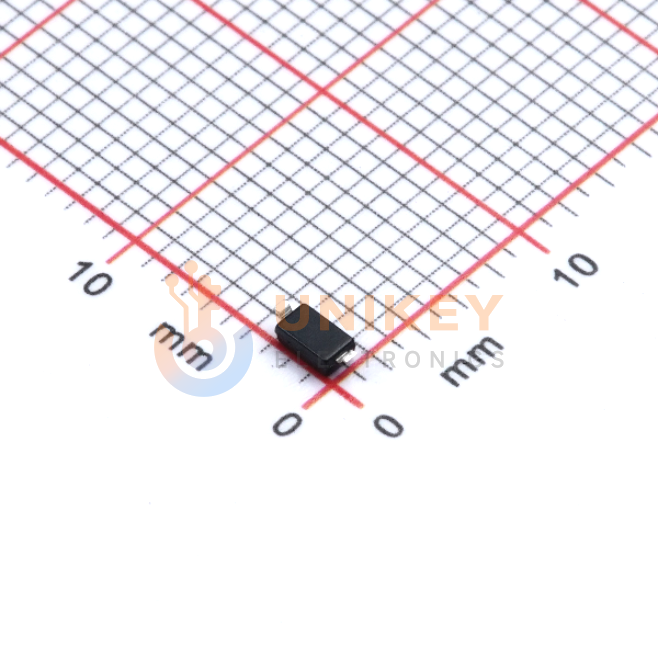

Images are for reference only
1N5819W
40V 1mA SOD-123 SMD
Other Names:1N5819W
Manufacturer:TECH PUBLIC
Manufacturer Part:1N5819W
Datasheet:TECH PUBLIC 1N5819W Datasheet (PDF)
Email Document
In Stock
43,493 In stock, ready to ship
Quantity
50
Unit Price (USD)
$0.0203
Ext. Price (USD)
$1.01
Total price$1.01
MOQ50Mult1SPQ3,000DC2623+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
50
$0.0203
$1.01
500
$0.0158
$7.90
3,000
$0.0127
$38.10
6,000
$0.0104
$62.40
24,000
$0.0092
$220.80
51,000
$0.0085
$433.50
Volume discounts available for larger quantities.
Get Quote Specifications
| Attribute | Value |
| Category Name | |
| Datasheet | |
| RoHS | |
| Package / Case (Metric) | SOD-123 |
| Mounting Type | SMD mount |
| Application Level | Automotive |
| Product Status | |
| SPM | |
| Operating Temperature | |
| Length/Width/Height | |
| Configuration | - |
| Forward Current | - |
| Repetitive Peak Reverse Voltage (Vrrm) | - |
| Reverse Current | 1mA |
| Reverse Recovery Time | - |
| Surge Forward Current | - |
| Reverse Voltage (Vr) | 40V |
Frequently Asked Questions (FAQs)
For the TECH PUBLIC 1N5819W, the manufacturer datasheet lists maximum forward voltage values of 0.450V at IF=0.5A, 0.600V at IF=1.0A, and 0.900V at IF=3.0A. These values should be checked against the actual load current because they affect voltage margin and power loss in the design. The datasheet also lists 500mW power dissipation and 250°C/W typical thermal resistance for package-level review.
