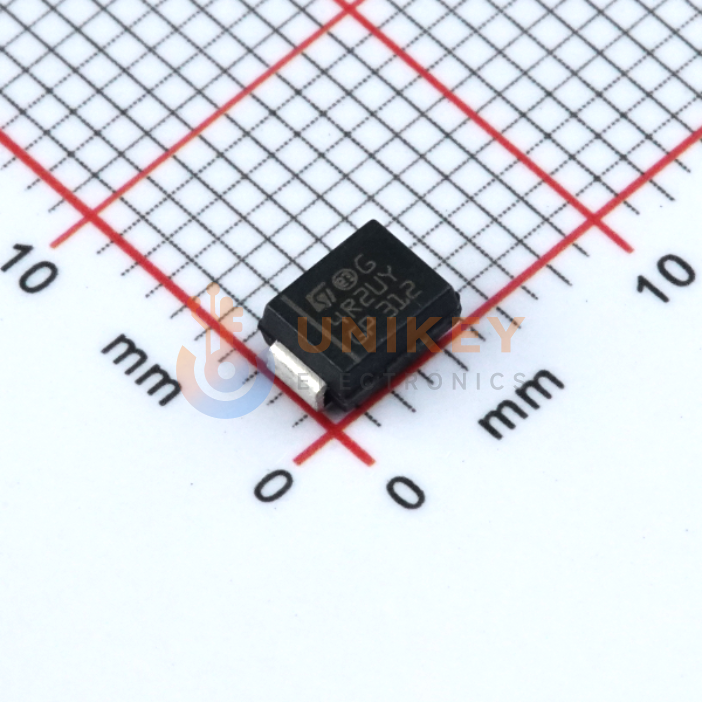

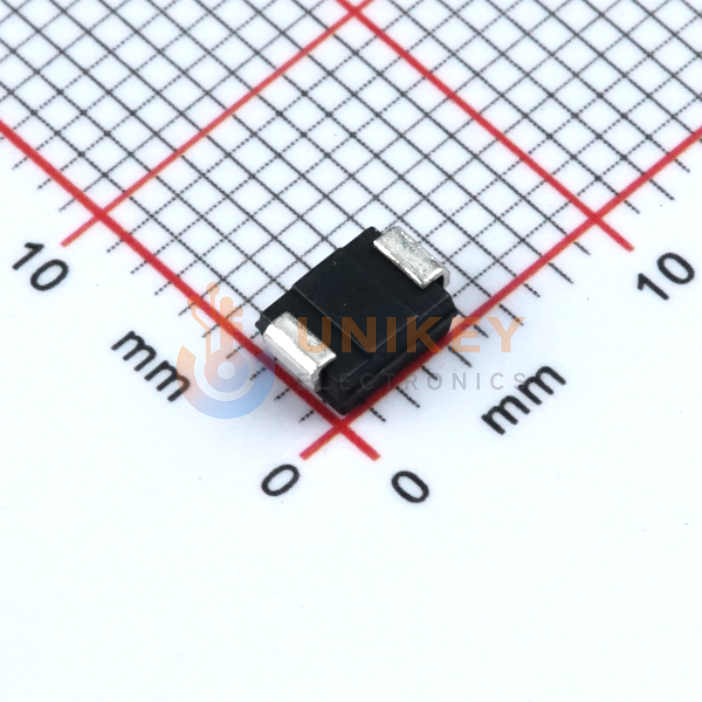

STMicroelectronics STTH4R02UY image
Images are for reference only

STTH4R02UY

STMicroelectronics Rectifier Diode, 4A, 200V, SMD, DO-214AA (SMB), 2-Pin

Other Names:STTH4R02UY

Manufacturer:STMicroelectronics

Manufacturer Part:STTH4R02UY

Email Document
ECAD Model:

In Stock

600 In stock, ready to ship

Quantity

5

Unit Price (USD)

$0.1697

Ext. Price (USD)

$0.84

Total price$0.84
MOQ5Mult5SPQ2,500DC2611+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1697
$0.84
50
$0.1531
$7.65
150
$0.1313
$19.69
500
$0.1194
$59.70
1,000
$0.1152
$115.20
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance @ Vr, F
-
Current - Average Rectified (Io)
4A
Current - Reverse Leakage @ Vr
3 µA @ 200 V
Reverse Recovery Time (trr)
30 ns
Voltage-DC Reverse (Vr) (Max)
200 V
Voltage - Forward (Vf) (Max) @ If
1.05 V @ 4 A
Operating Temperature - Junction
-40°C ~ 175°C
Package/Case
DO-214AA, SMB
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
STTH4
Grade
Automotive
Mounting Type
Surface Mount
Series
Q Automotive
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Supplier Device Package
SMB
Technology
Standard
