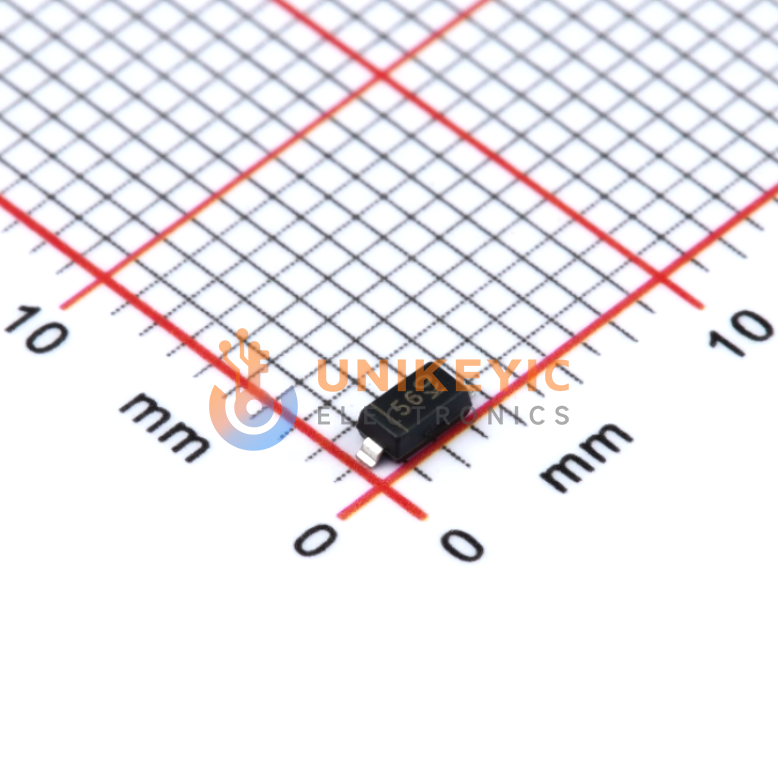

SBR0560S1-7
DiodesZetex Schottky Diode, 500mA, 60V, SMD, SOD-123, 2-Pin
Other Names:SBR0560S1-7
more
SBR0560S17
Manufacturer:DIODES
Manufacturer Part:SBR0560S1-7
Datasheet:DIODES SBR0560S1-7 Datasheet (PDF)
Email Document
In Stock
3 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.0991
Ext. Price (USD)
$0.09
Total price$0.09
MOQ1Mult1SPQ3,000DC23+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0991
$0.09
200
$0.0683
$13.66
1,500
$0.0622
$93.30
3,000
$0.0581
$174.30
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 500mA |
| Current - Reverse Leakage @ Vr | 100 µA @ 60 V |
| Voltage-DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 500 mA |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Package/Case | SOD-123 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | SBR0560 |
| Mounting Type | Surface Mount |
| Rid | 2075479 |
| Series | SBR® |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Supplier Device Package | SOD-123 |
| Technology | Super Barrier |
Frequently Asked Questions (FAQs)
The DIODES manufacturer datasheet for SBR0560S1-7 does not list named end applications. It identifies the device as a 0.5A SBR® Super Barrier Rectifier and specifies single-phase, half-wave, 60Hz maximum-rating conditions, with a note to derate current by 20% for capacitive loads. For application selection, engineers should confirm the 60 V reverse rating, 500 mA average rectified current, SOD-123 package, cathode-band polarity, and thermal derating against the target circuit.
