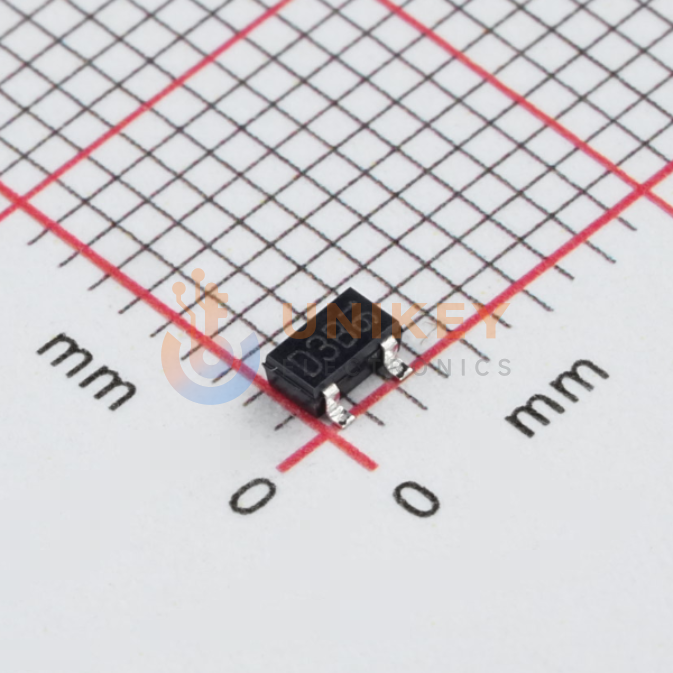

ROHM Semiconductor RB420DT146 image
Images are for reference only

RB420DT146

ROHM Schottky Diode, 100mA, 40V, SMD, SC-59/SOT-346, 3-Pin

Other Names:RB420D

more
RB420DT146
RB420D T146

Manufacturer:ROHM Semiconductor

Manufacturer Part:RB420DT146

Email Document
ECAD Model:

In Stock

1,997 In stock, ready to ship

Quantity

100

Unit Price (USD)

$0.0976

Ext. Price (USD)

$9.76

Total price$9.76
MOQ100Mult100SPQ3,000DC2638+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
100
$0.0976
$9.76
1,000
$0.0774
$77.40
5,000
$0.0641
$320.50
10,000
$0.0586
$586.00
30,000
$0.0547
$1,641.00
50,000
$0.0513
$2,565.00
Volume discounts available for larger quantities.
Get Quote

Specifications

Documents

Product Compliance

AttributeValue
Category Name
Manufacturer
Capacitance @ Vr, F
6pF @ 10V, 1MHz
Current - Average Rectified (Io)
100mA
Current - Reverse Leakage @ Vr
1 µA @ 10 V
Voltage-DC Reverse (Vr) (Max)
40 V
Voltage - Forward (Vf) (Max) @ If
450 mV @ 10 mA
Operating Temperature - Junction
125°C (Max)
Package/Case
TO-236-3, SC-59, SOT-23-3
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Base Product Number
RB420
Mounting Type
Surface Mount
Rid
1801035
Series
-
Speed
Small Signal =< 200mA (Io), Any Speed
Supplier Device Package
SMD3
Technology
Schottky
