BAT54CW,115

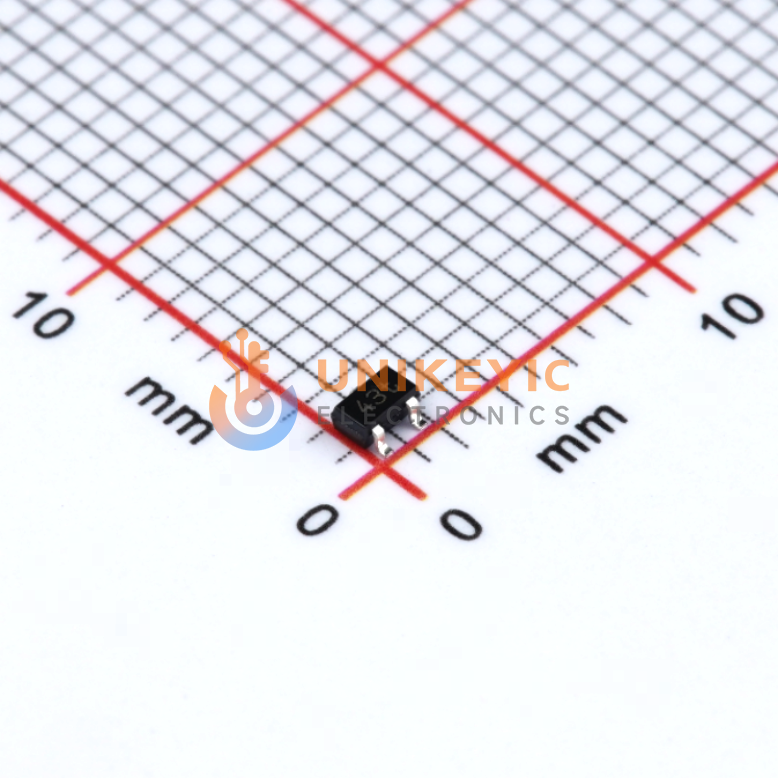

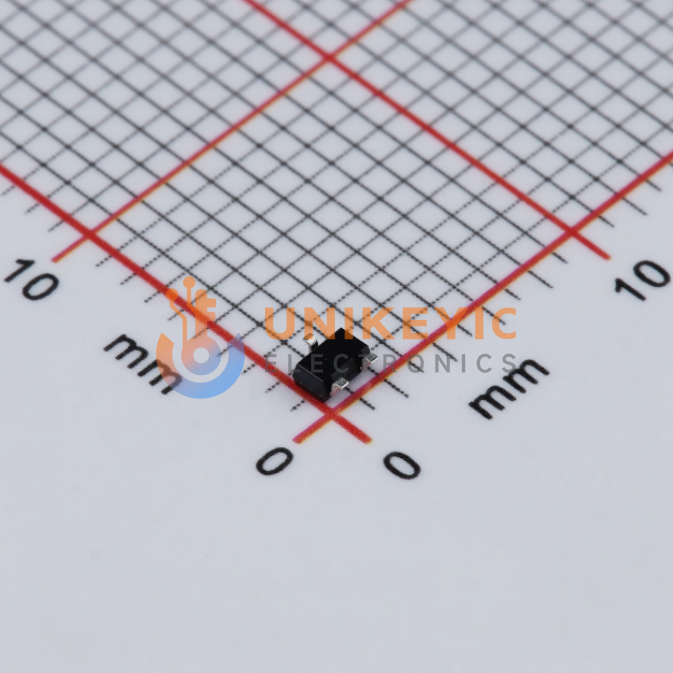

Nexperia Schottky Diode, 200mA, 30V, SMD, SOT-323 (SC-70), 3-Pin
Other Names:BAT54CW,115
Manufacturer:Nexperia
Manufacturer Part:BAT54CW,115
Datasheet:Nexperia BAT54CW,115 Datasheet (PDF)
Email Document
In Stock
1,397 In stock, ready to ship
Quantity
1
Unit Price (USD)
$0.0646
Ext. Price (USD)
$0.06
Total price$0.06
MOQ1Mult1SPQ3,000DC26+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
1
$0.0646
$0.06
200
$0.0415
$8.30
1,500
$0.0362
$54.30
3,000
$0.032
$96.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Reverse Recovery Time (trr) | 5 ns |
| Voltage-DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Operating Temperature - Junction | 150°C (Max) |
| Diode Configuration | 1 Pair Common Cathode |
| Package/Case | SC-70, SOT-323 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | BAT54 |
| Mounting Type | Surface Mount |
| Rid | 763217 |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Supplier Device Package | SOT-323 |
| Technology | Schottky |
