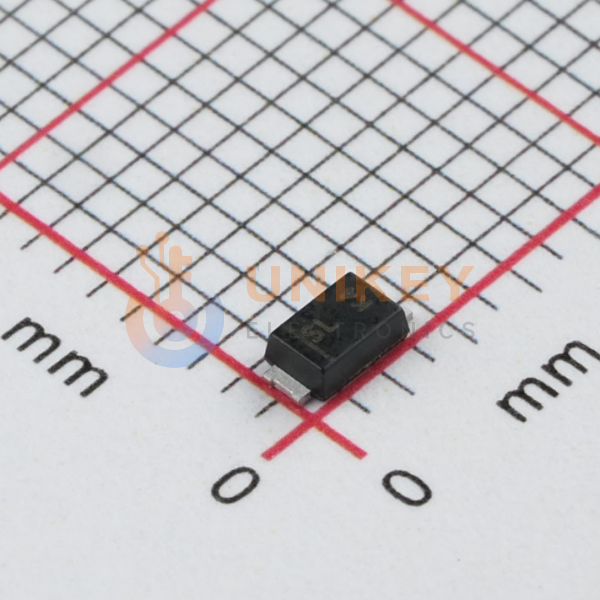

Images are for reference only
1N5819HW1-7-F
DiodesZetex Schottky Diode, 1A, 40V, SMD, SOD-123F, 2-Pin
Other Names:1N5819HW17F
more
1N5819HW1-7-F
Manufacturer:DIODES
Manufacturer Part:1N5819HW1-7-F
Datasheet:DIODES 1N5819HW1-7-F Datasheet (PDF)
Email Document
In Stock
7,491 In stock, ready to ship
Quantity
5
Unit Price (USD)
$0.1813
Ext. Price (USD)
$0.90
Total price$0.90
MOQ5Mult1SPQ3,000DC2614+
Pricing (USD)
QUANTITYUNIT PRICE (USD)EXT PRICE (USD)
5
$0.1813
$0.90
50
$0.1421
$7.10
150
$0.1255
$18.82
500
$0.1048
$52.40
3,000
$0.0956
$286.80
6,000
$0.09
$540.00
Volume discounts available for larger quantities.
Get Quote Specifications
Documents
Product Compliance
| Attribute | Value |
| Category Name | |
| Manufacturer | |
| Capacitance @ Vr, F | 30pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
| Reverse Recovery Time (trr) | 15 ns |
| Voltage-DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 510 mV @ 1 A |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Package/Case | SOD-123F |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Product Number | 1N5819 |
| Mounting Type | Surface Mount |
| Rid | 5801283 |
| Series | SBR® |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Supplier Device Package | SOD-123F |
| Technology | Super Barrier |
